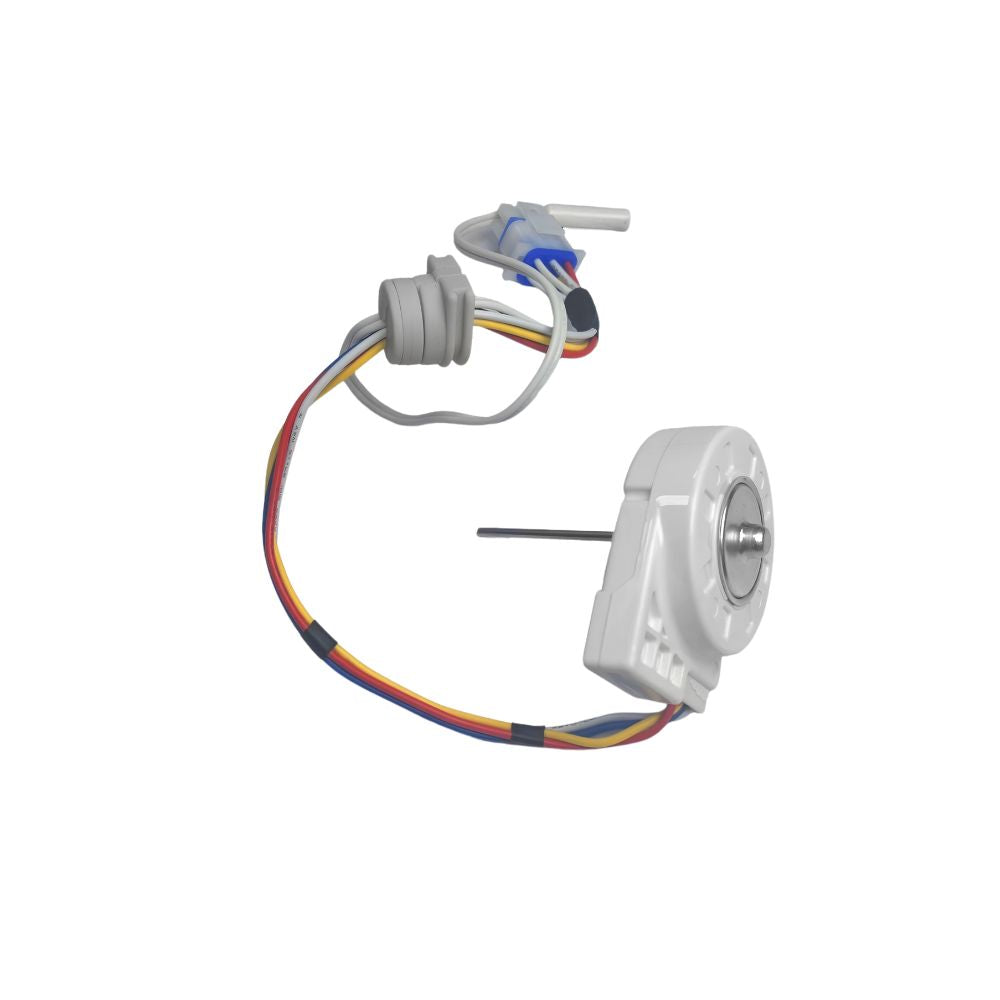

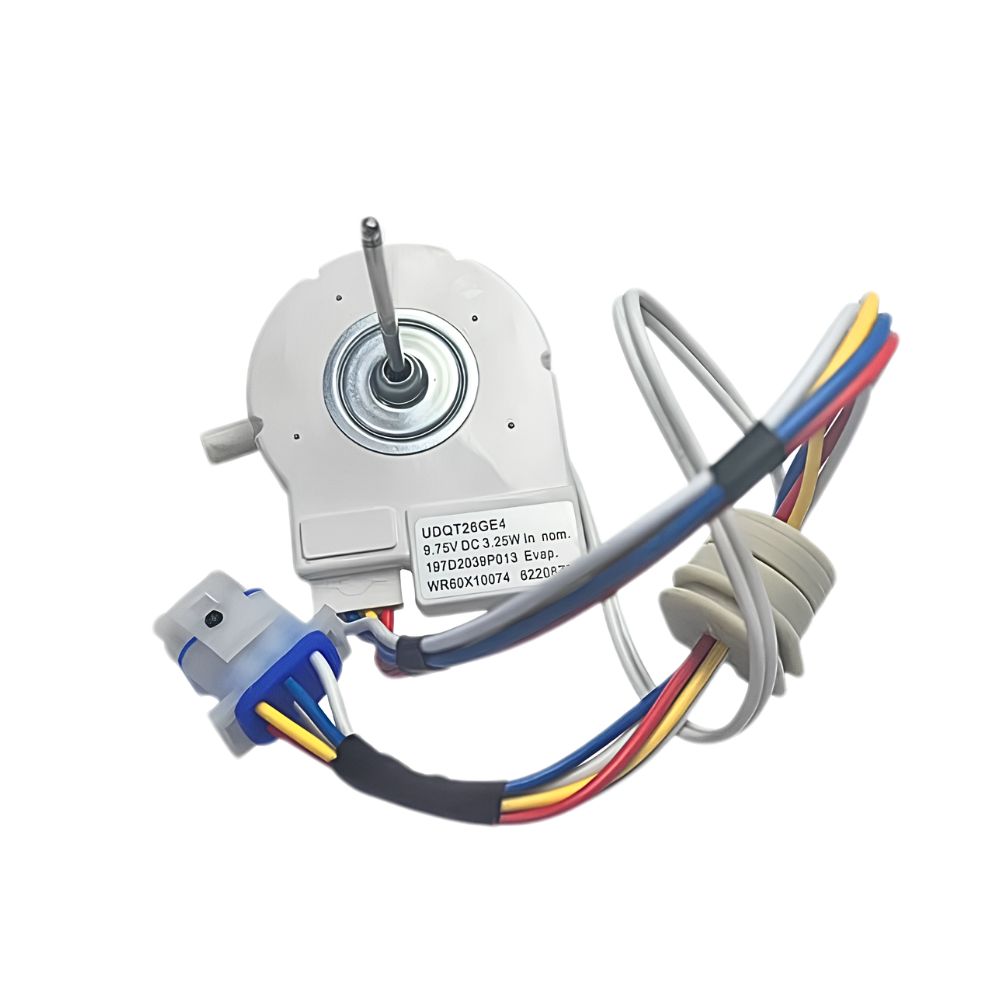

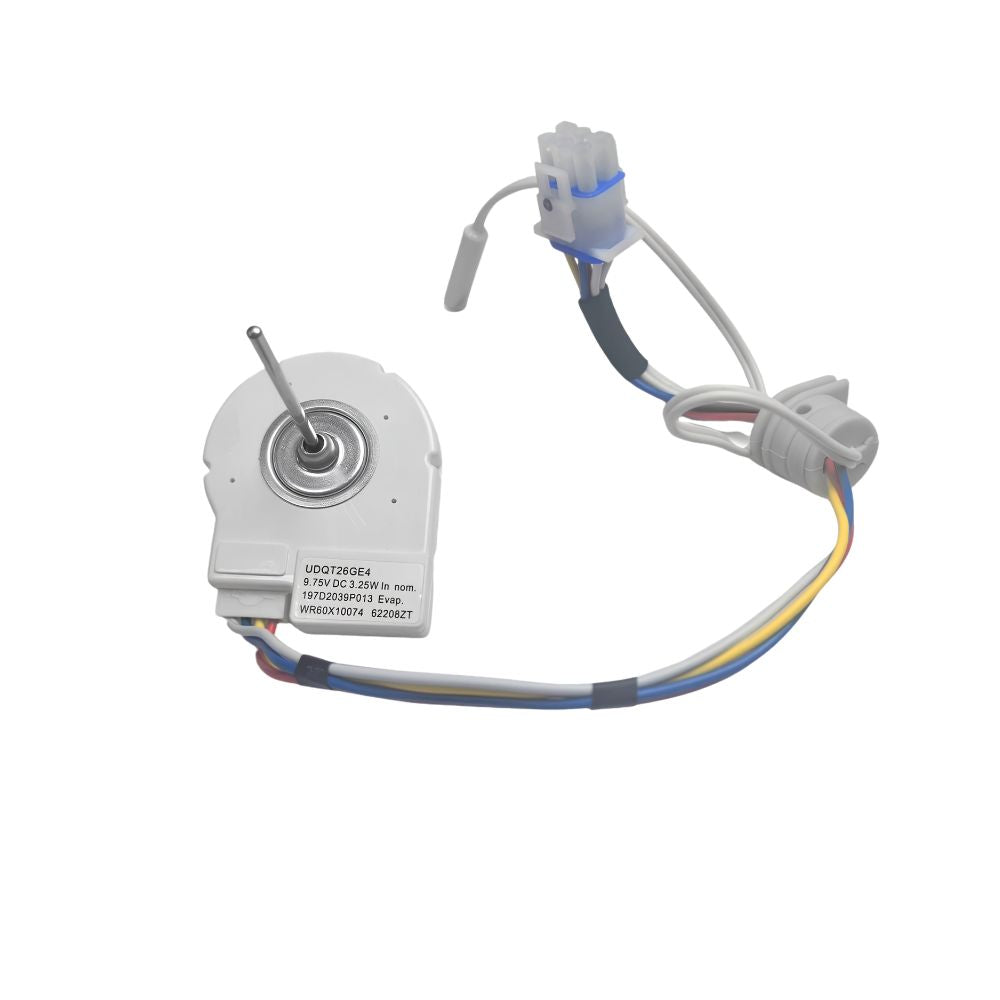

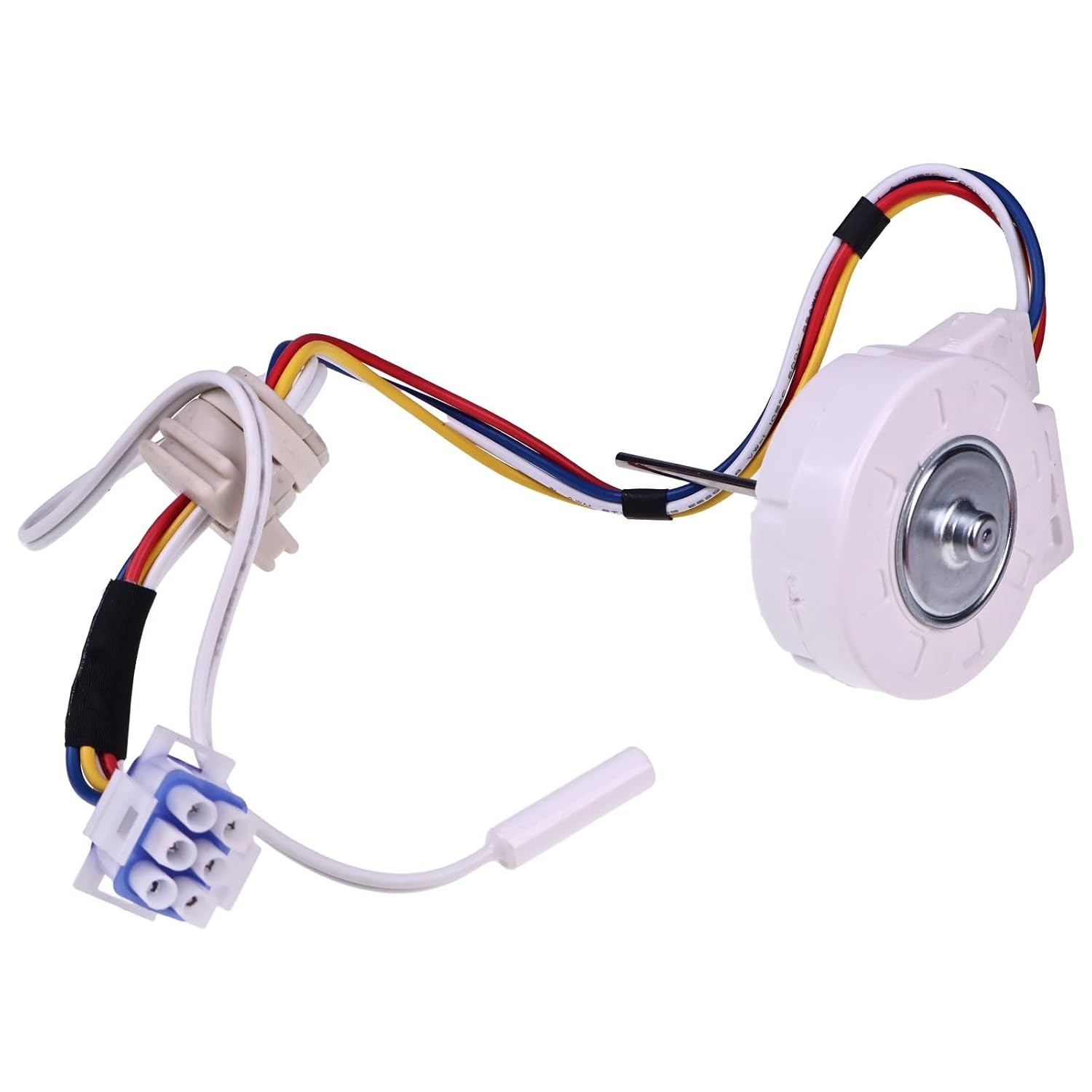

XPARTCO WR60X10074 Refrigerator Evaporator Fan Motor
- Sku:
- EXPWR60X10074
- Vendor:
- XPARTCO
Have a question?
XPARTCO WR60X10074 Refrigerator Evaporator Fan Motor
XPARTCO WR60X10074 Refrigerator Evaporator Fan Motor
The XPARTCO WR60X10074 is an aftermarket replacement evaporator fan motor with thermistor for GE and Hotpoint refrigerators. This motor is located at the back of the freezer and circulates air across the evaporator coils, which convert refrigerant into cooling capacity — the fan is what carries that cooled air into both the freezer and fresh food compartments. Bundled with this motor is a separate thermistor that snaps onto the top portion of the evaporator and sends temperature signals back to the main control board, letting it regulate cooling accurately.
Rated 9.75V DC, 3.25W — the same base motor used in our WR60X10185 listing, but this version ships with the thermistor included. GE's own guidance is direct on this point: the thermistor should be replaced at the same time as the evaporator fan, since the two are serviced together under this part number rather than sold and swapped independently. Common failure causes include worn motor bearings and general electrical wear. Symptoms include unusual noise from the freezer, a refrigerator or freezer section running too warm, or inconsistent temperatures overall. It directly replaces AP3191003, 914169, 197D4492G001, and 197D2039P013.
Quick Answer
The XPARTCO WR60X10074 Refrigerator Evaporator Fan Motor fixes GE and Hotpoint refrigerators with unusual noise from the freezer, a refrigerator or freezer section running too warm, or inconsistent cooling overall. 9.75V DC, 3.25W, includes thermistor. Replaces AP3191003, 914169, 197D4492G001, 197D2039P013. This is the motor-plus-thermistor version — if your old connector has no thermistor wire, you need our WR60X10185 listing instead; this is also a different assembly from our WR60X10318 side-by-side listing, which has the thermistor integrated into the motor's own harness rather than as a separate snap-on piece.
Common Problems This Part Fixes
- Unusual noise — humming, buzzing, or grinding — coming from the freezer
- Fresh food compartment or freezer running too warm
- Inconsistent or fluctuating refrigerator temperatures
- Refrigerator running constantly as it struggles to maintain temperature
- Fan motor that has gone silent after previously running normally
- Fan blade that doesn't spin freely, or doesn't spin at all, when checked by hand
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator evaporator fan motor directly replaces the following OEM and cross-reference part numbers:
WR60X10074, 197D4492G001, 914169, AH304658, AP3191003, AGE29122, PD00001062, EA304658, PS304658
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This evaporator fan motor is compatible with select GE and Hotpoint refrigerators, including model numbers such as DSS25PFMCCC.
Note — check your connector before ordering: This motor includes the thermistor. If your old motor's connector has no thermistor wire — a plain 4-wire harness with 2 empty pin slots on a 6-pin connector — you need our WR60X10185 listing instead (no thermistor). If your connector has a dedicated light connector, you need WR23X10467. This part is also a separate assembly from our WR60X10318 listing, a side-by-side platform motor with the thermistor built directly into its own 6-pin harness rather than snapping onto the evaporator as a separate piece. Even between similar GE thermistor-equipped motors, always verify your full model number, since GE support has confirmed these are not automatically interchangeable without checking your specific model. Contact our support team with your model number if you're unsure which motor your refrigerator needs.
Key Features
- Aftermarket replacement evaporator fan motor — circulates air across the evaporator coils to cool the freezer and fresh food compartments
- Includes a separate thermistor that snaps onto the top of the evaporator and reports temperature to the main control board
- Resolves "unusual noise," "running too warm," and "inconsistent cooling" symptoms caused by fan motor or thermistor failure
- Rated 9.75V DC, 3.25W
- Direct drop-in replacement matching the original mounting and blade fitment
- Replaces AP3191003, 914169, 197D4492G001, and 197D2039P013
- Compatible with GE and Hotpoint refrigerators
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number | WR60X10074 |
| OEM Part Number | WR60X10074 |
| Part Type | Refrigerator Evaporator Fan Motor with Thermistor |
| Condition | Aftermarket Replacement |
| Brand | GE |
| Location | Back of the freezer, over the evaporator coils |
| Voltage | 9.75V DC |
| Wattage | 3.25 W |
| Includes Thermistor | Yes — snaps onto the top of the evaporator, sold together |
| Weight | Approx. 0.6 lb. |
| Quantity | 1 fan motor + 1 thermistor |
| Compatible Brands | GE, Hotpoint |
Installation Notes
Frequently Asked Questions
Do I really need to replace the thermistor if only the fan motor stopped working?
GE's official guidance is yes — the thermistor should be replaced along with the evaporator fan whenever this part number is used, since they're sold and serviced together as a pair rather than as fully independent components. That said, some technicians have successfully replaced just the fan motor alone in certain situations; if you want to attempt a fan-only swap, test your existing thermistor first and keep in mind this isn't the manufacturer-recommended approach.
How do I know if I need this motor or the WR60X10185 (no thermistor) version?
Look at your old motor's electrical connector before ordering. This WR60X10074 motor comes with a thermistor — if your connector has a thermistor wire running to it, this is the correct part. If your connector is a plain 4-wire harness with no thermistor wire and two empty pin positions on a 6-pin plug, you need our WR60X10185 listing instead, which does not include a thermistor.
My fridge isn't cooling but the fan seems to spin fine. Could it still be this part?
Yes — if the fan is spinning but the fridge still isn't cooling properly, the thermistor half of this assembly is worth suspecting, since a faulty thermistor can send incorrect temperature readings to the control board even while the fan motor itself works fine. One customer confirmed their control board and thermistor initially "checked good" before eventually tracing a similar symptom to fan circulation — so it's worth testing both components rather than assuming the fan alone is the issue.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the 9.75V, 3.25W motor design, blade fitment, and thermistor function of the original WR60X10074 evaporator fan motor and thermistor used in compatible GE and Hotpoint refrigerators.
