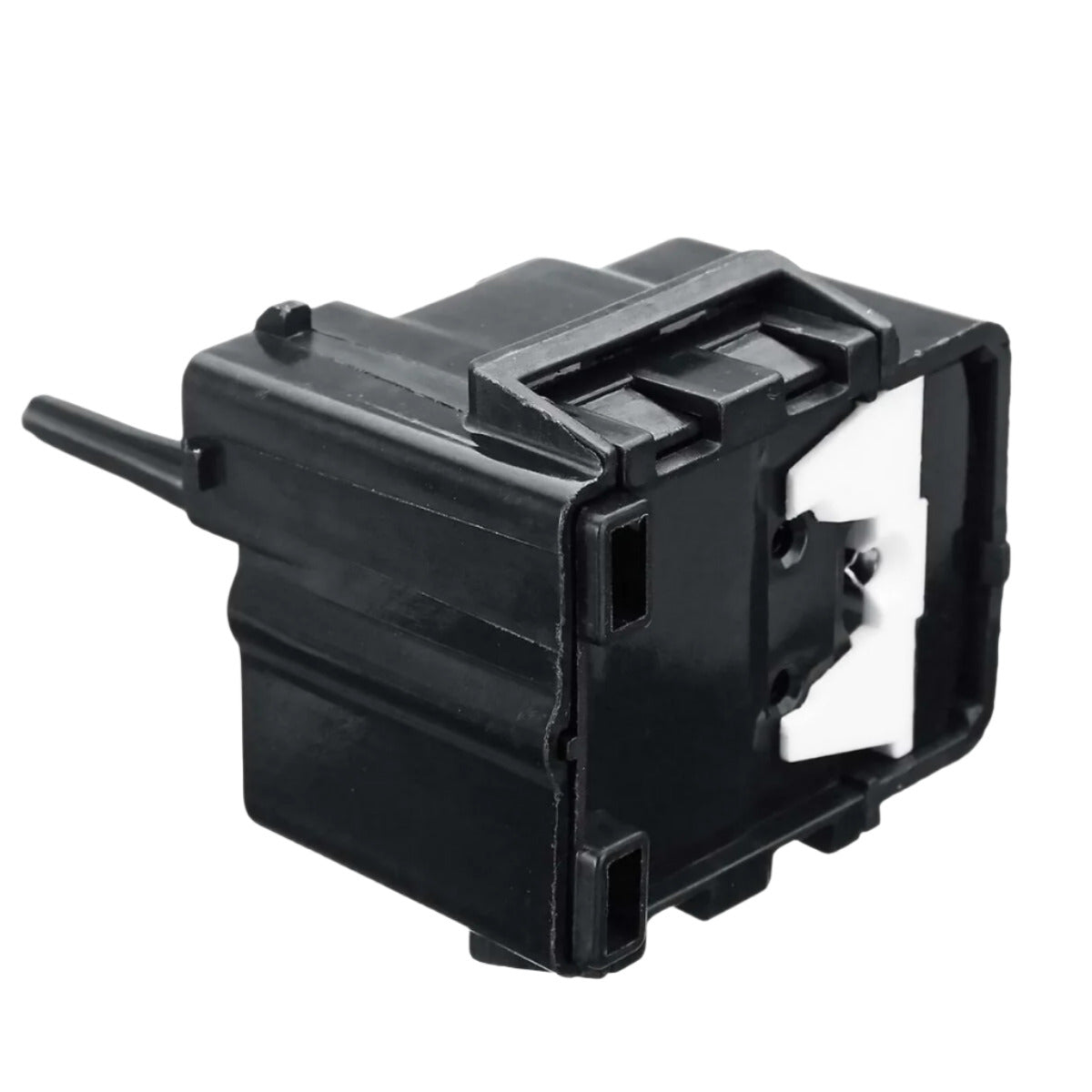

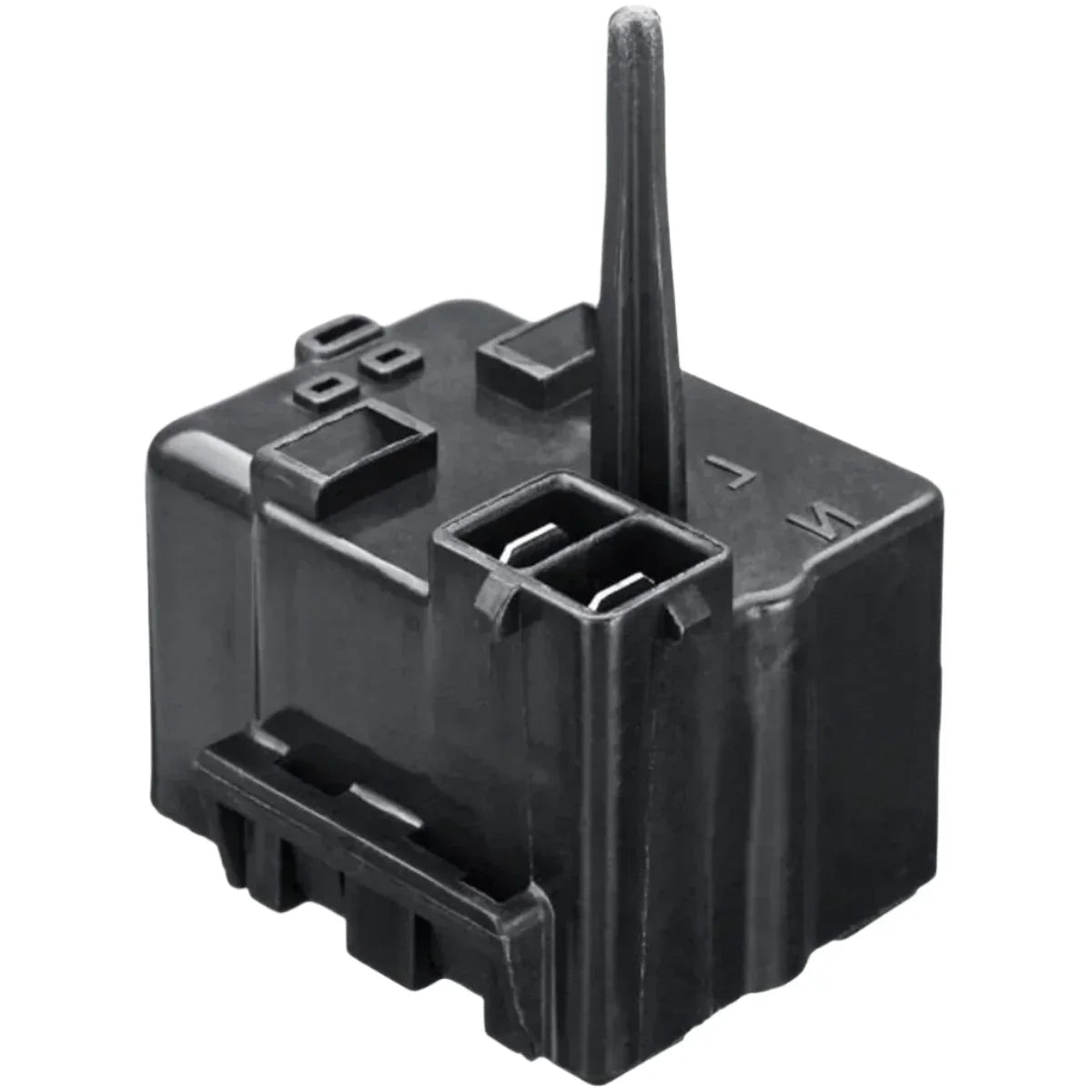

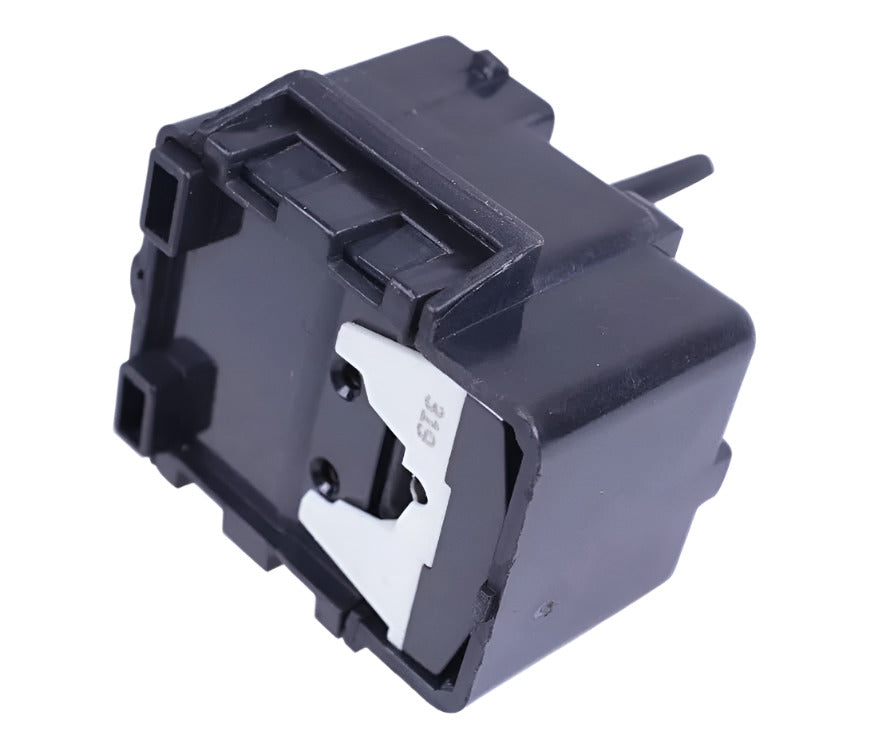

XPARTCO WR07X10097 Refrigerator Compressor Overload Relay

XPARTCO WR07X10097 Refrigerator Compressor Overload Relay – Compatible with GE, Hotpoint, and Kenmore Refrigerators

Product Description

Restore proper compressor protection and reliable cooling with the XPARTCO WR07X10097 Refrigerator Compressor Overload Relay. This Start Device Assembly is a replacement part for Specific refrigerator models. It is a kit that includes the start relay and overload, both of which are crucial components for the proper operation of the compressor. The start relay is responsible for initiating the compressor's operation by providing an electrical boost to start the motor. The overload, on the other hand, acts as a protective device. It monitors the current flow and protects the compressor from overheating or electrical overload.

Replaces Part Numbers

WR07X10097, 1265640, AH1766101, EA1766101, PD00008007, EAP1766101, AP4300623, PS1766101.

Compatibility

This replacement compressor overload relay fits select GE, Hotpoint, and Kenmore refrigerators.

Example compatible models include (but are not limited to):
GE GTS18HGTHWW, GTS22KGNRWW
Hotpoint HSS25GFTSA
Kenmore 363.9557710

Always verify your refrigerator’s model number before ordering.
Contact our support team if you’re unsure.

✅ Key Features

• 🔄 Aftermarket Replacement – Designed to match OEM electrical protection performance

• 🔌 Compressor Safety Protection – Prevents overheating and electrical overload damage

• 🔇 Reduces Clicking Issues – Helps resolve start-up clicking or compressor cycling

• 💰 Cost-Effective Solution – Reliable alternative to OEM parts

• 🛡️ Fixes Common Issues – Solves compressor not starting, intermittent cooling, or shutdowns

📐 Product Specification

• Part Number: WR07X10097

• Component Type: Refrigerator Compressor Overload Relay

• Material: Heat-resistant housing with internal thermal protection

• Mounting: Direct-fit on compressor terminals

• Function: Overcurrent and overheat protection

• Compliance: Built to OEM-equivalent quality standards (not OEM)

🛠️ Installation Notes

Tools Needed: Phillips screwdriver, needle-nose pliers

⚠️ Safety First: Unplug the refrigerator before servicing. Compressor components may be hot—allow time to cool.

Steps:

1. Disconnect power and remove the rear lower access panel.

2. Locate the overload relay attached to the compressor terminals.

3. Carefully disconnect the old relay.

4. Install the new XPARTCO WR07X10097 overload relay securely.

5. Reinstall the access panel and restore power.

6. Allow several minutes for compressor startup.

⏱️ Time Required: 10–15 minutes

📦 Shop With Confidence

• 🚚 Free Shipping on All Orders

• ⚙️ Trusted Appliance Parts Supplier

• 🔄 30-Day Return Policy

Protect your refrigerator compressor and restore reliable cooling — Add to Cart Now for a dependable, budget-friendly repair!
