XPARTCO WH12X955 Washer Lid Switch
FREE SHIPPING TO ALL 48 CONTIGUOUS STATES
Free standard shipping at checkout.
CHECK YOUR MODEL COMPATIBILITY
Enter your appliance model number to check if this part is listed as compatible.
Need help finding your model number?

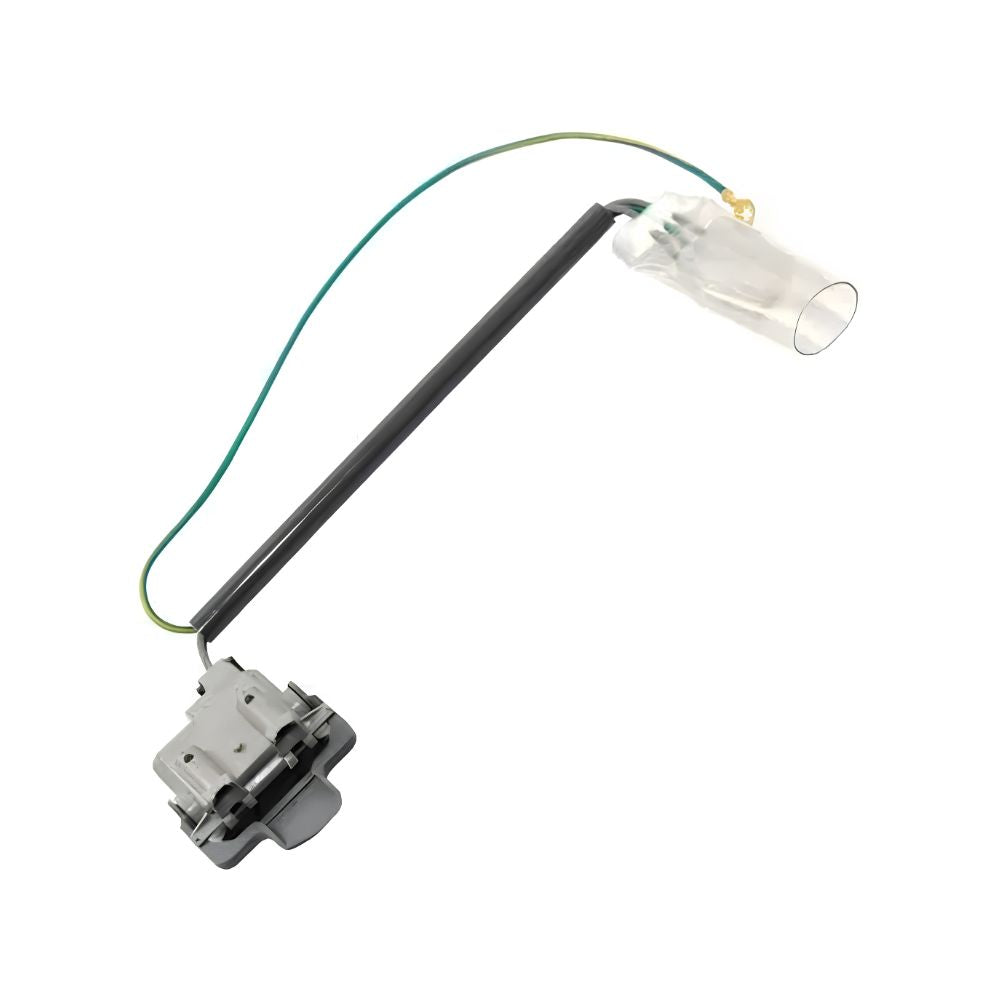

XPARTCO WH12X955 Washer Lid Switch
Washer that won't spin or drain? The XPARTCO WH12X955 is an aftermarket replacement lid switch assembly for GE, Hotpoint, RCA, and Kenmore GE-built washer/dryer combo units, including GE spacemaker and stacked laundry models. The lid switch is a safety component mounted inside the washer lid. It senses whether the lid is open or closed and tells the control when it's safe to start, agitate, and spin. With the lid closed, the switch is activated and the washer can run its full cycle. When the switch fails, the washer typically won't spin or drain, may not start or agitate at all, and leaves clothes sitting in water.

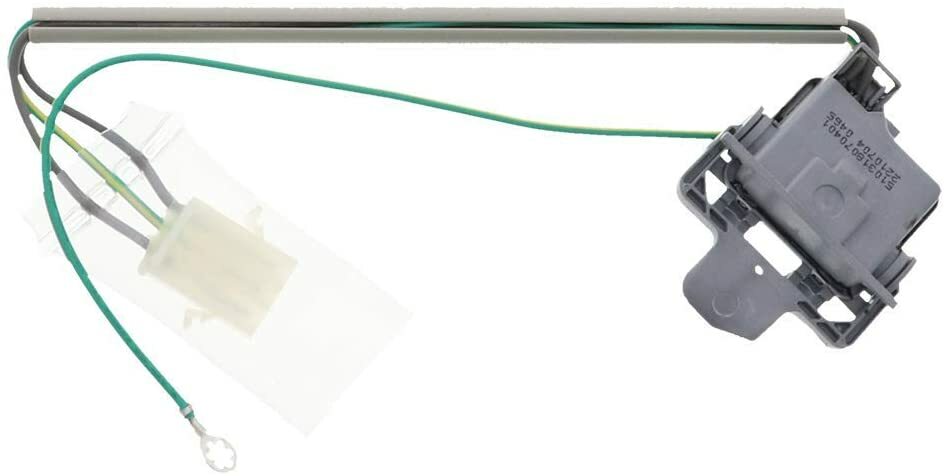

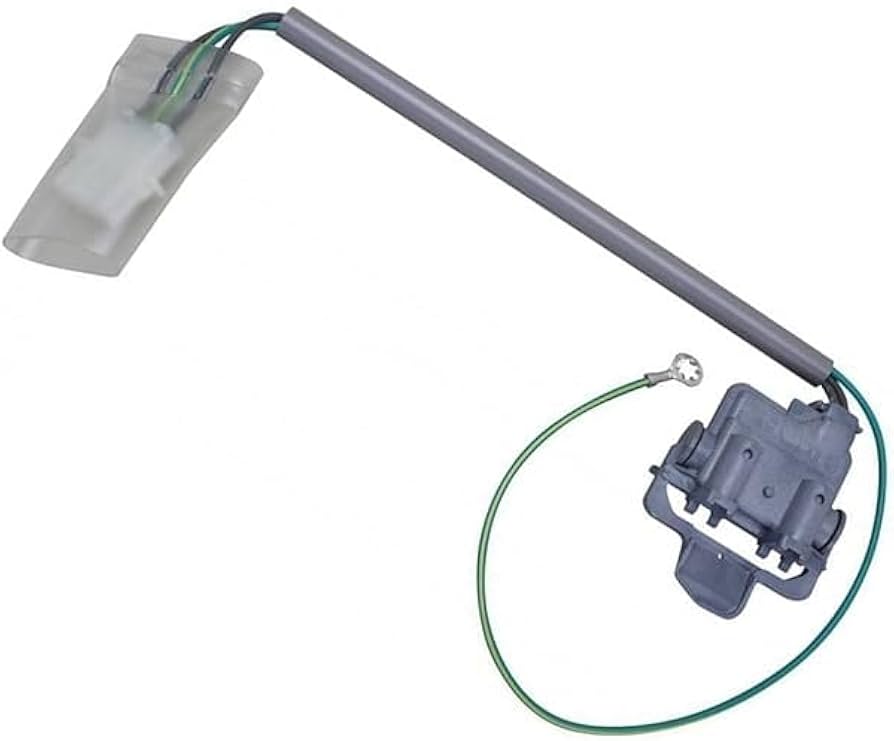

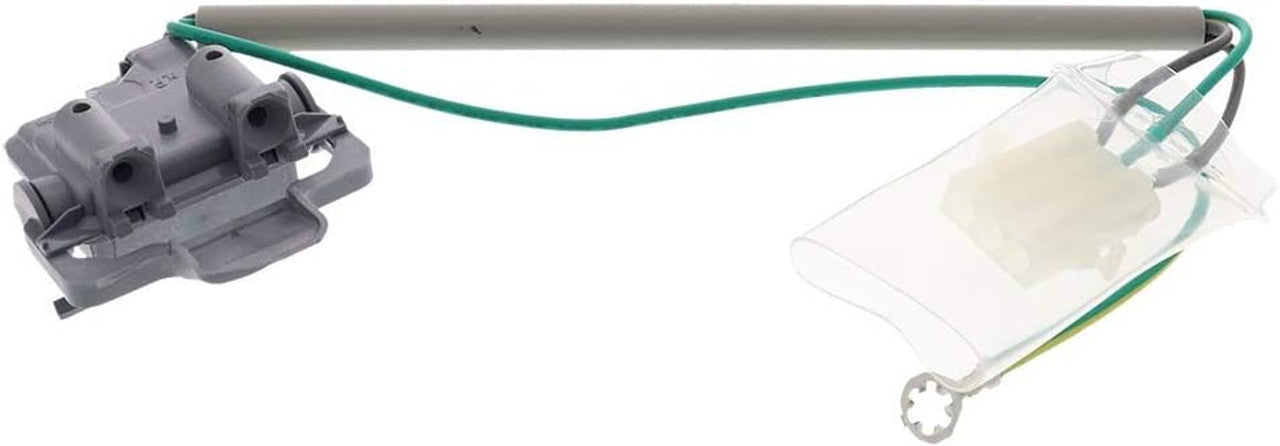

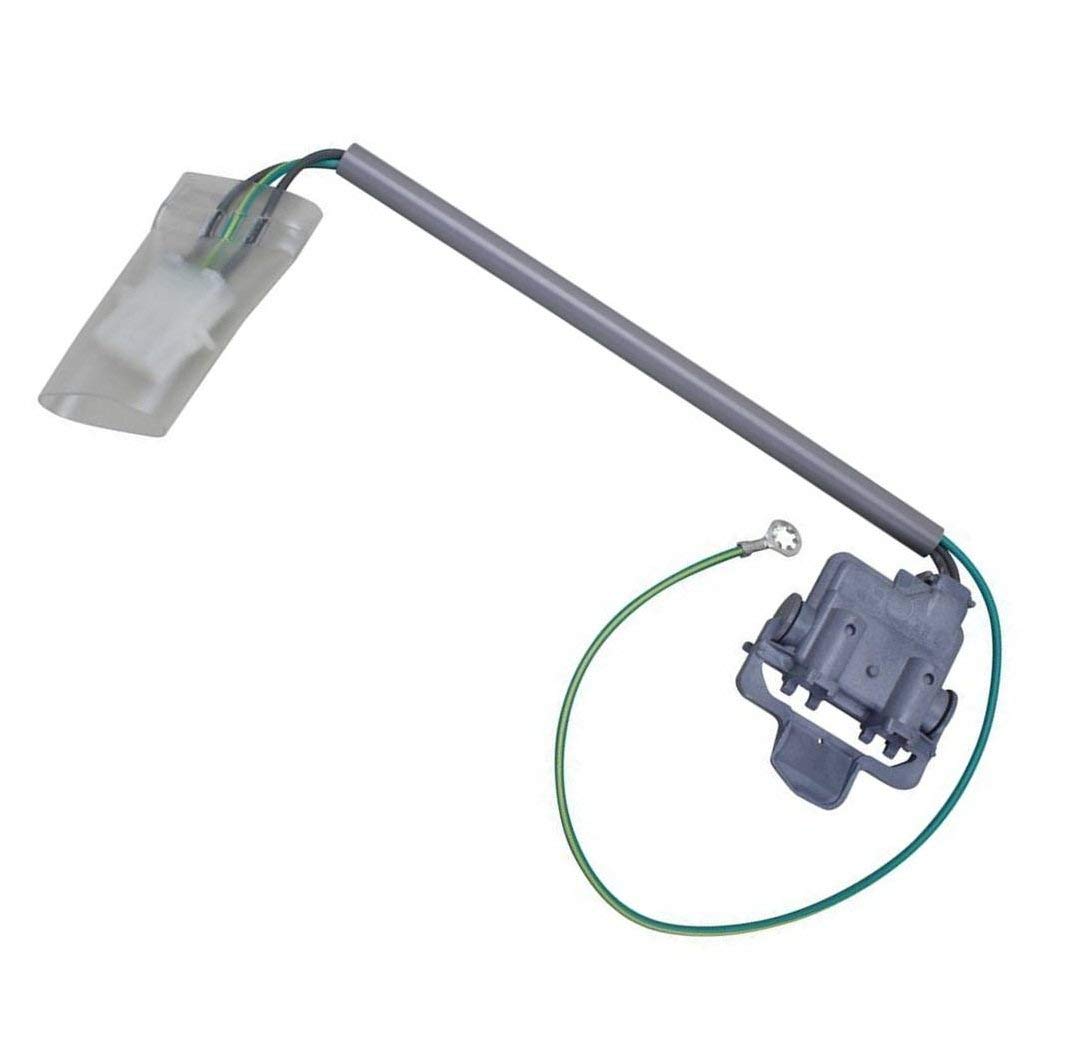

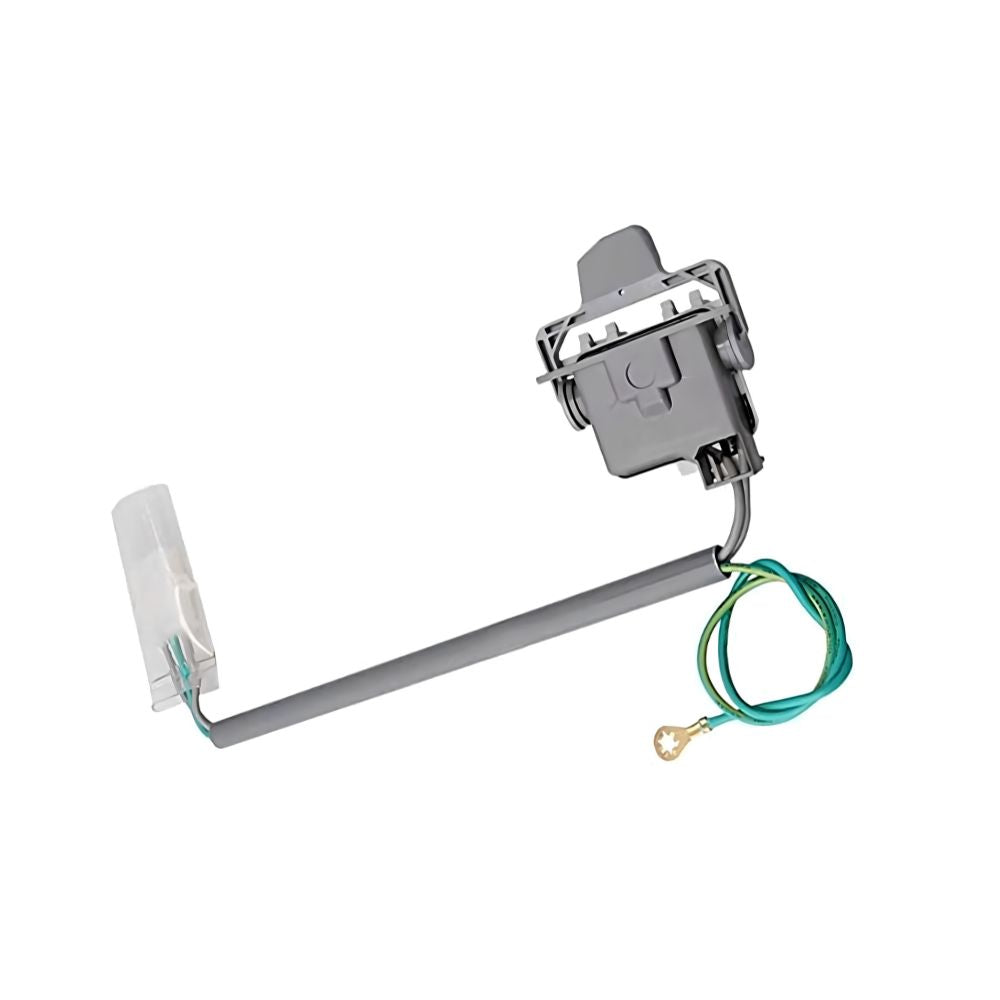

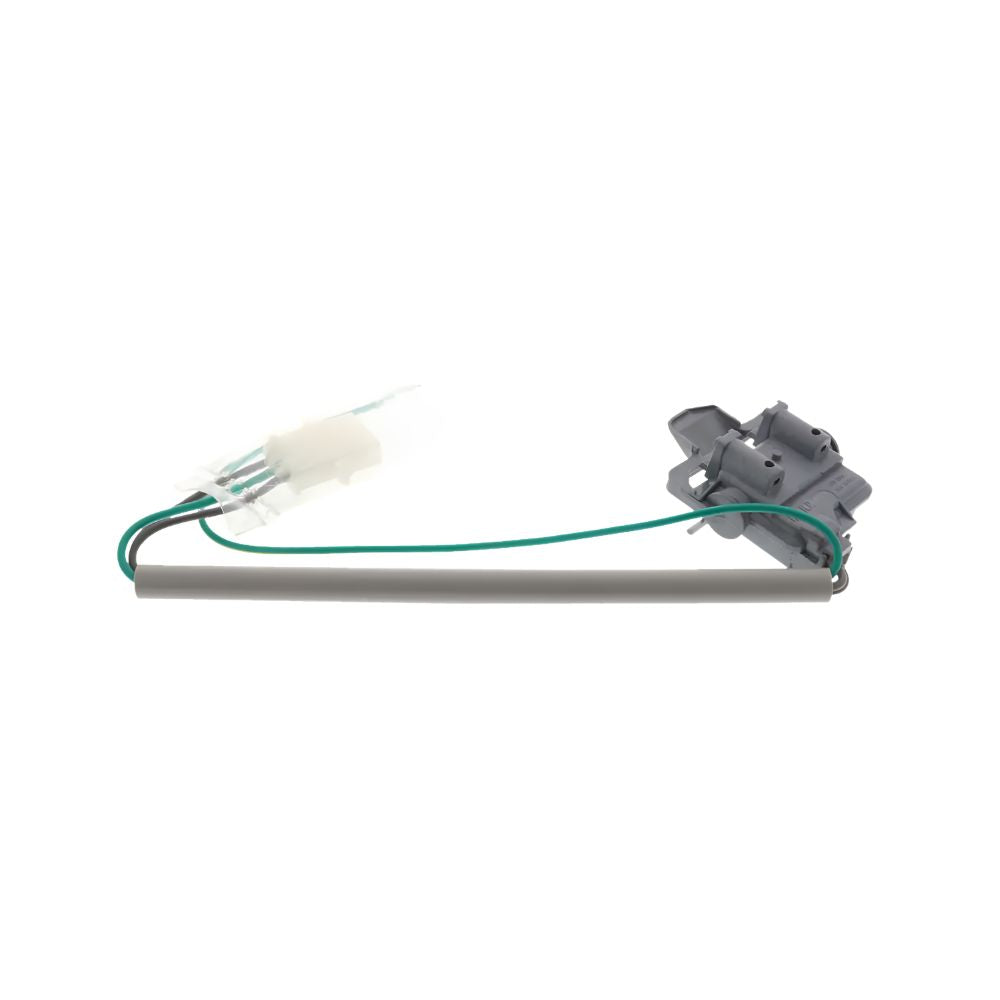

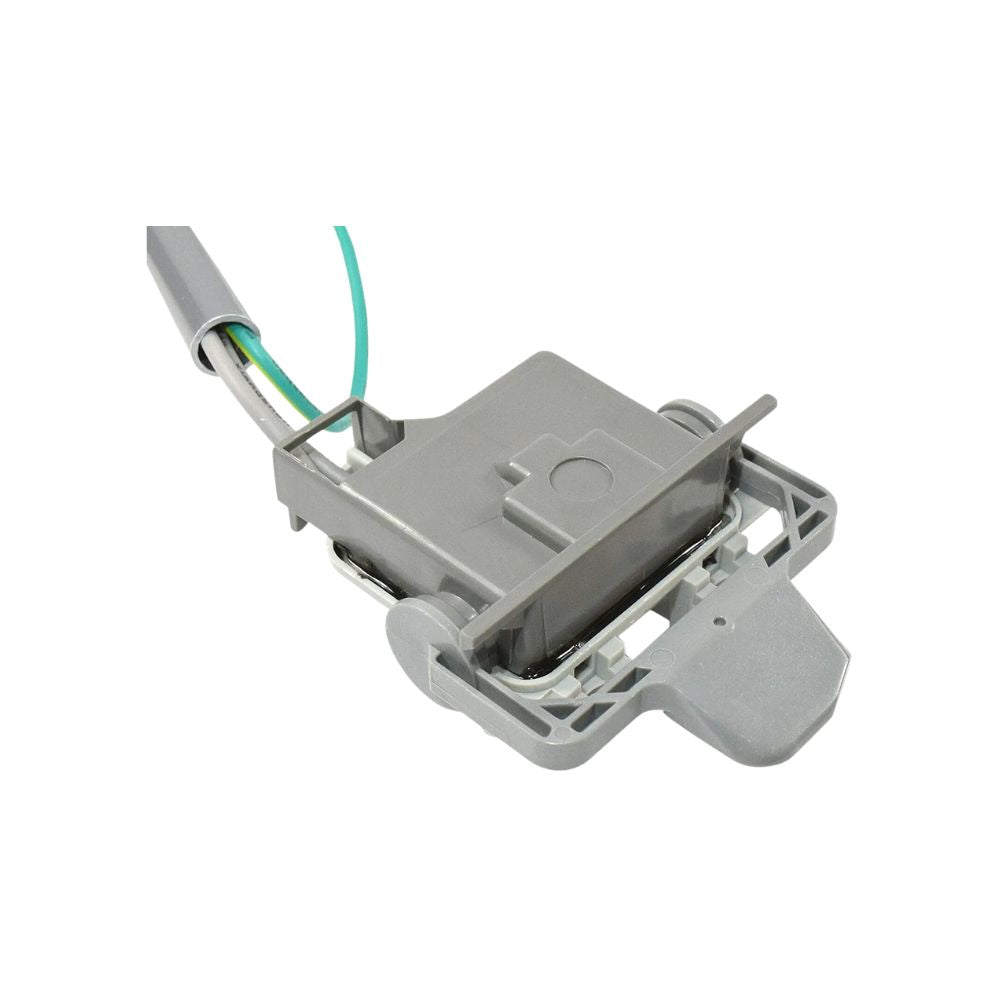

This is a complete lid switch assembly with an integrated wiring harness and ground wire. Dimensions: 1-1/4" H x 2-1/4" W x 16" D (the 16" depth is the wire harness that routes from the lid down into the washer cabinet). It directly replaces WH12X955, WH12X0955, AP2045786, 278666, AH270219, EA270219, PS270219, and OEM6137363. Installation means getting at the lid itself — the switch mounts inside the lid with two screws plus a separate ground wire screw. Installs in 30–45 minutes with basic hand tools.
Quick Answer
Choose the XPARTCO WH12X955 Washer Lid Switch for GE, Hotpoint, RCA, and Kenmore GE-built washer/dryer combo units where the washer won't spin, won't drain, won't start, or won't agitate — leaving clothes sitting in water. Complete lid switch assembly with wiring harness and ground wire. Dimensions 1-1/4"H x 2-1/4"W x 16"D. Replaces WH12X0955, AP2045786, 278666, AH270219, EA270219, PS270219, OEM6137363. Classic symptom: washer won't spin or drain.
Common Problems This Part Fixes
- Washer won't spin — the classic lid switch failure symptom
- Washer won't drain — clothes left sitting in water at the end of the cycle
- Washer won't start at all — control not detecting a closed lid
- Washer won't agitate — the machine won't advance past the fill phase
- Machine doesn't recognize the lid is closed even when it is
- Lid switch body cracked from the lid being closed hard over time
- Internal switch contacts worn out — no longer signaling that the lid is closed
- Intermittent operation — washer sometimes spins, sometimes doesn't, depending on lid position
- Broken or frayed lid switch wiring harness
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer lid switch directly replaces the following OEM and cross-reference part numbers:
WH12X955, 278666, AGE25981, AH270219, EA270219, PD00030733, EAP270219, PS270219, AP2045786, WH12X0955, EXPWH12X955
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This lid switch assembly is compatible with select washer/dryer combo units (spacemaker and stacked laundry models) from the following brands:
- GE washer/dryer combo units — spacemaker and stacked laundry center models
- GE Spacemaker washers — select models
- Hotpoint washer/dryer combo units (select GE-built models)
- RCA washer/dryer combo units (select GE-built models)
- Kenmore / Sears washer/dryer combo units (select GE-built models)
Note: This lid switch is specific to GE washer/dryer combo and spacemaker units — it is NOT the same switch used on standalone GE top-load washers, which use different lid switch part numbers. Always search by your appliance model number to confirm this part fits before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Lid switch safety assembly — detects whether the lid is open or closed and allows the washer to start, agitate, spin, and drain when the lid is shut
- Resolves the classic "won't spin" and "won't drain" symptoms of lid switch failure
- Complete assembly with integrated wiring harness and ground wire
- Dimensions: 1-1/4" H x 2-1/4" W x 16" D (the 16" depth is the wiring harness)
- Mounts inside the washer lid with two screws plus a separate ground wire screw
- Snap-in switch design with connector — no wiring modifications required
- Replaces WH12X0955, AP2045786, 278666, AH270219, EA270219, PS270219, and OEM6137363
- Compatible with GE, Hotpoint, RCA, and Kenmore GE-built washer/dryer combo and spacemaker units
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY-friendly repair — installs in 30–45 minutes with basic hand tools
Product Specifications
| Part Number | WH12X955 |
| Part Type | Washer Lid Switch Assembly |
| Condition | Aftermarket Replacement |
| Application | Washer/Dryer Combo & Spacemaker Units (GE platform) |
| Dimensions | 1-1/4" H x 2-1/4" W x 16" D |
| Includes | Lid switch, wiring harness, ground wire |
| Function | Prevents washer spin/agitation when lid is open |
| Location | Inside the washer lid |
| Mounting | Two screws + separate ground wire screw |
| Compatible Brands | GE, Hotpoint, RCA, Kenmore (GE-built) |
Installation Notes
Frequently Asked Questions
My washer won't spin or drain — is the lid switch the cause?
Quite possibly — it's the most common and most telling symptom of a failed lid switch. The switch is a safety interlock that stops the drum from spinning while the lid is open. When it fails (cracked body, worn internal contacts, or broken wiring), the control never gets the "lid closed" signal and blocks the spin and drain phases as a safety measure, leaving your clothes sitting in water. On many GE washer/dryer combos, a failed lid switch can also stop the machine from starting or agitating at all. If your washer fills but goes no further, or finishes the wash with clothes still soaked, suspect the lid switch first. You can confirm by testing the switch for continuity with a multimeter while the lever is depressed.
Why is this switch 16" long?

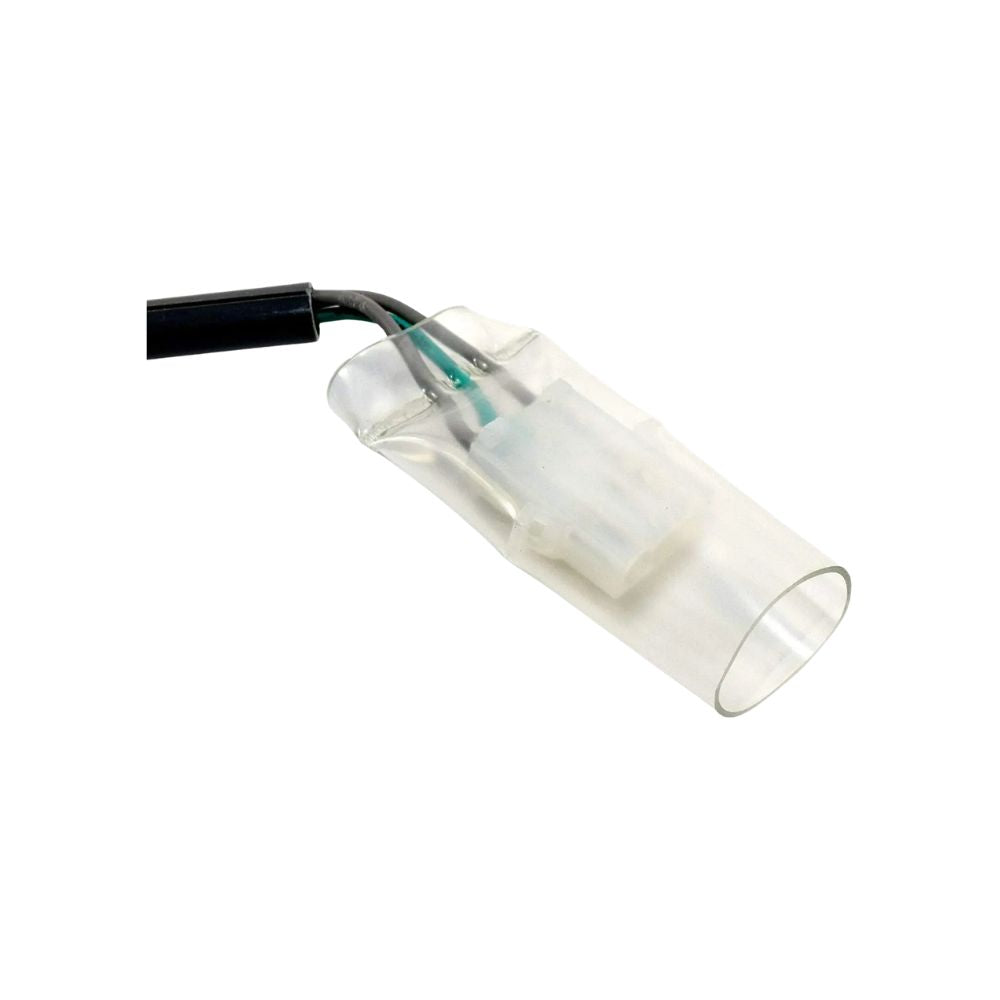

The 16" dimension is the length of the wiring harness, not the switch body itself. The switch mounts inside the washer lid, and its harness has to route from the lid, through the hinge area, down into the washer cabinet to reach the main wiring connector. That's why the assembly comes with a long attached cable — and it's also why this repair involves removing the lid to access everything. The switch body itself is compact at roughly 1-1/4" H x 2-1/4" W.
Does this fit my standalone GE top-load washer?
Probably not. The WH12X955 is specifically used on GE washer/dryer combo units and spacemaker/stacked laundry models. Standalone GE top-load washers use different lid switch part numbers. Because the lid switch design and mounting vary significantly across GE's washer lineup, always search by your appliance model number to confirm the correct part before ordering. If your unit is a standalone top-loader, contact our support team with your model number and we'll identify the right lid switch for it.
Do I really have to take the lid off to install this?
On most compatible models, yes — the lid switch mounts inside the lid itself, so you'll need to release the lid from the washer body to reach the two mounting screws and the ground wire screw. The good news is that the lid comes off fairly easily: push it toward the back to release the front plastic clips, then lift it slowly, unclip the electrical connector, and carry the lid to a comfortable work surface. Working on the lid off the machine is far easier than trying to reach into a cramped laundry closet. Just be sure power is disconnected before unclipping the connector.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the dimensions (1-1/4"H x 2-1/4"W x 16"D), harness and ground wire configuration, connector, mounting, and lid-detection function of the original WH12X955 lid switch used in compatible GE, Hotpoint, RCA, and Kenmore GE-built washer/dryer combo and spacemaker units.
