XPARTCO WH11X39237 Washer Drain Pump
- Sku: XPWH11X39237
- Vendor: XPARTCO
Have a question?
XPARTCO WH11X39237 Washer Drain Pump
XPARTCO WH11X39237 Washer Drain Pump

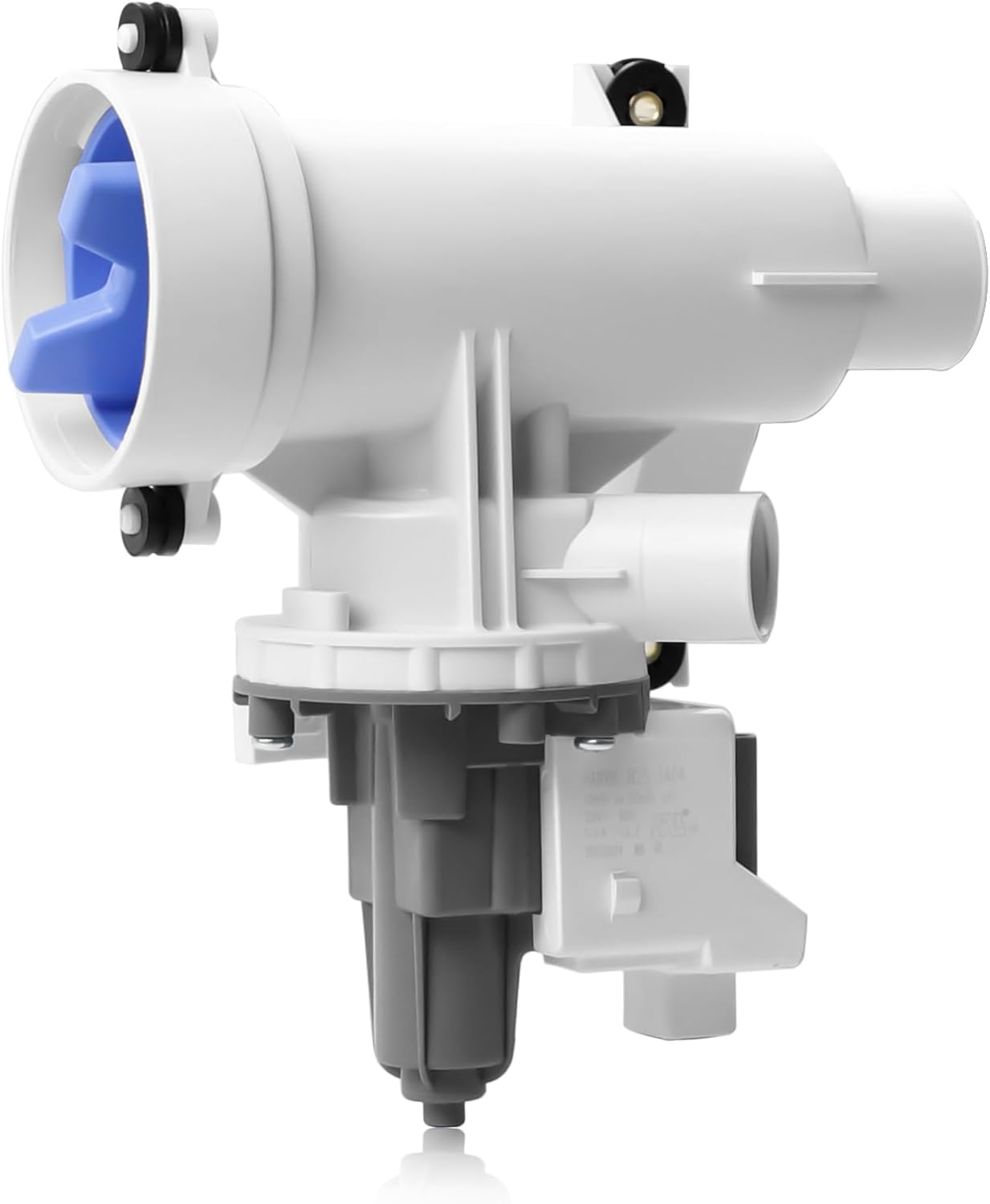

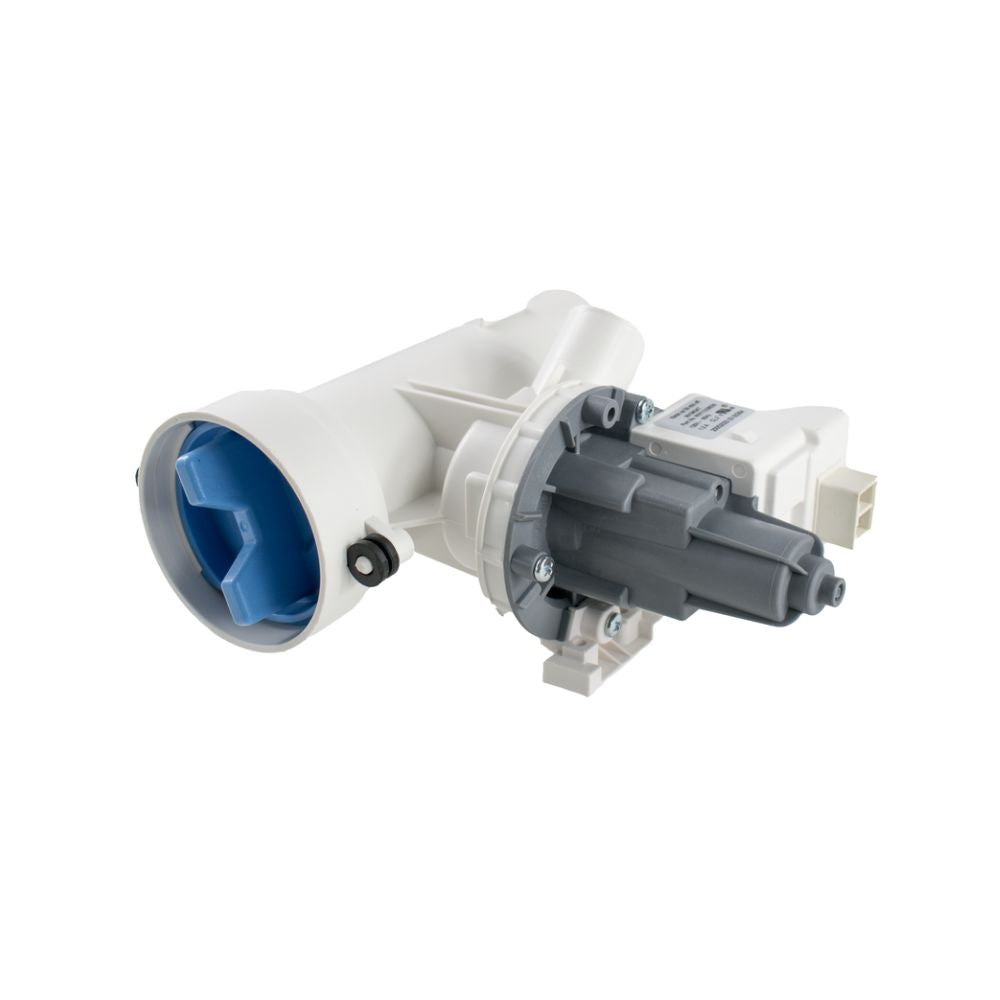

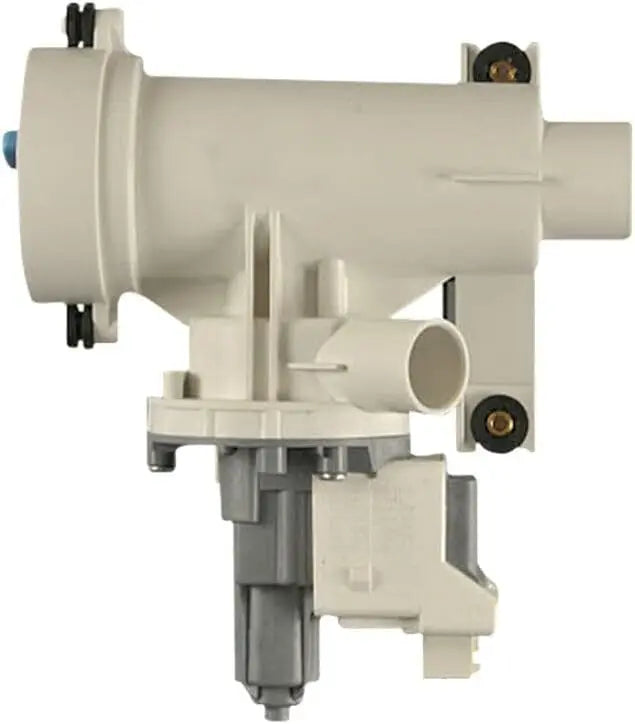

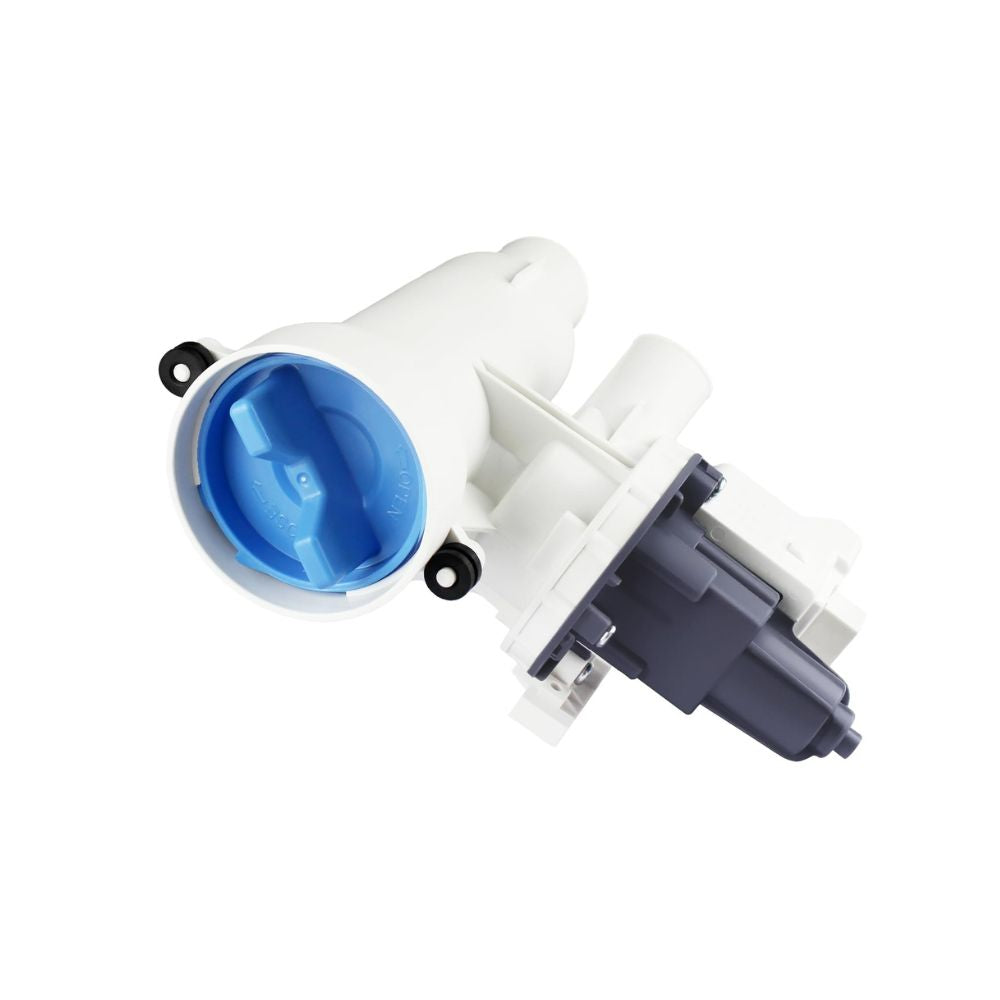

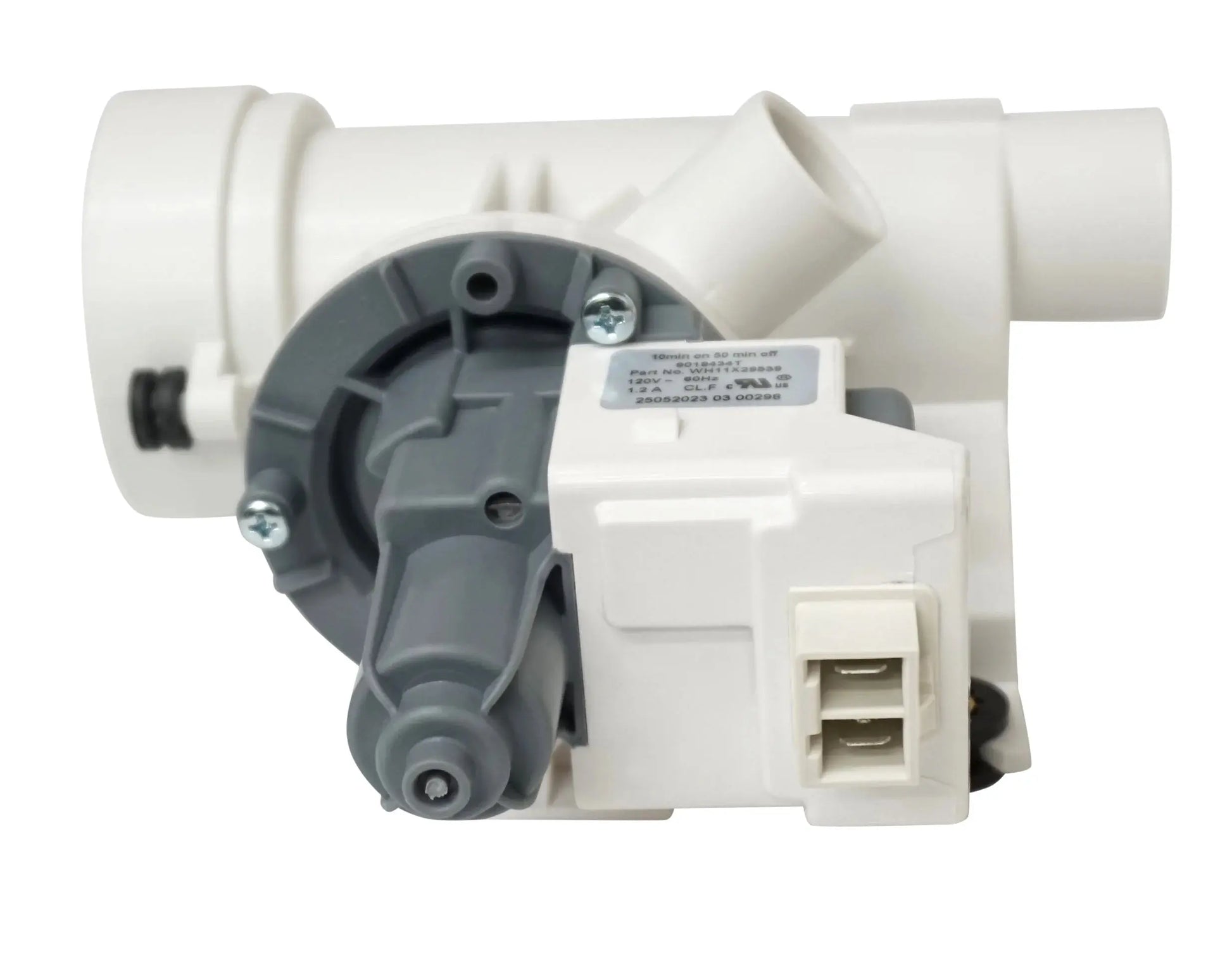

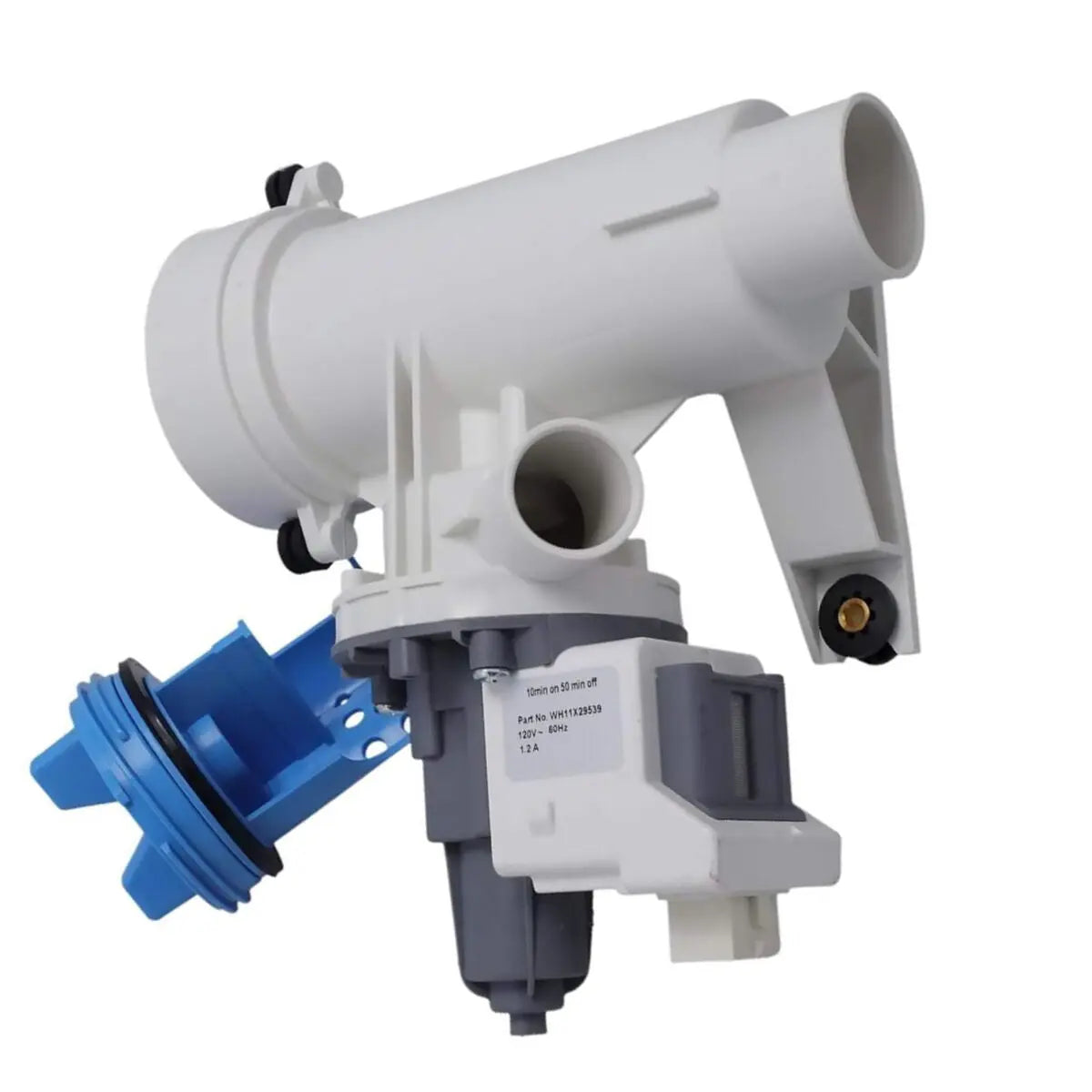

The XPARTCO WH11X39237 is an aftermarket replacement drain pump and filter assembly compatible with select GE, GE Profile, and GE 2-in-1 Washer/Dryer Combo front-load washers in the GFW510, GFW550, GFW650, GFW655, GFW850, PFW, and PFQ series. The drain pump is responsible for removing water from the washer drum during the drain and spin cycles — when it fails, the washer will not drain, will leave standing water in the drum, or will produce unusual noises during the drain cycle.
This complete drain pump and filter assembly operates at 120V, 60Hz, 1.2A and includes the pump motor, impeller housing, and integrated filter. It directly replaces the discontinued WH11X29539 — WH11X39237 is the current manufacturer-approved updated part number. Also replaces AP6986715, 4962370, B25-3A04, and several additional cross-reference numbers. Installs in 30–45 minutes with basic hand tools.
Quick Answer
The XPARTCO WH11X39237 Washer Drain Pump fixes GE front-load washers that won't drain, leave standing water in the drum, display drain error codes, or make loud humming or grinding noises during the drain cycle. Complete pump and filter assembly. 120V/60Hz/1.2A. Replaces discontinued WH11X29539. Compatible with GE GFW510, GFW550, GFW650, GFW655, GFW850, PFW, and PFQ series.
Common Problems This Part Fixes
- Washer not draining — standing water remaining in the drum after a cycle
- Drain error codes displayed on GE front-load washers (e.g. E23, E24, or pump-related codes)
- Loud humming, grinding, or buzzing noise during the drain cycle
- Washer stopping mid-cycle due to a drain fault
- Water leaking from around the drain pump area
- Drain pump running continuously but water not being expelled
- Pump impeller jammed by debris and motor burned out
Replaces Part Numbers
This drain pump directly replaces the following OEM and cross-reference part numbers:
WH11X39237, WH11X29539, Hanyu B25-3A04, 9019841, PD00094541, AGE1260100, AP8054992, PS18351790.
WH11X39237 is the current manufacturer-approved replacement for the discontinued WH11X29539. If your appliance documentation lists WH11X29539, this is the correct updated part.
Compatibility
This drain pump is compatible with select front-load washers and laundry combos from the following GE product lines:
- GE front-load washers — GFW510 series
- GE front-load washers — GFW550 series
- GE front-load washers — GFW650 series
- GE front-load washers — GFW655 series
- GE front-load washers — GFW850 series
- GE Profile front-load washers — PFW870, PFW950, PFW955 series
- GE Profile front-load washers — PFQ83 series
- GE 2-in-1 Washer/Dryer Combo (select models)
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Complete drain pump and filter assembly — pump motor, impeller housing, and integrated filter all included
- Removes water from the drum during drain and spin cycles for proper washer operation
- Integrated filter traps lint, coins, and debris to prevent pump impeller damage and clogs
- Electrical specs: 120V, 60Hz, 1.2A — correct for compatible GE front-load models
- WH11X39237 is the current manufacturer-approved replacement for discontinued WH11X29539
- Direct replacement — installs into existing pump housing with no modification required
- Aftermarket replacement built to OEM-equivalent quality standards
- Compatible with GFW510, GFW550, GFW650, GFW655, GFW850, PFW, and PFQ series
- DIY-friendly repair — installs in 30–45 minutes with basic hand tools
Product Specifications
| Part Number | WH11X39237 |
| Supersedes | WH11X29539 (discontinued) |
| Part Type | Washer Drain Pump and Filter Assembly |
| Condition | Aftermarket Replacement |
| Application | GE Front-Load Washers and 2-in-1 Washer/Dryer Combos |
| Voltage | 120V AC |
| Frequency | 60 Hz |
| Amperage | 1.2A |
| Includes | Pump motor, impeller housing, and integrated filter |
| Compatible Series | GFW510, GFW550, GFW650, GFW655, GFW850, PFW870, PFW950, PFW955, PFQ83 |
| Compatible Brands | GE, GE Profile |
Installation Notes
Frequently Asked Questions
What is the difference between WH11X39237 and WH11X29539?
These are the same drain pump assembly — WH11X39237 is the current updated part number that GE issued to replace the discontinued WH11X29539. If your washer's documentation, parts diagram, or old pump label shows WH11X29539, the WH11X39237 is the correct replacement to order.
Should I check the pump filter before replacing the drain pump?
Yes — always check and clean the pump filter (WH23X38617) before replacing the drain pump. A heavily clogged filter can restrict water flow enough to mimic pump failure symptoms, and a foreign object jammed in the impeller can stall the pump motor without permanently damaging it. Remove the filter, clear any debris from the housing and impeller, and test the washer again. If the pump still fails to drain after cleaning, then pump replacement is the next step.
How do I know if my drain pump has failed?
A failed drain pump typically causes the washer to stop mid-cycle with a drain error code, or to finish a cycle with standing water in the drum. You may also hear a loud humming noise during the drain phase — this indicates the motor is running but the impeller is not turning (jammed or broken). A grinding noise suggests physical damage to the impeller or pump housing. If the pump is completely silent during the drain cycle despite power being delivered to it, the motor has likely burned out.
Is the WH11X39237 compatible with GE Profile and GE 2-in-1 models?
Yes — the WH11X39237 is compatible with select GE Profile front-load washers in the PFW870, PFW950, PFW955, and PFQ83 series, as well as select GE 2-in-1 Washer/Dryer Combo models. Always verify your specific model number before ordering to confirm compatibility.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the electrical specifications and physical dimensions of the original WH11X39237 drain pump assembly.
