XPARTCO WH03X30517 Washer Shift Actuator
XPARTCO WH03X30517 Washer Shift Actuator

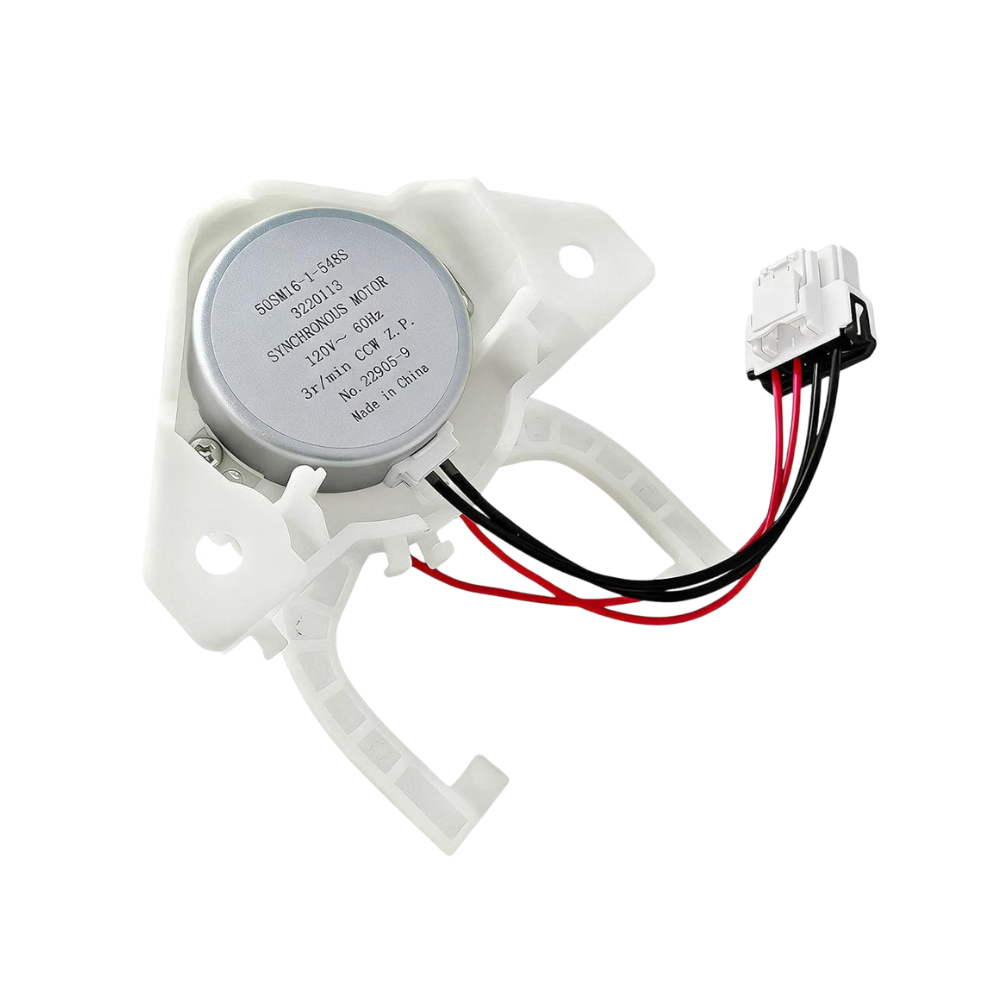

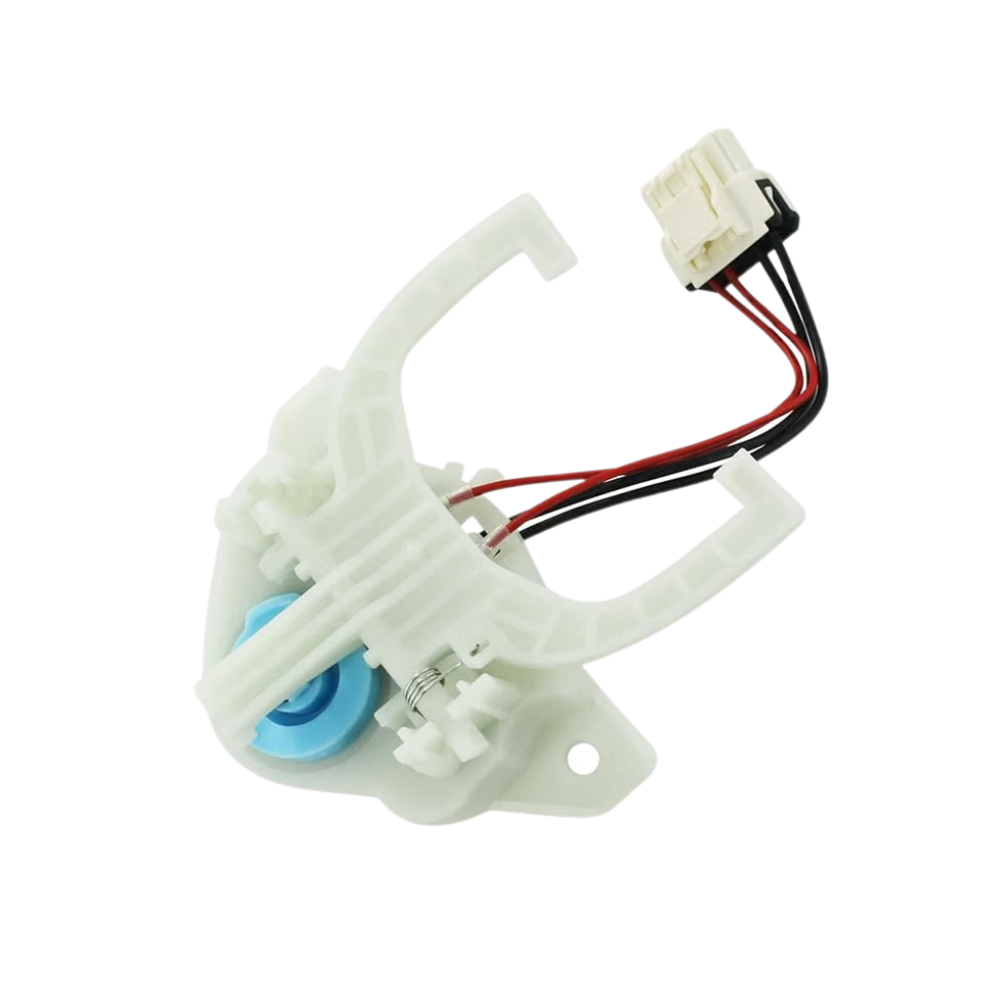

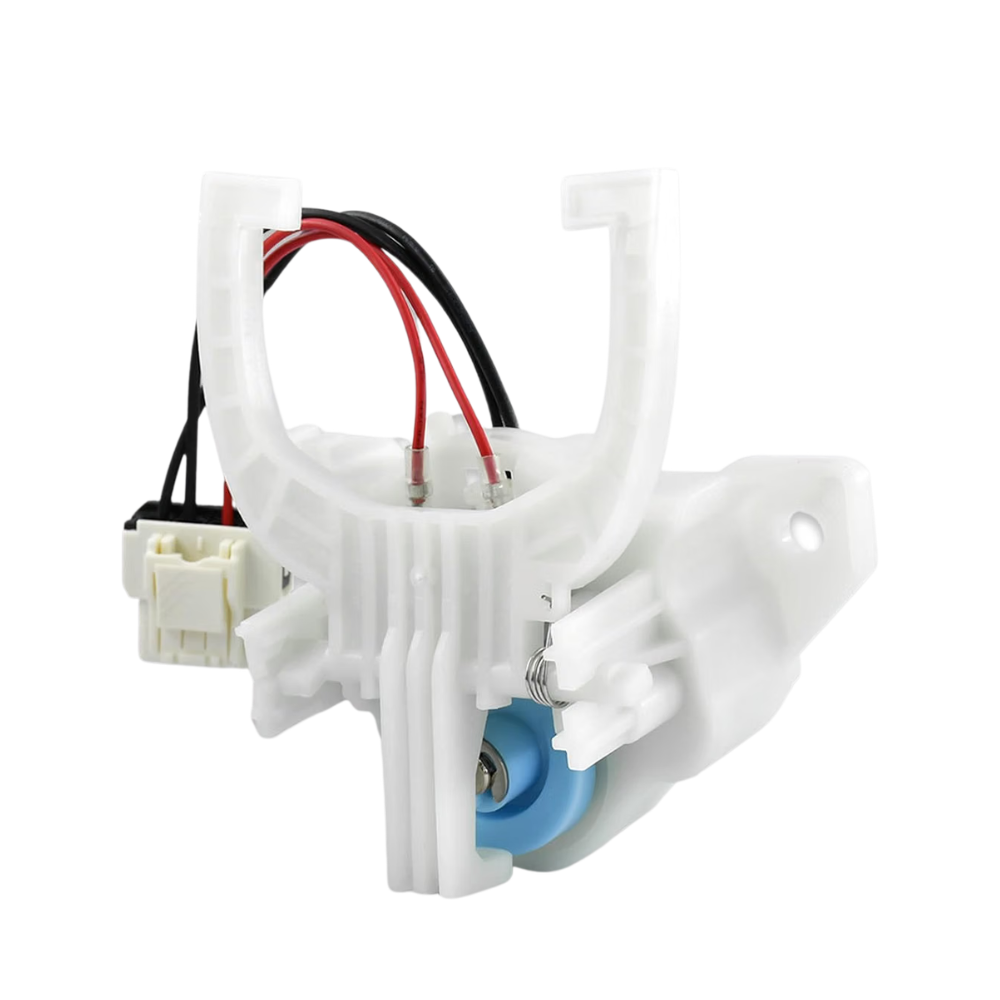

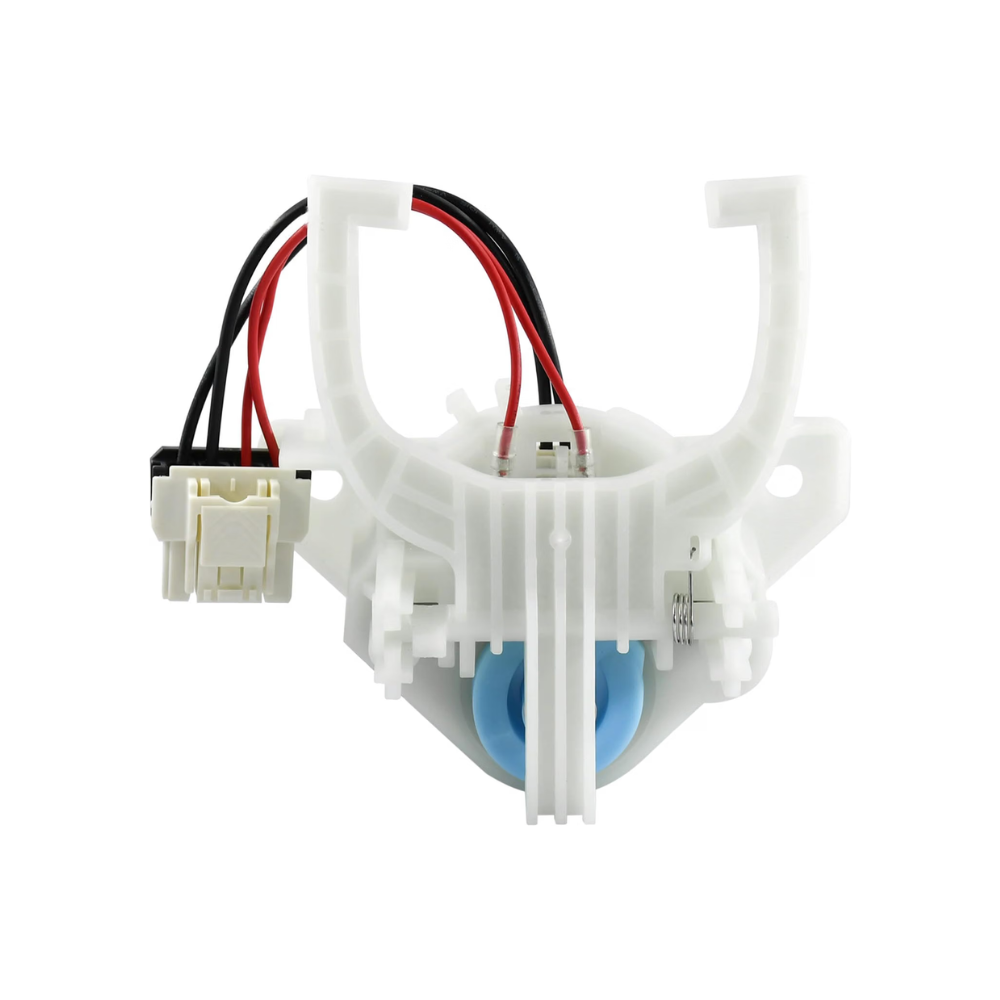

The XPARTCO WH03X30517 is an aftermarket replacement shift actuator (mode shifter) for GE top-load washers, and also fits select Hotpoint and Kenmore models. Mounted at the bottom of the washer, this actuator changes the function of the washer's motor between agitation and spin cycles, effectively managing the conversion from agitation to high-speed rotation that removes moisture from clothing at the end of the wash.

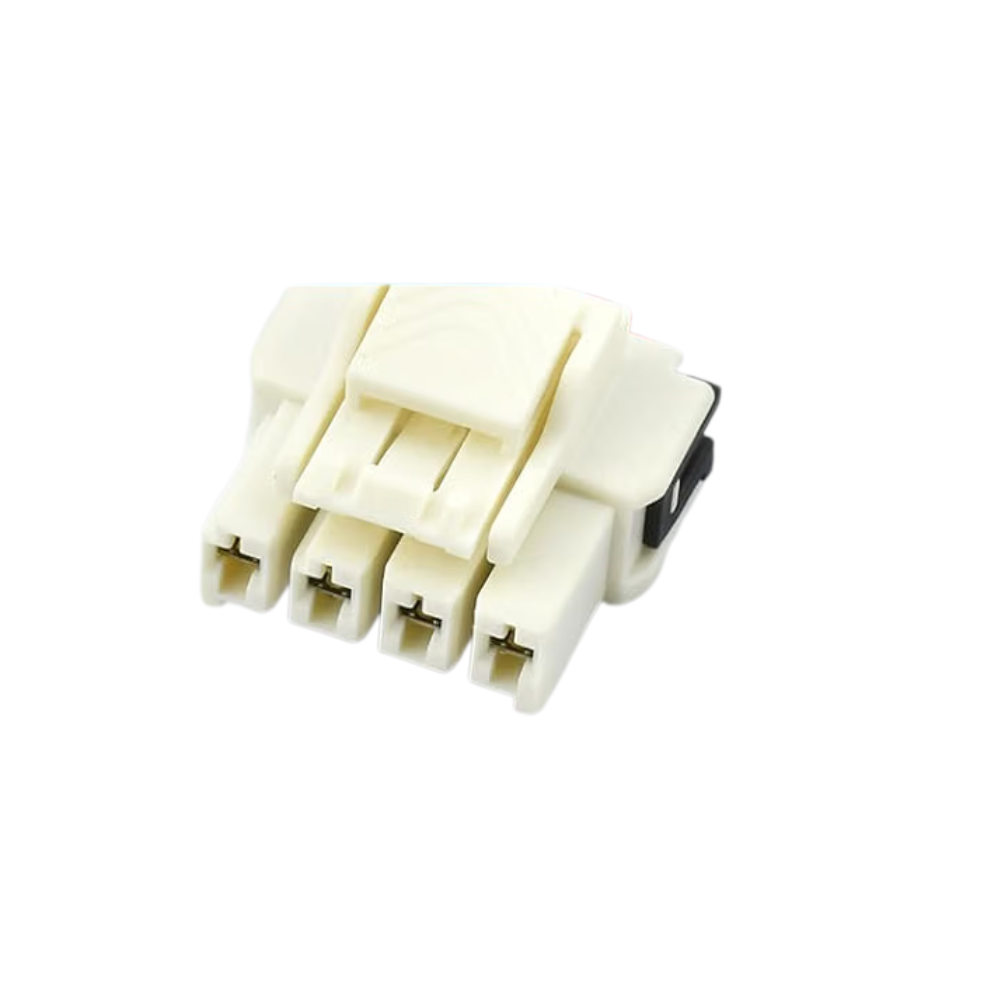

Made mostly of plastic, with two mounting holes and a single wire harness connection. Over time, the actuator's internal motor can burn out or fail electrically. Symptoms of a failing shift actuator include the washer failing to switch between agitation and spin modes, the washer not spinning or agitating at all, abnormal noise or grinding during the cycle, or clothes coming out still soggy after a completed wash. It directly replaces WH03X30517, WH05X24435, WH05X25036, 290D1056G001, 4588015, 4961069, AP7014559, AGE25894, PD00068062, EAP16554752, PS16554752.
Quick Answer
The XPARTCO WH03X30517 Washer Shift Actuator fixes GE, Hotpoint, and Kenmore top-load washers that won't switch between agitation and spin, won't spin or agitate at all, or leave clothes still soggy after a wash. Sold individually. Replaces WH03X30517, WH05X24435, WH05X25036, 290D1056G001, 4588015, 4961069, AP7014559, AGE25894, PD00068062, EAP16554752, PS16554752. If your washer agitates and spins fine individually but still won't switch between the two modes after replacing this actuator, the underlying cause may lie elsewhere — one customer found this exact residual symptom after installing this part.
Common Problems This Part Fixes
- Washer won't switch between agitation and spin modes
- Washer not spinning or agitating at all
- Abnormal noise or grinding during the wash cycle
- Clothes still soggy after a completed wash cycle
- No clicking sound heard when the washer attempts to change modes
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer shift actuator directly replaces the following OEM and cross-reference part numbers:
WH03X30517, WH05X24435, WH05X25036, 290D1056G001, 4588015, 4961069, AP7014559, AGE25894, PD00068062, EAP16554752, PS16554752
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This shift actuator is compatible with select GE top-load washers, and also fits select Hotpoint and Kenmore washers built on the GE platform, including model numbers such as:
- GTW680BSJ0WS, GTW680BSJ1WS, GTW680BSJ2WS, GTW680BSJ3WS, GTW680BSJ4WS, GTW680BSJ5WS, GTW680BSJ6WS, GTW680BSJ7WS
- GTW220ACK1WW, GTW220ACK2WW, GTW220ACK3WW, GTW220ACK7WW
- GTW540ASP0WS, GTW540ASP1WS, GTW465ASN2WW, GTW500ASN1WS, GTW685BSL2WS
- YTW4514SN0WS, YTW4514SN1WS, YTW4514PN0DG, YTW4514PN1DG
- GTW335ASN0WW, GTW335ASN2WW, GTW460AMJ2WW, GTW750CPL0DG
- GTW490ACJ1WW, GTW490ACJ1WS, GTW490ACJ6WW, GTW490ACJ6WS
- HTW200ASK0WW, HTW200ASK1WW, HTW200ASK2WW, HTW200ASK3WW, HTW200ASK4WW
- HTW240ASK0WS, HTW240ASK1WS, HTW240ASK2WS, HTW240ASK3WS, HTW240ASK4WS, HTW240ASK5WS, HTW240ASK6WS
Note: This is the standalone shift actuator only, sold individually. A related but separate combined kit exists that also includes a shift clutch (WH05X24185); if you also need the clutch, order it separately. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement shift actuator (mode shifter) — switches the motor between agitation and spin
- Resolves "won't switch modes," "won't spin or agitate," and "clothes still soggy" symptoms caused by actuator failure
- Mostly plastic construction, two mounting holes, single wire harness
- Direct drop-in replacement matching the original mounting
- Replaces WH03X30517, WH05X24435, WH05X25036, 290D1056G001, 4588015, 4961069, AP7014559, AGE25894, PD00068062, EAP16554752, PS16554752
- Compatible with GE, Hotpoint, and Kenmore top-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
- Sold individually
- Typical repair takes 15 to 30 minutes
Product Specifications
| Part Number | XPWH03X30517 |
| OEM Part Number | WH03X30517 |
| Part Type | Washer Shift Actuator (Mode Shifter) |
| Condition | Aftermarket Replacement |
| Material | Plastic |
| Mounting | Two screw holes |
| Wiring | Single wire harness |
| Related Part | WH05X24185 shift clutch (sold separately) |
| Repair Difficulty | Easy to Moderate — 15 to 30 minutes |
| Quantity | 1 shift actuator (sold individually) |
| Compatible Brands | GE, Hotpoint, Kenmore |
Installation Notes
Frequently Asked Questions
My washer won't switch from wash to spin, but it will spin if I catch it there. Is this the part I need?
Yes, this is a well-documented symptom of a failing shift actuator. One customer described their machine not going to wash mode with no clicking sound heard when the mode should change, which is a classic sign this part has failed. They accessed the actuator by laying the machine on its side, then unplugged the shifter connector and removed two screws to complete the swap.
I replaced this part but my washer still won't switch from wash to spin. What's going on?
This is a fair question, and it's worth knowing that replacing this actuator doesn't always resolve every mode-switching problem on its own. One customer replaced the mode shifter, cleared all codes, and confirmed the washer agitated and spun fine individually, but it still wouldn't switch between the two modes — suggesting a different or additional component may have been involved in their specific case. If you're still having trouble after installing this part, further diagnosis of the transmission or related components may be needed.
Does this come with the clutch too?
No, this listing is for the shift actuator only, sold individually. A related shift clutch, WH05X24185, is a separate part — if your repair requires replacing both, you'll need to order the clutch separately.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the mounting, wiring, and switching function of the original WH03X30517 shift actuator used in compatible GE, Hotpoint, and Kenmore top-load washers.
