Product description

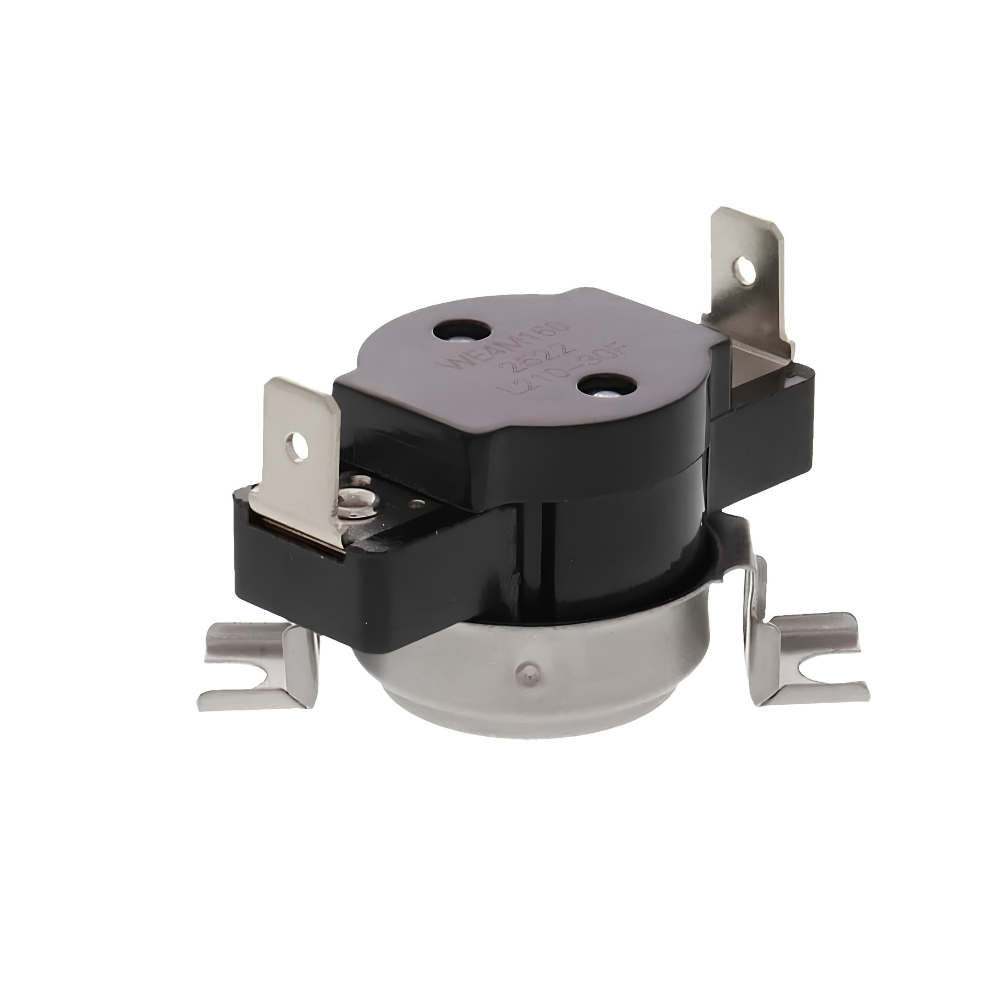

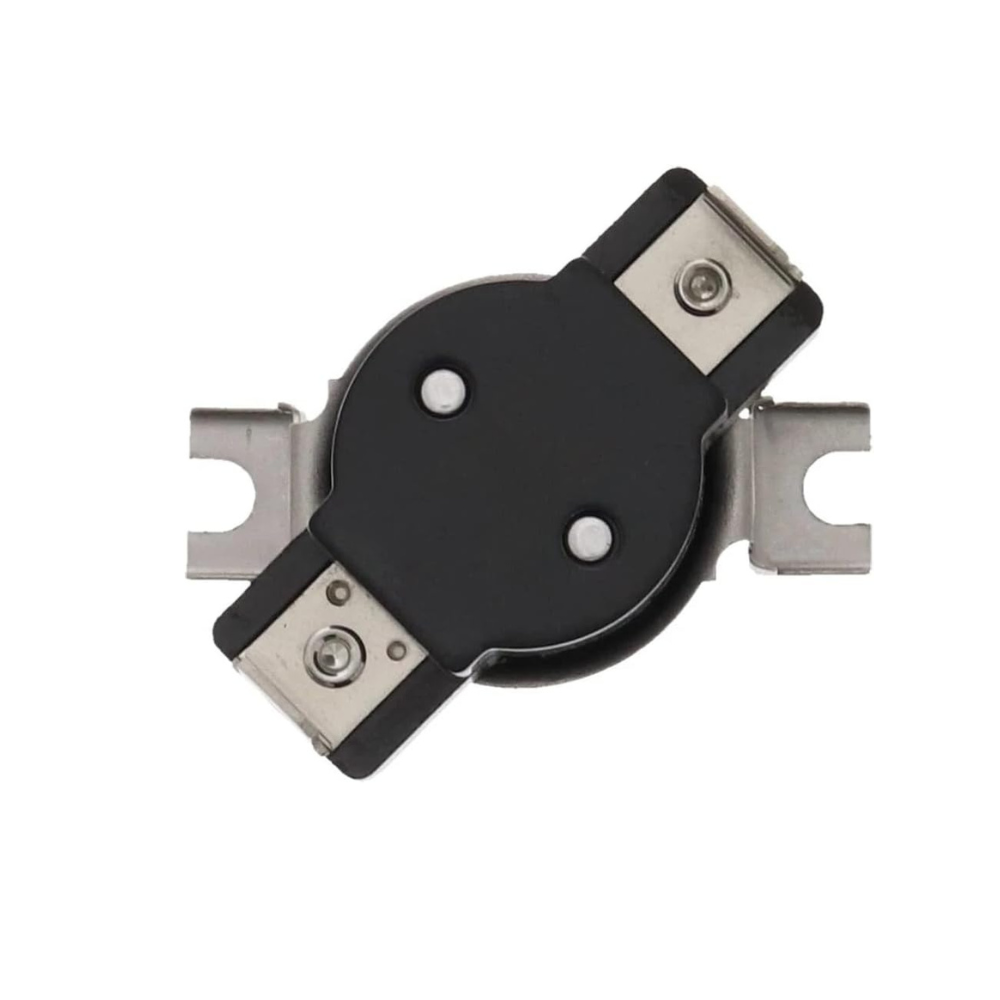

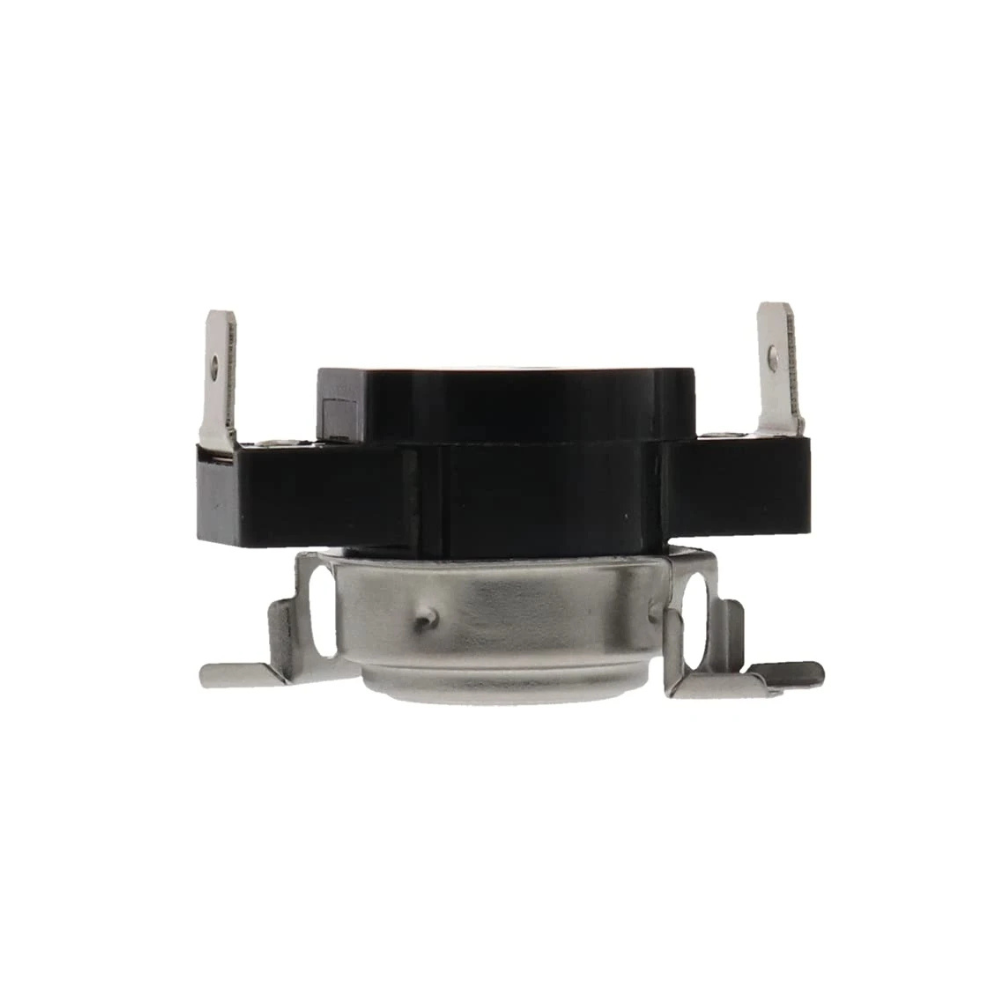

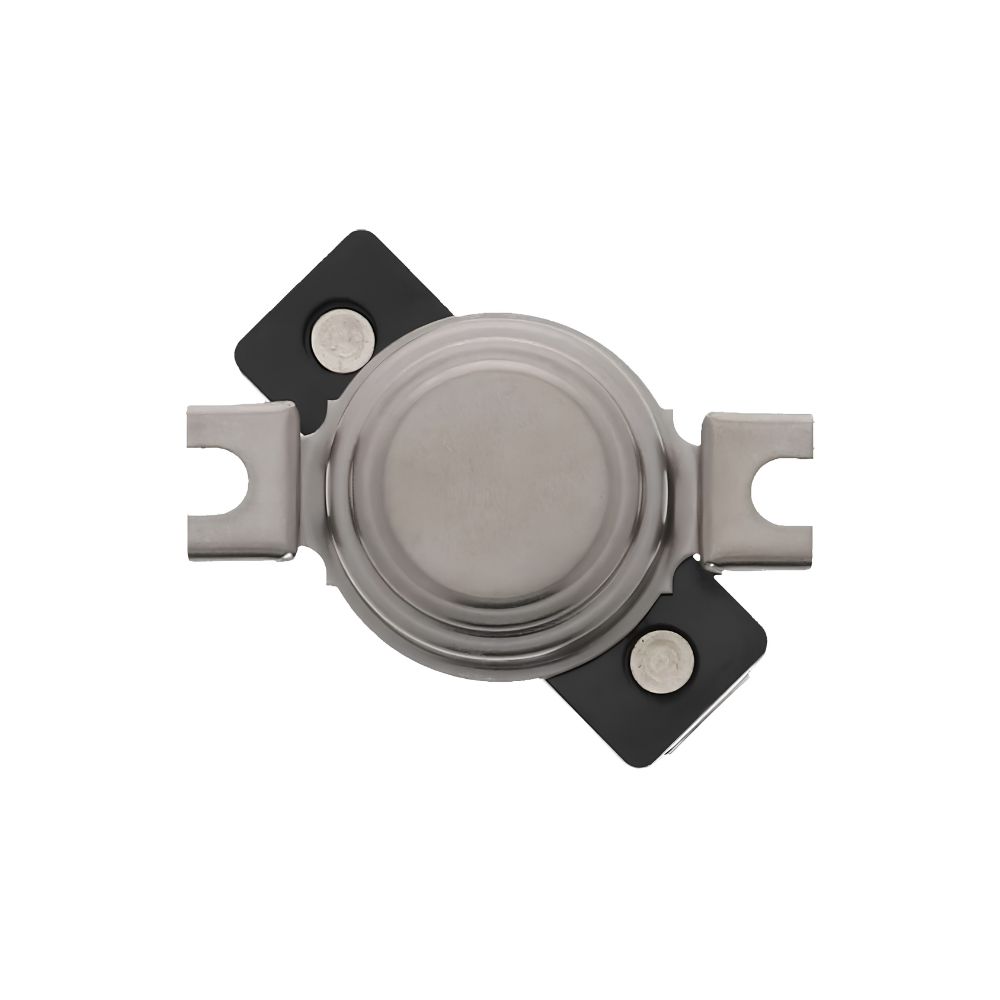

XPARTCO WE4M160 Dryer High Limit Thermostat

The XPARTCO WE4M160 is an aftermarket replacement high limit (safety) thermostat for GE, Hotpoint, and Kenmore dryers, and for some Fisher & Paykel dryers. It sits in the dryer's heating circuit and cuts power to the heating element when the dryer gets too hot, protecting the dryer from overheating. GE lists the original as the "Thermostat Safety Left."

It fits directly in place of the original GE thermostat. Whenever a high limit thermostat trips or fails, it's worth looking into why the dryer overheated at the same time; a clogged lint trap or restricted exhaust vent is a common culprit.

Quick Answer

Choose the XPARTCO WE4M160 High Limit Thermostat as the safety thermostat replacement for a GE, Hotpoint, or Kenmore dryer that overheats, shuts off during the heat cycle, or won't heat because the thermostat has opened or failed. Classic symptom: the dryer gets too hot or quits on heat, and a vent check shows the airflow is clear.

Common Problems This Part Fixes

  • Dryer runs too hot
  • Dryer shuts off the heat during a cycle
  • Dryer runs but doesn't heat because the safety thermostat has opened
  • Dryer won't start if the thermostat has failed open

Cross Reference Information

Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.

Replaces Part Numbers

This thermostat directly replaces the following part numbers:

WE4M160, WE04M0160, L210-30F, AGE25640, AP2042573, AH267911, EA267911, EAP267911, PD00008081, PS267911

These numbers span generations of GE's own part numbering for this thermostat. Confirm against your dryer's parts diagram, or contact our support team, if your model calls out a different number.

Compatibility

This thermostat is listed for GE, Hotpoint, and Kenmore dryers and for some Fisher & Paykel dryers, including these examples:

  • GE DBLR333EE0CC, DBSR453EA0WW, DBXR453EA0AA, DBXR463EB0CC
  • GE DPXR475EW0WW, DPSF505GW0WW, DCCB330ED0WC
  • Model numbers 61140418, 62160T3WB
  • Fisher & Paykel DE70FA1-96971, DE60FA2-96983

Note: The models above are a small sample of a list of hundreds, not a full list. GE sells more than one safety thermostat for its dryers, including the WE4M137, so check your model number against your dryer's parts diagram, or contact our support team to verify fit before ordering.

Key Features

  • Direct-fit aftermarket high limit (safety) thermostat for GE-built dryers
  • Shuts off power to the heating element when the dryer overheats
  • Replaces GE WE4M160 and the older WE04M0160
  • Listed for GE, Hotpoint, Kenmore, and some Fisher & Paykel dryers

Product Specifications

Part Number XPWE4M160
OEM Part Number WE4M160
Part Type Dryer High Limit (Safety) Thermostat
Condition Aftermarket Replacement
Application GE, Hotpoint, Kenmore & Some Fisher & Paykel Dryers

Installation Notes

⚠️ Unplug Power Before Installing Unplug the dryer before beginning, and shut off the gas supply first on gas models. Wear work gloves to protect your hands. Follow your model's service guide to reach the thermostat, note the wire positions before disconnecting them, and fit the new thermostat in the same position. Before closing the dryer, clean the lint trap and check the exhaust vent for restrictions, since poor airflow is a common cause of overheating.

Frequently Asked Questions

My dryer is running too hot. Is this the part I need?

Possibly. Its job is to cut power to the heating element once the dryer overheats, and a failed one can cause heating problems. Start by clearing the lint trap and exhaust vent, since restricted airflow is a common cause of overheating.

Is this the same as the WE4M137 high limit thermostat?

They are different GE part numbers, so don't assume they are interchangeable. Check your model number against your parts diagram, or contact our support team, before ordering.

Is WE4M160 the same as WE04M0160?

Yes. WE04M0160 is the older GE number for this thermostat, and WE4M160 is the current number. This thermostat replaces both.

Will this fit my dryer?

It is listed for hundreds of GE, Hotpoint, Kenmore, and some Fisher & Paykel dryers, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order.
