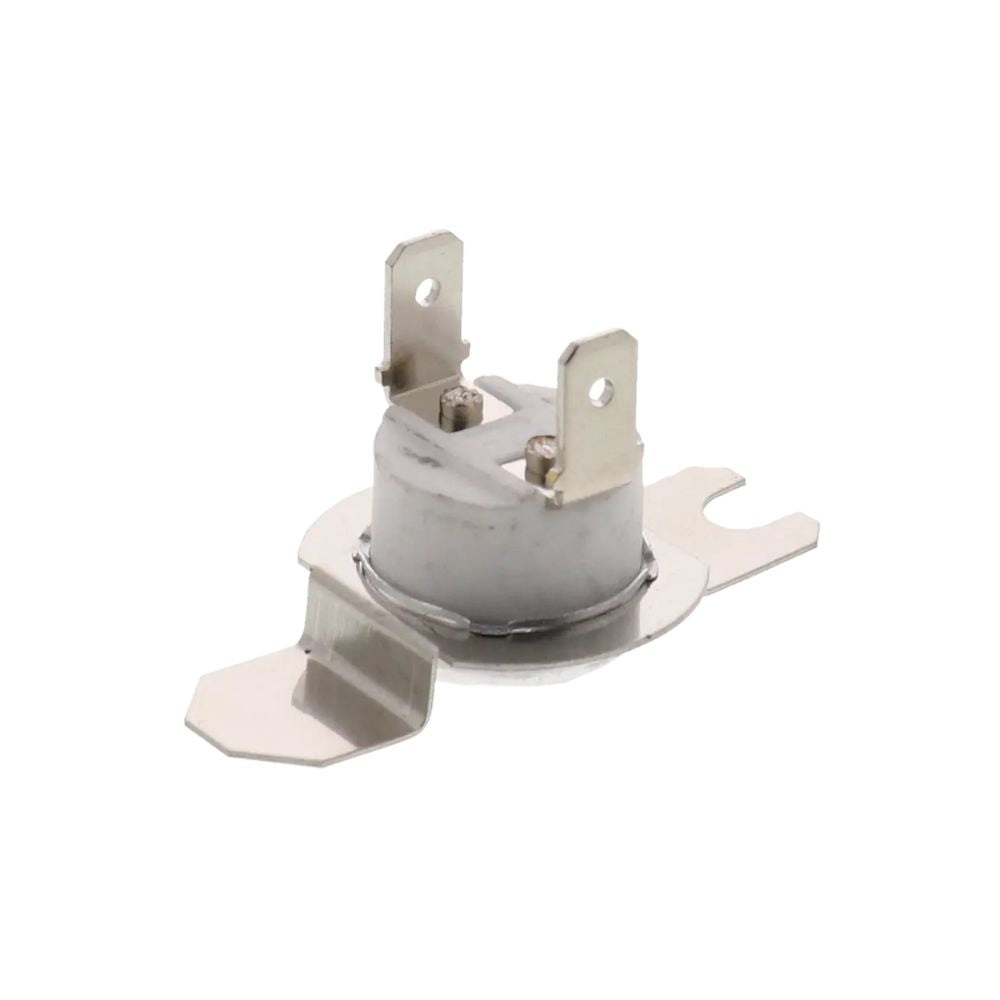

XPARTCO WE4M137 Dryer High Limit Thermostat

List Price:  $22.90
$16.98
 per

FREE SHIPPING TO ALL 48 CONTIGUOUS STATES
Free standard shipping at checkout.

CHECK YOUR MODEL COMPATIBILITY

Enter your appliance model number to check if this part is listed as compatible.

Need help finding your model number?

Guaranteed safe checkout

Product description

XPARTCO WE4M137 Dryer High Limit Thermostat

This XPARTCO WE4M137 is an aftermarket high limit thermostat made for GE, Hotpoint, and Kenmore dryers. It mounts on the upper right side of the heater housing and serves as a safety device: it watches the temperature of the heating circuit and cuts power to the heating element (and in some conditions the motor) if the dryer gets hotter than it should, typically because of restricted airflow, a clogged vent, or a failing cycling thermostat. It is not a one-time thermal fuse. This is an auto-resetting high limit thermostat (rated L315-65F) that opens at approximately 315°F to stop overheating and then closes again by itself once the unit cools, so it doesn't need replacing after every trip.

It is a direct-fit aftermarket replacement built to the same temperature rating and mounting as the original thermostat. If it trips again and again, investigate the underlying cause of the overheating too. A clogged lint trap or restricted exhaust vent is the most common culprit.

Quick Answer

Choose the XPARTCO WE4M137 High Limit Thermostat for a GE, Hotpoint, or Kenmore dryer that shuts off a few minutes into a heat cycle, stops early and won't restart until it cools down, or cycles on and off intermittently. Auto-resetting, rated to open at approximately 315°F. Classic symptom: dryer runs fine for a few minutes then quits on heat, and won't restart again until it's had time to cool.

Common Problems This Part Fixes

  • Dryer shuts off a few minutes into a heat-dry cycle
  • Dryer stops early and won't restart until it cools down
  • Intermittent shutdowns during the drying cycle
  • Clothes coming out damp because the cycle keeps cutting short
  • Dryer won't start at all if the thermostat has failed in an open position

Cross Reference Information

Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.

Replaces Part Numbers

This thermostat directly replaces the following part numbers:

WE4M137, WE4M457, 276438, WE04M0137, WE04X25197, 559C131G04, AGE25626, AH267900, AP2042565, EAP267900, EA267900, PD00001228, PS267900

These numbers span several generations of GE's own part numbering for this thermostat as model lines and sub-assemblies were updated — all are the correct replacement for this component regardless of which number appears on your dryer's parts diagram.

Compatibility

This thermostat is compatible with 28+ GE, Hotpoint, and Kenmore dryer models, including:

  • Kenmore 2661532110, GE 2661532210
  • Numerous additional GE, Hotpoint, and Kenmore dryer and washer-dryer combo models

Note: This thermostat has also been referenced for some Fisher & Paykel dryer applications in sourcing, though we were not able to confirm a specific Fisher & Paykel model list. Confirm your model number against your dryer's parts diagram, or contact our support team to verify fit before ordering.

Key Features

  • Direct-fit aftermarket high limit thermostat for GE-built dryers
  • Auto-resetting design — no need to replace after each trip, unlike a one-time thermal fuse
  • Rated to open at approximately 315°F to prevent overheating damage
  • Resolves early-shutoff, won't-restart-until-cool, and intermittent cycling symptoms
  • Fits 28+ GE, Hotpoint, and Kenmore dryer and washer-dryer combo models
  • Straightforward swap — typically 15–30 minutes with basic hand tools

Product Specifications

Part Number XPWE4M137
OEM Part Number WE4M137
Part Type Dryer High Limit Thermostat (Auto-Reset)
Condition Aftermarket Replacement

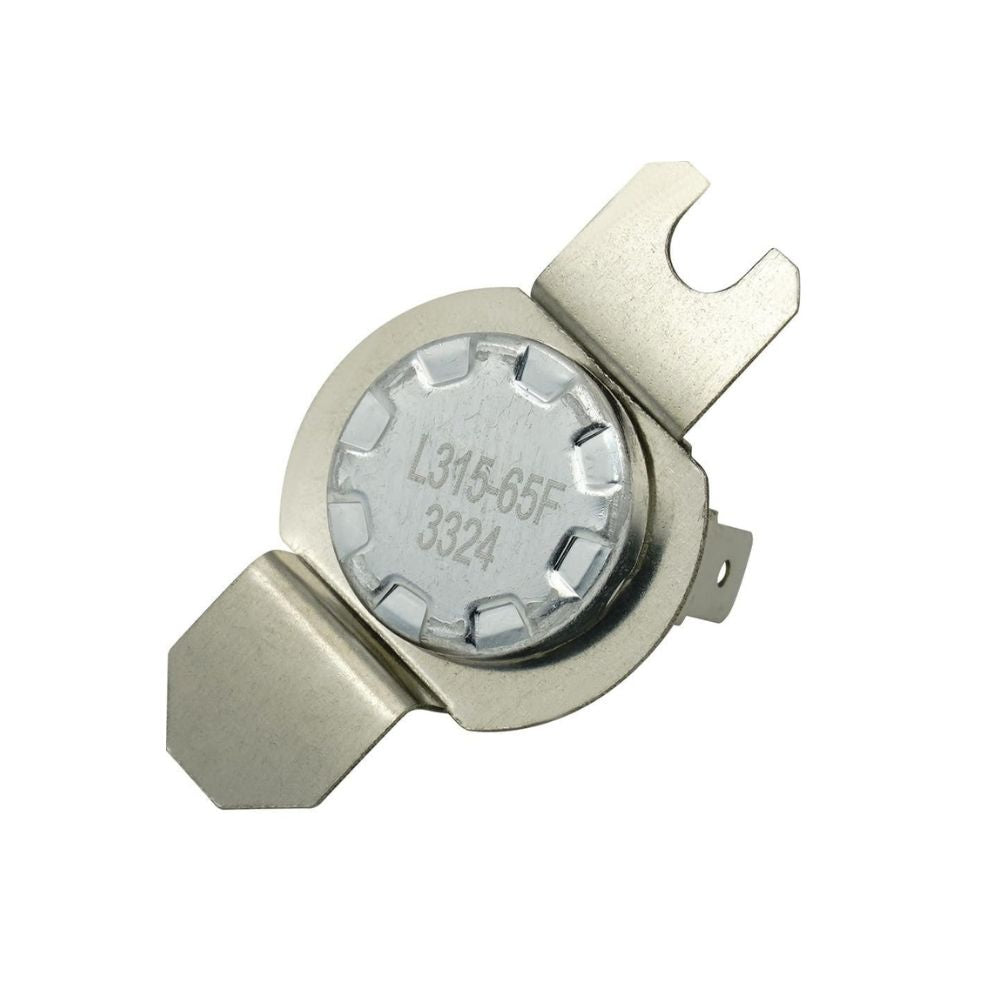

Temperature Rating L315-65F (Opens ~315°F, Auto-Resets on Cooling)
Location Upper Right Side of Heater Housing
Application GE, Hotpoint & Kenmore Dryers

Installation Notes

⚠️ Unplug Power Before Installing Unplug the dryer or switch off its circuit breaker before beginning. Remove the dryer's rear or front panel per your model's service guide to access the heater housing — the thermostat is mounted on its upper right side. Disconnect the wire terminals from the old thermostat, noting their positions, and remove the mounting screw holding it in place. Install the new thermostat in the same position and reconnect the wire terminals. Before closing the dryer back up, clean out the lint trap and check the exhaust vent for restrictions — a clogged vent is the most common cause of this thermostat tripping repeatedly, and clearing it now can prevent a repeat failure.

Frequently Asked Questions

My dryer shuts off a few minutes into the cycle and won't restart — is this the part I need?

Quite possibly. Shutting off early and refusing to restart until it has rested is a classic sign of a failing high limit thermostat. The part is built to cut power when the dryer overheats and to reset automatically once things cool off, so a dryer that only restarts after sitting for a while points to this thermostat as a likely cause.

Is this a one-time fuse like the thermal fuse, or does it reset itself?

This is an auto-resetting thermostat, not a one-time thermal fuse. It opens to cut power when the dryer overheats, then closes again automatically once the unit cools — it doesn't need to be replaced every time it trips. If yours has failed and won't reset or close again, that's when replacement is needed.

Why does my dryer keep tripping this thermostat?

Repeated tripping is usually caused by restricted airflow — a clogged lint trap, a crushed or blocked exhaust duct, or a bird's nest or lint buildup in the outside vent hood — or a failed cycling thermostat elsewhere in the heating circuit. Clear the airflow path when you replace this thermostat, or the new one may trip again.

How do I test if this thermostat has failed?

With the dryer unplugged, you can test the thermostat with a multimeter for continuity across its terminals at room temperature. No continuity when it should be closed (cool) is a sign it has failed and needs replacement.
