- Sku: XPWB26X10038
XPARTCO WB26X10038 Microwave Turntable Motor
FREE SHIPPING TO ALL 48 CONTIGUOUS STATES
Free standard shipping at checkout.
CHECK YOUR MODEL COMPATIBILITY
Enter your appliance model number to check if this part is listed as compatible.
Need help finding your model number?
XPARTCO WB26X10038 Microwave Turntable Motor

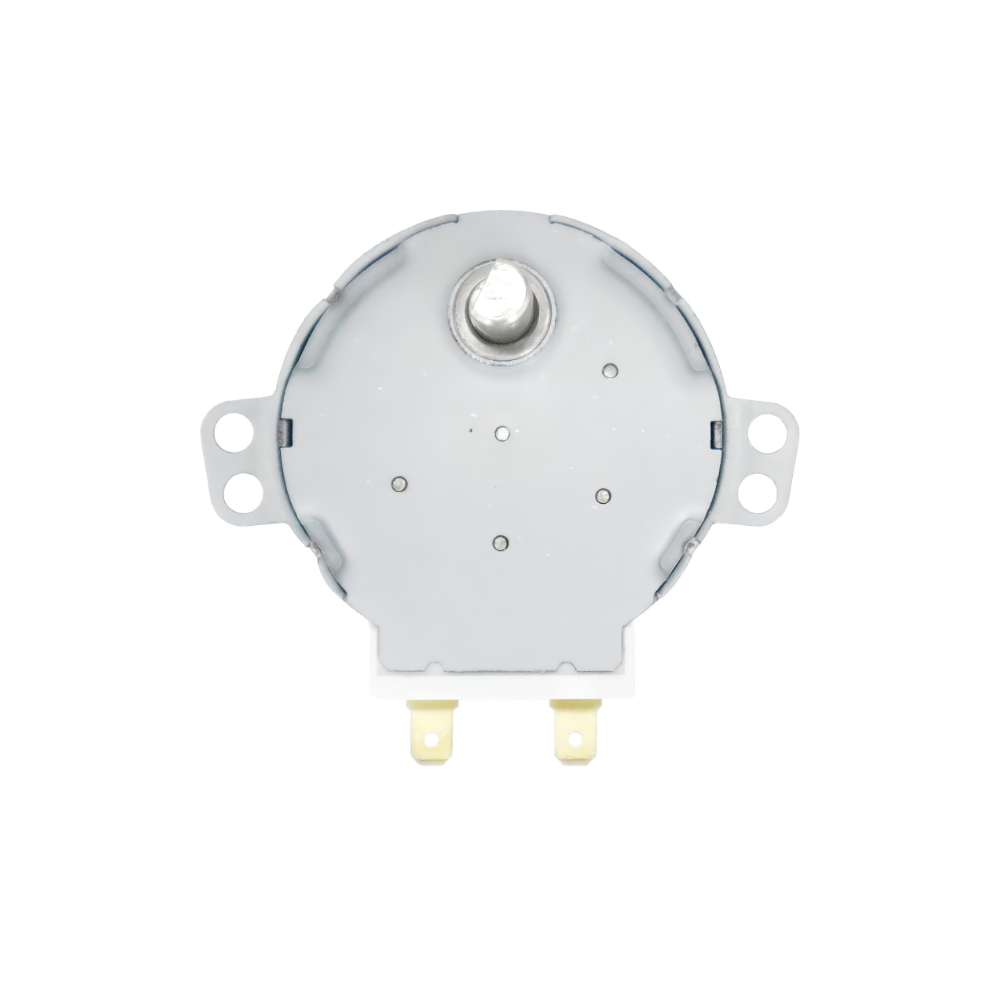

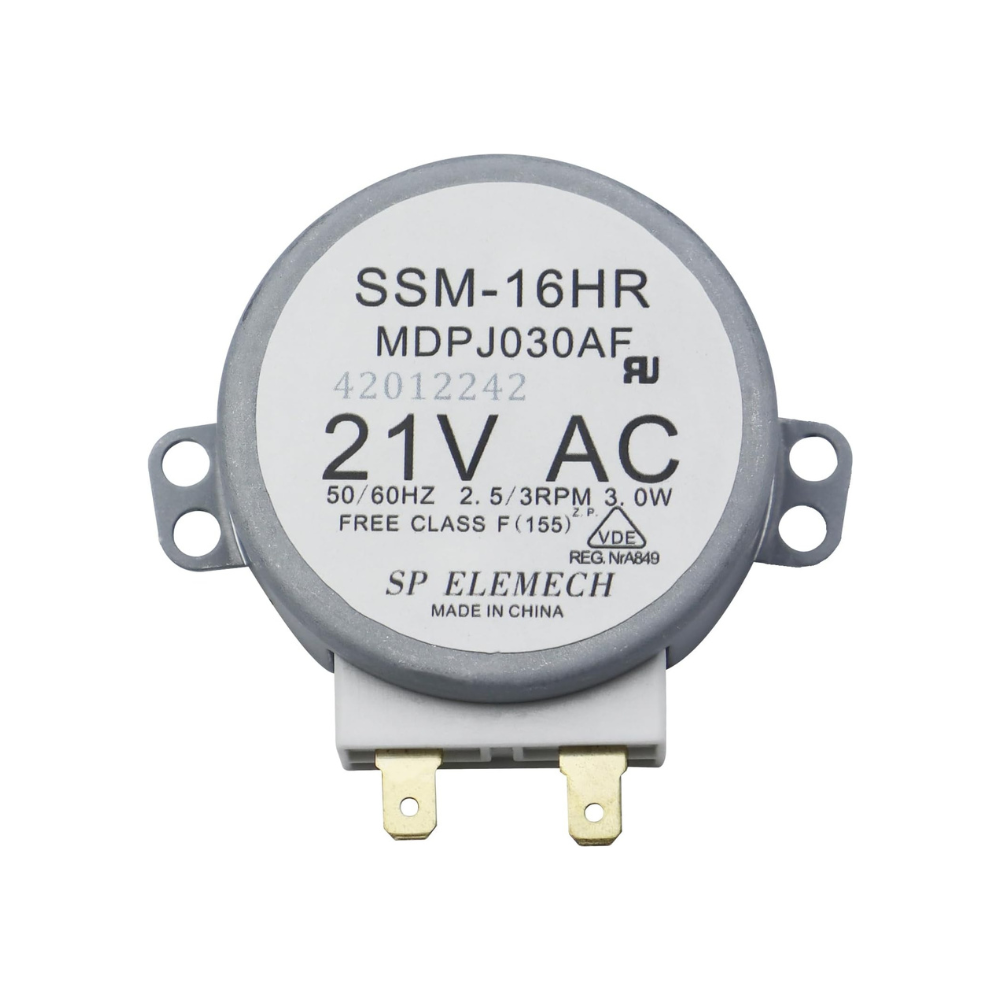

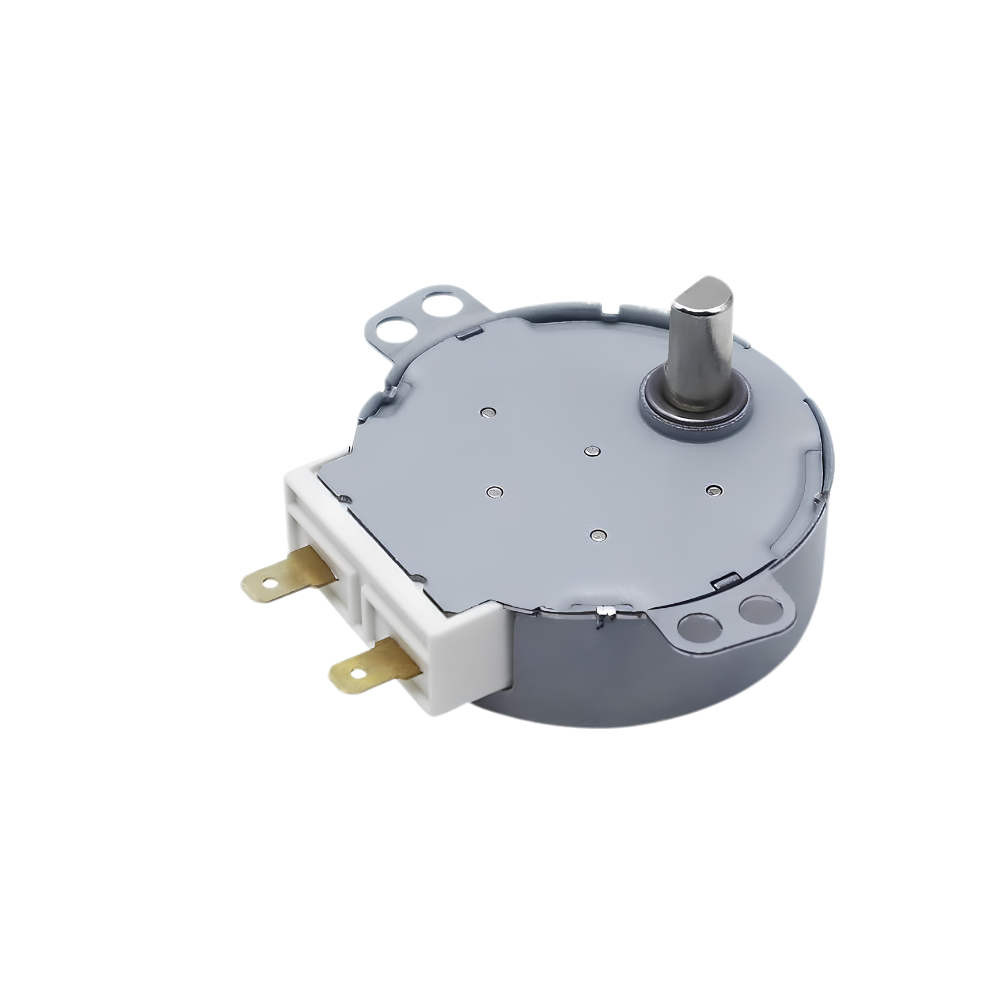

The XPARTCO WB26X10038 is an aftermarket turntable motor that fits a wide range of GE, Hotpoint, RCA, Kenmore/Sears, and Frigidaire microwaves. Mounted beneath the cavity floor, this small synchronous motor turns the glass turntable so food heats evenly under the magnetron. When the motor wears out or its internal gears strip, the turntable may stop turning, turn unevenly, or make a grinding or clicking noise as it struggles.
It has a D-shaped 1/4" metal drive shaft and two 3/16" male spade terminals that match the original connector, making it a direct plug-and-play swap. It directly replaces WB26X10038, 769741, ST16F, SM16F, SSM-16H, 15QBP1017, AGE21998, AH237772, AP2024962, EA237772, OEM6074895, PD00001126, PS237772, 5304408980, 639447, AH471476, EA471476, OEM6453786, AFR80909, AP2151259, PS471476, DE31-10172A. Installation takes 5–10 minutes with basic hand tools.
Quick Answer
Choose the XPARTCO WB26X10038 Microwave Turntable Motor if your GE, Hotpoint, RCA, Kenmore/Sears, or Frigidaire microwave has a turntable that won't turn, turns unevenly, or grinds/clicks while trying to rotate. 21V AC, 50/60Hz, 2.5–3 RPM, 3.0W, D-shaped 1/4" metal shaft, two 3/16" male spade terminals. Replaces WB26X10038, 769741, ST16F, SM16F, SSM-16H, 15QBP1017, AGE21998, AH237772, AP2024962, EA237772, OEM6074895, PD00001126, PS237772, 5304408980, 639447, AH471476, EA471476, OEM6453786, AFR80909, AP2151259, PS471476, DE31-10172A. Classic symptom: microwave heats fine, but the glass tray sits still or turns only partway.
Common Problems This Part Fixes
- Turntable doesn't rotate at all, even though the microwave heats normally
- Turntable turns partway then stalls or reverses
- Grinding, clicking, or straining noise coming from under the cavity floor
- Uneven cooking or hot/cold spots caused by the tray not rotating
- Turntable coupler or drive hub spins but the glass tray doesn't move
- Intermittent rotation that works sometimes and not others
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This turntable motor directly replaces the following OEM and cross-reference part numbers:
WB26X10038, 769741, ST16F, SM16F, SSM-16H, 15QBP1017, MDPJ030AF, AGE21998, AH237772, AP2024962, EA237772, OEM6074895, PD00001126, PS237772, 5304408980, 639447, AH471476, EA471476, OEM6453786, AFR80909, AP2151259, PS471476, DE31-10172A, MDPJ030AF
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This turntable motor is compatible with a wide range of microwaves from the following brands:
- GE microwaves (JVM, DVM, EMO, and CGLMV series)
- Hotpoint microwaves (GE-built models)
- RCA microwaves (GE-built models)
- Kenmore and Sears microwaves (363- and 721-prefix model numbers)
- Frigidaire microwaves (select models sharing this motor design)
Note: This motor spans both GE-built and Frigidaire microwave platforms — a cross-brand fitment worth confirming against your specific model number, since not every model on either platform uses this exact motor. Always verify your appliance model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Direct-fit replacement microwave turntable motor with D-shaped 1/4" metal drive shaft
- Resolves "won't rotate," "grinding noise," and "uneven cooking" symptoms caused by motor failure
- 21V AC, 50/60Hz synchronous motor rated for 2.5–3 RPM output
- 3.0W power draw matching original electrical specifications
- Two 3/16" male spade terminals for a secure plug-and-play connection
- CW/CCW rotation capable to match your original motor's turning direction
- Replaces WB26X10038, 769741, ST16F, SM16F, SSM-16H, 15QBP1017, AGE21998, AH237772, AP2024962, EA237772, OEM6074895, PD00001126, PS237772, 5304408980, 639447, AH471476, EA471476, OEM6453786, AFR80909, AP2151259, PS471476, DE31-10172AXP, and several additional cross-reference numbers
- Compatible with GE, Hotpoint, RCA, Kenmore/Sears, and Frigidaire microwaves
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number | XPWB26X10038 |
| OEM Part Number | WB26X10038 |
| Part Type | Microwave Turntable Drive Motor |
| Condition | Aftermarket Replacement |
| Voltage | 21V AC |
| Frequency | 50/60 Hz |
| Speed | 2.5–3 RPM |
| Power | 3.0W |
| Shaft Type | D-shaped metal, 1/4" |
| Diameter | ~2 inches |
| Terminals | Two 3/16" male spade connectors |
| Compatible Brands | GE, Hotpoint, RCA, Kenmore, Sears, Frigidaire |
Installation Notes
Frequently Asked Questions
My microwave heats food fine, but the turntable doesn't spin — is this the part?
Yes, that is the classic sign of a failed turntable motor. Heating (the magnetron and high-voltage components) is a completely separate system from the turntable drive, so a microwave can heat normally while the turntable motor has failed. Before ordering, make sure the glass tray and roller guide are seated correctly, since a stuck tray can sometimes be mistaken for a motor failure.
Will this fit both GE and Frigidaire microwaves?
This motor design is shared across select GE-built and Frigidaire microwave models, but not every model on either platform uses it. Confirm fit using your microwave's exact model number before ordering rather than assuming by brand alone.
Do I need to transfer the drive coupler from my old motor?
The drive coupler (the plastic piece that connects the motor shaft to the turntable support) is typically a separate component that sits on top of the motor shaft rather than being permanently attached, so you'll generally reuse your existing coupler and roller guide with the new motor unless they're visibly worn or damaged.
Why is my turntable turning slowly or grinding instead of stopping completely?
This usually means the motor's internal gears are stripped or worn rather than the motor being fully dead — it's still trying to turn but can't do so smoothly. This is a sign the motor needs replacement even if it hasn't failed outright yet.
