XPARTCO W11168740 Washer Water Valve (Cold Side)
XPARTCO W11168740 Washer Water Valve (Cold Side)

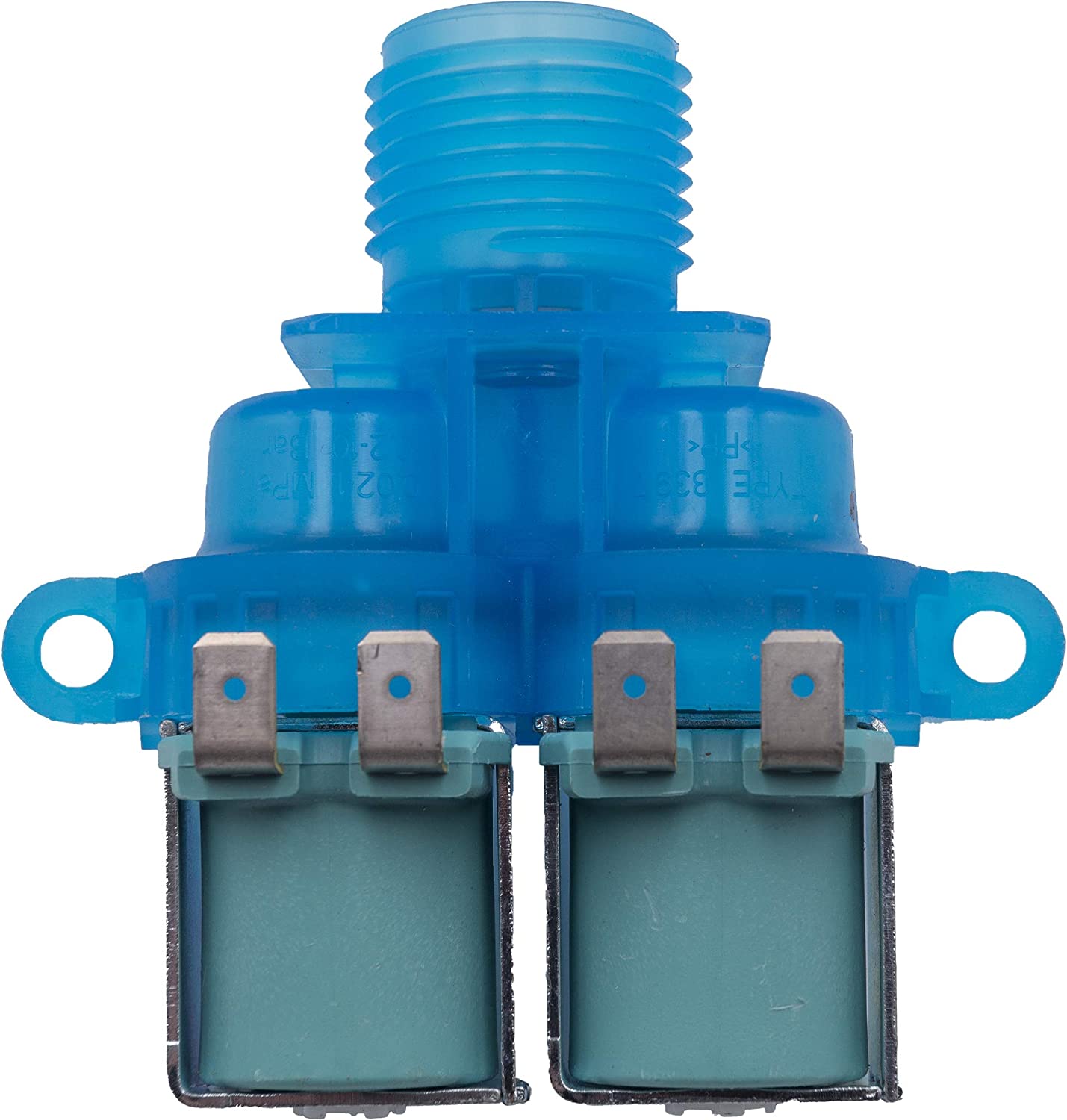

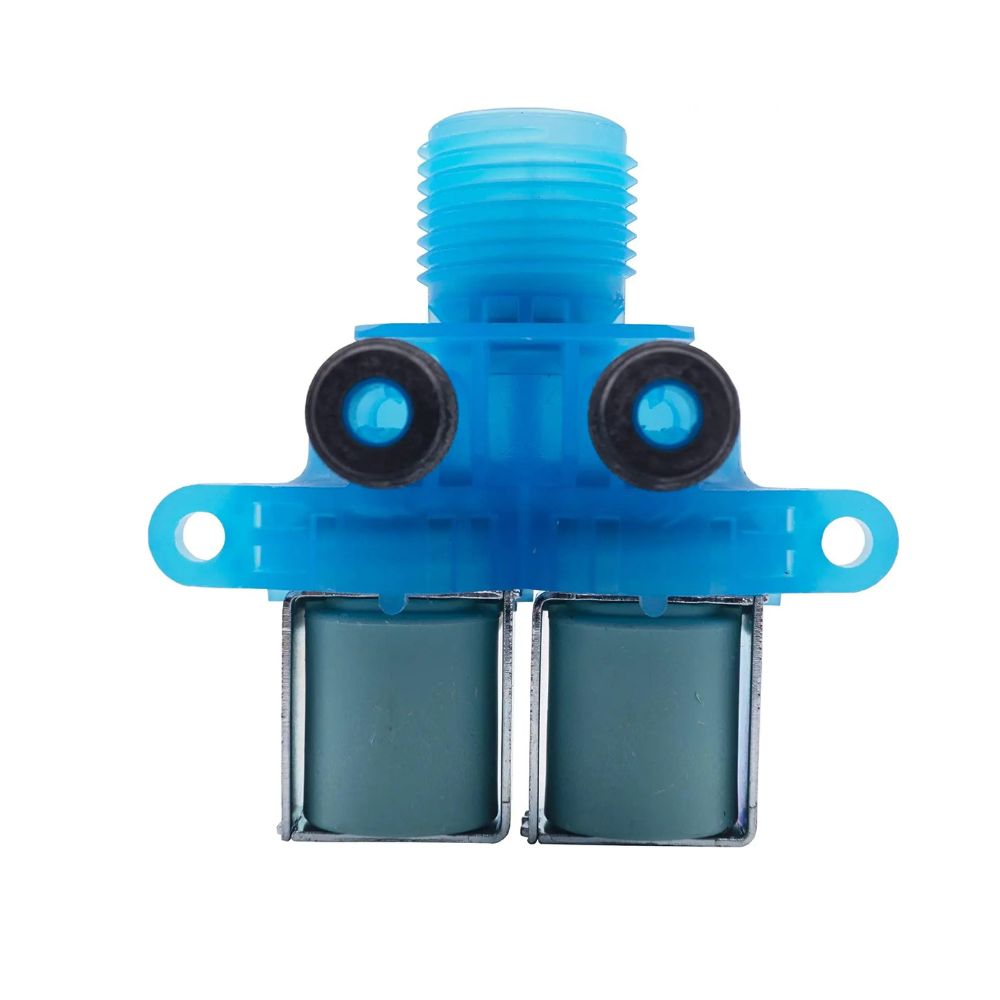

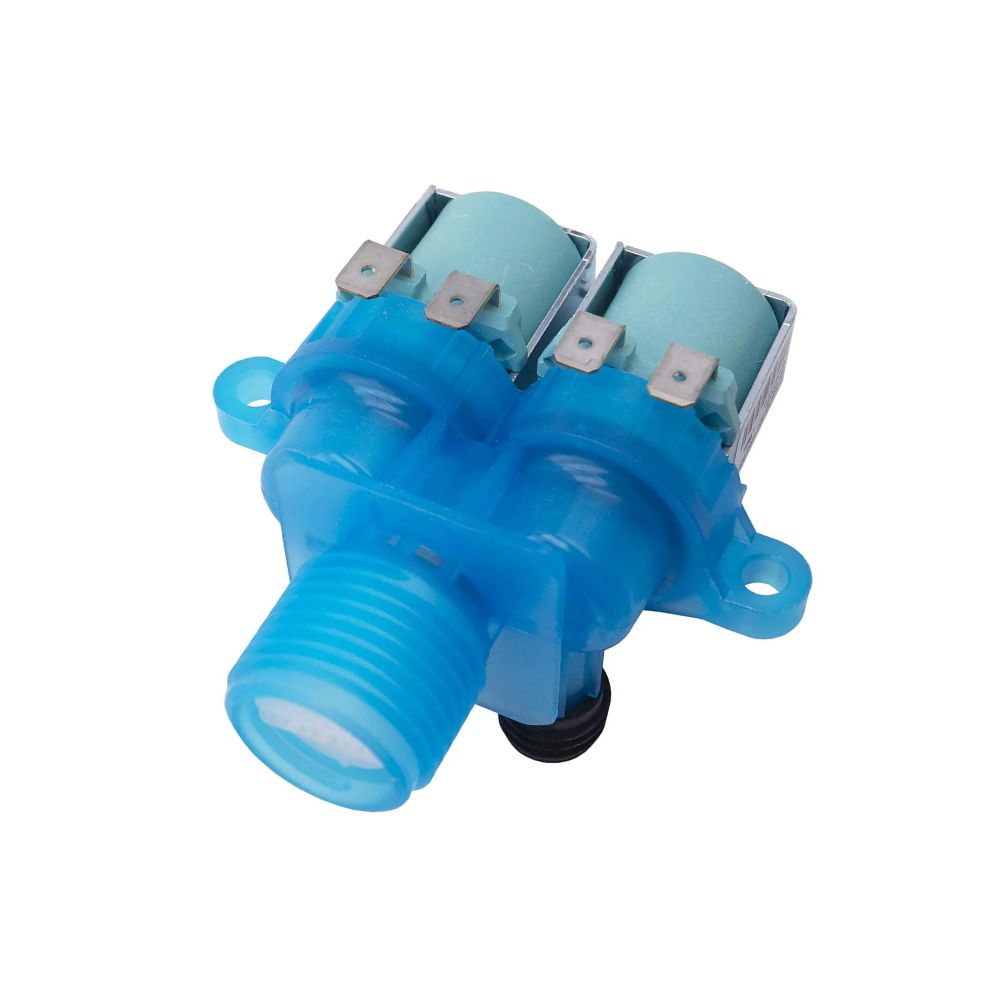

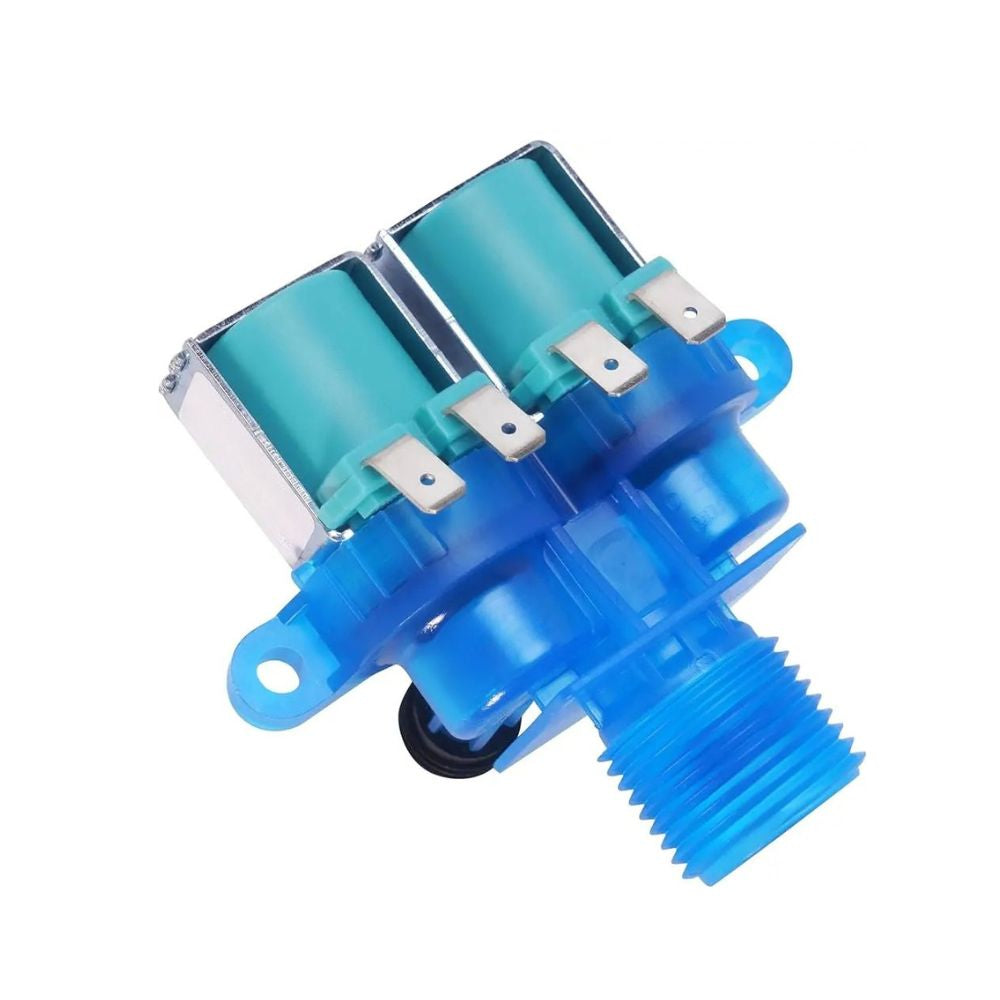

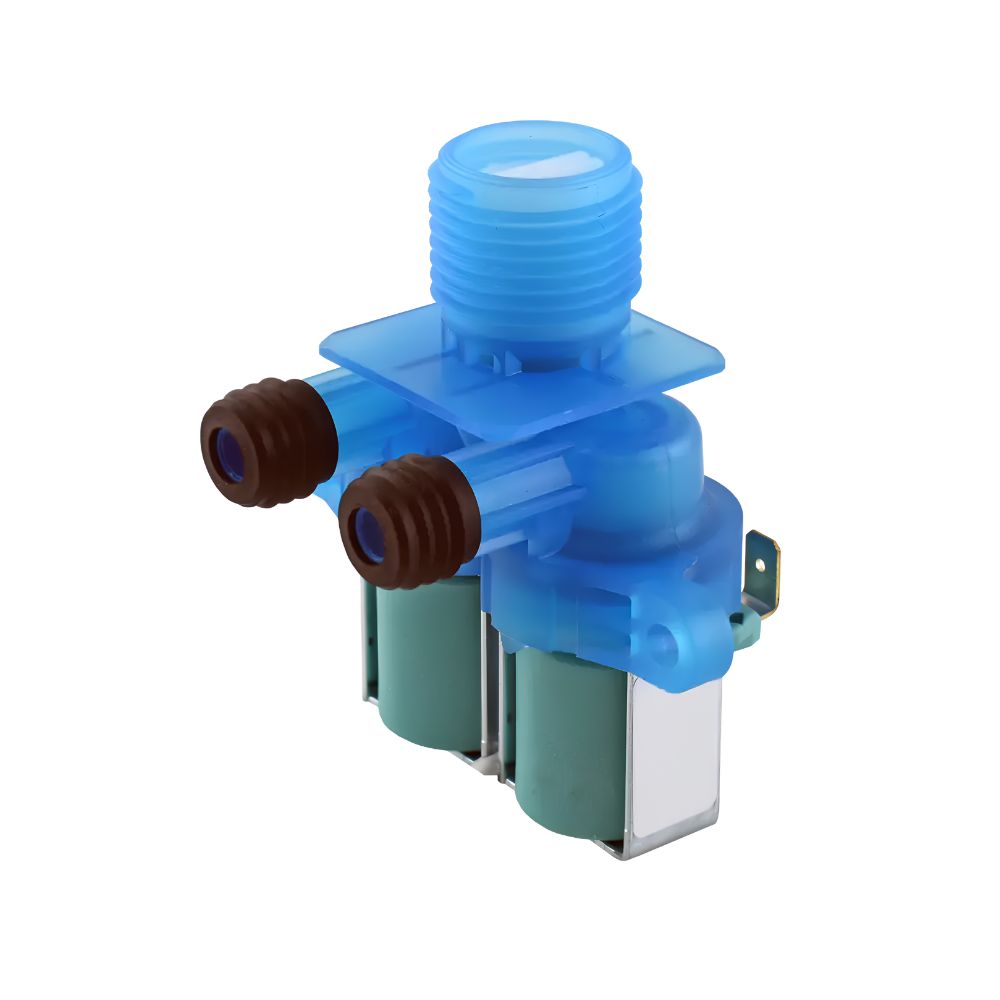

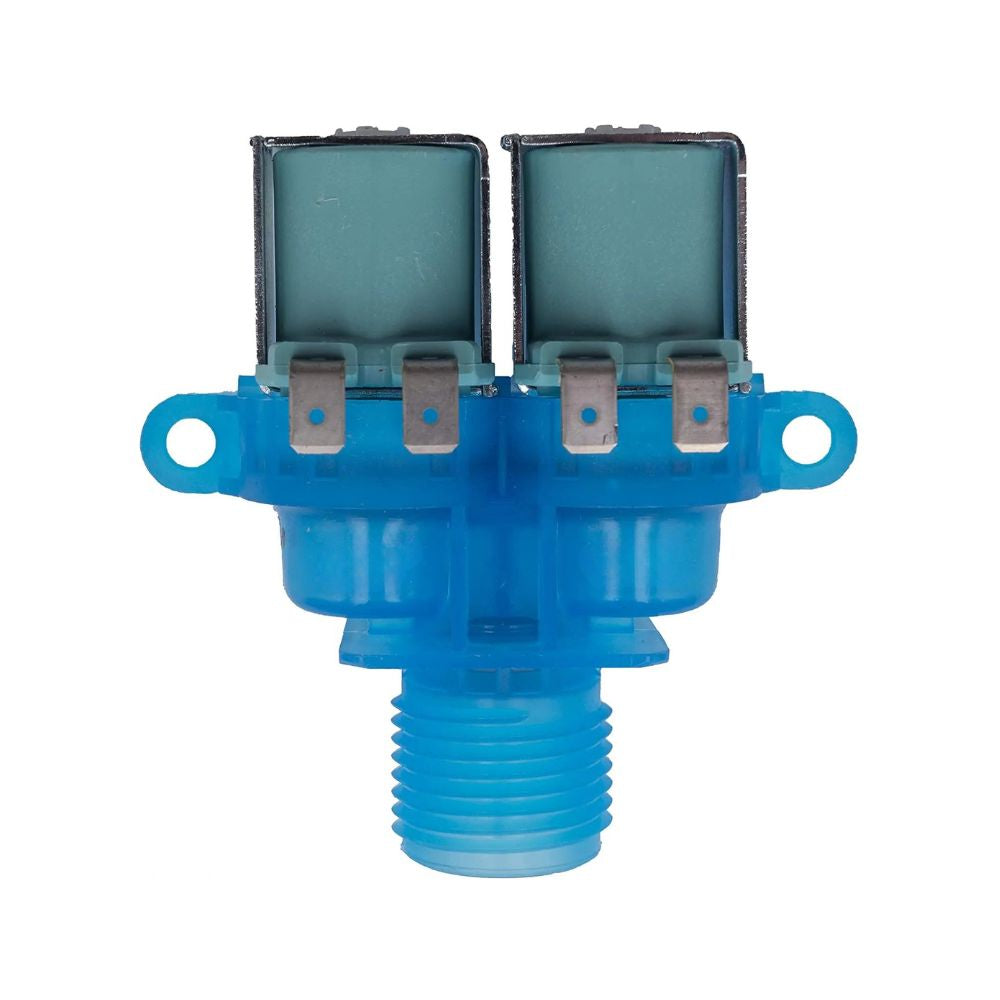

The XPARTCO W11168740 is an aftermarket replacement cold water inlet valve for Whirlpool-built top-load washers, located on the top back of the cabinet where the hot and cold supply hoses connect. Unlike its companion hot-side valve (sold separately as W11168743, a single-solenoid design), this cold valve uses two internal solenoid coils in one blue-bodied housing. When the control calls for a cold fill, it energizes the appropriate solenoid to open the water path; once the correct level is reached, it closes again.
Because it's a dedicated cold-only valve, a failure here produces a distinctive symptom: cold-only fills stop working, slow down dramatically, or don't stop when they should, while hot fills (governed by the separate hot valve) continue working independently. Rated 120V, 60Hz, with push-on outlet connections sealed by rubber grommets. Common failure causes include mineral or sediment buildup that prevents the valve from sealing, a burned-out solenoid coil, or a worn seal at the outlet connection. It directly replaces WPW10240949, W10240949, W10921514, 33390069, 4546379, AP6285450, PD00038781, and PS12348073.
Quick Answer
The XPARTCO W11168740 Washer Water Valve (Cold Side) fixes Whirlpool-built top-load washers where cold water won't fill, fills slowly, keeps filling and won't stop, leaks, or throws a fill-related error code — while hot water fills normally. Blue-bodied, 2-solenoid cold-only valve, 120V, 60Hz, push-on outlet with rubber grommets. Replaces WPW10240949, W10240949, W10921514, 33390069, 4546379, AP6285450, PD00038781, PS12348073. This is the cold-side valve only — the companion hot-side valve is sold separately as W11168743.
Common Problems This Part Fixes
- Washer won't fill with cold water while hot water fills normally
- Cold water fills much more slowly than it used to
- Washer keeps filling with cold water and won't stop, leading to overfill
- Water leaking at the cold connection point
- Fill-related error code displayed on the control panel
- Cycle stalling at the fill step and never advancing to wash
- Cold wash or cold rinse cycles specifically affected while other cycles run fine
- Water pooling underneath or behind the washer near the cold supply connection
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer cold water inlet valve directly replaces the following OEM and cross-reference part numbers:
W11168740, WPW10240949, W10240949, W10921514, 33390069, 4546379, AP6285450, AWP43125, EAP12348073, PD00038781, PS12348073
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This cold water inlet valve is compatible with select Whirlpool-built top-load washers across the Whirlpool family of brands, including:
- Whirlpool top-load washers — WTW series
- Maytag top-load washers (select Whirlpool-built models)
- Select Kenmore top-load washers built on the Whirlpool platform
Verified model numbers include: WTW5500XL0, WTW5500XL2, and WTW5640XW3.
Note — cold side only: This is the cold water valve, identifiable by its blue body and two internal solenoids. The matching hot water valve for these same washers is sold separately under part number W11168743 — a single-solenoid design. The two are not interchangeable. If both valves need replacement, order both part numbers. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement dedicated cold water inlet valve for Whirlpool-built top-load washers
- Two internal solenoid coils in one blue-bodied housing, identifiable at a glance from the single-solenoid hot valve
- Resolves "won't fill with cold water," "fills slowly," "won't stop filling," and "leaking at the connection" symptoms caused by valve failure
- Rated 120V, 60Hz
- Push-on outlet connections sealed with rubber grommets
- Approximately 3-3/8"L x 3-1/2"W x 2-3/8"H
- Direct drop-in replacement — no modification required
- Replaces WPW10240949, W10240949, W10921514, 33390069, 4546379, AP6285450, PD00038781, and PS12348073
- Compatible with a wide range of Whirlpool, Maytag, and Kenmore top-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number | XPW11168740 |
| OEM Part Number | W11168740 |
| Part Type | Washer Water Inlet Valve — Cold Side |
| Condition | Aftermarket Replacement |
| Application | Top-Load Washers (Whirlpool-Built) |
| Voltage | 120V |
| Frequency | 60 Hz |
| Solenoids | 2 (dedicated cold water function) |
| Color | Blue / Teal / Black |
| Material | Plastic and metal |
| Outlet Connection | Push-on with rubber grommets |
| Dimensions | Approx. 3-3/8"L x 3-1/2"W x 2-3/8"H |
| Companion Part | W11168743 (hot water valve, sold separately) |
| Quantity | 1 valve |
| Compatible Brands | Whirlpool, Maytag, Kenmore |
Installation Notes
Frequently Asked Questions
Cold water won't fill but hot water works fine. Is this the right part?
Yes — that's exactly the symptom pattern this valve addresses. Since your washer uses separate hot and cold valves rather than one combined valve, a fault on the cold side only affects cold fills while the hot valve keeps working independently. If cold-specific cycles are the ones failing while hot cycles are unaffected, this cold-side valve is the correct part to replace.
How can I tell this valve apart from the hot-side valve just by looking at it?
This cold valve has a blue body and two internal solenoid coils, while the companion hot-side valve (W11168743) is a single-solenoid design. If you're staring at the old valve trying to confirm which one you're removing, the color and solenoid count are a quick visual check.
Do I need to replace both the hot and cold valves at the same time?
Not necessarily. Since these are independent single-function valves, you only need to replace the one that has actually failed. If only cold fills are affected, replacing this W11168740 valve alone is sufficient. Some people choose to replace both while the top panel is already off, especially on an older washer, but it isn't required.
My washer keeps filling with cold water and won't stop. Is that dangerous?
It can lead to overflow and water damage if left unaddressed, so it's worth shutting off the water supply at the wall if this happens rather than waiting. A valve that won't stop filling usually means a worn internal seal is no longer sealing shut when the solenoid de-energizes, letting water continue flowing. This valve is the correct replacement for that symptom.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the dual-solenoid design, connection type, and dimensions of the original W11168740 cold water valve used in compatible Whirlpool, Maytag, and Kenmore top-load washers.
