XPARTCO W11130208 Refrigerator LED Light Module for W11683241
XPARTCO W11130208 Refrigerator LED Light Module for W11683241

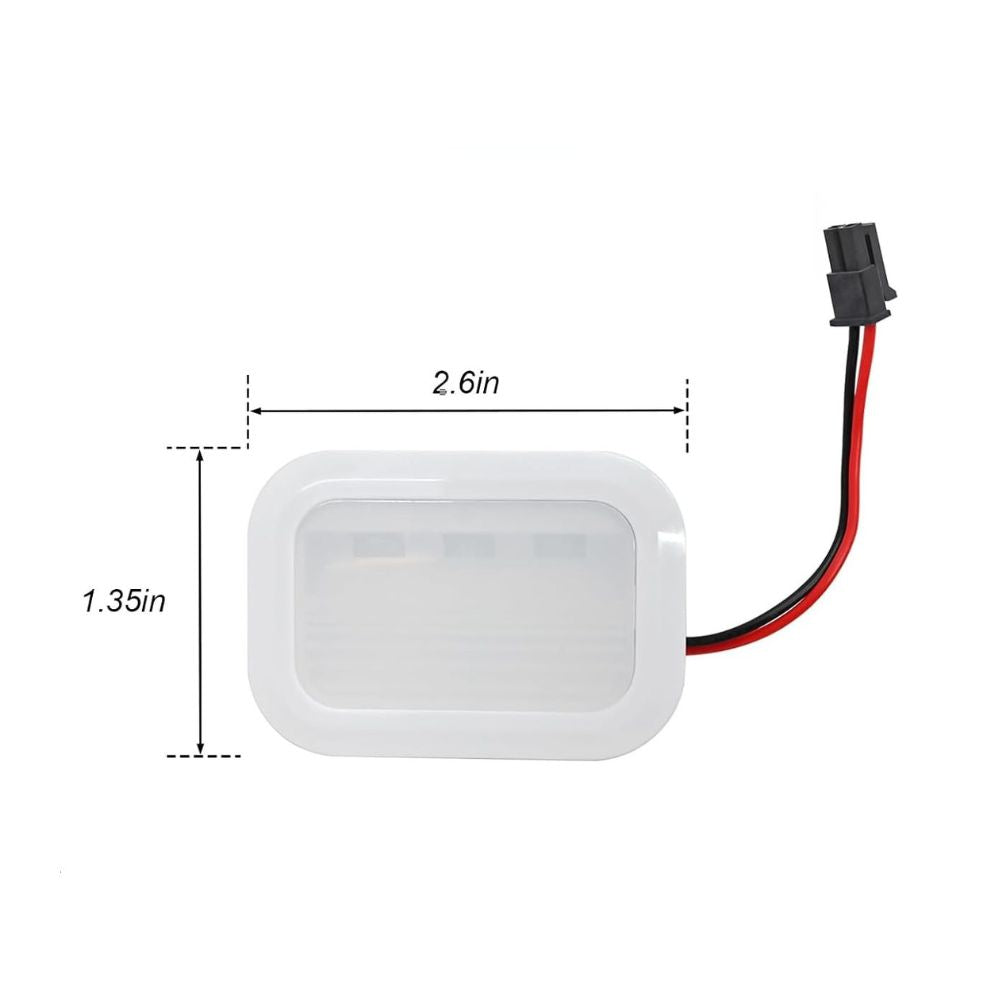

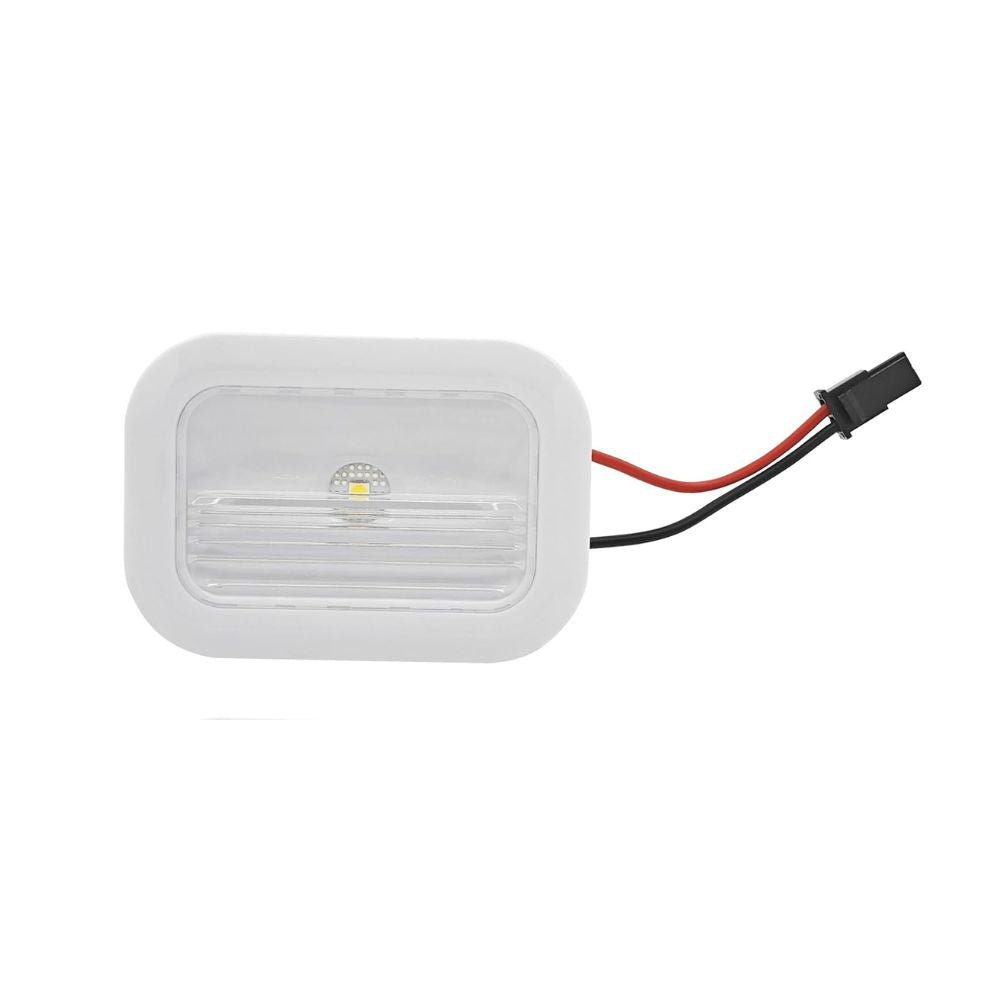

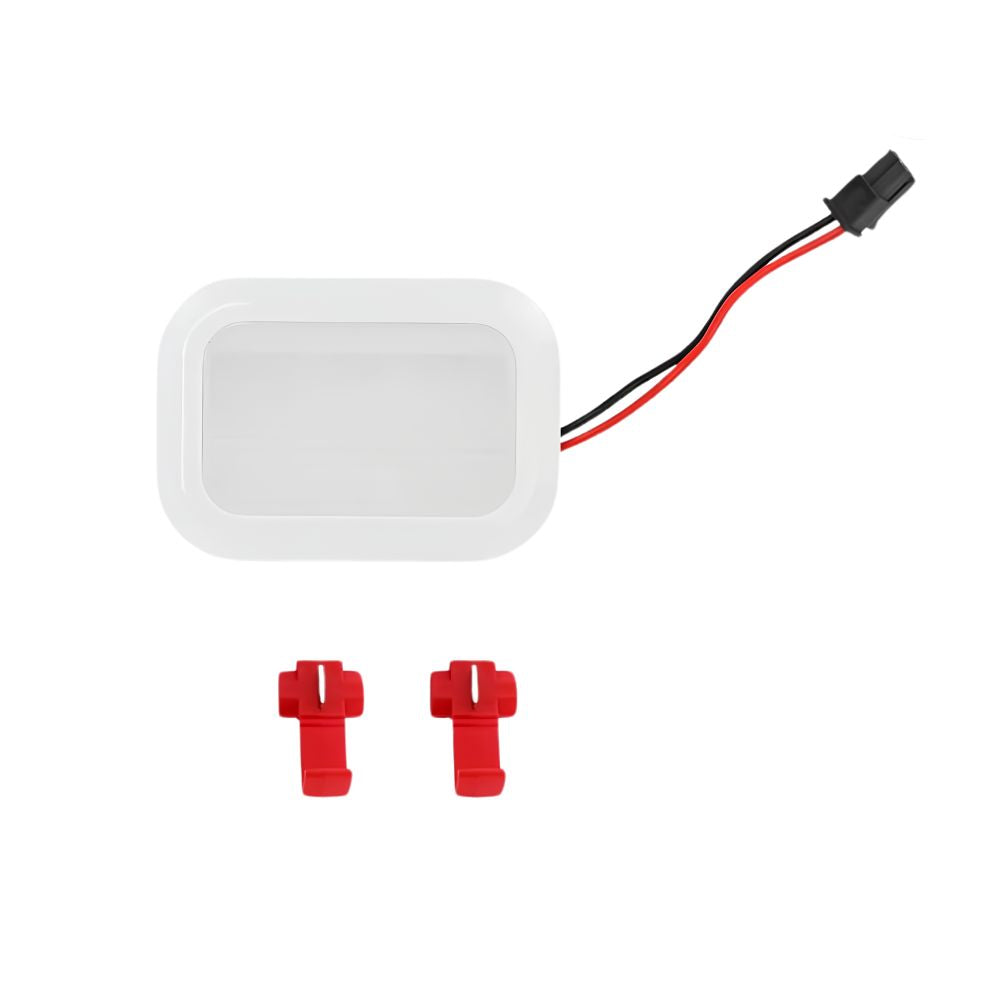

The XPARTCO W11130208 is an aftermarket replacement LED light module for Whirlpool, KitchenAid, and Kenmore Elite refrigerators. W11130208 has been officially superseded by Whirlpool's current part number, W11683241 — the two are the same lighting solution across production revisions, so this listing ships as the current W11683241 service kit and will correctly replace an original W11130208 module. These modules attach inside the cabinet and illuminate the refrigerator or freezer compartment with efficient LED lighting.
Rated 6V, these modules are wired in a series circuit — multiple modules connected end to end along a light strip. That series design has an important consequence for diagnosis: most "LED failures" that look like a complete lighting outage are actually just one burnt-out module dragging down the entire chain, not every module failing at once. A pigtail extension on the current kit design specifically addresses the most common DIY complaint with this repair — not being able to reach the connector behind the housing. Symptoms include dim or flickering lights, partial lighting where part of the compartment goes dark while the rest stays lit, or lights that don't turn on at all. It directly replaces AP7216885, W10279030, W10412708, W10623956, W10637153, WPW10637153, W10758333, W10876279, and W11203918.
Quick Answer
The XPARTCO W11130208 Refrigerator LED Light Module fixes Whirlpool, KitchenAid, and Kenmore Elite refrigerators with dim or flickering lights, partial lighting (part of the compartment dark while the rest stays lit), or lights that don't turn on at all. 6V modules, series circuit. Replaces AP7216885, W10279030, W10412708, W10623956, W10637153, WPW10637153, W10758333, W10876279, W11203918. This part number has been officially superseded by W11683241 — this listing ships as the current, direct-fit replacement.
Common Problems This Part Fixes
- Refrigerator or freezer lights are dim or flickering
- Part of the compartment is dark while the rest of the light strip still works
- Lights don't turn on at all when the door is opened
- Lighting that has gradually dimmed over time
- One section of the light strip out while the remaining sections work normally
- Inconsistent lighting that flickers intermittently rather than staying steady
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator LED light module directly replaces the following OEM and cross-reference part numbers:
W11130208, W10758333, W10412708, W10279030, W10637153, W10876279, AP6262381, PS12347525,
Single Light used in W11683241, 4591417, 4982094, AP6262381, AP7216885, EAP17216451, EAP6262381, PS12347525, PS17216451, AWP46249, PD00084706
W11130208 is the earlier Whirlpool number for this part; W11683241 is the current part number. If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This LED light module is compatible with select Whirlpool refrigerators, and also fits select KitchenAid and Kenmore Elite refrigerators built on the same platform, including model numbers such as:
- Whirlpool: WRX988SIBM01, WRX988SIBW00, WRS973CIDM00, WRF991BOOM01, WRF989SDAM02, WRS965CIAM01, WRS965CIAE00
- KitchenAid: KFIV29PCMS02, KRSC500ESS01, KRSF505EBL01, KRSF505ESS01, KRSF505EWH01
- Kenmore: 10651173310, 10651762511, 10651763511, 10651764511, 10651769512, 59672389411
Note: This part is model-specific, not universal — several visually similar LED module kits exist across the Whirlpool lineup (including W11483116 and W10843353/W10695459 for other model groups) with different cross-reference sets. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which module fits your refrigerator.
Key Features
- Aftermarket replacement LED light module — illuminates the refrigerator or freezer interior
- Ships as the current W11683241 kit, the official replacement for the superseded W11130208 number
- Resolves "dim or flickering lights," "partial lighting," and "lights won't turn on" symptoms
- Rated 6V, wired in a series circuit
- Pigtail extension design for easier access to the connector behind the housing
- Pop-out, plug-in module replacement — no screwdriver or wire nuts needed for the module swap itself
- Replaces AP7216885, W10279030, W10412708, W10623956, W10637153, WPW10637153, W10758333, W10876279, and W11203918
- Compatible with Whirlpool, KitchenAid, and Kenmore Elite refrigerators
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number | W11130208 |
| OEM Part Number | W11130208 |
| Part Type | Refrigerator LED Light Module |
| Condition | Aftermarket Replacement |
| Voltage | 6V |
| Circuit Type | Series (multiple modules per strip) |
| Supersedes | Current part number is W11683241 (same solution, current revision) |
| Connector Design | Pigtail extension for easier housing access |
| Repair Difficulty | Medium — 30 to 60 minutes |
| Compatible Brands | Whirlpool, KitchenAid, Kenmore Elite |
Installation Notes
Frequently Asked Questions
I ordered W11130208 but received a module marked W11683241. Is that correct?
Yes. W11130208 has been officially superseded by Whirlpool's current part number, W11683241 — they are the same lighting solution across production revisions, and W11683241 is what currently ships when this part is ordered. It installs and functions identically to the original W11130208.
Only part of my fridge light strip is dark. Do I need to replace the whole strip?
Not necessarily. These modules are wired in a series circuit, meaning several modules connect end to end along one strip. A single burnt-out module can cause everything downstream of it in that chain to go dark or dim, even though the rest of the modules are still perfectly good. In many cases, replacing just the failed module restores lighting to the whole strip rather than needing to replace every module.
I can't reach the connector behind the light housing. Is that normal?
This is a very common complaint with earlier module designs, and it's specifically what the pigtail extension on the current kit is designed to solve — it gives you more reach to access the connector without needing to fully disassemble the housing. If you're still struggling to reach it, double-check that you've removed all the housing fasteners for your specific model before forcing anything.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the 6V rating, series wiring, and housing fit of the original W11130208 / W11683241 LED light module used in compatible Whirlpool, KitchenAid, and Kenmore Elite refrigerators.
