XPARTCO W10913953 Washer Shift Actuator

List Price:  $39.20
$26.50
 per

FREE SHIPPING TO ALL 48 CONTIGUOUS STATES
Free standard shipping at checkout.

CHECK YOUR MODEL COMPATIBILITY

Enter your appliance model number to check if this part is listed as compatible.

Need help finding your model number?

Guaranteed safe checkout

Product description

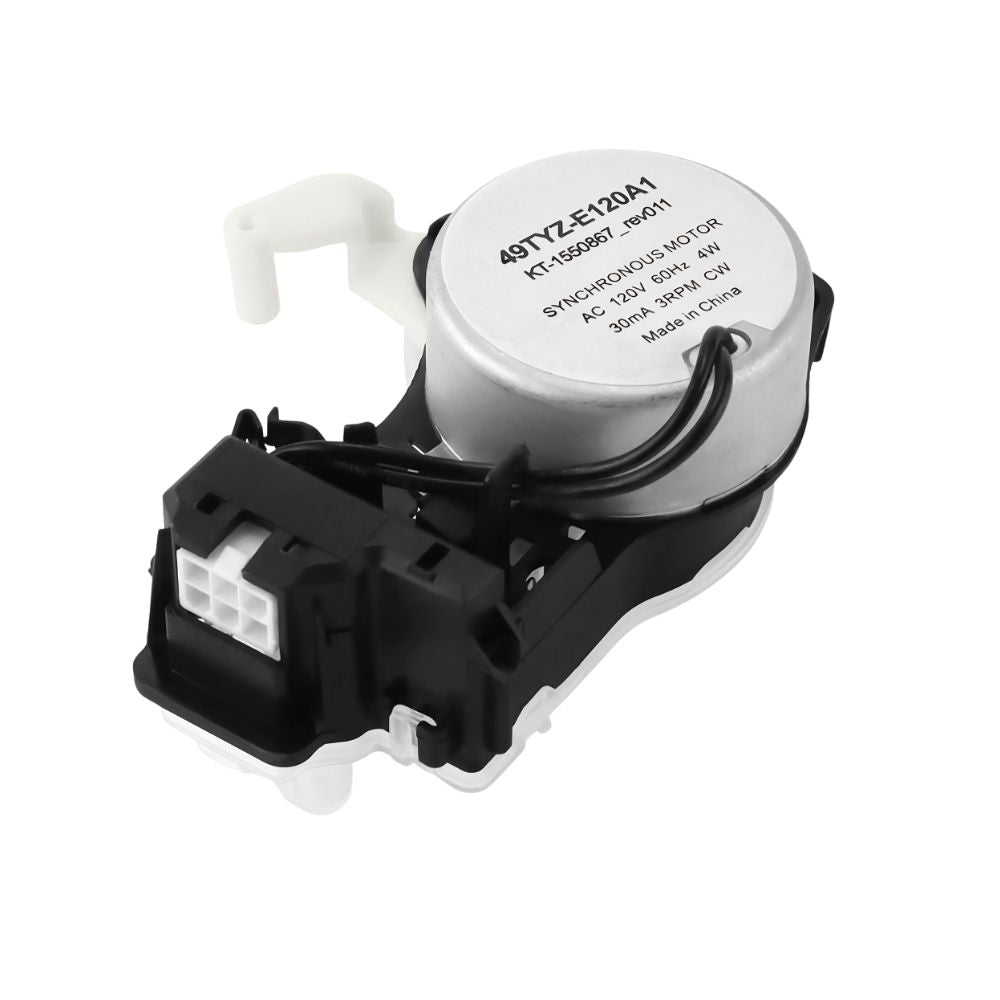

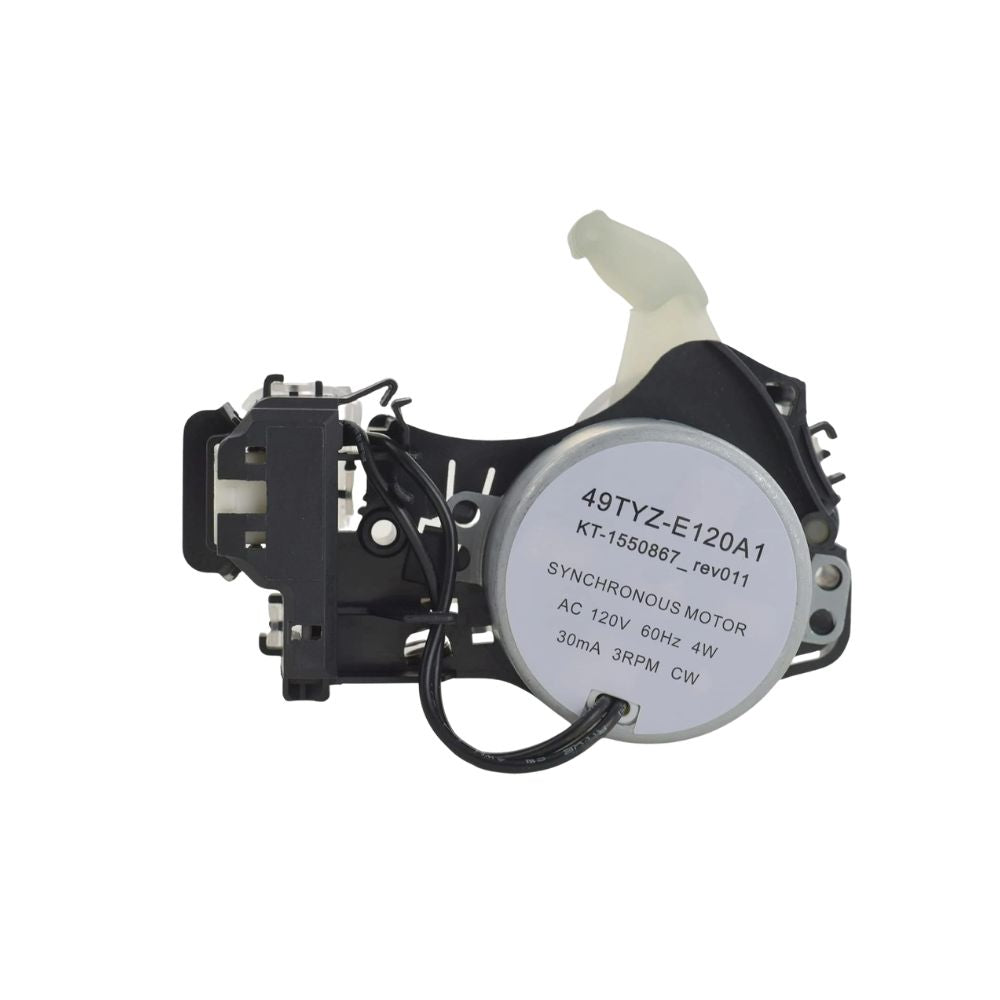

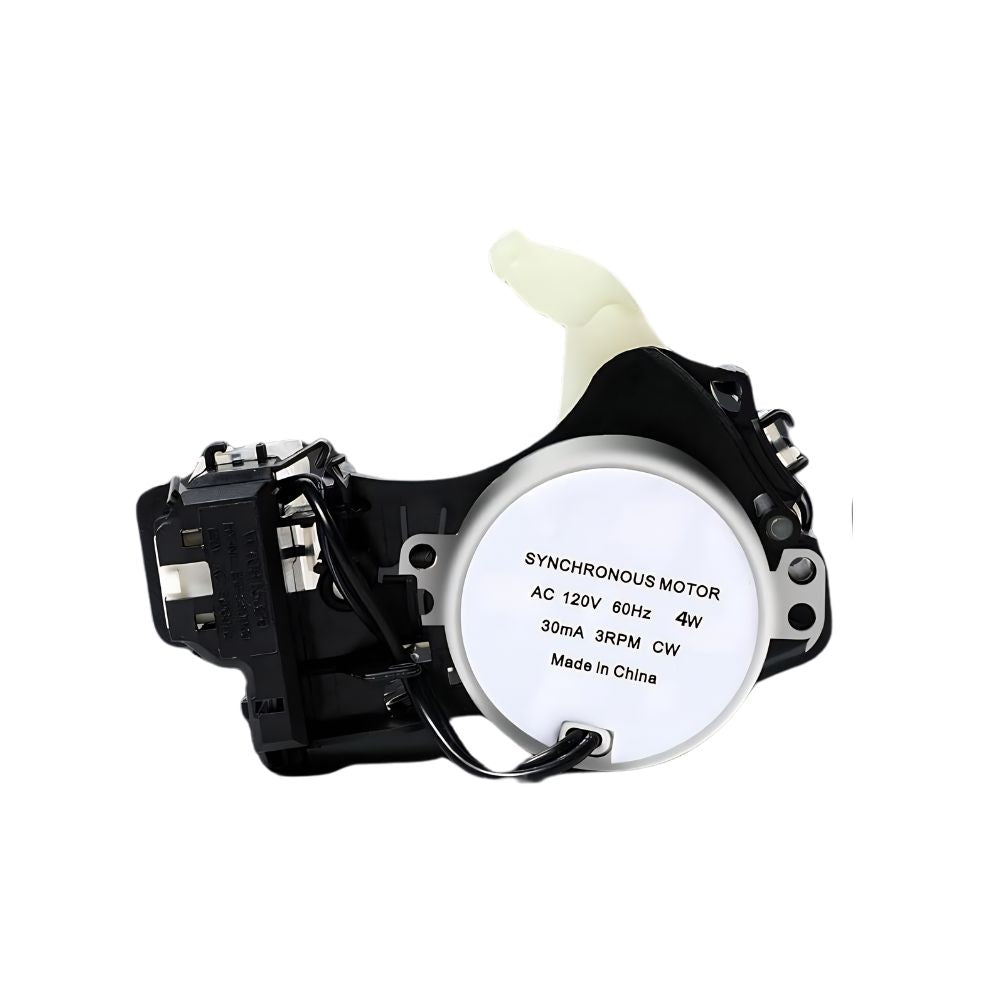

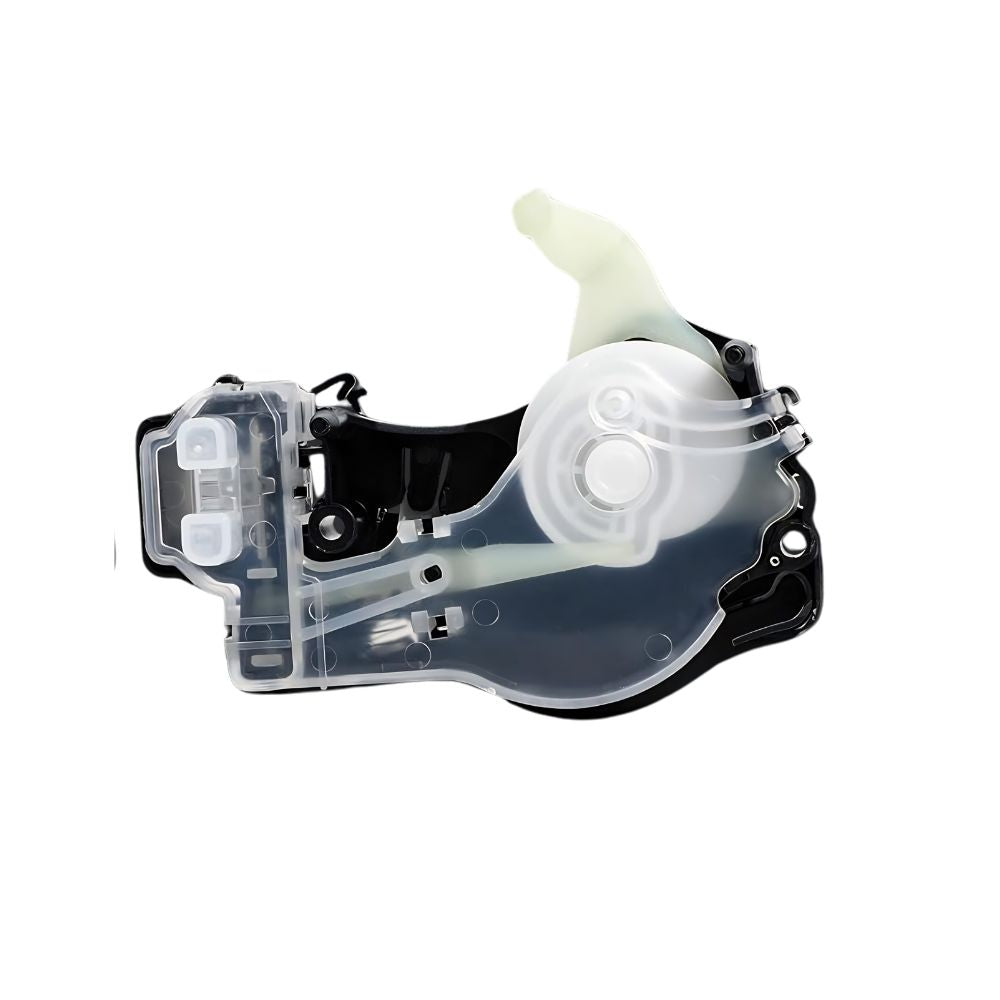

XPARTCO W10913953 Washer Shift Actuator

If your top-load washer has a VM (variable motor) transmission, the XPARTCO W10913953 is an aftermarket replacement shift actuator assembly designed for select Whirlpool, Maytag, Kenmore, Amana, Crosley, Inglis, and Roper models, including the Whirlpool Cabrio, Maytag Centennial, and Maytag Bravos series. The actuator is a small synchronous gearmotor mounted beneath the washer tub. It decides whether the transmission is in agitation mode or spin mode by moving the arm on the cam ring assembly, either engaging the basket for spinning or releasing it so that only the agitator or wash plate moves. An internal tachometer also keeps the control board informed of the basket's rotational speed.

A failed actuator, most often from a stripped or broken gear inside the gearmotor, can leave the washer unable to agitate or spin, stuck in one phase of the cycle, showing error codes F7E1 or F7E5, or making loud grinding or clicking noises as the gears give out. This 6-pin plug assembly is rated 120V, 60Hz, 4W, with a synchronous motor turning at 3 RPM clockwise. It measures 4-1/4"L x 2-3/4"W x 1-7/8"H and is a direct replacement for W10815026, W10597177, WPW10597177, 4455082, 49TYZ-E120A1, 50SM21-1-221B, AP6037270, and PS11769864. Basic hand tools and 20–30 minutes are all the installation takes.

Quick Answer

Choose the XPARTCO W10913953 Washer Shift Actuator for Whirlpool Cabrio, Maytag Centennial, and Maytag Bravos top-load washers that won't agitate, won't spin, display error codes F7E1 or F7E5, or make grinding/clicking noises when trying to shift cycles. 6-pin plug, 120V/60Hz/4W synchronous motor, 3 RPM CW, 4-1/4"L x 2-3/4"W x 1-7/8"H. Replaces W10815026, W10597177, WPW10597177, 4455082, 49TYZ-E120A1, AP6037270, PS11769864. Compatible with Whirlpool, Maytag, Kenmore, Amana, Crosley, Inglis, and Roper VM-transmission top-load washers.

Common Problems This Part Fixes

  • Washer not agitating — basket fills with water but agitator or wash plate does not move
  • Washer not spinning — cycle advances to spin but basket does not rotate
  • Washer getting stuck in one phase — completing wash or fill but not advancing to spin
  • Clothes soaking wet after a full cycle — washer is not reaching high-speed spin
  • Error codes F7E1 or F7E5 displayed — motor shift or basket speed sensing fault
  • Loud grinding, clicking, or buzzing noise during cycle transitions between agitate and spin
  • Washer pumping normally but basket not spinning after draining

Replaces Part Numbers

This shift actuator directly replaces the following OEM and cross-reference part numbers:

W10913953, W10815026, 4455082, 49TYZ-E120A1, 50SM21-1-221B, KT-155867_rev011, EAP11769864, AP6037270, AWP42172, PD00032232, PS11769864.

If your part number is not listed above, contact our support team before ordering and we will verify compatibility.

Compatibility

This shift actuator is compatible with select top-load washers with VM transmissions from the following brands and series:

  • Whirlpool top-load washers — Cabrio series (WTW5000, WTW4816, WTW4850, WTW4915, WTW4950, WTW4955 and related models)
  • Maytag top-load washers — Centennial series (MVWC215, MVWC415, MVWC416, MVWC465, MVWC555, MVWC565 and related models)
  • Maytag top-load washers — Bravos series (MVWX655 and related models)
  • Kenmore / Sears top-load washers (select Whirlpool-built models)
  • Amana top-load washers — NTW series (NTW4516, NTW4655 and related models)
  • Crosley top-load washers (select models)
  • Inglis top-load washers (select models)
  • Roper top-load washers (select models)

Note: The W10913953 is for VM (variable motor) transmission top-load washers. It is not compatible with older Whirlpool top-load washers using a different transmission type. Always verify your model number before ordering. The shift actuator works in conjunction with the pulley clutch kit (W10721967 / W10006384) — if the actuator is good but the issue persists, the clutch kit should also be inspected.

Key Features

  • Controls transmission shifting between agitation mode and spin mode during the wash cycle
  • Moves the cam ring arm to engage the basket for spinning, or disengage it to allow only the agitator/wash plate to move
  • Integrated tachometer — continuously reports basket rotational speed to the control board for cycle management
  • Synchronous gearmotor — 120V, 60Hz, 4W, 3 RPM clockwise rotation
  • 6-pin plug connector — direct plug-in installation on compatible models
  • Dimensions: 4-1/4"L x 2-3/4"W x 1-7/8"H
  • Resolves F7E1 and F7E5 error codes on compatible Whirlpool and Maytag top-load washers
  • Replaces W10815026, W10597177, WPW10597177, 4455082, 49TYZ-E120A1, and AP6037270
  • Compatible with Whirlpool Cabrio, Maytag Centennial, Maytag Bravos, Amana NTW, and Kenmore VM-transmission top-load washers
  • Aftermarket replacement built to OEM-equivalent quality standards
  • DIY repair — installs in 20–30 minutes with basic hand tools

Product Specifications

Part Number W10913953
Also Replaces W10815026, W10597177 (prior versions)
Part Type Washer Shift Actuator Assembly (Mode Shift Actuator)
Condition Aftermarket Replacement
Application Top-Load Washers with VM Transmission (Cabrio, Centennial, Bravos)
Motor Type Synchronous gearmotor
Voltage 120V AC
Frequency 60 Hz
Wattage 4W
Speed 3 RPM, clockwise rotation
Connector 6-pin plug
Dimensions 4-1/4"L x 2-3/4"W x 1-7/8"H
Includes Integrated tachometer for basket speed sensing
Error Codes Resolved F7E1, F7E5
Compatible Brands Whirlpool, Maytag, Kenmore, Amana, Crosley, Inglis, Roper

Installation Notes

⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning. The shift actuator is located beneath the washer tub on the drive shaft assembly. To access it, remove the washer cabinet by unscrewing the top panel and releasing the front panel, or lay the washer on its back if your model requires it. The shift actuator is mounted to the bottom of the drive shaft assembly with mounting screws and connects to the washer's control harness via a 6-pin plug. Photograph the wiring before disconnecting. Remove the mounting screws, disconnect the 6-pin harness, and slide the old actuator off the shaft. Install the new W10913953 actuator in the same position and orientation, secure the mounting screws, and reconnect the 6-pin harness. Reassemble the cabinet, restore power and water, and run a test cycle through both agitation and spin to confirm normal operation. Note: if grinding noise continues after replacing the actuator, inspect the pulley clutch kit (W10721967 / W10006384) for wear. Tools needed: Phillips screwdriver, 1/4" nut driver, Torx screwdriver (T20 on some models).

Frequently Asked Questions

What does the shift actuator do in a top-load washer?

In Whirlpool Cabrio, Maytag Centennial, and Bravos-style VM-transmission top-load washers, the shift actuator is the small synchronous gearmotor that shifts the transmission. During a wash cycle the control board signals it to move the cam ring arm, which engages or disengages the drive connection between the motor and the basket. Moving one way, only the agitator or wash plate moves (agitation mode). Moving the other way, the basket engages and spins at high speed (spin mode). Its built-in tachometer also reports basket speed to the control board, which uses it to manage spin speed and detect imbalance.

What are error codes F7E1 and F7E5?

On compatible Whirlpool Cabrio and Maytag Centennial/Bravos top-load washers, F7E1 indicates a motor shift error — the actuator failed to complete the shift between agitate and spin mode within the expected time. F7E5 indicates a basket speed sensing fault — the tachometer inside the actuator is not providing a valid speed signal to the control board. Both codes are commonly caused by a failed shift actuator, though a failed drive motor, clutch assembly, or control board can also produce these codes. Replacing the shift actuator resolves both error codes in most cases.

Should I also check the pulley clutch kit?

Yes — if the shift actuator is replaced but the grinding noise persists, or if the washer still does not agitate or spin properly after the new actuator is installed, inspect the pulley clutch kit (W10721967 / W10006384). The clutch kit is a separate assembly that works in conjunction with the shift actuator to engage the drum. A worn or stripped clutch can produce the same symptoms as a failed actuator and is a common companion failure. Since the washer is already disassembled to replace the actuator, it is a good opportunity to inspect the clutch for wear.

What is the difference between W10913953 and W10815026?

The W10815026 was an earlier version of this shift actuator, and the W10913953 is the updated current replacement. Both are the same functional component — Whirlpool updated the part number during a production revision. The W10597177 and WPW10597177 are also cross-references for this same actuator. If your washer's parts diagram shows any of these older numbers, the W10913953 is the correct current replacement to order.

Is this an OEM or aftermarket part?

This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured with a synchronous gearmotor and ABS housing to match the electrical specifications and dimensions of the original W10913953 shift actuator.
