  • Sku: XPW10820036

XPARTCO W10820036 Dryer / Washer Door Switch

List Price:  $21.73
$14.98
 per

FREE SHIPPING TO ALL 48 CONTIGUOUS STATES
Free standard shipping at checkout.

CHECK YOUR MODEL COMPATIBILITY

Enter your appliance model number to check if this part is listed as compatible.

Need help finding your model number?

Guaranteed safe checkout

Product description

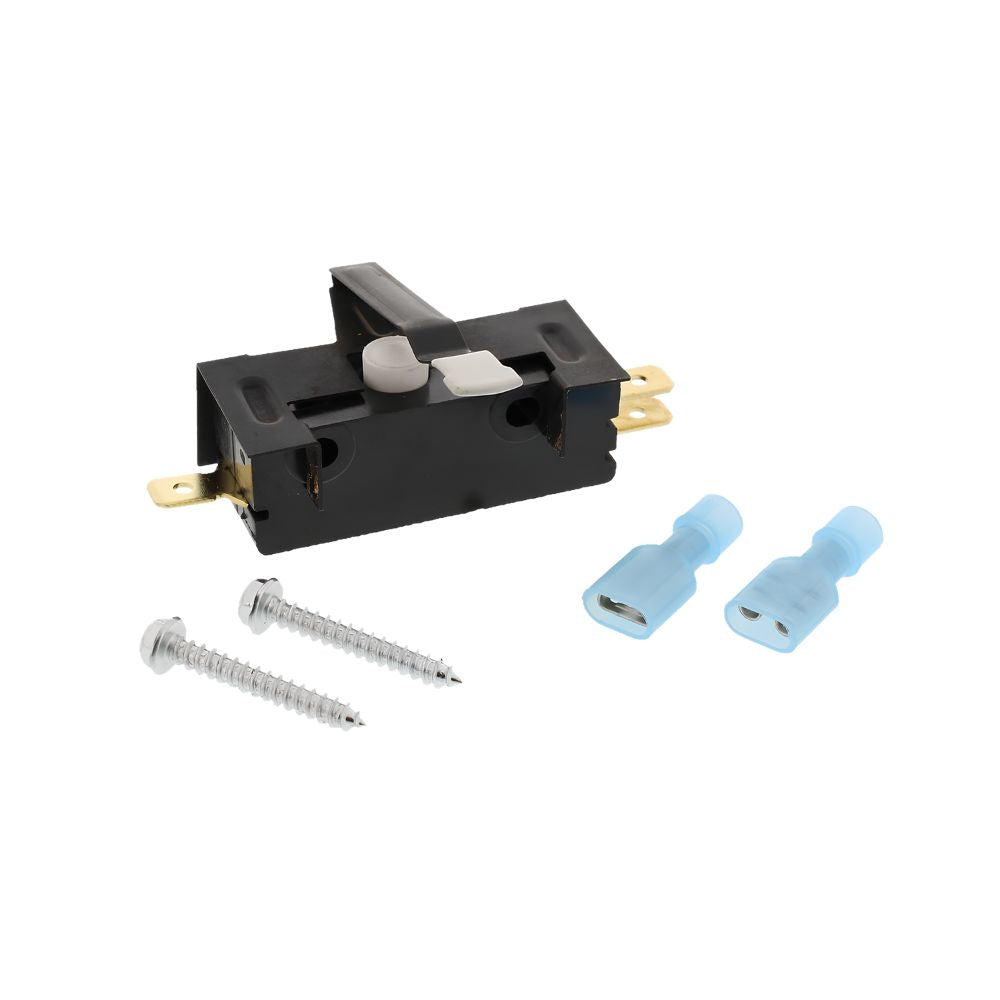

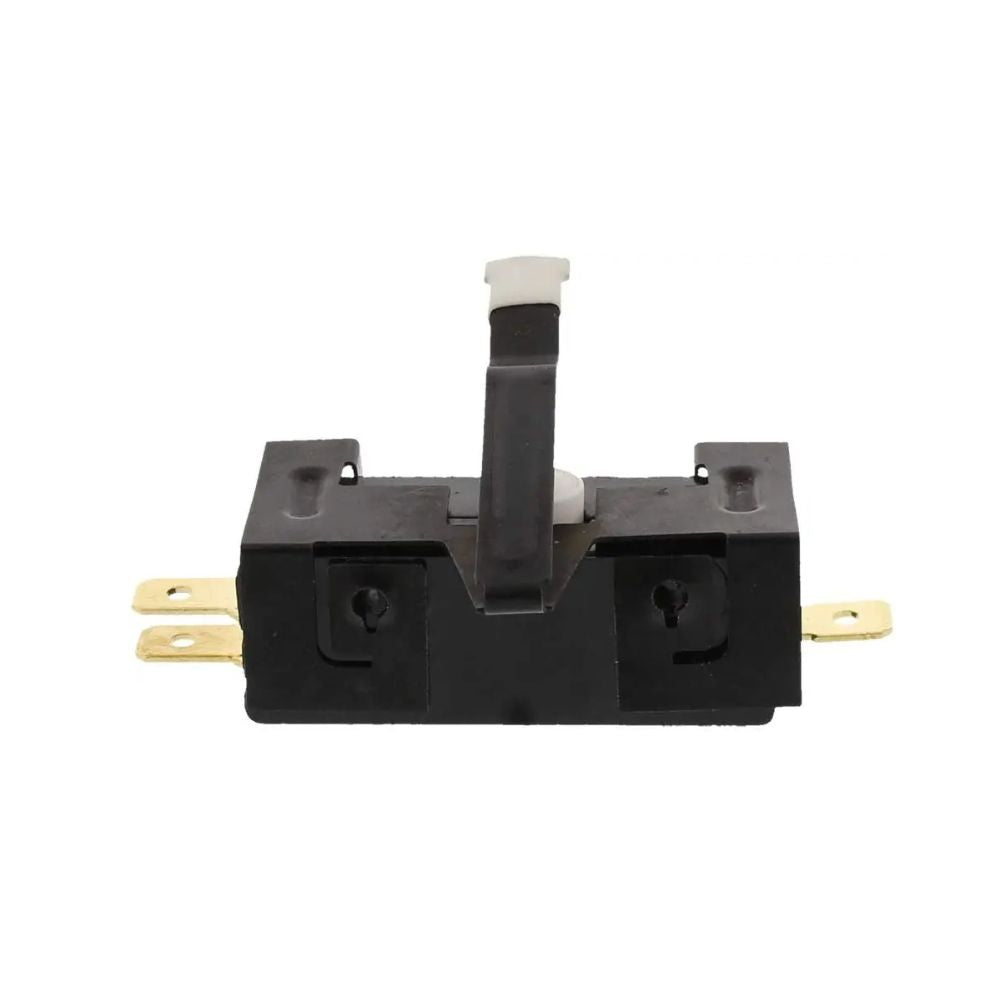

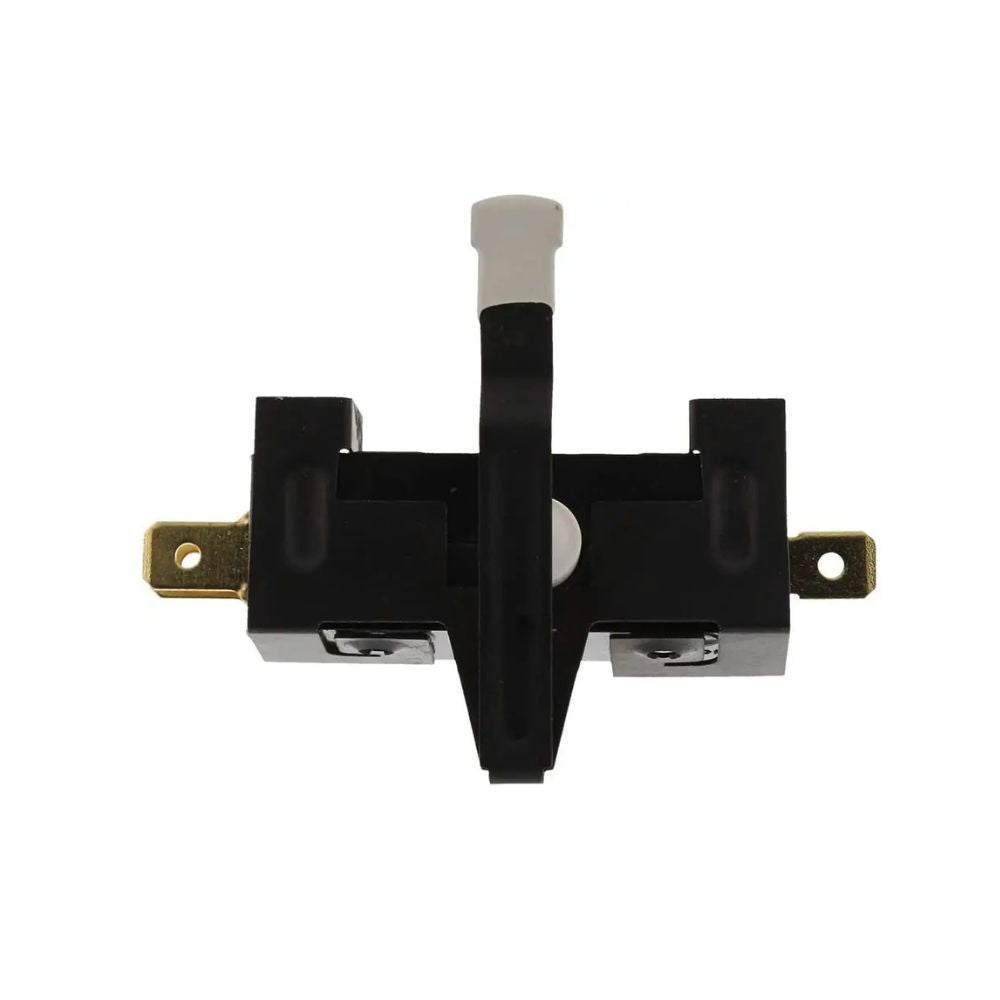

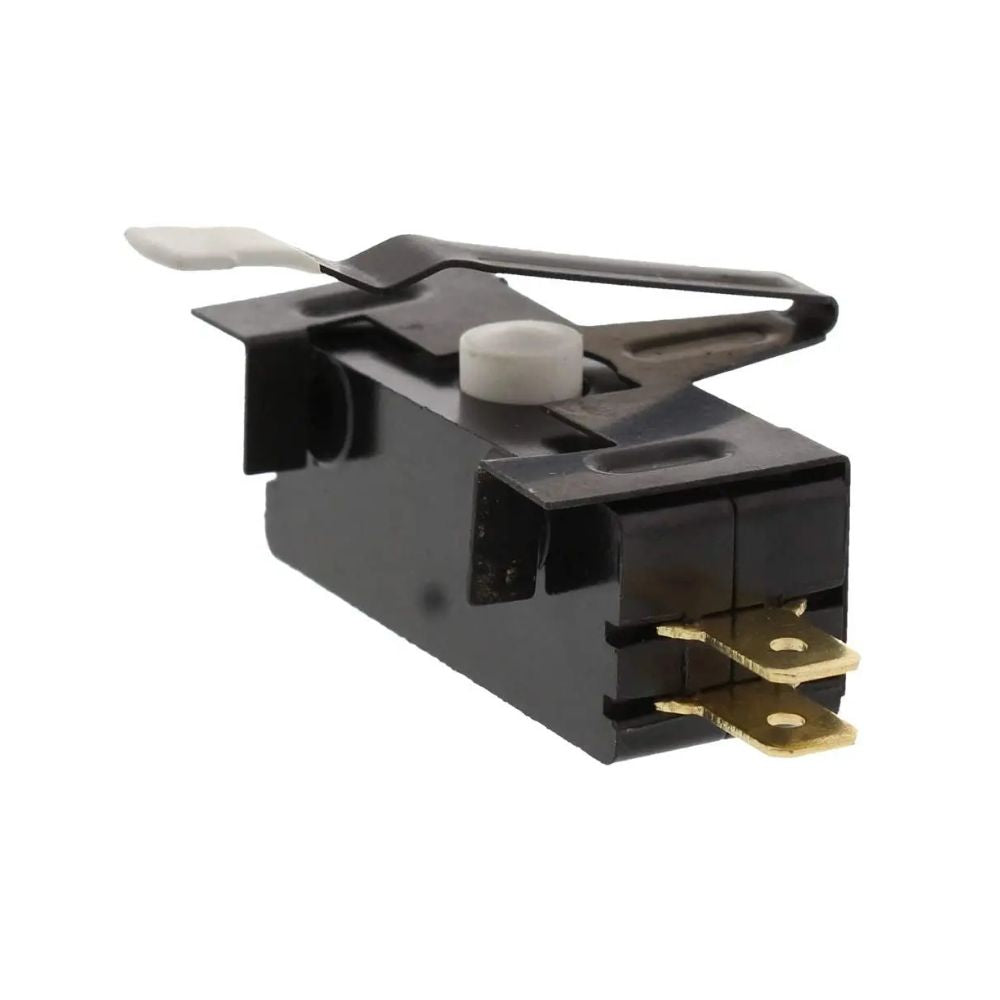

XPARTCO W10820036 Washer / Dryer Door Switch

The XPARTCO W10820036 is an aftermarket door switch for select Whirlpool-built combination washer/dryer units. It works as a safety interlock, sensing whether the door is fully closed and latched and telling the control board when it is safe to run the motor, heater, and water valves. Because both functions share the same drum and door, this one interlock typically governs the wash and dry portions of the cycle on a combo unit. When the switch fails to sense a closed door — or fails electrically even though the door is shut properly — the control will refuse to start the cycle, or will stop mid-cycle if the switch drops out while running.

Common ways a part like this fails include a cracked or worn switch lever that no longer depresses fully as the door closes, internal contacts that have pitted or burned out after years of cycling, and a housing that has worked loose from its mounting bracket so the plunger no longer lines up with the door strike. A healthy door switch clicks firmly when the door closes and shows continuity across its terminals only while the lever is pressed.

Quick Answer

Choose the XPARTCO W10820036 Washer/Dryer Door Switch as the door safety interlock for select Whirlpool-built combination washer/dryer units. It fixes units that won't start with the door closed, stop mid-cycle, or fail to register the door as closed even when it's latched properly. Note: this listing was built from general parts knowledge because current supplier and cross-reference data was not available at build time — see the note below before publishing.

Common Problems This Part Fixes

  • Washer/dryer combo won't start even though the door is fully closed
  • Cycle stops partway through, as if the door had been opened
  • Door doesn't feel like it's "clicking" or latching the way it used to
  • Console shows a door-related error or won't advance past the door-closed step
  • Intermittent operation — sometimes starts, sometimes doesn't, depending on how the door is closed
  • Visibly cracked, loose, or broken switch housing or lever

Cross Reference Information

Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.

Replaces Part Numbers

This door switch directly replaces the following OEM part number:

W10820036, 279347, 2-2770, 2-50062, 2-5415, 2020, 202770, 233480, 235462, 237194, 238775, 238980, 239868, 24198, 247207, 26000279347, 279290, 287219, 287220, 291679, 291697, 292212, 296141, 296144, 3347287, 338883, 3392266, 3397503, 3399991, 347207, 350526, 359230, 359484, 364090, 364091, 367034, 388322, 389105, 4273196, 4319330, 660308, 687429, 75958, 8224, 83333, 84144, 86628, 89556, 99788, 99838, LP210, AP5985146, AWP41434, EAP334185, PD00023982, PS11723153.

No additional cross-reference numbers have been confirmed for this part yet. If you have a superseded or alternate number for your appliance, contact our support team and we will verify compatibility before you order.

Compatibility

This door switch is intended for select Whirlpool-built washer/dryer combination units, where a single door and drum serve both the wash and dry functions.

Model list not yet confirmed: A specific compatible model list for W10820036 was not available at the time this page was built. Please verify your exact model number before ordering. Contact our support team with your model number and we will confirm fitment before you purchase.

Key Features

  • Aftermarket replacement door safety switch for Whirlpool-built washer/dryer combo units
  • Detects whether the door is closed and latched before allowing the wash or dry cycle to run
  • Resolves "won't start with door closed," "stops mid-cycle," and "door not detected" symptoms
  • Direct drop-in replacement for the original W10820036 switch — no modification required
  • Aftermarket replacement built to OEM-equivalent quality standards

Product Specifications

Part Number XPW10820036
OEM Part Number W10820036
Part Type Washer/Dryer Combo Door Safety Switch
Condition Aftermarket Replacement
Application Whirlpool-Built Washer/Dryer Combination Units
Function Door-closed safety interlock for wash and dry cycles
Quantity 1 switch
Compatible Brand Whirlpool (combo platform)

Installation Notes

⚠️ Unplug The Unit Before Starting Disconnect power at the outlet or shut off the circuit breaker before beginning. Wear work gloves. Access to the door switch on combo units is typically through the front or top control panel — photograph the wiring harness before disconnecting it so you can match it exactly on reassembly. Confirm the new switch's lever aligns with the door strike before securing the mounting screws, and test for a firm, positive click when the door closes before restoring power and running a cycle. If your unit's service manual is available, follow its specific access and mounting steps rather than relying solely on general guidance.

Frequently Asked Questions

My combo unit won't start. Is this definitely the door switch?

The door switch is among the most frequent causes when a unit won't start even though the door looks closed. Start by checking that the door latches all the way and that nothing, such as a stray sock or a bent strike bracket, is keeping it from closing fully. If the door latches firmly but the unit still won't start, or a multimeter shows no continuity across the switch terminals while the lever is pressed, the switch itself is the likely culprit.

Does this switch control both the washer and dryer functions?

On combination washer/dryer units, yes — a single door and drum typically serve both functions, so one door switch acts as the safety interlock for both the wash and dry portions of the cycle.

Is this an OEM or aftermarket part?

This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the mounting, switching function, and door-interlock behavior of the original W10820036 switch used in compatible combination washer/dryer units.
