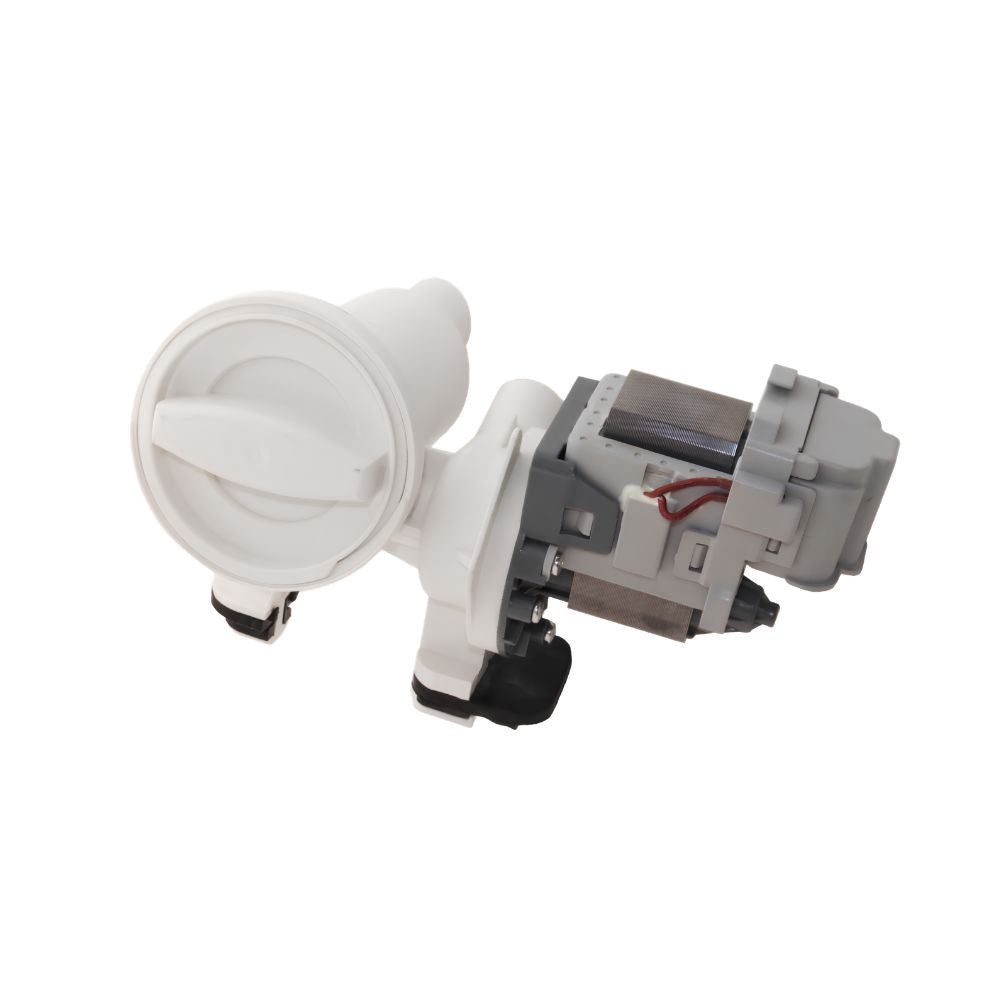

XPARTCO W10730972 Washer Drain Pump Replaces WPW10730972
This XPARTCO W10730972 is an aftermarket replacement drain pump and motor assembly for front-load washers, suited to a wide range of Whirlpool, Maytag, Kenmore, Amana, Inglis, and KitchenAid models, including the Whirlpool Duet, Maytag 2000/3000/4000 series, and Kenmore HE2/HE2T Plus. During the drain and spin phases of every wash cycle, the drain pump pushes water out of the tub. A failed pump means the washer won't drain, leaves standing water in the tub, stops mid-cycle, shows error codes F21, F33, or SD, or leaks around the pump.
The assembly arrives complete with motor, pump housing, and integrated filter; these parts are only offered together as one assembly, not individually. Electrical rating is 120V, 60Hz, 78W, 1.2A (CL.F duty class), and the off-white plastic housing measures 8-3/4"L x 7"W x 5-1/4"H. Note: Whirlpool redesigned this pump, so the replacement may look different from the original but fits and functions identically. It directly replaces WPW10730972, W10130913, W10130913-B, 8540024, 8540025, 8540027, 8540028, 8540996, W10117829, W10183434, W10190647, W10190648, W10201457, AP6023956, PS11757304, and additional cross-reference numbers. Installation takes 20–30 minutes with basic hand tools.
Quick Answer
Choose the XPARTCO W10730972 Washer Drain Pump for Whirlpool Duet, Maytag 2000/3000/4000 series, and Kenmore HE2/HE2T Plus front-load washers that won't drain, leave standing water, or display error codes F21, F33, or SD. Complete assembly — motor, pump housing, and filter included. 120V/60Hz/78W/1.2A. 8-3/4"L x 7"W x 5-1/4"H. Note: redesigned — may look different from original but fits identically. Replaces WPW10730972, W10130913, 8540024, 8540996, W10117829, AP6023956, PS11757304.
Common Problems This Part Fixes
- Washer not draining — standing water remaining in the tub after a cycle
- Error code F21 displayed — long drain fault (washer unable to drain in allotted time)
- Error code F33 displayed — pump motor fault
- Error code SD displayed — suds detection or drain issue
- Washer stopping mid-cycle due to a drain fault
- Loud humming or grinding noise during the drain phase
- Water leaking from the front lower area of the washer — pump seal failure
- Pump motor running but water not being expelled from the tub
Replaces Part Numbers
This drain pump directly replaces the following OEM and cross-reference part numbers:
WPW10730972, W10730972, W10130913, 4281917, 8540024, 8540025, 8540027, 8540028, 8540996, W10117829, W10183434, W10190647, W10190648, W10201457, WPW10730972VP, AP6023956, AWP50633, B40-3A01, EAP11757304, PD00025949, PS11757304
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drain pump is compatible with select front-load washers from the following brands and series:
- Whirlpool front-load washers — Duet series (WFW8300, WFW8400, WFW9050, WFW9150, WFW9200, WFW9250, WFW9400, WFW9450, WFW9500, WFW9550, WFW9600, WFW96HEA, WFW97HED, WFW98HEB and related models)
- Maytag front-load washers — 2000 series (MHW2000AW, MHW2000BWW and related models)
- Maytag front-load washers — 3000 series (MHW3000BW and related models)
- Maytag front-load washers — 4000 series (MHW4000BW, MHW4200BW, MHW5100DW, MHW6000AW, MHW6000XW and related models)
- Kenmore / Sears front-load washers — HE2 and HE2T Plus series (110.45862400, 110.47532602 and related models)
- Amana front-load washers (select models)
- Inglis front-load washers (select models)
- KitchenAid front-load washers (select models)
Note: Whirlpool redesigned this pump assembly — the replacement may look different from your original pump (larger in size on some versions) but is engineered to fit and function identically in all compatible models. Always verify your model number before ordering. Before replacing the pump, check and clear the coin trap/drain filter — a clogged filter is a common cause of F21/F33 errors that does not require pump replacement.
Key Features
- Removes water from the tub during drain and spin cycles — essential for proper washer operation
- Complete assembly — motor, pump housing, and integrated filter included; components are not sold separately
- Rated 120V, 60Hz, 78W, 1.2A (CL.F) — correct electrical specifications for compatible Whirlpool-family front-load washers
- Dimensions: 8-3/4"L x 7"W x 5-1/4"H — off-white plastic housing
- Resolves error codes F21 (long drain), F33 (pump motor fault), and SD (suds/drain) on compatible models
- Redesigned assembly — may look different from original but fits and functions identically
- Replaces WPW10730972, W10130913, 8540024, 8540996, W10117829, AP6023956, and over 20 additional cross-references
- Compatible with Whirlpool Duet, Maytag 2000/3000/4000 series, Kenmore HE2/HE2T Plus, Amana, Inglis, and KitchenAid
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
| Part Number | XPW10730972 |
| OEM Part Number | WPW10730972 |
| Part Type | Front-Load Washer Drain Pump and Motor Assembly |
| Condition | Aftermarket Replacement |
| Application | Front-Load Washers (Duet, Maytag 2000/3000/4000, Kenmore HE2/HE2T Plus) |
| Voltage | 120V AC |
| Frequency | 60 Hz |
| Wattage | 78W |
| Amperage | 1.2A |
| Duty Class | CL.F |
| Dimensions | 8-3/4"L x 7"W x 5-1/4"H |
| Color | Off-White |
| Material | Plastic housing |
| Includes | Motor, pump housing, and integrated filter — complete assembly |
| Design Note | Redesigned — may look different from original; fits identically |
| Error Codes Resolved | F21 (long drain), F33 (pump motor fault), SD (suds/drain) |
| Compatible Brands | Whirlpool, Maytag, Kenmore, Amana, Inglis, KitchenAid |
Installation Notes
Frequently Asked Questions
What do error codes F21, F33, and SD mean on Whirlpool Duet and Maytag washers?
F21 is a long drain fault: the washer could not empty the tub within the expected time (typically 8 minutes). F33 is a pump motor fault, meaning the control board does not detect the pump motor running correctly. SD is a suds detection code that may also show up when drain problems keep suds from clearing. Each of the three points to the drain pump or a drain obstruction. Check and clean the coin trap filter before replacing the pump — a clogged filter is one of the most frequent causes of F21 errors, and clearing it often resolves the code without a new pump.
Should I check the coin trap filter before replacing the pump?
Yes — always check the coin trap filter before replacing the pump. On Whirlpool Duet and Maytag front-load washers, the coin trap filter is located inside the lower front access panel, typically behind a small cap or cover. Removing the cap and clearing lint, coins, and debris from the filter restores drain flow and clears F21/F33 errors in many cases without any part replacement needed. If the filter is clear and the pump still humbles or fails to drain, the pump needs replacement.
Why does the replacement pump look different from the original?
Whirlpool redesigned this drain pump assembly during its production lifecycle — the WPW10730972 replacement is physically larger than some of the older 8540024-series pumps it supersedes. Despite looking different, the redesigned pump uses the same hose and electrical connection points and is a direct fit in all compatible models. The larger housing is an intentional design improvement to increase pumping capacity. If the pump looks bigger than what you removed, this is normal and expected — install it in the same way as the original.
What is the difference between W10730972 and WPW10730972?
These are the same drain pump assembly. WPW10730972 is the updated Whirlpool OEM part number that superseded the original W10730972. The W10130913 and 8540024 are also cross-references for earlier versions of this same pump. This aftermarket replacement is compatible with all of these numbers.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the electrical specifications and performance of the original WPW10730972 drain pump assembly.
