XPARTCO W10515058 Refrigerator LED Light & Cover Replaces WPW10515058
W10515058 Refrigerator LED Light & Cover Replaces WPW10515058

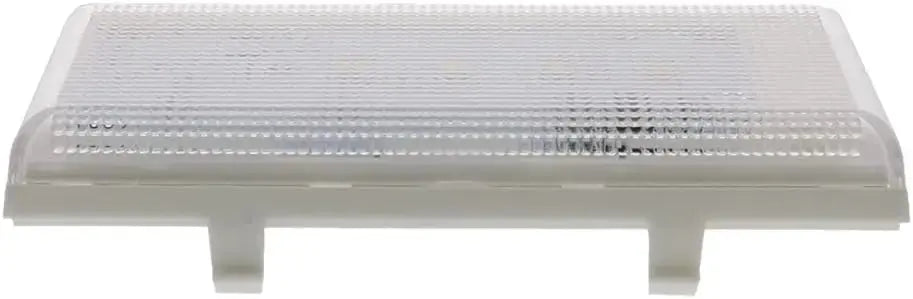

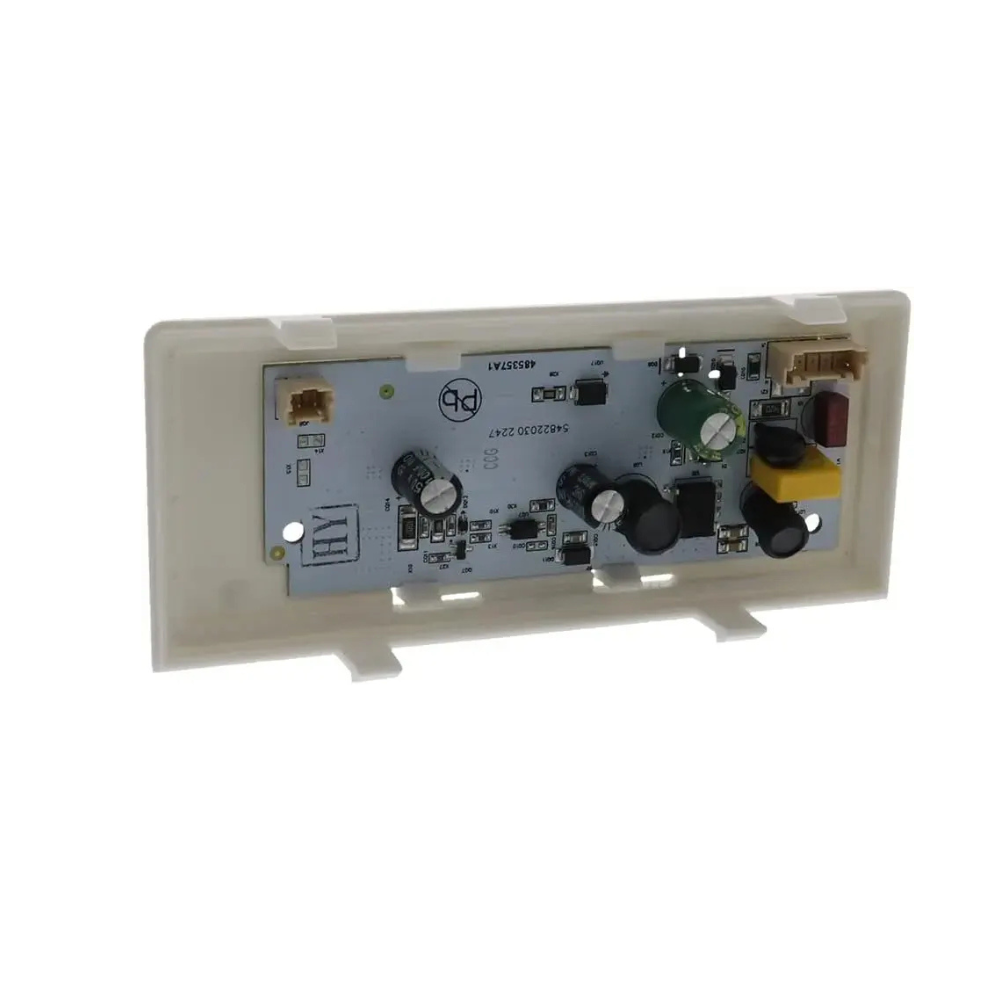

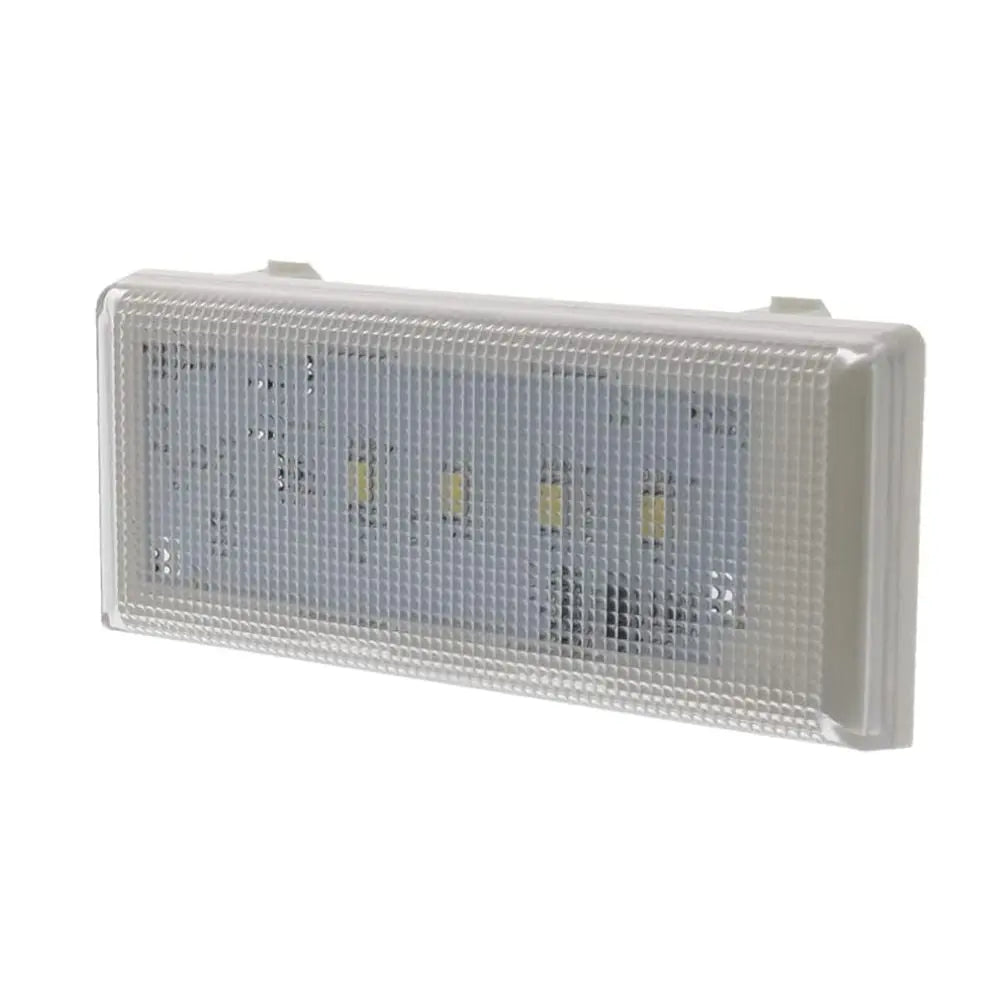

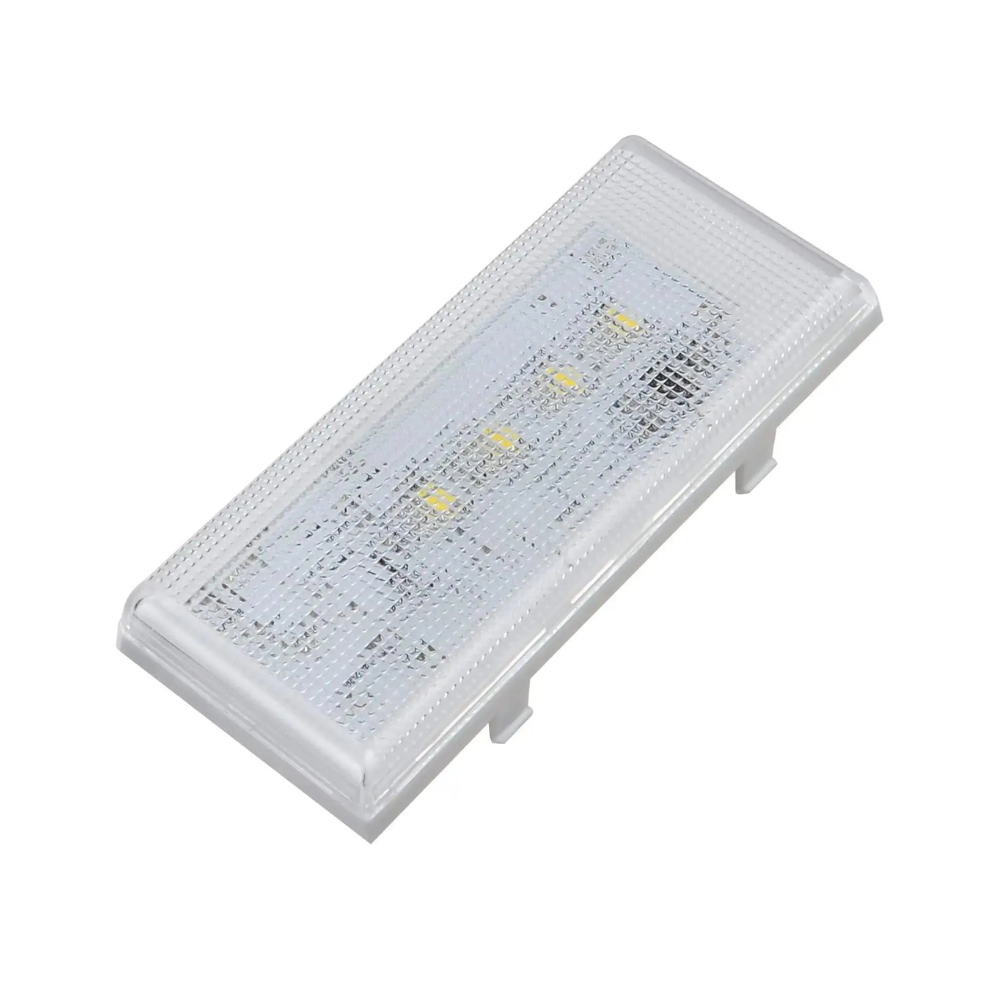

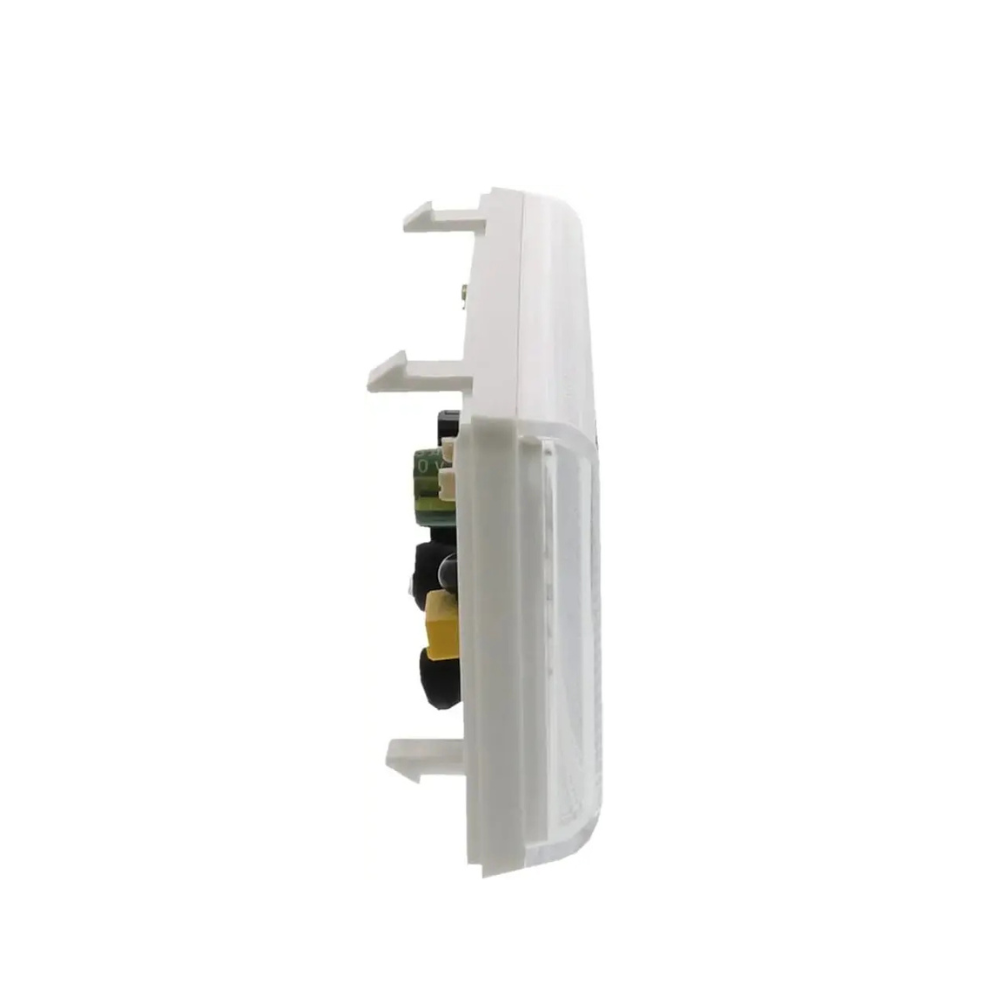

The XPARTCO W10515058 is an aftermarket replacement LED light and flat lens cover assembly for Whirlpool, Kenmore, Maytag, KitchenAid, and Ikea refrigerators. This is the main light driver in a three-board lighting system used on many of these refrigerators — it not only illuminates its own location, but also supplies power to the other LED lights in both the refrigerator and freezer compartments. The companion boards in this same system use a tapered lens cover, sold separately as our W10515057 listing.
Measuring approximately 5" x 3", rated 120V, with a durable plastic lens and integrated LED circuit. Because this board supplies power to lights beyond its own location, a failure here can affect lighting throughout more of the refrigerator than just the spot where this assembly is mounted. Symptoms of a failing assembly include this light being dim, flickering, or not turning on, and in some cases, other lights elsewhere in the refrigerator or freezer being affected as well, since they depend on this board for power. It directly replaces WPW10515058, W10465957, W10522611, AP6022534, PS11755867, and 3021142.
Quick Answer
The W10515058 Refrigerator LED Light & Cover fixes Whirlpool, Kenmore, Maytag, KitchenAid, and Ikea refrigerators with a dim, flickering, or non-working interior light — sometimes affecting lighting elsewhere in the fridge or freezer too, since this board supplies power to those lights as well. Flat lens cover, ~5" x 3", 120V. Replaces WPW10515058, W10465957, W10522611, AP6022534, PS11755867, 3021142. This is the flat-lens board that powers both the refrigerator and freezer lights — a different part from our W10515057 listing, which uses a tapered lens and is typically needed in pairs (2 tapered + 1 flat per refrigerator).
Common Problems This Part Fixes
- Interior light dim or flickering
- Interior light not turning on at all
- Other lights elsewhere in the refrigerator or freezer also affected
- All refrigerator lights strobing together when a door opens
- Reduced visibility inside the refrigerator or freezer compartment
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator LED light and cover assembly directly replaces the following OEM and cross-reference part numbers:
WPW10515058, W10515058, W10465957, W10522611, AP6022534, AWP993990, EAP11755867, PD00030078, PS11755867
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This LED light and cover assembly is compatible with select Whirlpool refrigerators, and also fits select Kenmore, Maytag, KitchenAid, and Ikea refrigerators built on the Whirlpool platform, including model numbers such as:
- WRS325FDAM02, WRS325FDAM04, WRS322FDAM04, WRS322FDAW04, WRS325FDAB02, WRS325FDAB06, WRS325FNAM, WRS335FDDM01
- MSB27C2XAM00, MSB27C2XAW00, MSF22D4XAB00, MSF22D4XAB01, MSF22D4XAM00, MSF22D4XAM01, MSF22D4XAW00, MSF22D4XAW01
- MSF25D4MDM00, MSF25D4MDM01, MSF25D4MDM02, MSF25D4XAW00, MSF25D4XAB00, MSF25D4XAM00
- MSF21D4MDH00, MSF21D4MDH01, MSF21D4MDE00, MSF21D4MDE01, MSF21D4MDE02, MSF21D4MDM00, MSF21D4MDM01
- MSF25D4MDE00, MSF25D4MDE01, MSF25D4MDE02, MSF25D4MDE03, MSF25D4MDH00, MSF25D4MDH01, MSF25D4MDH02, 8MSF25N4BW00, 8MSF25N4BW02
- Kenmore 106.51132210, 106.51133213, 10651729410, 10641129210, 10641129211, 10641129212, 10641129213, 10651129210, 10651129211, 10651129212, 10651135610
Note — flat lens, not tapered, and typically needed alongside W10515057: This board uses a flat lens cover and serves as the light driver supplying power to the refrigerator and freezer lights. The companion boards in this same lighting system use a tapered lens cover, sold separately as our W10515057 listing — most of these refrigerators use 2 tapered-lens boards and 1 flat-lens board across the full lighting system. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure which board your refrigerator needs.
Key Features
- Aftermarket replacement LED light and flat lens cover assembly
- Main light driver — supplies power to LED lights in both the refrigerator and freezer compartments
- Resolves "dim or flickering light," "won't turn on," and "lights elsewhere also affected" symptoms
- Approximately 5" x 3"
- Rated 120V
- Durable plastic lens with integrated LED circuit
- Direct drop-in replacement matching the original mounting
- Replaces WPW10515058, W10465957, W10522611, AP6022534, PS11755867, and 3021142
- Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, and Ikea refrigerators
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number | W10515058 |
| OEM Part Number | WPW10515058 |
| Part Type | Refrigerator LED Light & Flat Lens Cover Assembly |
| Condition | Aftermarket Replacement |
| Function | Illuminates its location and supplies power to refrigerator and freezer LED lights |
| Lens Type | Flat |
| Dimensions | Approx. 5" x 3" |
| Voltage | 120V |
| Related Part | W10515057 (tapered lens, sold separately, typically 2 needed per system) |
| Repair Difficulty | Medium |
| Quantity | 1 LED light and cover assembly |
| Compatible Brands | Whirlpool, Kenmore, Maytag, KitchenAid, Ikea |
Installation Notes
Frequently Asked Questions
Why does replacing this one board sometimes fix lights in other parts of my refrigerator?
This board doesn't just light its own location — it also supplies power to the other LED lights in both the refrigerator and freezer compartments. If this board fails or malfunctions, it can affect lighting elsewhere in the unit even though the other light boards themselves are working fine. This is why some refrigerators show strange symptoms, like all the lights strobing together, when only this one board has actually failed.
Is this the same as your W10515057 listing?
No, these are different parts in the same lighting system. This W10515058 uses a flat lens cover and serves as the main power driver, while our W10515057 listing uses a tapered lens and is typically needed in pairs elsewhere in the same refrigerator. Most of these refrigerators use 2 tapered-lens boards (W10515057) and 1 flat-lens board (this W10515058) altogether.
Is this a difficult repair?
It's rated as a medium-difficulty repair — straightforward for a confident DIYer with a flathead screwdriver, but slightly more involved than the simplest appliance fixes since it involves detaching cover tabs and working with the wiring harness behind the lens.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the LED module, flat lens cover design, and mounting configuration of the original WPW10515058 assembly used in compatible Whirlpool, Kenmore, Maytag, KitchenAid, and Ikea refrigerators.
