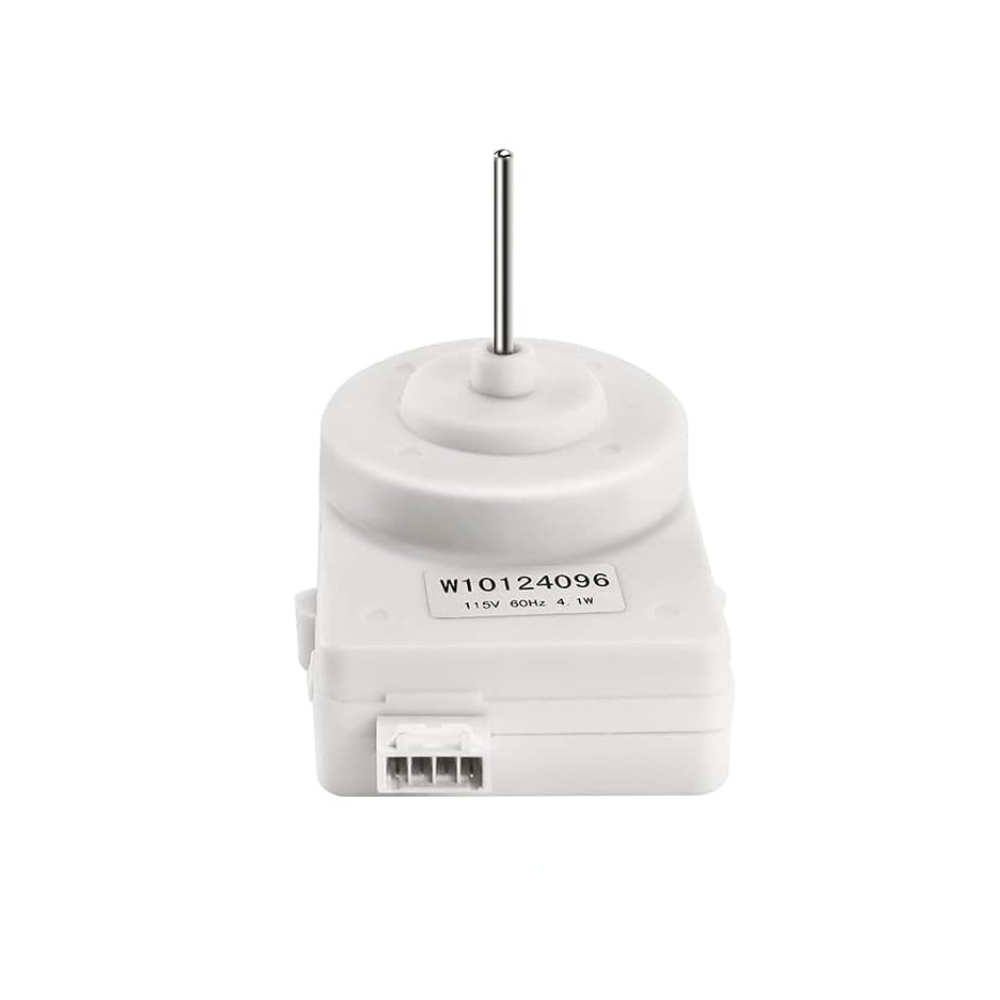

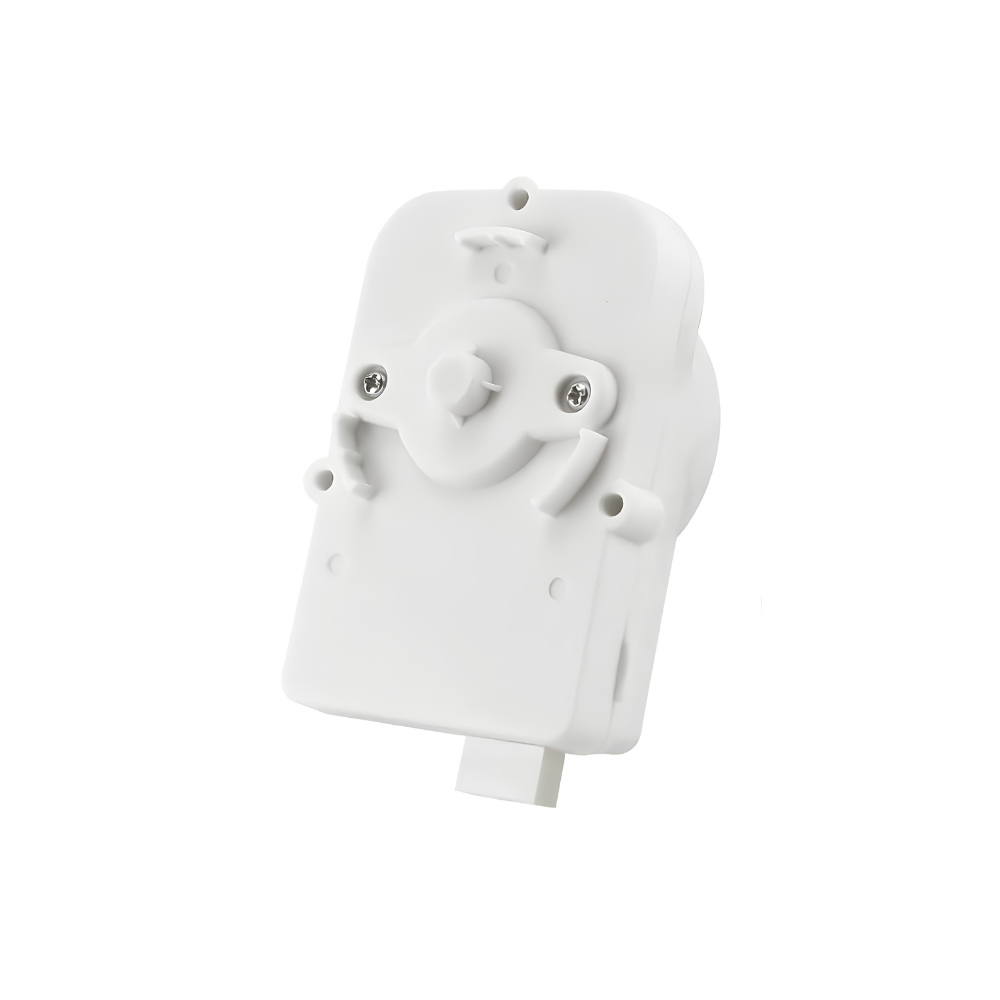

XPARTCO W10124096 Refrigerator Condenser Fan Motor
The XPARTCO W10124096 is an aftermarket condenser fan motor kit made for Whirlpool-built refrigerators, including Kenmore, Maytag, KitchenAid, Amana, and Jenn-Air models. Its job is to draw air across the condenser coils so heat is carried away from the refrigerant. A worn-out or failed motor can leave the refrigerator running warmer than normal, cooling poorly, or making unusual noise.

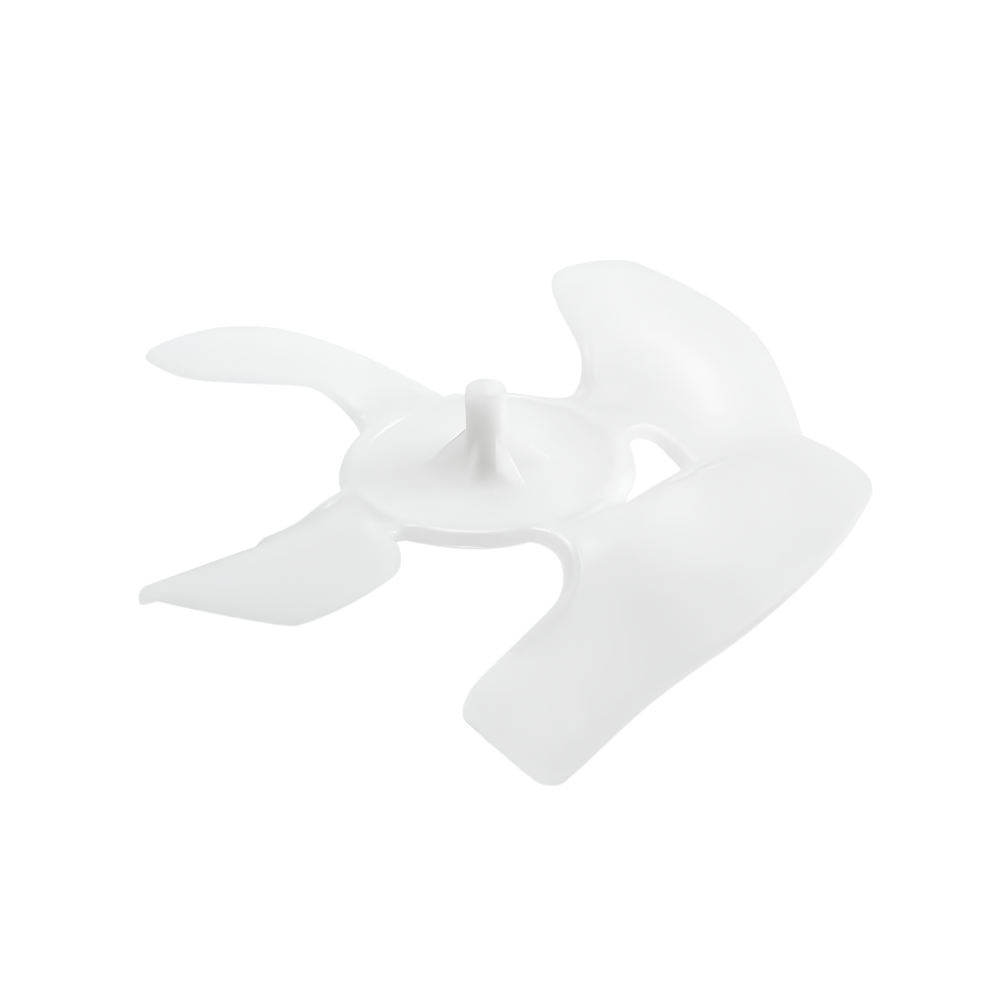

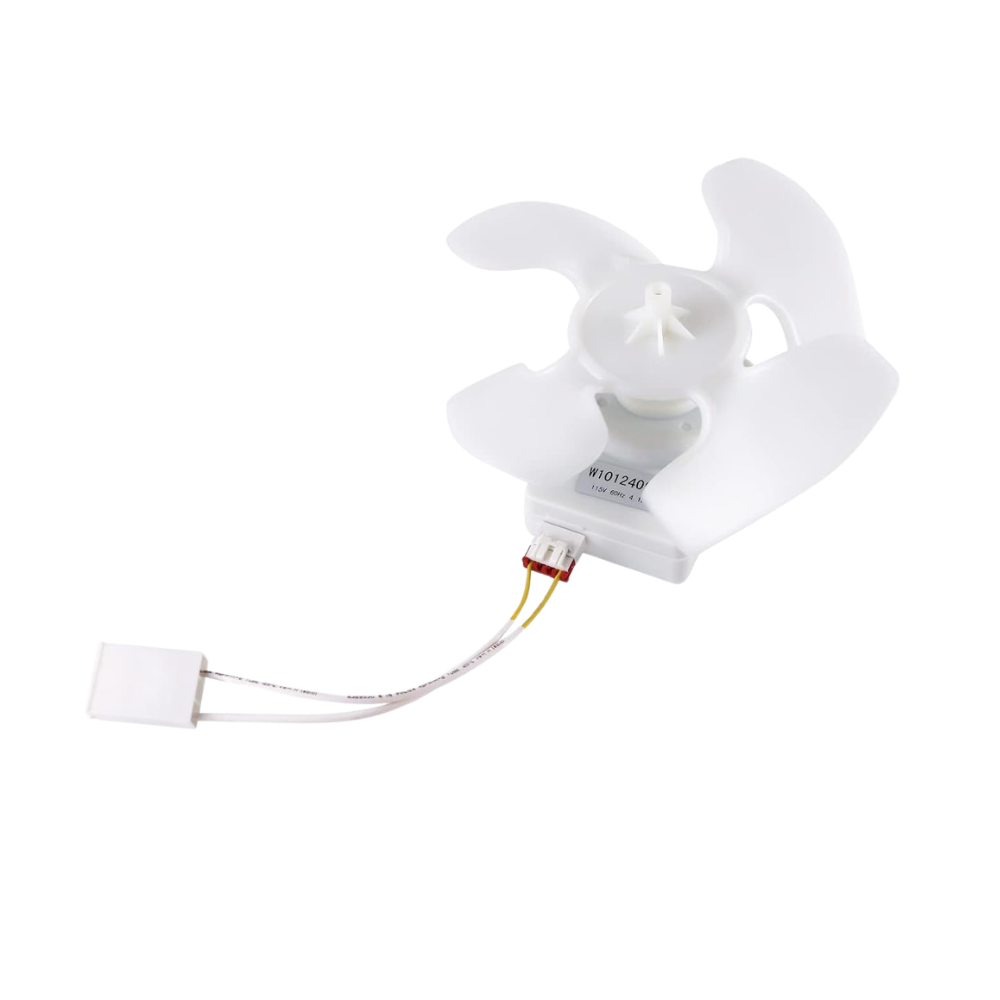

Along with the fan motor, the kit supplies a fan blade and a jumper wire harness for installations where the original motor used a 3-pin connector. Because it replaces many earlier Whirlpool motor numbers, the new kit may not look exactly like your original motor. Note that this is the condenser fan, located near the compressor, and not the evaporator fan inside the freezer or fresh food compartment.
Quick Answer
Choose the XPARTCO W10124096 Condenser Fan Motor Kit for a Whirlpool-built refrigerator that runs warm, cools poorly, or makes noise because the condenser fan motor has failed. Kit includes the motor, fan blade, and jumper harness. Classic symptom: the compressor area is noisy, or the condenser fan doesn't spin while the compressor runs.
Common Problems This Part Fixes
- Refrigerator running warmer than usual or cooling poorly
- Noisy refrigerator near the compressor
- Condenser fan not running
- Worn or damaged condenser fan motor or blade
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This condenser fan motor kit directly replaces the following part numbers:
W10124096, 1378525, 2188538, 2188727, 2188728, 2188729, 2188732, 2188891, 2206005, 2315538, 2315558, W10124096VP, W10130108, W10204250, W10509333, W10861645, FDQR107W5, AH1957416, AP4318657, AWP40429, EA1957416, EAP1957416, PD00002509, PS1957416
These numbers span several generations of Whirlpool's own part numbering for this motor. Confirm against your refrigerator's parts diagram, or contact our support team, if your model calls out a different number.
Compatibility
This condenser fan motor kit is listed for Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Roper, Crosley, Estate, Inglis, and Jenn-Air refrigerators, including these examples:
- Models ED5FHAXSB03, 8ET1FTKXKT05, GI15NDXTB0, 7GD27DIXHB00
- Models 10644022600, 10653254200, BRS62ABANA00, MSD2658KES02
Note: The models above are a small sample of a list of hundreds, not a full list. Some retailer lists include drawer and bin models, so verify fit with your full model number. Contact our support team to confirm fit before ordering.
Key Features
- Aftermarket replacement condenser fan motor kit for Whirlpool-built refrigerators

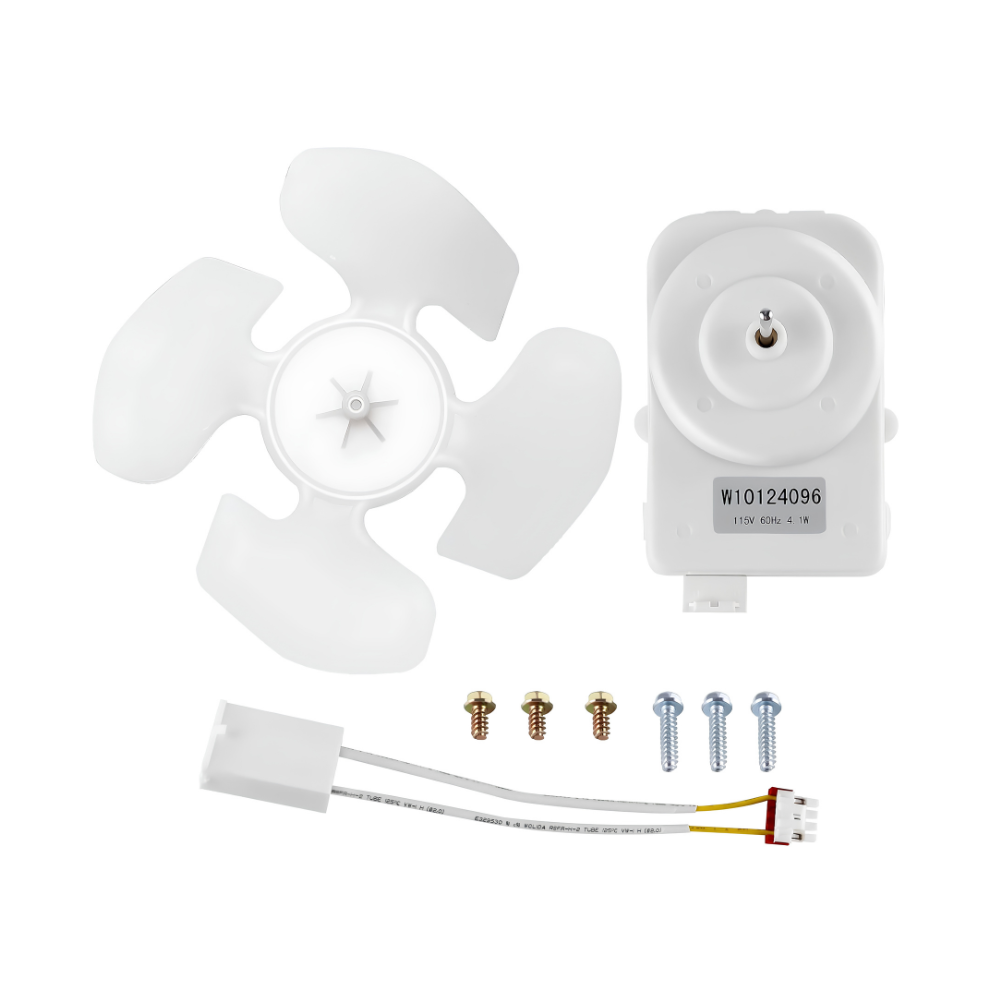

- Kit includes the fan motor, fan blade, and a jumper wire harness for 3-pin connectors
- Moves air across the condenser coils to help the refrigerator cool
- Resolves warm-running and noise problems caused by a failed motor
- Replaces 13 earlier Whirlpool part numbers
Product Specifications
| Part Number | XPW10124096 |
| OEM Part Number | W10124096 |
| Part Type | Refrigerator Condenser Fan Motor Kit |
| Condition | Aftermarket Replacement |
| Kit Includes | Fan Motor, Fan Blade, Jumper Wire Harness |
| Application | Whirlpool, Kenmore, Maytag, KitchenAid, Amana & Jenn-Air Refrigerators |
Installation Notes
Frequently Asked Questions
My refrigerator is running warm. Is this the part I need?
Possibly, since a failed condenser fan motor is one cause of a warm refrigerator: without airflow the condenser can't shed heat. First make sure the condenser coils are clean and the fan turns freely. If the fan won't run, or the motor is noisy or worn, this kit is the fix.
Is this the condenser fan or the evaporator fan?
This is the condenser fan motor, which cools the condenser coils near the compressor. The evaporator fan is a different part located inside the cabinet. Check your parts diagram if you are unsure.
When do I use the jumper wire harness?
The kit includes a jumper harness for installations where the original motor used a 3-pin connector. If your original connector is different, compare it to the new motor, or contact our support team.
Will this fit my refrigerator?
It is listed for hundreds of Whirlpool-built refrigerators, but the model list above is only a sample. Check your model number against your parts diagram, or contact our support team and we'll verify it before you order.
