XPARTCO W10112954 Dryer Drum Belt Replaces WPW10112954

  • Sku: W10112954
  • Vendor: XPARTCO
$19.80
$11.95
⚠️ Check Compatibility Before Ordering
Type your model number above or scroll down to confirm compatibility.
Shipping calculated at checkout.
In stock!
View full details
XPARTCO W10112954 Dryer Drum Belt Replaces WPW10112954

XPARTCO W10112954 Dryer Drum Belt Replaces WPW10112954

$19.80
$11.95

XPARTCO W10112954 Dryer Drum Belt Replaces WPW10112954

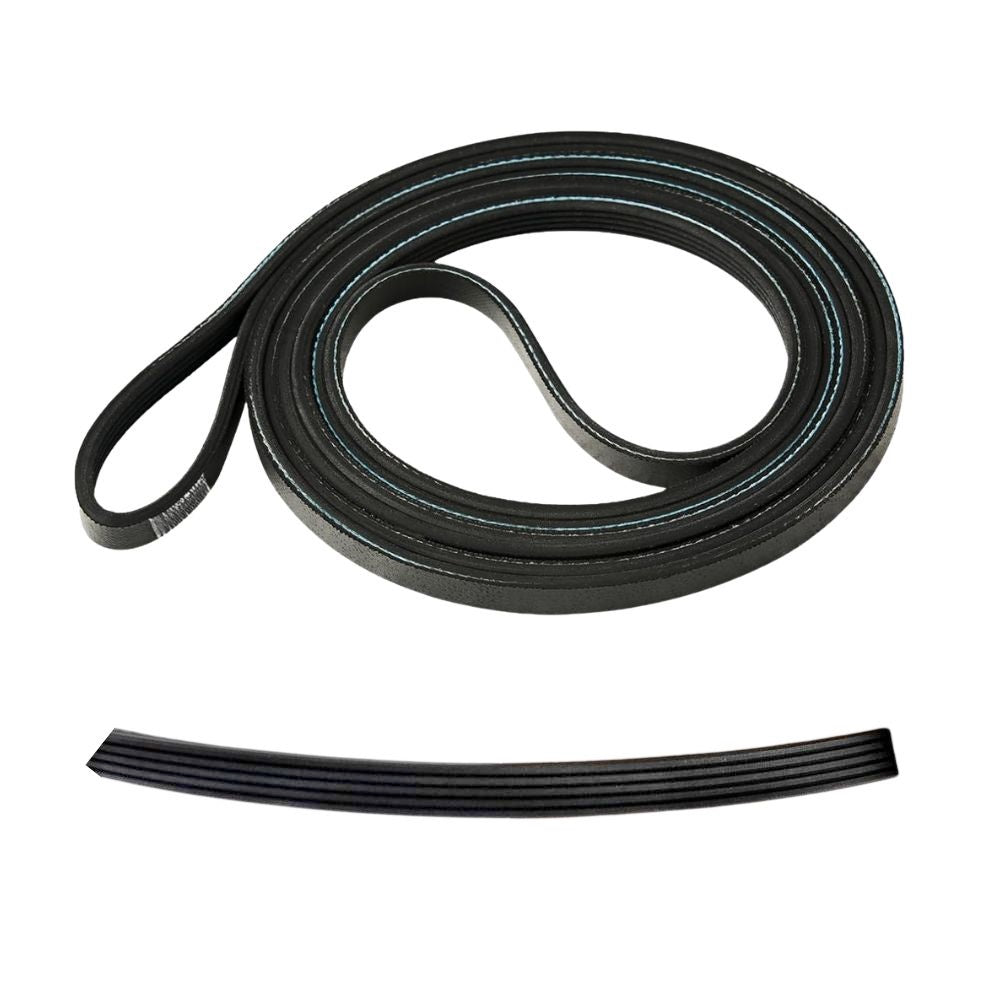

The XPARTCO W10112954 is an aftermarket replacement dryer drum belt compatible with select Whirlpool, Maytag, Amana, Kenmore, and Crosley dryers. The drum belt wraps around the outside of the dryer drum, loops around the motor pulley and idler pulley, and drives the drum to rotate during every drying cycle. Without a functioning belt, the drum cannot spin and clothes will not tumble or dry.

Made from durable rubber, this 5-rib Multi-V belt measures 93-1/4 inches long x 5/16 inch wide x 1/8 inch high and is built to resist cracking, stretching, and wear under the high heat and repeated tension cycles of daily dryer use. It is a direct drop-in replacement for OEM part numbers WPW10112954 and W10112954, and also replaces W10131172 on compatible models. Installs in 30–45 minutes with basic hand tools.

Quick Answer

The XPARTCO W10112954 Dryer Drum Belt fixes dryers where the drum is not spinning, clothes are not tumbling, or a thumping/squealing noise is coming from the dryer during operation. Compatible with select Whirlpool, Maytag, Amana, Kenmore, Crosley, and Admiral dryers. Measures 93.38" with 5 ribs and 4 grooves.

Common Problems This Part Fixes

  • Dryer drum not spinning — motor runs but drum stays still
  • Clothes not tumbling during the drying cycle
  • Thumping, squealing, or slapping noise during operation
  • Dryer runs but produces no heat because drum is stationary
  • Burning rubber smell coming from the dryer
  • Visible broken or frayed belt pieces found inside the dryer cabinet
  • Dryer shuts off shortly after starting due to drum not rotating

Replaces Part Numbers

This drum belt directly replaces the following OEM and cross-reference part numbers:

WPW10112954, W10112954, 1447719, AWP48873, PD00003553, EAP11748388, AP6015116, PS11748388.

If your part number is not listed above, contact our support team before ordering and we will verify compatibility.

Compatibility

This drum belt is compatible with select dryers from the following brands:

  • Whirlpool dryers (gas and electric)
  • Maytag dryers (gas and electric)
  • Amana dryers
  • Kenmore / Sears dryers (select Whirlpool-built models)
  • Crosley dryers
  • Admiral dryers

Always verify your appliance model number before ordering. Contact our support team if you're unsure.

Key Features

  • Drives the dryer drum via the motor pulley and idler pulley for smooth, consistent tumbling every cycle
  • 93-1/4" length x 5/16" width x 1/8" height — 5-rib Multi-V design for a secure, slip-free grip on the pulleys
  • Made from durable rubber — resists cracking, stretching, and heat damage
  • Direct replacement for OEM part numbers WPW10112954 and W10112954 — no modification required
  • Also replaces W10131172 on compatible models
  • Compatible with Whirlpool, Maytag, Amana, Kenmore, Crosley, and Admiral dryers
  • Aftermarket replacement built to OEM-equivalent quality standards
  • DIY-friendly repair — installs in 30–45 minutes with basic hand tools

Product Specifications

Part Number W10112954
OEM Part Number WPW10112954
Part Type Dryer Drum Drive Belt (5-Rib Multi-V)
Condition Aftermarket Replacement
Application Gas and Electric Dryers
Length 93-1/4 inches
Width 5/16 inch
Height 1/8 inch
Ribs 5 ribs, 4 grooves
Material Rubber
Color Black
Compatible Brands Whirlpool, Maytag, Amana, Kenmore, Crosley, Admiral

Installation Notes

⚠️ Safety First — Unplug Dryer Before Starting Unplug the dryer from the power source (and shut off the gas supply for gas dryers) before beginning any repair. To access the drum belt, remove the top panel and front panel of the dryer. Lift the drum out of the cabinet, remove the old belt, and loop the new W10112954 belt around the drum with the ribbed side facing inward toward the drum. Route the belt around the idler pulley and motor pulley — consult your dryer's service manual or a model-specific repair video for the correct belt path around the pulleys. Reassemble the front panel, top panel, and restore power before running a test cycle. Tip: While the drum is out, inspect and replace the idler pulley and drum support rollers if worn. Tools needed: Phillips screwdriver, putty knife or flat pry tool.

Frequently Asked Questions

What is the difference between W10112954 and WPW10112954?

These are the same belt. WPW10112954 is the updated Whirlpool OEM part number that superseded the original W10112954 number. Both refer to the identical drum belt — this aftermarket replacement is compatible with both.

How does the W10112954 differ from the W10205415 belt?

Both are 5-rib Whirlpool-family belts, but they differ slightly in length and width. The W10112954 is 93-1/4" long x 5/16" wide. The W10205415 is 92" long x 3/8" wide. They are not interchangeable — always use the part number specific to your dryer model.

How do I know if my drum belt is broken?

The most obvious sign is that the dryer motor runs and you can hear it humming, but the drum does not spin. You may also hear a thumping or slapping sound if the belt is partially broken or slipping. Open the dryer cabinet to visually inspect the belt and confirm if it is broken, frayed, or stretched out of shape.

Does the W10112954 also replace W10131172?

Yes — the W10112954 belt replaces W10131172 on compatible models. Both are 5-rib Whirlpool-family drum belts used across similar model ranges. Always verify your specific model number to confirm the correct belt before ordering.

Is this an OEM or aftermarket part?

This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is made from durable rubber to match the dimensions and performance of the original WPW10112954 belt.
