XPARTCO MEE61841401 Gas Oven Igniter
XPARTCO MEE61841401 Gas Oven Igniter

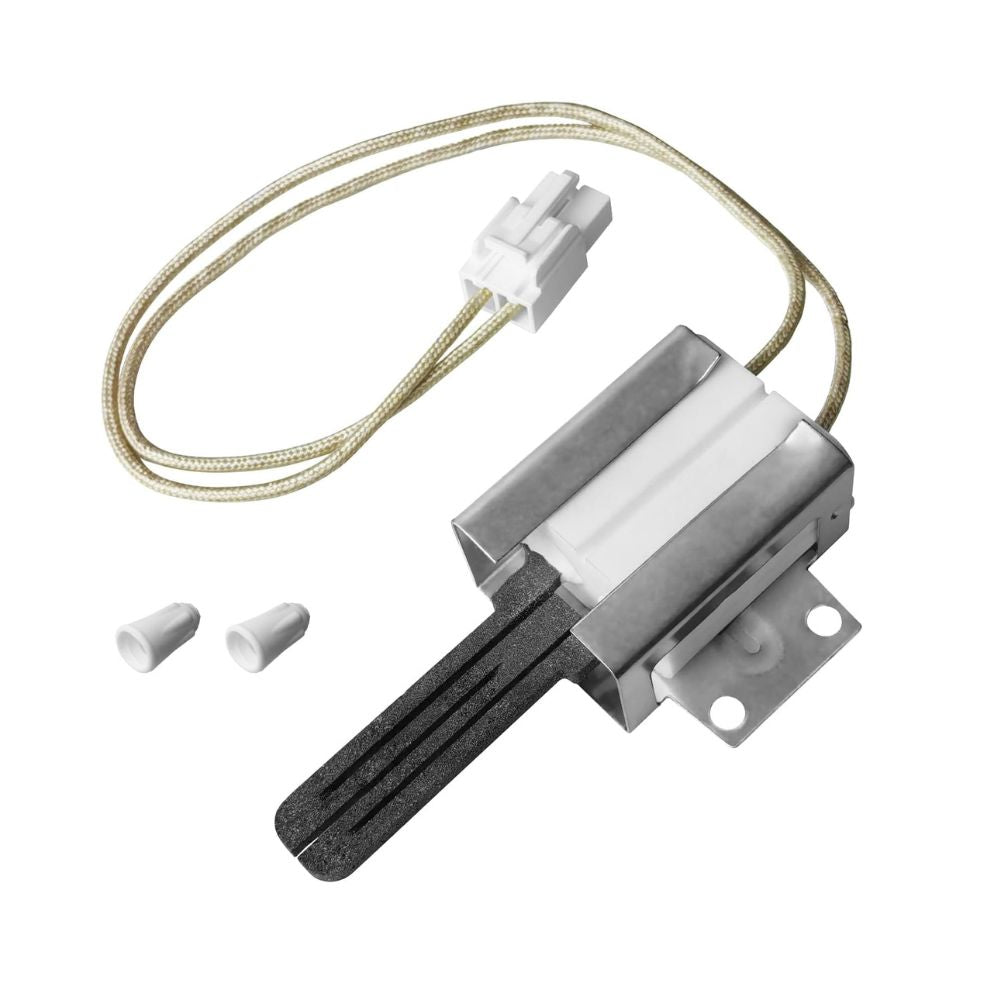

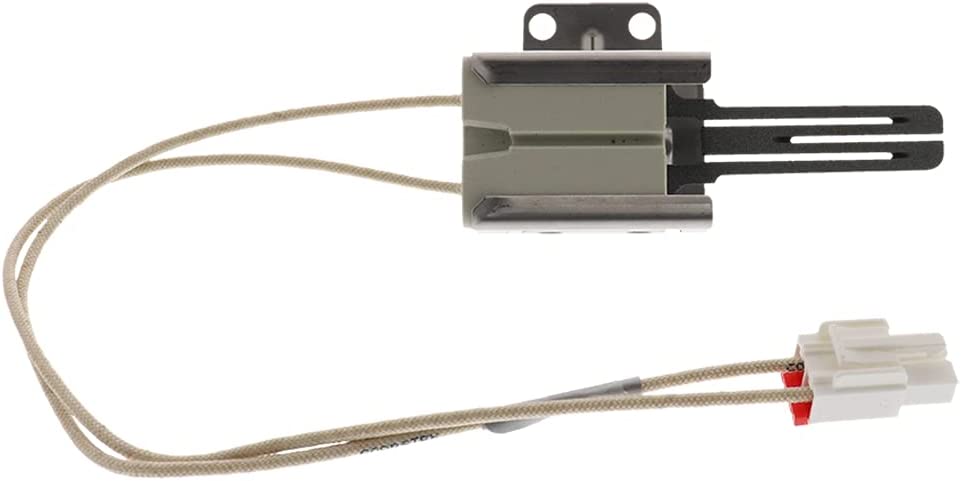

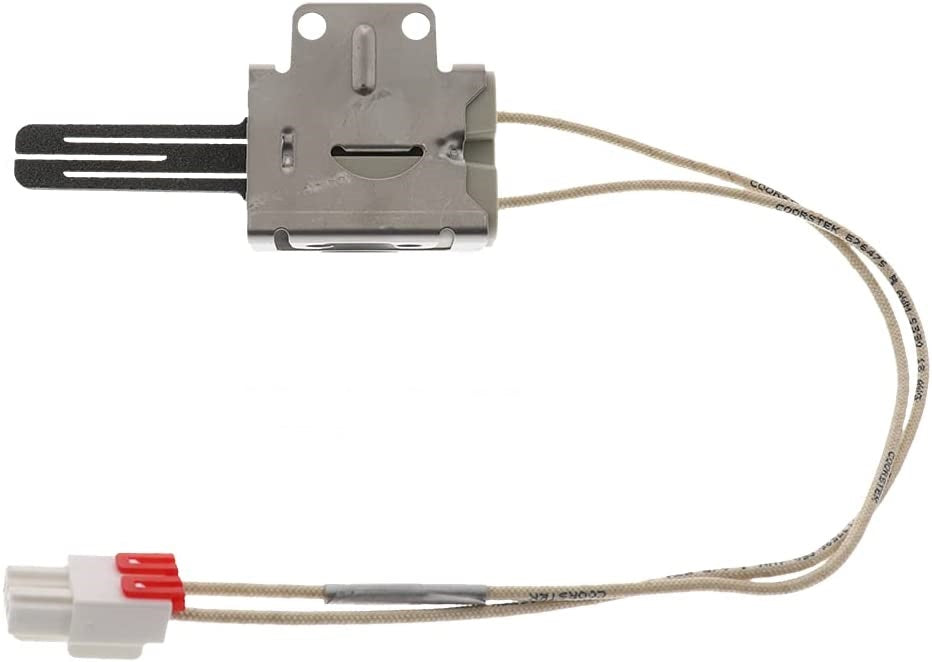

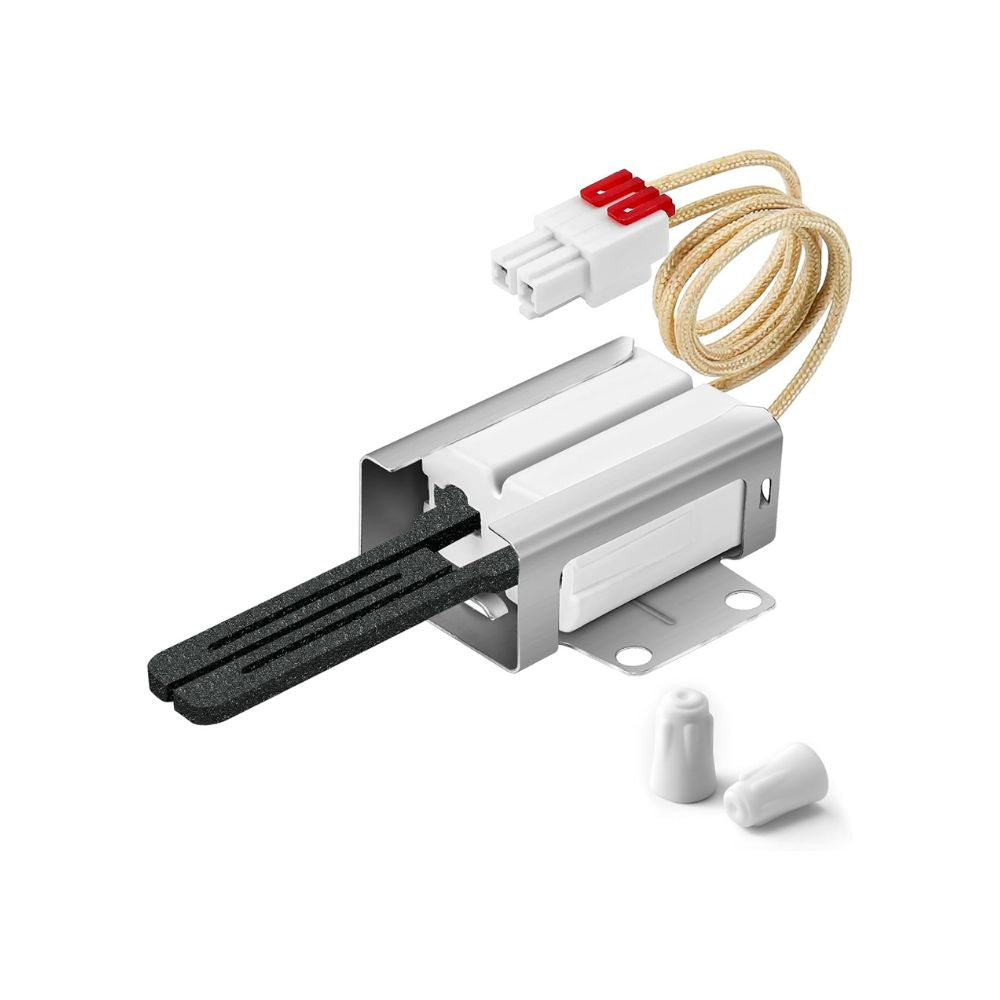

The XPARTCO MEE61841401 is an aftermarket replacement oven burner igniter compatible with select LG and Kenmore gas ranges in the LDG, LRG, LSG, LSS, LTG, and LSR series. The igniter is a flat glow bar hot surface igniter made from silicon carbide that draws electrical current through the oven safety valve to open it, then heats to ignition temperature to light the gas burner. When the igniter weakens or fails, the oven will not heat, will take too long to preheat, or the igniter will glow without ever lighting the burner.
This igniter draws 3.3–3.8 amps at 120V AC and reaches operating temperatures of 1,800°F–3,100°F within approximately 60 seconds. The igniter body measures 3-1/2 inches long x 1-3/4 inches wide x 7/8 inches high, with a lead/plug assembly extending approximately 10-3/4 inches from the igniter. It includes a 2-wire harness/plug, mounting bracket, and 2 porcelain wire connectors to accommodate direct plug-in or spliced installation. Directly replaces OEM part numbers MEE61841401, MEE61841403, and MEE63084901.
Quick Answer
The XPARTCO MEE61841401 Gas Oven Igniter fixes LG and Kenmore gas ovens that won't heat, take too long to preheat, display error codes F9 or F11, or have an igniter that glows but never lights the burner. Flat glow bar style, silicon carbide. Draws 3.3–3.8A at 120V. Igniter body 3-1/2" L x 1-3/4" W x 7/8" H with 10-3/4" lead. Includes bracket and 2 porcelain wire connectors. Replaces MEE61841403 and MEE63084901.
Common Problems This Part Fixes
- Oven not heating at all — gas is not igniting
- Oven takes excessively long to preheat
- Igniter glows orange or red but never lights the gas burner
- Error codes F9 or F11 displayed on LG gas ranges
- Gas smell when oven is turned on but burner does not light
- Oven heats inconsistently or shuts off mid-cycle
- Igniter burned out or visibly cracked or broken
Replaces Part Numbers
This oven igniter directly replaces the following OEM and cross-reference part numbers:
MEE61841401, MEE63084901, 1599783, MEE61841403, EAP3535362, ALG1385007, PD00001851, 095225468650, AH3535362, EA3535362, AP5214765, PS3535362.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This igniter is compatible with select gas ranges from the following brands and series:
- LG gas ranges — LRG series (freestanding)
- LG gas ranges — LDG series (freestanding)
- LG gas ranges — LSG series (slide-in)
- LG gas ranges — LSS series
- LG gas ranges — LTG series
- LG gas ranges — LSR series
- Kenmore / Sears gas ranges (select LG-built models)
Compatible with both single and double oven models. Always verify your model number before ordering. Contact our support team if you're unsure.
Key Features
- Flat glow bar hot surface igniter — draws current through the oven safety valve to open it, then ignites the gas burner
- Silicon carbide construction — superior heat resistance, high melting point, corrosion and oxidation resistant
- Draws 3.3–3.8 amps at 120V AC — correct amperage range to open the LG gas safety valve
- Operating temperature: 1,800°F – 3,100°F with approximately 60-second heat-up time
- Igniter body: 3-1/2" L x 1-3/4" W x 7/8" H; lead/plug assembly: approximately 10-3/4" from igniter body
- Plug-in installation — includes 2-wire harness/plug, mounting bracket, and 2 porcelain wire connectors for splicing if needed
- Compatible with single and double oven models
- Directly replaces MEE61841401, MEE61841403, and MEE63084901 — no modification required in most cases
- Resolves error codes F9 and F11 on compatible LG gas ranges
- Aftermarket replacement built to OEM-equivalent quality standards
- Quick DIY repair — installs in 10–20 minutes with basic hand tools
Product Specifications
| Part Number | MEE61841401 |
| Also Replaces | MEE61841403, MEE63084901 |
| Part Type | Gas Oven Burner Igniter (Flat Glow Bar Hot Surface Igniter) |
| Condition | Aftermarket Replacement |
| Application | Gas Ranges and Ovens (single and double oven) |
| Igniter Style | Flat glow bar, cageless |
| Material | Silicon Carbide / Metal / Ceramic / Porcelain / Plastic |
| Colors | White / Black / Gray |
| Amperage Draw | 3.3 – 3.8 Amps |
| Voltage | 120V AC |
| Operating Temperature | 1,800°F – 3,100°F |
| Heat-Up Time | Approximately 60 seconds |
| Igniter Body Dimensions | 3-1/2" L x 1-3/4" W x 7/8" H |
| Lead / Plug Length | Approximately 10-3/4 inches from igniter body |
| Includes | Igniter, mounting bracket, 2-wire harness/plug, 2 porcelain wire connectors |
| Error Codes Resolved | F9, F11 |
| Compatible Brands | LG, Kenmore |
Installation Notes
Frequently Asked Questions
What is the difference between MEE61841401, MEE61841403, and MEE63084901?
These are all part numbers for the same LG flat glow bar oven igniter used across different model ranges and production runs. MEE63084901 is the earlier part number; MEE61841401 and MEE61841403 are updated versions. All three are interchangeable, and this aftermarket replacement is compatible with all of them.
How do I know if my oven igniter needs to be replaced?
The most common signs are the oven not heating at all, taking much longer than normal to preheat, or the igniter glowing orange but never lighting the gas burner. A healthy igniter glows bright orange and ignites the burner within about 60 seconds. If it glows dimly or stays on indefinitely without the burner lighting, the igniter has weakened and is no longer drawing enough current to open the gas safety valve. Error codes F9 or F11 on LG ranges can also indicate a failed igniter.
Do I need to splice the wires or does it plug straight in?

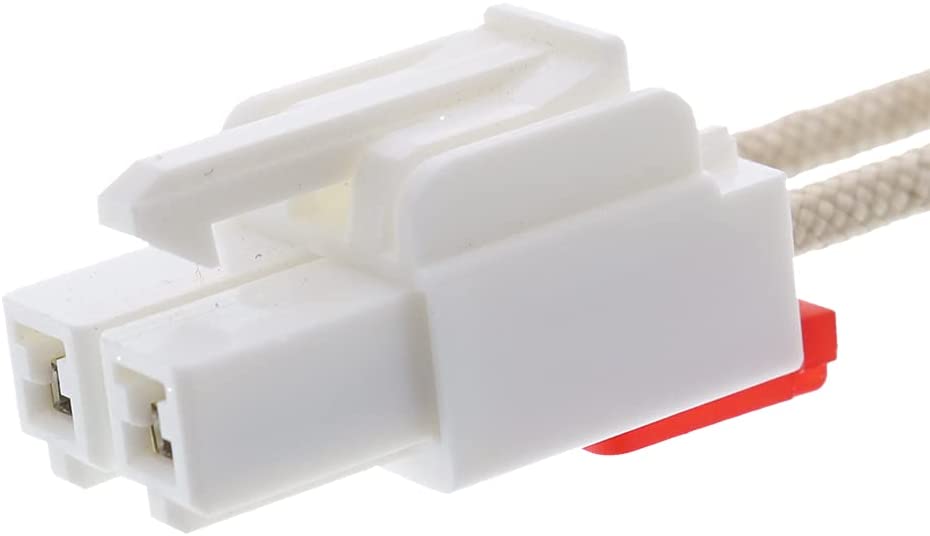

This igniter includes a 2-wire harness/plug for direct plug-in installation on most compatible LG models. If the connector does not match your range's existing harness, cut the old connector off and use the 2 porcelain wire connectors included in the kit to splice the new igniter to the existing wiring. Do not use standard plastic wire nuts — only porcelain connectors should be used near the oven burner due to the high heat involved.
What do error codes F9 and F11 mean on an LG range?
On compatible LG gas ranges, error code F9 typically indicates an oven heating failure, and F11 can indicate a shorted or failed igniter circuit. Both codes can be triggered by a weak or failed oven igniter. Replacing the MEE61841401 igniter resolves these error codes in many cases — though other causes such as a failed gas safety valve or control board issue should also be ruled out if the problem persists after replacement.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from silicon carbide, metal, ceramic, and porcelain to match the electrical specifications and physical dimensions of the original MEE61841401 igniter.
