XPARTCO EBF61674802 Washer Lid Switch and Lock Assembly
- Sku:
- XPEBF61674802
- Vendor:
- XPARTCO
Have a question?
XPARTCO EBF61674802 Washer Lid Switch and Lock Assembly
XPARTCO EBF61674802 Washer Lid Switch and Lock Assembly

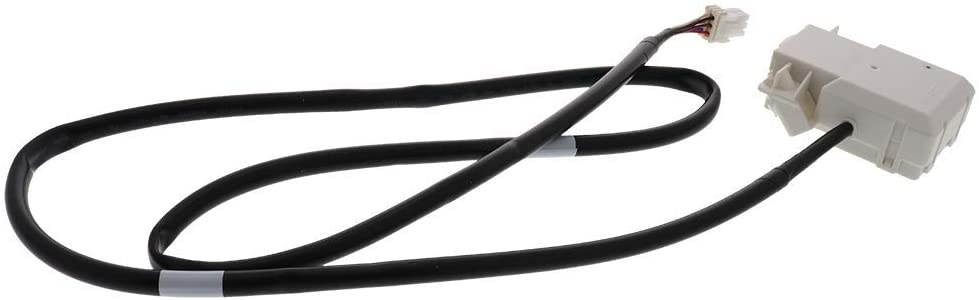

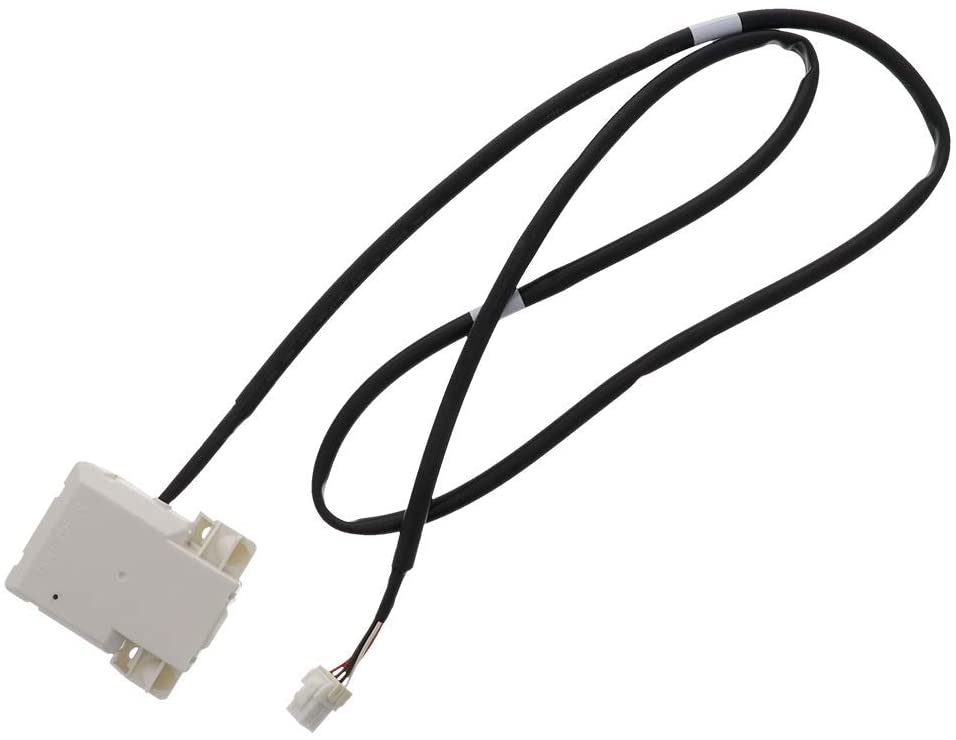

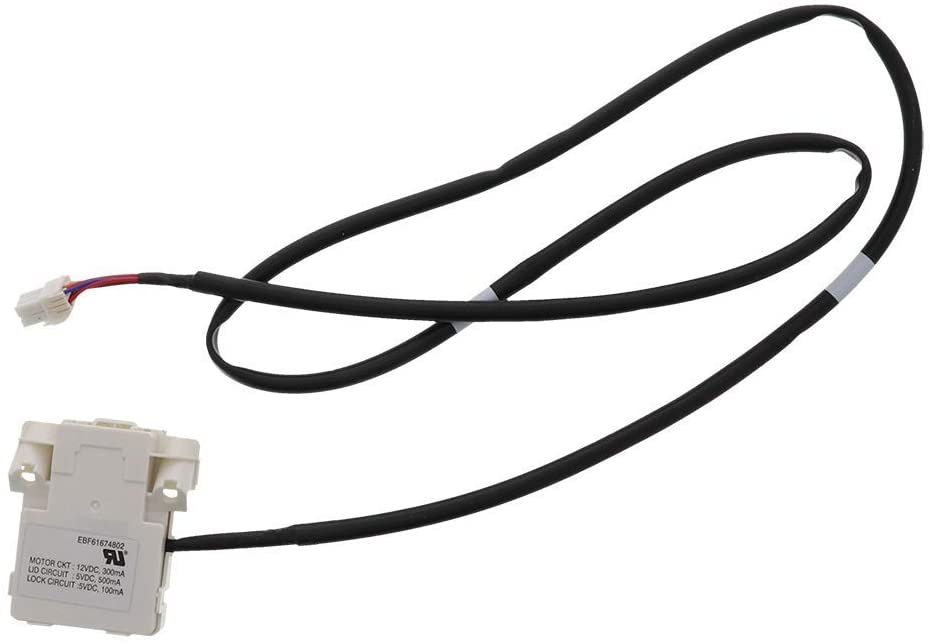

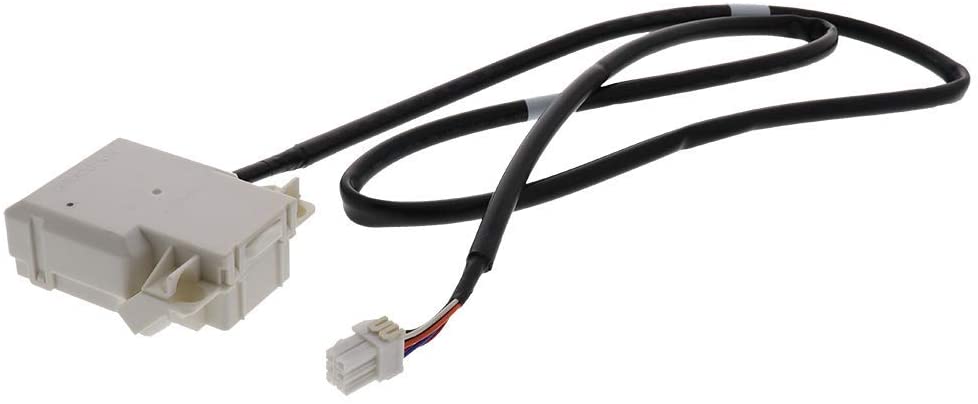

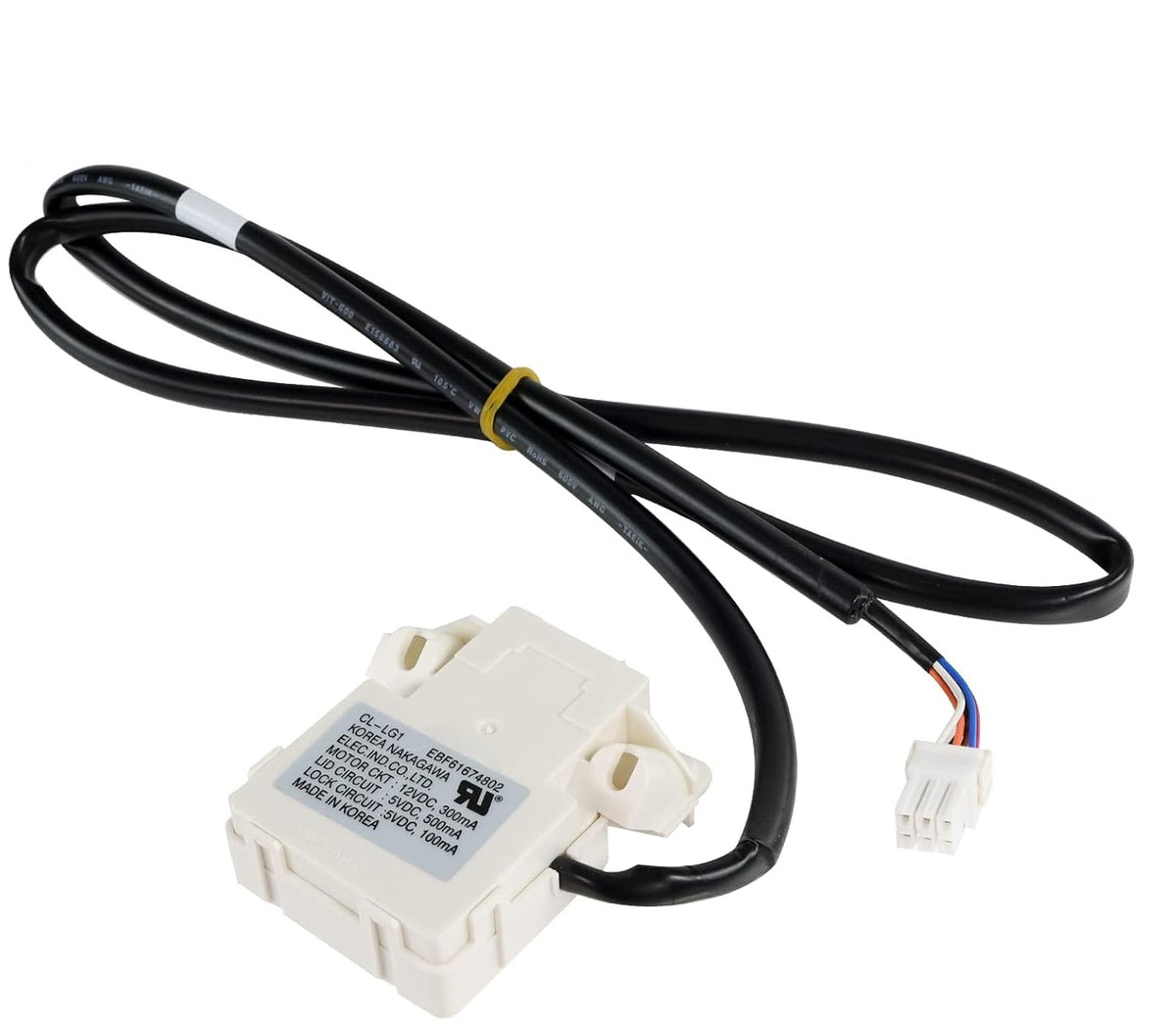

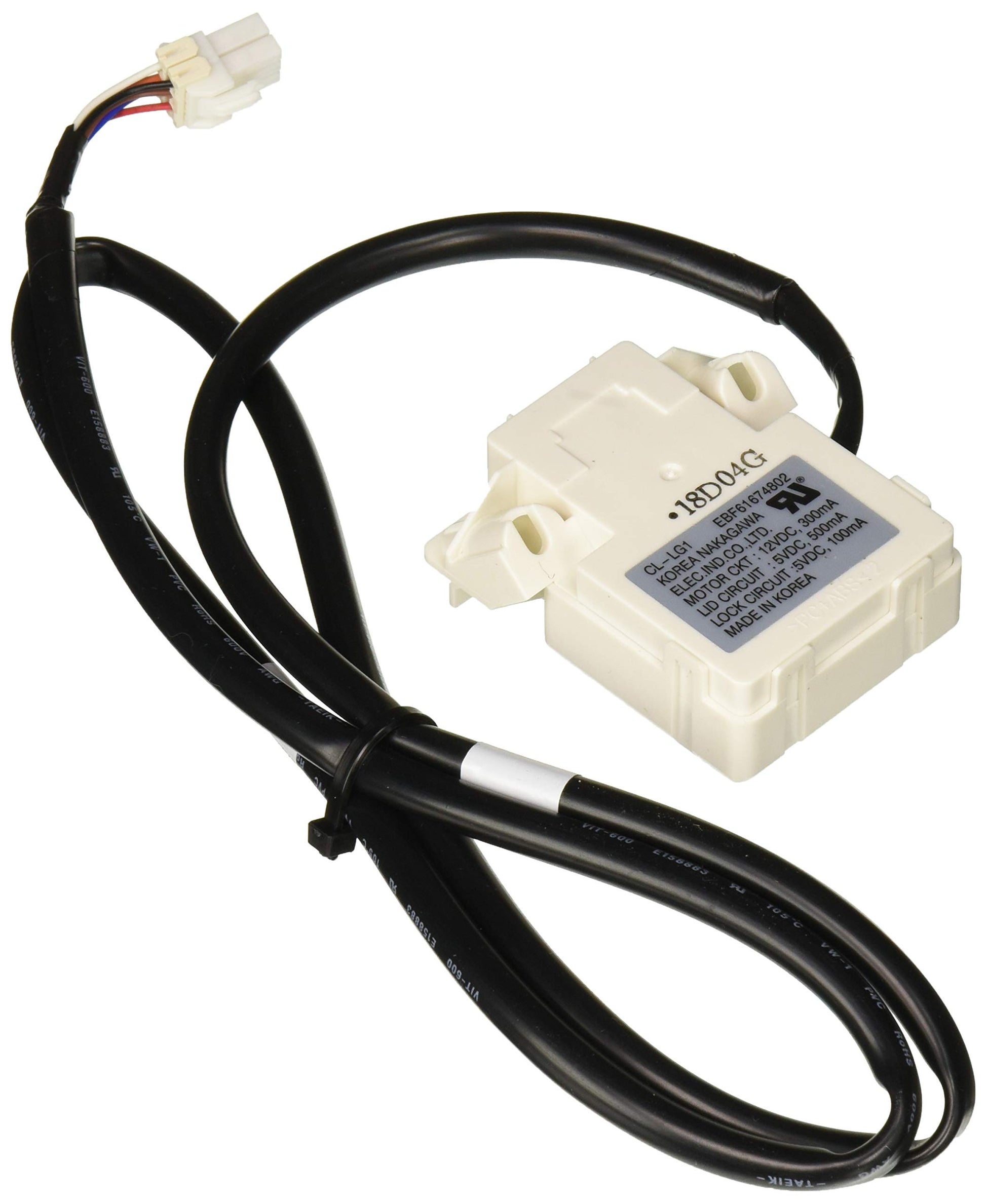

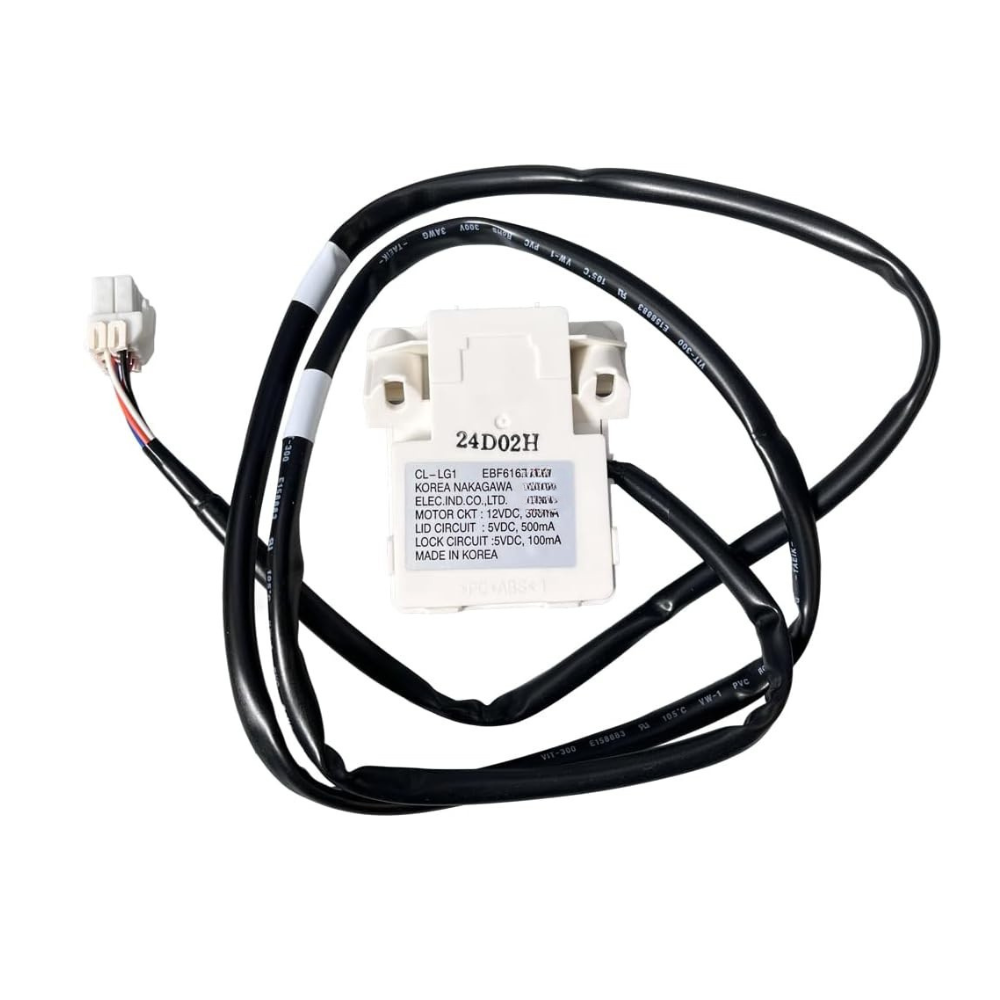

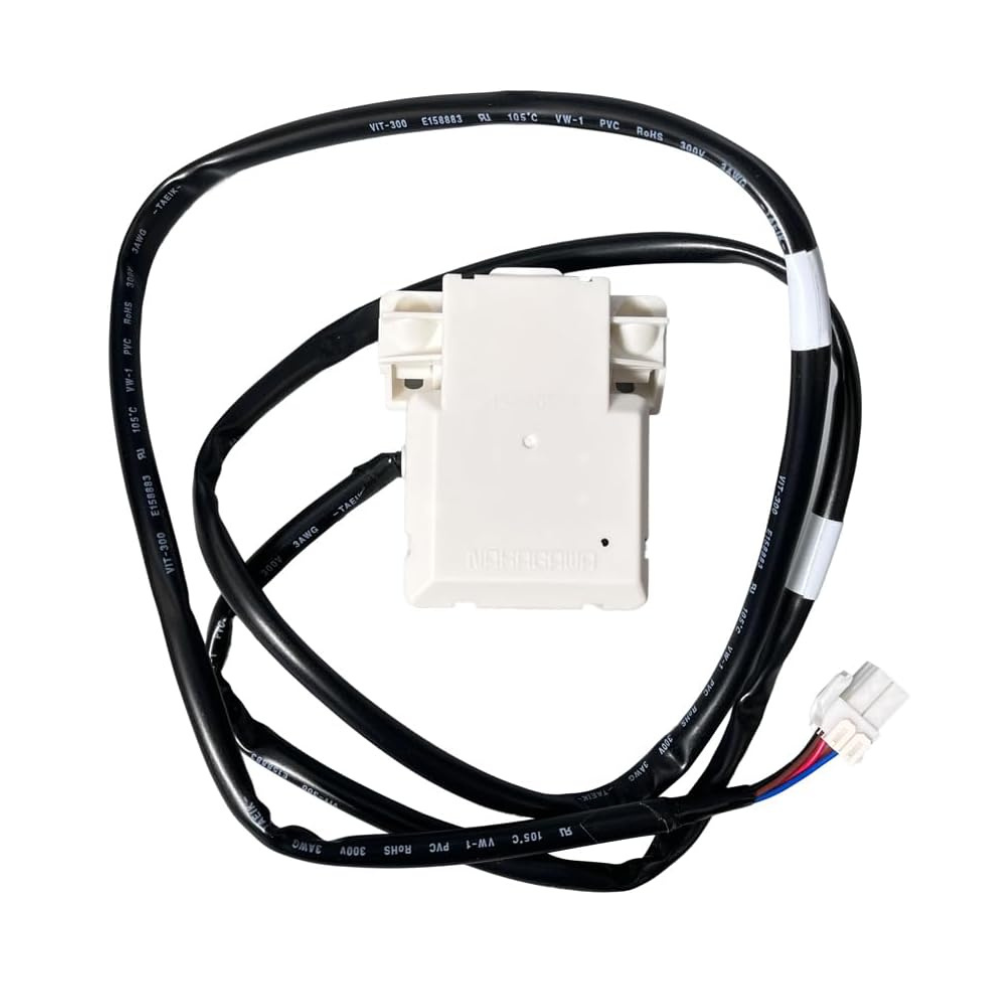

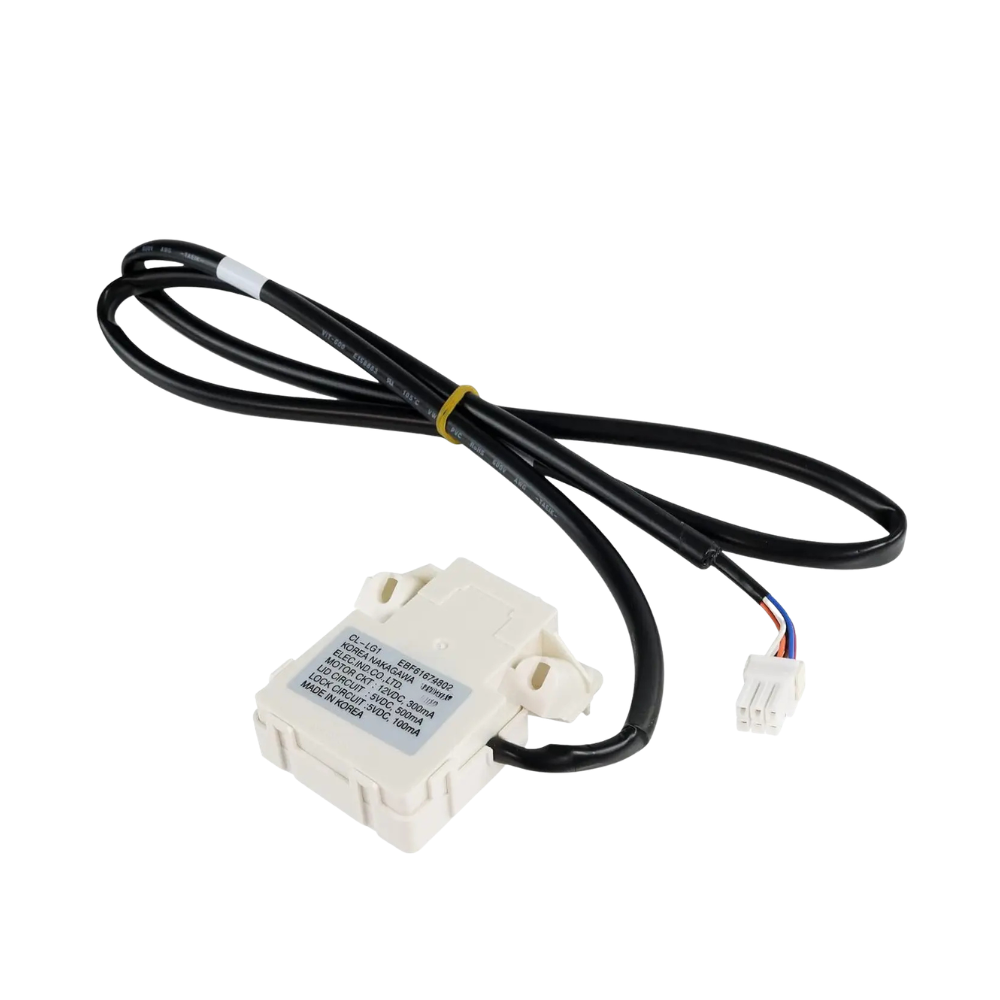

The XPARTCO EBF61674802 is an aftermarket replacement lid switch and lock assembly, made to replace LG part EBF61674802, for select LG and Kenmore top-load washers. The assembly includes the switch mechanism and a connecting wire that links the lid latch to the washer's electrical system. The switch tells the washer the lid is latched so a cycle can start, and the lock keeps the lid closed during the cycle. When it fails, the washer may not start, the lid may not latch or lock, or the washer may show a DL error code.
This is an aftermarket replacement from XPARTCO, not a genuine LG part. It is sold individually. Check your model number before ordering.
Quick Answer
The XPARTCO EBF61674802 Lid Switch and Lock Assembly replaces the lid switch and lock on a compatible LG or Kenmore top-load washer when it has failed. Replaces EBF60665201, EBF61674801, EBF61674804 and TAW36158136. Classic symptoms: the washer won't start, the lid won't latch or lock, or a DL error code appears.
Common Problems This Part Fixes
- Washer won't start
- Lid won't close or latch
- Lid locking problems, including a lock stuck in the locked position
- DL error code
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This lid switch and lock assembly is made to replace the following LG part numbers:
EBF61674802, EBF60665201, EBF61674801, EBF61674804, TAW36158136, ALG54727, AP5785599, EAP8751171, PD00023037, PS8751171
If your old assembly shows a different number, contact our support team and we'll check whether it matches.
Compatibility
This lid switch and lock assembly is listed for LG and Kenmore top-load washers, including these examples:
- LG 25667, 29002, 31553, 31623, WT5270CW, WT7700HVA
- LG WT7200CV/00, WT7300CW/00, WT7100CW/00
- Kenmore 79629272001, 79629002000, 79629472000, 79631512210
Note: The models above are a sample of roughly 30 that retailers list, not a full list. Check your full model number against your parts diagram, or contact our support team to verify fit before ordering.
Key Features
- Aftermarket replacement for the LG EBF61674802 lid switch and lock assembly

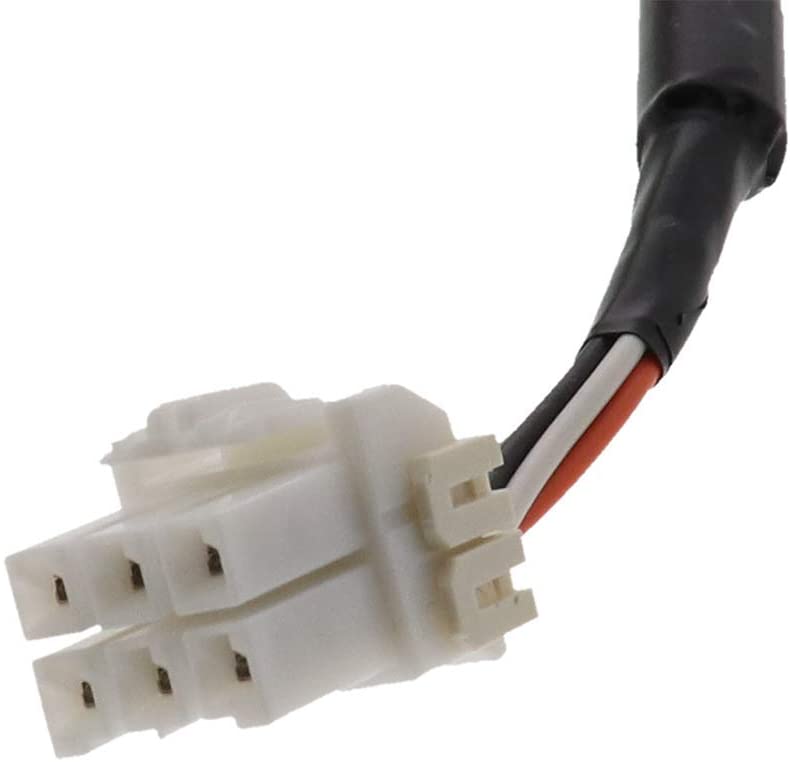

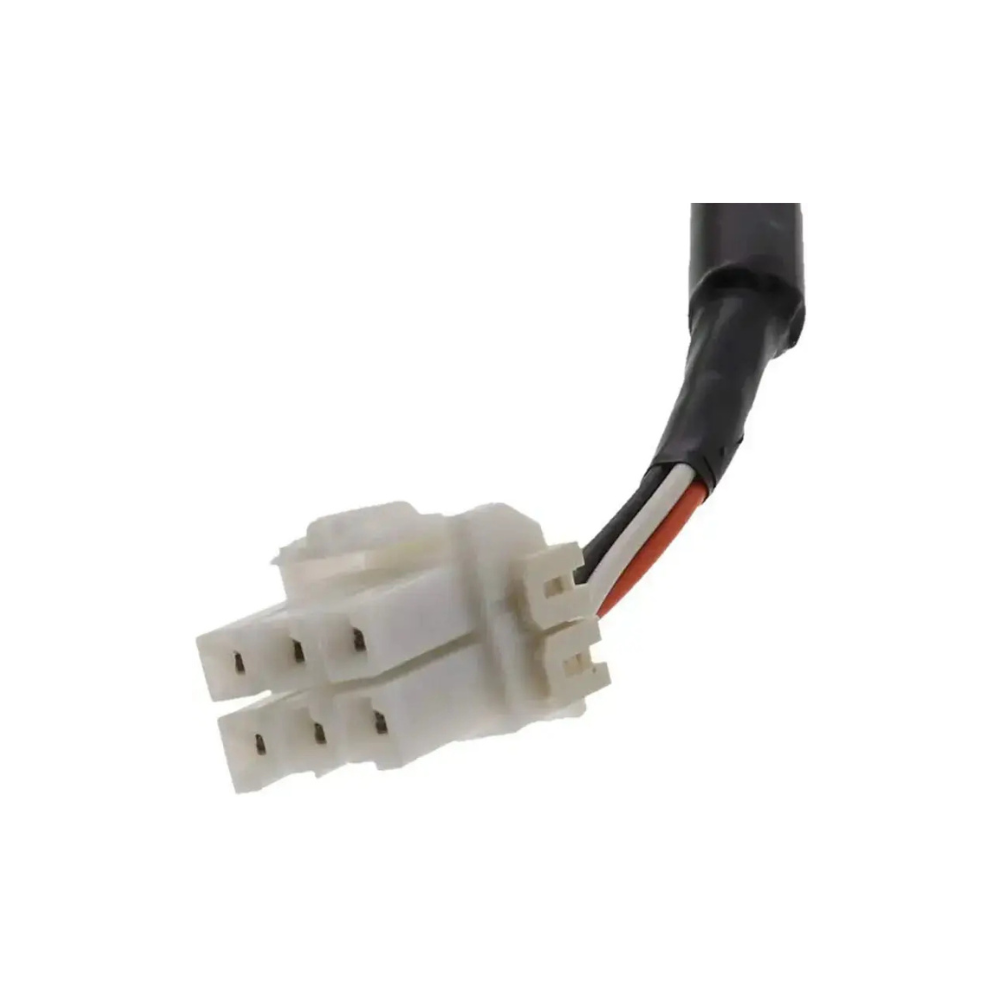

- Includes the switch mechanism and connecting wire to the lid latch
- Tells the washer the lid is latched so a cycle can start
- Sold individually
Product Specifications
| Part Number | XPEBF61674802 |
| OEM Part Number | EBF61674802 |
| Part Type | Washer Lid Switch and Lock Assembly |
| Condition | Aftermarket Replacement |
| Quantity | 1 Assembly |
| Application | Select LG and Kenmore Top-Load Washers |
Installation Notes
Frequently Asked Questions
My washer shows a DL error or won't start. Is this the part I need?
It can be. Check the wiring first, then the lid switch and lock. Other parts, such as the control board, can cause similar symptoms, so confirm the lock assembly is the problem before replacing it.
Is this an OEM or aftermarket part?
This is an aftermarket replacement from XPARTCO, made to replace LG part EBF61674802. If you specifically need a genuine LG part, contact our support team.
Is this for top-load or front-load washers?
It is listed for top-load washers. For any other washer type, match the part number and your model number, or contact our support team.
Will this fit my washer?
It is listed for about 30 LG and Kenmore models, but the model list above is only a sample. Check your full model number against your parts diagram, or contact our support team and we'll verify it before you order.
