XPARTCO DC97-19289F Washer Drain Pump Assembly
- Sku: XPDC97-19289F
- Vendor: XPARTCO
Have a question?

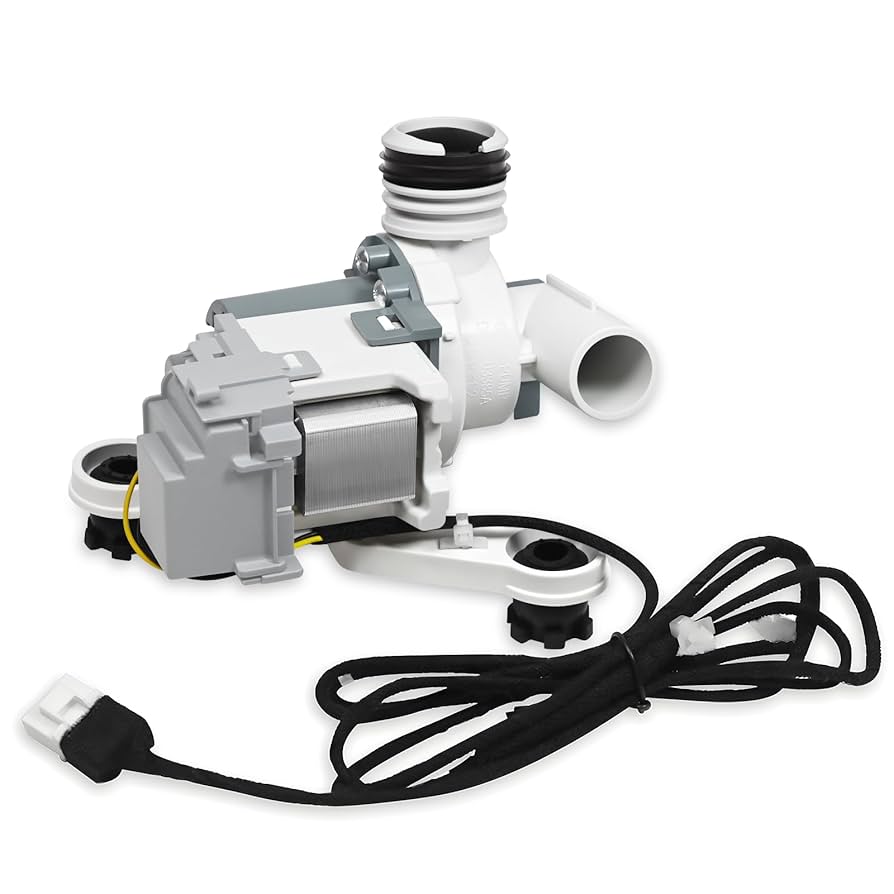

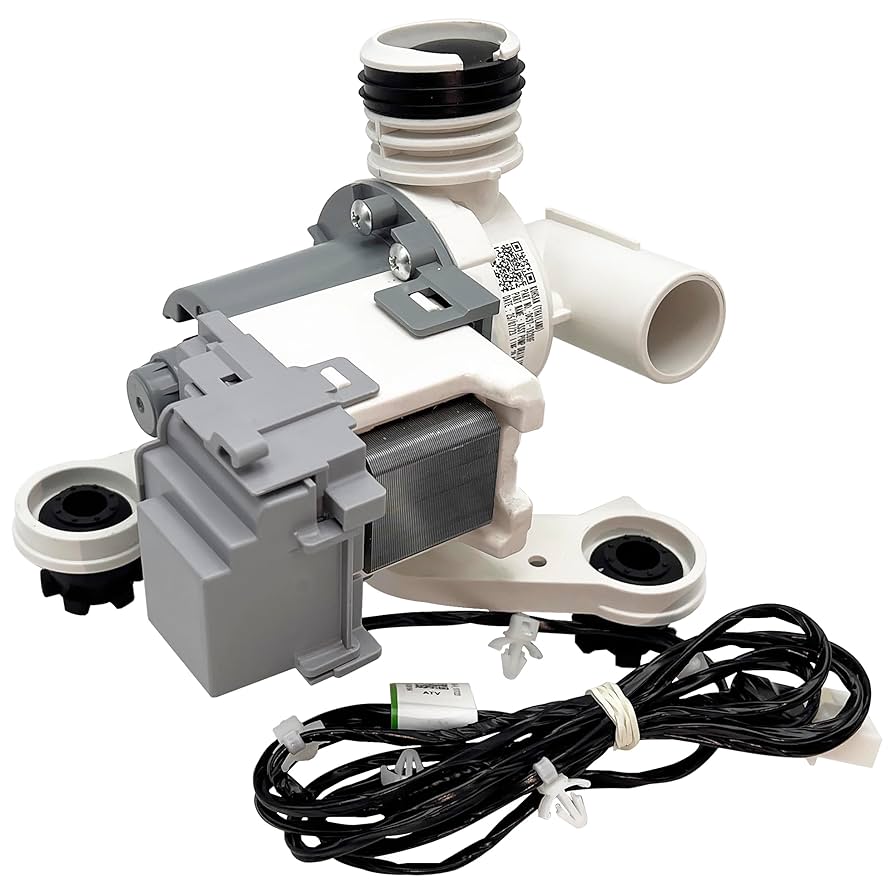

XPARTCO DC97-19289F Washer Drain Pump Assembly
XPARTCO DC97-19289F Washer Drain Pump Assembly
The XPARTCO DC97-19289F is an aftermarket replacement washer drain pump assembly compatible with a wide range of Samsung top-load washers in the WA40, WA41, WA42, WA44, WA45, WA48, WA50, WA52, and WA54 series, as well as select Kenmore models built on the Samsung platform. The drain pump removes water from the washer tub during the drain portion of each wash cycle. When the pump fails, the washer will display error codes 5C, SE, nd, 5E, FO2, or E5, leave standing water in the tub, stop mid-cycle, or produce unusual noise during draining.
This complete drain pump assembly is rated 120V, 60Hz, 80W, 1.1A with a 30-minute on / 30-minute off duty cycle. It directly replaces DC97-19289A, DC97-19289B, DC97-17349B, DC97-17366A, DC97-17366J, and PX3516-01. Note: the wire plug on the new pump may differ slightly from the original — if the connector does not match your washer's harness, transfer the wiring harness from the old pump to the new one. Installs in 20–30 minutes with basic hand tools.
Quick Answer
The XPARTCO DC97-19289F Washer Drain Pump Assembly fixes Samsung top-load washers displaying error codes 5C, SE, nd, 5E, FO2, or E5, not draining, leaving standing water, or making loud noise during the drain cycle. 120V/60Hz/80W/1.1A, 30 min on/30 min off duty cycle. Compatible with Samsung WA40 through WA54 series and Kenmore (Samsung-built). Replaces DC97-19289A, DC97-19289B, DC97-17349B, DC97-17366A, DC97-17366J, PX3516-01. Note: if wire plug differs, transfer harness from old pump.
Common Problems This Part Fixes
- Error codes 5C, SE, nd, 5E, FO2, or E5 — washer cannot drain within the allotted time
- Washer not draining — standing water remaining in the tub after a cycle
- Washer stopping mid-cycle due to a drain fault
- Loud humming, grinding, or rattling noise during the drain cycle
- Water draining very slowly — worn pump motor below rated performance
- Water leaking from the drain pump area at the bottom of the washer
- Pump running continuously but water not being expelled from the tub
Replaces Part Numbers
This drain pump directly replaces the following OEM and cross-reference part numbers:
DC97-19289F, DC97-17349B, DC97-19289B,DC97-17366A, DC97-17366J, DC97-19289A,ASM772133, AP6806651, EAP12592631, PD00049911, PX3516-01, PS12592631.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drain pump is compatible with select top-load washers from the following brands and series:
- Samsung top-load washers — WA40 series (WA400PJHDWR and related models)
- Samsung top-load washers — WA41 series (WA41A3000AW and related models)
- Samsung top-load washers — WA42 series
- Samsung top-load washers — WA44 series (WA44A3205AW and related models)
- Samsung top-load washers — WA45 series (WA45H7000AW, WA45M7050AW, WA45N3050AW, WA45T3200AW and related models)
- Samsung top-load washers — WA48 series (WA48H7400AW and related models)
- Samsung top-load washers — WA50 series (WA50F9A7DSP, WA50M7450AW and related models)
- Samsung top-load washers — WA52 series (WA52M7750AW, WA52M8650AW and related models)
- Samsung top-load washers — WA54 series (WA54M8750AV and related models)
- Samsung top-load washers — WA456DRHDSU series
- Kenmore / Sears top-load washers (select Samsung-built models)
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Removes water from the tub during the drain and spin cycles for proper washer operation
- Resolves Samsung error codes 5C, SE, nd, 5E, FO2, and E5 caused by drain pump failure
- Rated 120V, 60Hz, 80W, 1.1A — correct electrical specifications for compatible Samsung top-load models
- 30-minute on / 30-minute off duty cycle — matches the operational requirements of compatible models
- Replaces DC97-19289A, DC97-19289B, DC97-17349B, DC97-17366A, DC97-17366J, and PX3516-01
- Wire plug may differ from original — transfer harness from old pump if connector does not match
- Compatible with Samsung WA40 through WA54 series and Kenmore Samsung-built top-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
| Part Number | DC97-19289F |
| Also Replaces | DC97-19289A, DC97-19289B (prior versions) |
| Part Type | Washer Drain Pump Assembly |
| Condition | Aftermarket Replacement |
| Application | Samsung Top-Load Washers |
| Voltage | 120V AC |
| Frequency | 60 Hz |
| Wattage | 80W |
| Amperage | 1.1A |
| Duty Cycle | 30 minutes on / 30 minutes off |
| Error Codes Resolved | 5C, SE, nd, 5E, FO2, E5 |
| Connector Note | Wire plug may differ — transfer harness from old pump if needed |
| Compatible Brands | Samsung, Kenmore (Samsung-built) |
Installation Notes
Frequently Asked Questions
What error codes indicate a drain pump failure on Samsung washers?
Error codes 5C, SE, nd, 5E, FO2, and E5 on Samsung top-load washers all indicate a drain fault — the washer was unable to drain within the expected time. These codes can also be caused by a clogged drain filter, blocked hose, or kinked drain line, so check those first. If the filter and hose are clear and the error persists after clearing them, the drain pump is the most likely cause.
What is the difference between DC97-19289F, DC97-19289A, and DC97-19289B?
These are successive revisions of the same Samsung drain pump assembly. DC97-19289A was the original version, DC97-19289B was an update, and DC97-19289F is the current version. Samsung issues revised part numbers when minor production changes are made — all three perform the same function and the DC97-19289F is the correct current replacement for any of the earlier versions. The DC97-17349B, DC97-17366A, and DC97-17366J are additional older cross-references for this pump used on earlier Samsung top-load models.
Why might the wire plug on the new pump differ from the original?
Samsung revised the wiring connector on this drain pump across different production runs. If the DC97-19289F pump you receive has a different connector than your washer's harness, do not force the connection. Instead, carefully remove the wiring harness from the old pump and transfer it to the new pump — both versions use the same internal terminals and the harness swap is straightforward. This is a known and documented step for this part and does not affect performance or safety.
Should I check the drain filter before replacing the pump?
Yes — always check and clean the drain filter and inspect the drain hose for kinks or blockages before replacing the pump. A clogged filter or blocked hose can cause the same error codes as a failed pump and clearing the blockage may resolve the problem without needing a new part. On Samsung top-load washers the drain filter is typically located at the bottom front of the machine. If the filter and hose are clear and the error persists, the pump needs replacement.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the electrical specifications and performance of the original DC97-19289F drain pump assembly.
