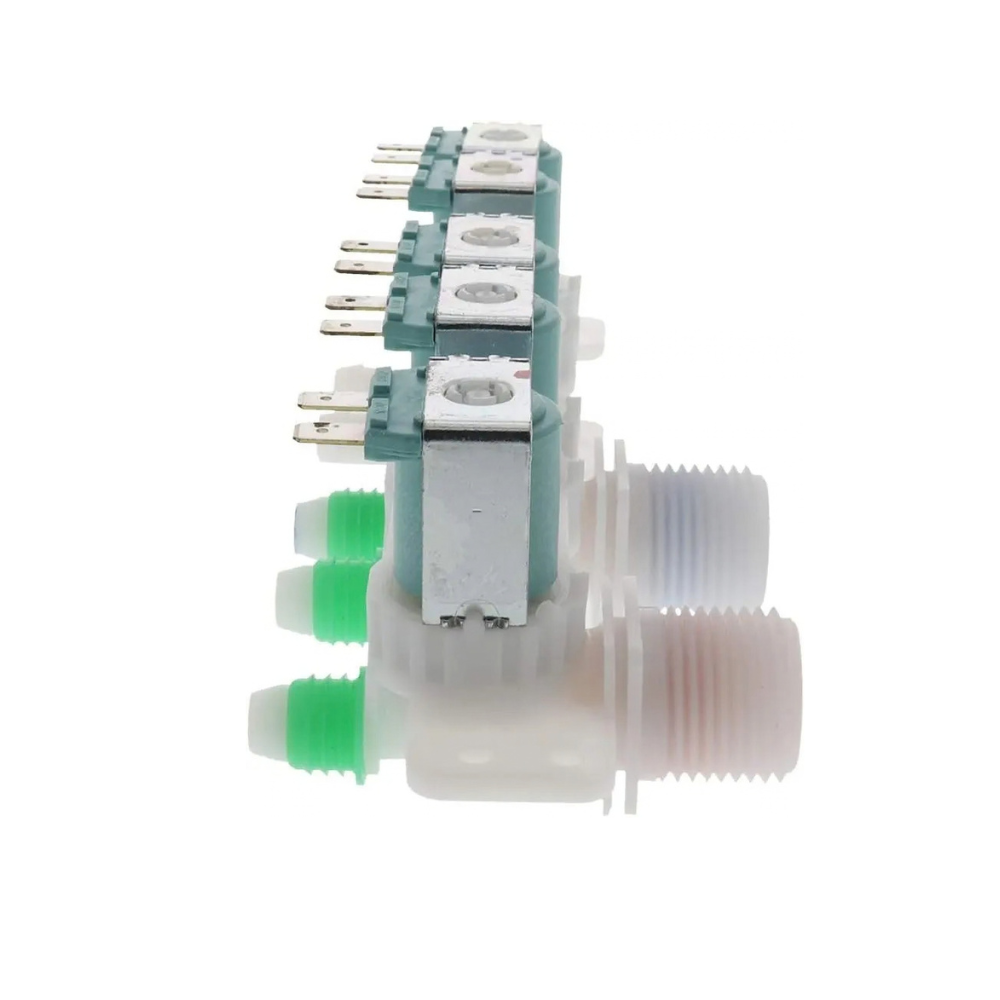

XPARTCO DC97-15459G Washer Water Valve
- Sku:
- XPDC97-15459G
- Vendor:
- XPARTCO
Have a question?
XPARTCO DC97-15459G Washer Water Valve
XPARTCO DC97-15459G Washer Water Valve
The XPARTCO DC97-15459G is an aftermarket replacement water inlet valve assembly compatible with a wide range of Samsung top-load washers. This valve mounts at the rear of the washer and controls the flow of water into the drum, opening electronically when the control board calls for a fill and closing once the target water level is reached. It connects via five terminal connections to the wiring harness and to the hot/cold supply hoses.
When this valve fails, the washer commonly won't fill with water, fills very slowly, overfills, or continues to trickle water even when powered off — the last of which points to a valve that isn't sealing properly rather than an electrical fault. It directly replaces DC97-15459G, 3276197, AP5623056, ASM1220342, EAP4220861, PD00007887, PS4220861. Sold individually; does not include wire harness or mounting screws. Installs in 15–20 minutes with basic hand tools.
Quick Answer
The XPARTCO DC97-15459G Washer Water Valve fixes Samsung top-load washers that won't fill, fill slowly, overfill, or leak/drip water even when the washer is unplugged. 5-terminal connection for wiring and hot/cold hose lines. Sold individually — wire harness and mounting screws not included. Replaces DC97-15459G, 3276197, AP5623056, ASM1220342, EAP4220861, PD00007887, PS4220861. Classic symptom: washer trickles water into the drum even when it's completely powered off.
Common Problems This Part Fixes
- Washer won't fill with water at all
- Washer fills very slowly or takes much longer than normal
- Washer overfills or keeps adding water past the normal level
- Water trickles or leaks into the drum even when the washer is off
- Leaking or dripping at the water inlet connection point
- Error code related to water fill or water level on the display
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This water inlet valve directly replaces the following OEM and cross-reference part numbers:
DC97-15459G, 3276197, AP5623056, ASM1220342, EAP4220861, PD00007887, PS4220861
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This water valve is compatible with a wide range of Samsung top-load washers, including:
- Samsung WA45H7200AP/AW, WA48H7400AP/AW, WA48J7770AP/AW
- Samsung WA50F9A6/7/8 series, WA50K8600AW, WA50M7450AP/AW
- Samsung WA52J8700AP/AW, WA52M7750AV/A4 and related WA52M7750 series
- Select Kenmore washers (Samsung-built models)
Note: This valve is sold individually and does not include the wire harness or mounting screws — reuse your existing hardware during installation. Always verify your appliance model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Direct-fit replacement Samsung washer water inlet valve assembly
- Resolves "won't fill," "slow fill," "overfilling," and "leaking when off" symptoms
- Electronically controlled valve opens/closes based on control board signal
- 5-terminal connection for wiring harness and hot/cold hose lines
- Replaces DC97-15459G, 3276197, AP5623056, ASM1220342, EAP4220861, PD00007887, PS4220861
- Compatible with a wide range of Samsung top-load washer models
- Aftermarket replacement built to OEM-equivalent quality standards
- Quick DIY repair — installs in 15–20 minutes with basic hand tools
Product Specifications
| Part Number | XPDC97-15459G |
| OEM Part Number | DC97-15459G |
| Part Type | Washer Water Inlet Valve Assembly |
| Condition | Aftermarket Replacement |
| Terminals | 5-terminal wiring/hose connection |
| Sold As | Individually (wire harness and screws not included) |
| Application | Samsung Top-Load Washer Water Supply |
| Compatible Brands | Samsung, Kenmore |
Installation Notes
Frequently Asked Questions
My washer trickles water into the drum even when it's unplugged — is this the part?
Yes, this is a classic symptom of a water inlet valve that isn't sealing properly. Since the valve is the only thing standing between your home's pressurized water supply and the drum, a valve that won't fully close will let water trickle through even with zero power to the washer. This is different from an electrical fill problem, which typically shows up as the washer not filling at all rather than filling when it shouldn't.
Does this include the wire harness and mounting screws?
No — this valve is sold individually. You'll reuse your existing wire harness connector and mounting screws from the old valve during installation.
Will this fit my Kenmore washer?
This valve fits select Kenmore washers that were built by Samsung and share this platform's water valve design. Confirm your appliance model number before ordering, since not all Kenmore washers use this valve.
Do I need to shut off the water supply to replace this?
Yes — always shut off both the hot and cold water supply valves before disconnecting the hoses from the old valve. Skipping this step will result in water spraying from the open supply lines once the hoses are disconnected.
