  • Sku: XPDC64-00828B

XPARTCO DC64-00828B Dryer Door Switch Replaces WP35001125

List Price:  $23.00
$17.97
 per

FREE SHIPPING TO ALL 48 CONTIGUOUS STATES
Free standard shipping at checkout.

CHECK YOUR MODEL COMPATIBILITY

Enter your appliance model number to check if this part is listed as compatible.

Need help finding your model number?

Guaranteed safe checkout

Product description

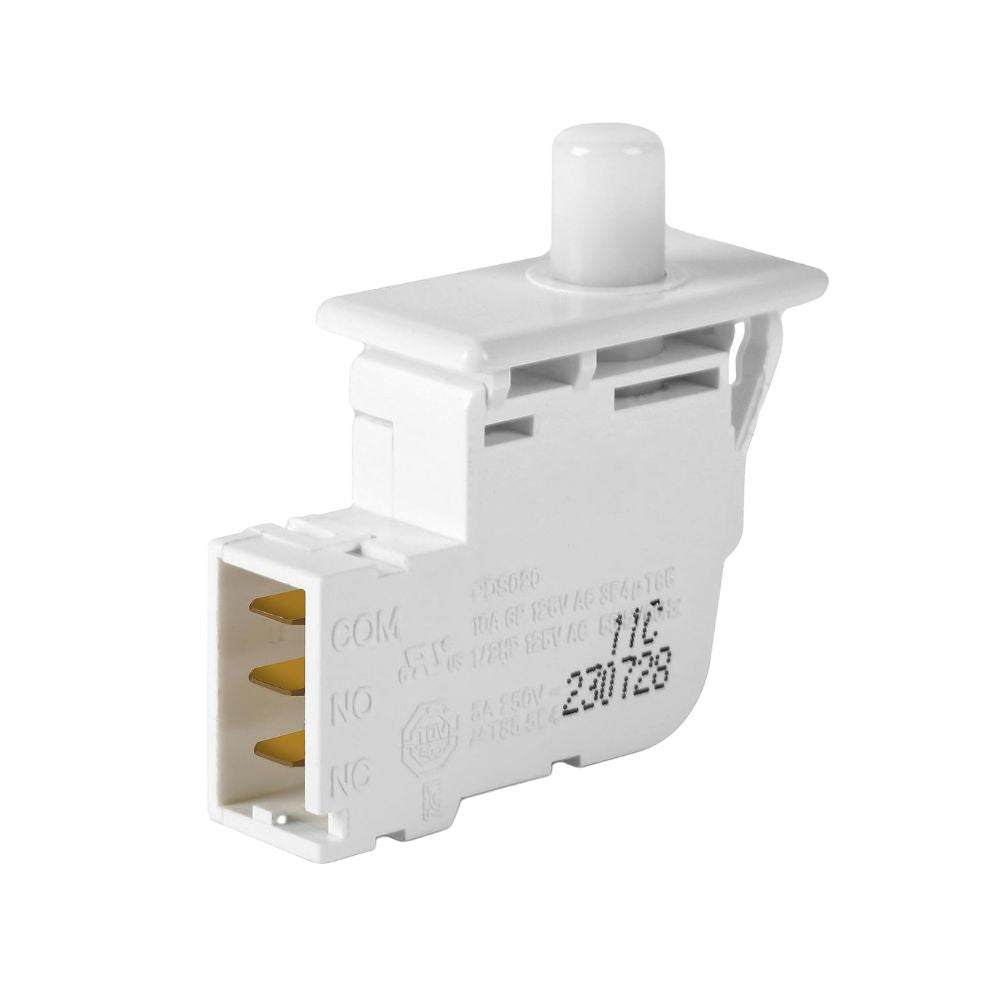

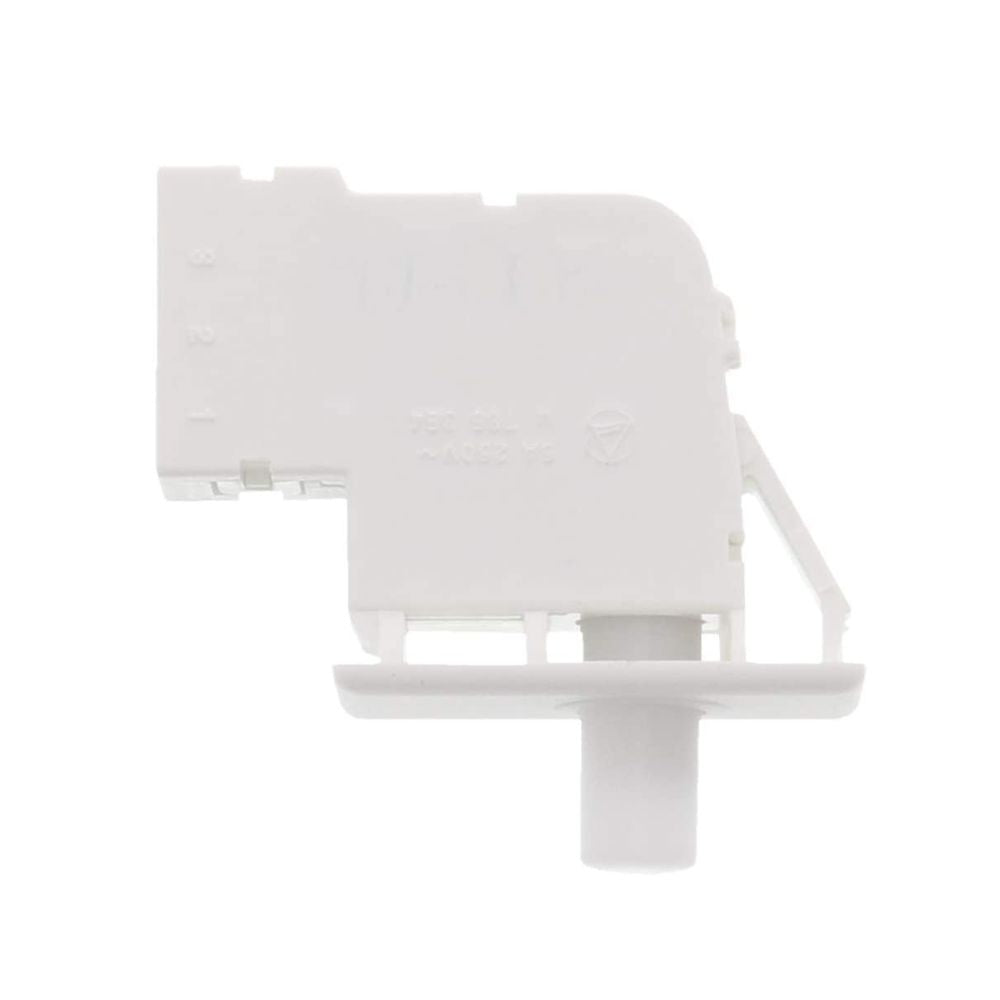

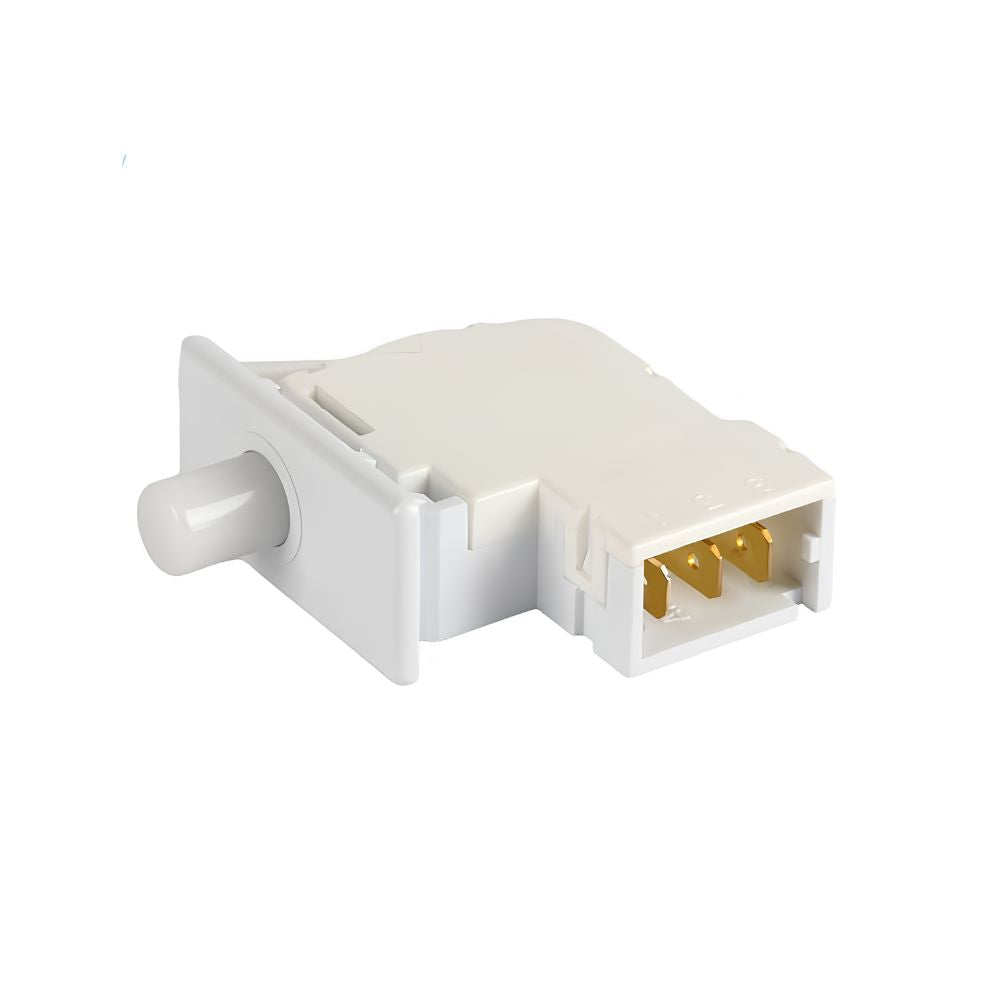

XPARTCO DC64-00828B Dryer Door Switch

Samsung dryer won't start with the door shut? The XPARTCO DC64-00828B is an aftermarket replacement dryer door switch (also called a door jamb switch) for a wide range of Samsung and Kenmore Samsung-built electric and gas dryers, including the DV2, DV3, DV4, DV5, DVE, DVG, 592, 401, and 402 series. It is a small safety component mounted near the door frame that senses whether the door is closed. With the door shut, the switch signals the control board that it's safe to start or keep running. If it fails to register a closed door, the dryer won't start or will stop mid-cycle, and in rare unsafe failure modes it may keep running with the door open.

This switch directly replaces DC64-00828A (the prior version), 2071595, AP4578931, EAP4210965, PS4210965, PS4210964, 2071594, and PD00028436. It is built from durable plastic and metal in white, roughly 1.73"L x 1.73"W x 0.47"H. Note: although the switch looks easy to reach, the front panel actually has to come off to get at it cleanly. Installs in 20–30 minutes with basic hand tools.

Quick Answer

Choose the XPARTCO DC64-00828B Dryer Door Switch for Samsung and Kenmore Samsung-built dryers that won't start with the door closed, stop mid-cycle, display error codes dC, dF, dE, or d0, or keep running with the door open. Approx. 1.73"L x 1.73"W x 0.47"H, white. Replaces DC64-00828A, 2071595, AP4578931, EAP4210965, PS4210965, PS4210964, 2071594, PD00028436. Compatible with Samsung DV2, DV3, DV4, DV5, DVE, DVG series and Kenmore 592/401/402-series dryers.

Common Problems This Part Fixes

  • Dryer not starting even though the door is closed
  • Dryer stopping mid-cycle for no apparent reason — door switch losing signal intermittently
  • Error codes dC, dF, dE, or d0 displayed on models with digital displays
  • Dryer continuing to run with the door open (unsafe failure mode — replace immediately)
  • Interior dryer light not turning on when the door is opened
  • Door switch button visibly broken, stuck, or not making the expected click when pressed
  • Multimeter test shows the switch fails to change state when actuated

Replaces Part Numbers

This door switch directly replaces the following OEM and cross-reference part numbers:

DC64-00828B, DC64-00828A, 2071595, AP4578931, ASM68666, EAP4210965, PD00028436, PS4210965, WP35001125, 35001125, AP6008683, PS11741823

If your part number is not listed above, contact our support team before ordering and we will verify compatibility.

Compatibility

This door switch is compatible with select Samsung and Kenmore Samsung-built electric and gas dryers, including:

  • Samsung dryers — DV2 series (DV203AEW, DV203AGS, DV22K6800EW, DV2C6BEW, DV2C6BGW and related)
  • Samsung dryers — DV3 series (DV306LEW, DV306LGW, DV316BEC, DV316BEW, DV316BGC, DV316BGW, DV316LES, DV316LEW, DV330AEB, DV330AEW, DV3C6BEW, DV3C6BGW, DV395ETPASU and related)
  • Samsung dryers — DV4 series (DV400EWHDWR, DV400GWHDWR, DV42H5000GW, DV45H7000EW, DV48J7770GW and related)
  • Samsung dryers — DV5 series (DV50K7500EW and related)
  • Samsung dryers — DVE series (DVE60M9900W and related electric models)
  • Samsung dryers — DVG series (DVG45N5300V and related gas models)
  • Kenmore / Sears dryers — 592, 401, and 402 series (Samsung-built models)

Always verify your appliance model number before ordering. Contact our support team if you're unsure.

Key Features

  • Safety switch that detects whether the dryer door is closed — required for the dryer to start and run
  • Direct replacement for the original equipment door switch in compatible Samsung and Kenmore dryers
  • Dimensions: approximately 1.73"L x 1.73"W x 0.47"H — matches original switch sizing
  • Durable plastic housing with metal contacts — withstands frequent door open/close cycles
  • Resolves Samsung door-related error codes including dC, dF, dE, and d0
  • Replaces DC64-00828A, 2071594, 2071595, AP4578931, EAP4210965, PS4210964, PS4210965, and PD00028436
  • Compatible with Samsung DV2, DV3, DV4, DV5, DVE, DVG series and Kenmore 592/401/402-series dryers
  • Aftermarket replacement built to OEM-equivalent quality standards
  • DIY repair — installs in 20–30 minutes with basic hand tools

Product Specifications

Part Number DC64-00828B
Also Replaces DC64-00828A (prior version)
Part Type Dryer Door Switch (Door Jamb Switch)
Condition Aftermarket Replacement
Application Electric and Gas Dryers (Samsung platform)
Dimensions Approximately 1.73"L x 1.73"W x 0.47"H
Color White
Material Plastic / Metal
Error Codes Resolved dC, dF, dE, d0 (door-related)
Compatible Brands Samsung, Kenmore (Samsung-built)

Installation Notes

⚠️ Unplug Dryer Before Starting — Wear Work Gloves Disconnect power and turn off the circuit breaker before beginning. Wear work gloves to protect your hands. Although the door switch appears easy to access from the front, on most Samsung dryer models the front panel actually needs to be removed to install the new switch cleanly. Unscrew and lift off the front panel — be careful not to drop it during reinstallation. Locate the old door switch mounted near the door frame opening. Photograph the wire connections before disconnecting. Unplug the wire harness from the old switch, release the retaining tabs or remove the mounting screws holding the switch in place, and pull it free. Install the new DC64-00828B switch in the same position, reconnect the wire harness, and reinstall the front panel. Restore power, then close the dryer door and start a cycle to confirm the door is properly detected and the dryer runs normally. Tools needed: Phillips screwdriver, work gloves.

Frequently Asked Questions

What do error codes dC, dF, dE, and d0 mean on Samsung dryers?

All four are door-related codes: the control board isn't getting the "door closed" signal it expects from the door switch. dC and d0 usually show up when a closed door can't be detected at the start of a cycle, while dF and dE point to the signal dropping out mid-cycle. The dryer's safety logic blocks operation in each case. Replacing a failed DC64-00828B door switch clears these codes when the switch is the cause; if they come back after replacement, inspect the wiring harness between the switch and the control board for damage.

My dryer is running with the door open — what should I do?

A dryer that continues to run with the door open is a serious safety concern and should be addressed immediately. This usually indicates a failed door switch that is stuck in the "closed" position electrically, even though the door is physically open. Disconnect power to the dryer right away and avoid running it until the switch has been replaced. The DC64-00828B replacement restores normal safety behavior. Until the repair is complete, do not run the dryer.

What is the difference between DC64-00828B and DC64-00828A?

These are the same door switch across successive production revisions. DC64-00828A was the original part number and DC64-00828B is the current updated version. Both are fully interchangeable — if your dryer's parts diagram shows DC64-00828A, the DC64-00828B is the correct current replacement and is covered by this listing.

My dryer suddenly stops mid-cycle even though the door is closed — could this be the switch?

Yes — a door switch with intermittent contact failure is a common cause of unexplained mid-cycle shutdowns on Samsung dryers. The switch may be working correctly when first activated but losing its signal momentarily during operation due to vibration or worn internal contacts, causing the control board to interpret a momentary "door open" condition and stop the cycle. If this is happening repeatedly without any other identifiable cause, replacing the DC64-00828B door switch is the recommended fix.

Is this an OEM or aftermarket part?

This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured from durable plastic and metal to match the dimensions, switch contacts, and function of the original DC64-00828B dryer door switch.

Shop With Confidence

Express Parts Direct is a U.S.-based appliance parts retailer offering genuine OEM and high-quality replacement parts for all major brands, with fast shipping from our U.S. warehouse. Our team can help verify compatibility before you buy.

✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout
