XPARTCO DC47-00019A Dryer Heating Element also Replaces WP35001247

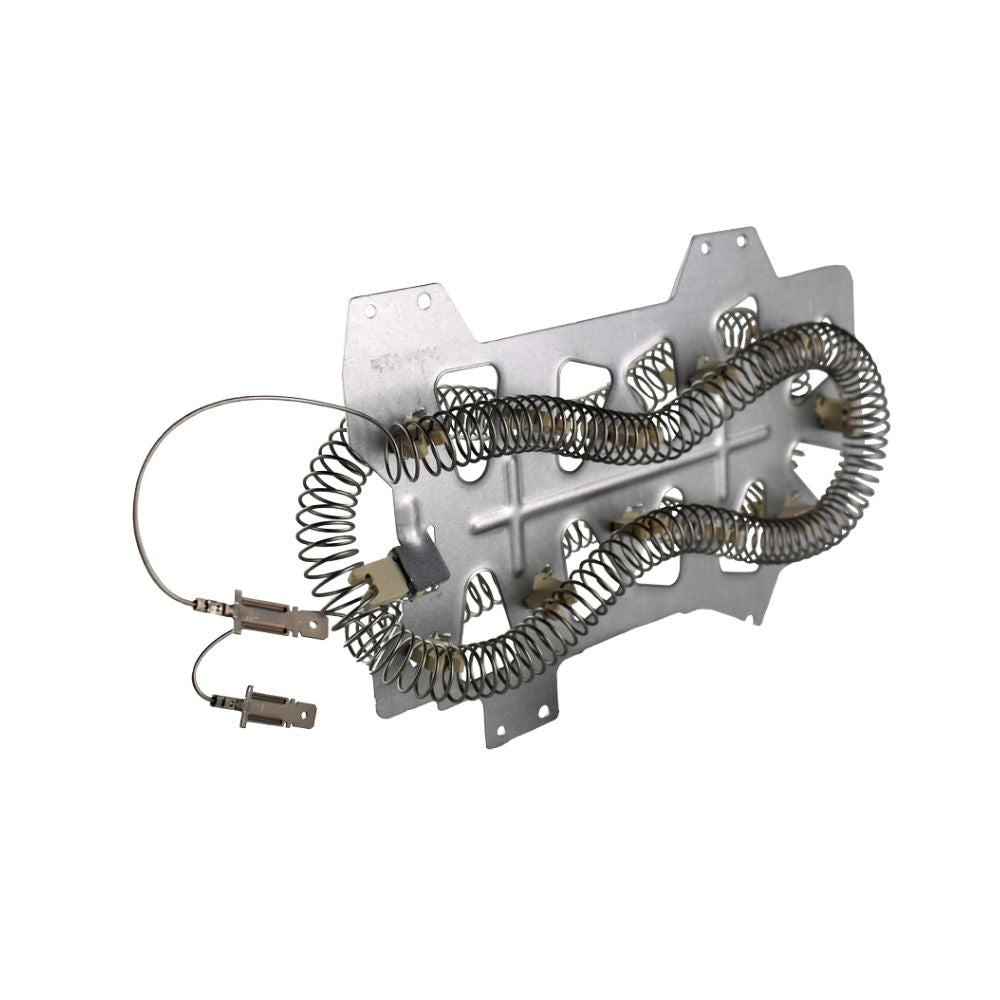

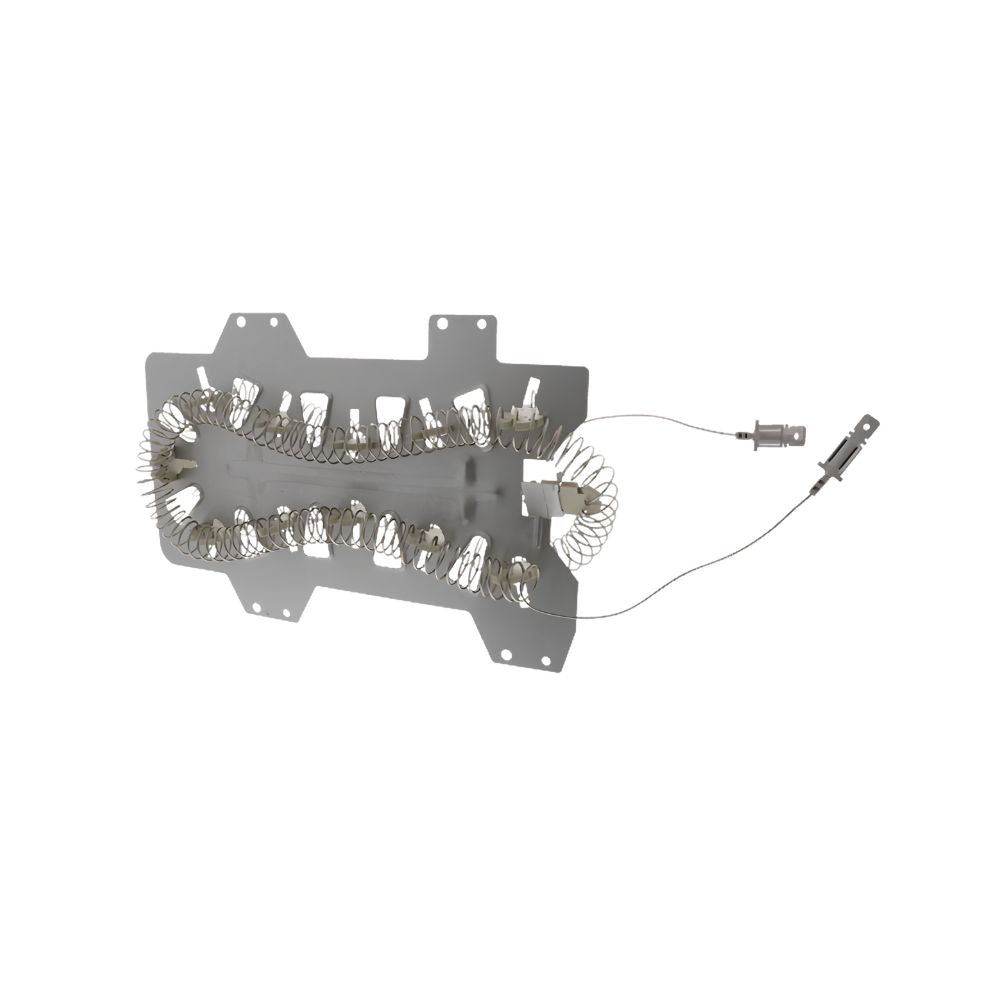

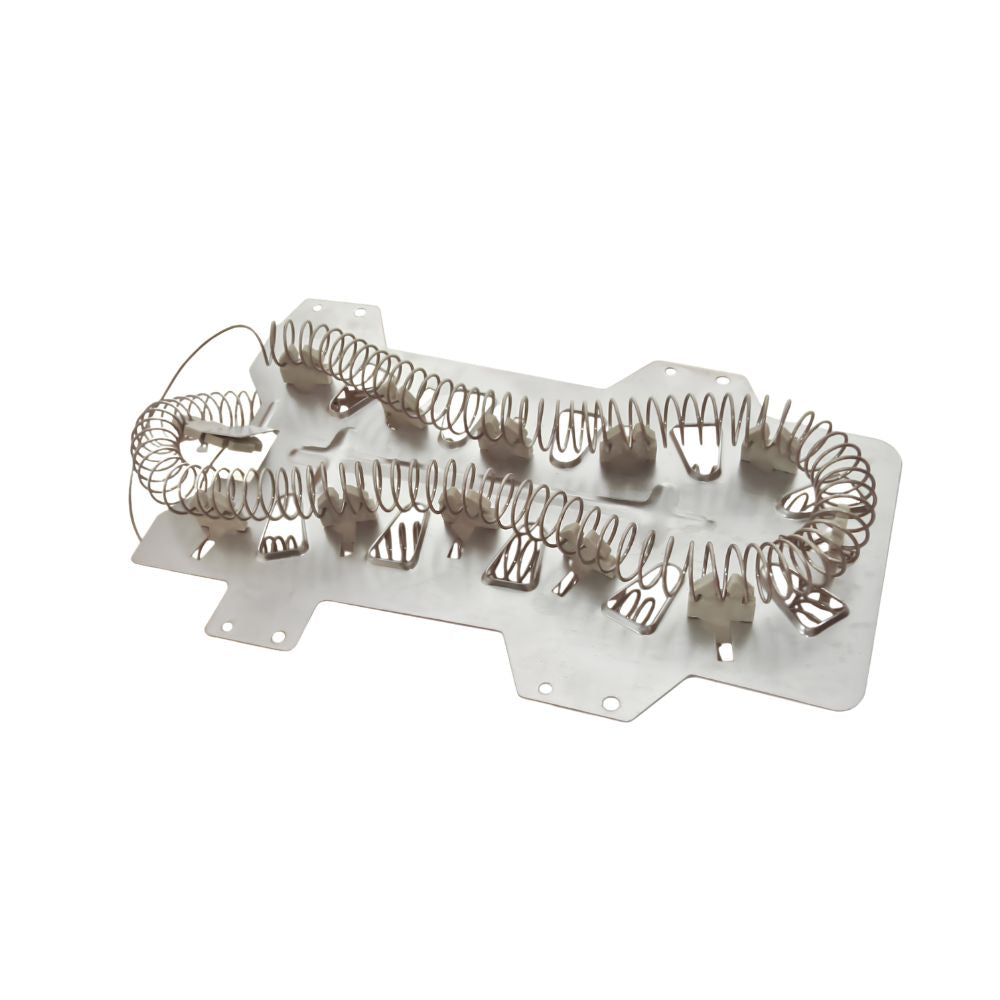

XPARTCO DC47-00019A Dryer Heating Element Replaces WP35001247
The XPARTCO DC47-00019A is an aftermarket replacement universal-fit dryer heating element compatible with a wide range of electric dryers across multiple manufacturers — including Samsung, Whirlpool, Maytag, Amana, Inglis, and Kenmore. The heating element generates the heat that warms the air circulating through the dryer drum, evaporating moisture from wet clothes during each drying cycle. When the element fails, the dryer continues to tumble normally but produces no heat, leaving clothes damp at the end of a complete cycle.
This replacement element comes pre-assembled with insulators and restring already attached, allowing for fast installation. Rated 240V, 5300W, with metal and ceramic construction. Overall dimensions are approximately 17"L x 6-1/2"W x 2-1/2"H. Important: this is a heating element assembly only — you must reuse the housing/cannister from your old element when installing the new one. It directly replaces DC47-00019A, 35001247, WP35001247, WP35001247VP, TJDC47-00019A, DE0019A, ERDC47-00019A, 35001119, 2068550, 1185561, AP4045884, AP4201899, AP6008695, AH2038533, EA2038533, EAP2038533, EAP11741835, PD00001991, PD00002996, PS2038533, PS4205218, and PS11741835. Installs in 30–45 minutes with basic hand tools.
Quick Answer
The XPARTCO DC47-00019A Dryer Heating Element fixes Samsung, Whirlpool, Maytag, Amana, Inglis, and Kenmore electric dryers that tumble normally but produce no heat or take much longer than usual to dry. Universal-fit element — 240V, 5300W. 17"L x 6-1/2"W x 2-1/2"H. Insulators and restring pre-attached. Must reuse the housing/cannister from the old element. Replaces DC47-00019A, 35001247, WP35001247, WP35001247VP, TJDC47-00019A, DE0019A, ERDC47-00019A, 35001119, 2068550, 1185561, AP4045884, AP4201899, AP6008695, PS2038533, PS4205218, PS11741835.
Common Problems This Part Fixes
- Dryer tumbles normally but produces no heat — element coil burned through
- Dryer takes significantly longer than usual to dry a load
- Clothes coming out damp or only partially dried at the end of a cycle
- Visible breakage in the element coil — snapped or burned-through Ni-Cr wire
- Dryer trips the circuit breaker when the heat setting is selected — shorted element
- Burning smell during operation — element arcing at a weak point in the coil
- Multimeter continuity test on the element shows an open circuit
Replaces Part Numbers
This dryer heating element directly replaces the following OEM and cross-reference part numbers across multiple brands:
DC47-00019A, 2068550, AP4201899, ASM33630, AP2038533, DE0019A, ERDC47-00019A, PD00001991, PS4205218, TJDC47-00019A, WP35001247, 35001247, 1185561, AP6008695, AWP47390, EAP11741835, PD00002996, PS11741835, WP35001247VP.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This universal-fit heating element is compatible with select electric dryers from multiple manufacturers:
- Samsung electric dryers — DV2, DV3, DV4, DV5, DVE series (DV40J3000EW, DV42H5000EW, DV42H5200EW, DV42H5600EP, DV45H7000EW, DV48H7400EW, DV50F9A7EVW, DV50F9A7EVP, DVE50M7450W, DVE50R5200W, DVE50R5400V, DV203AEW, DV206LEW, DV209AEW, DV210AEW, DV419AEU, DV448AEE, DV448AEP, DV5471AEW and many related models)
- Whirlpool electric dryers (select models — see WP35001247 cross-reference)
- Maytag electric dryers (MDE6700AYW, MDE6700AZW, MDG6700AWM, MDG6700AWW and related)
- Amana electric dryers (NED7200TW10, YIED7200TW10 and related)
- Inglis electric dryers (select models)
- Kenmore / Sears electric dryers (Samsung and Whirlpool-built — select models)
Important — Reuse Existing Housing: This listing is for the heating element assembly only — the metal housing/cannister that the element sits inside is not included. You must reuse the housing from your old element. Remove the old element from its housing, then install the new DC47-00019A element into that same housing before reinstalling in the dryer. Also: this part is for electric dryers only — gas dryer models use different components. Always verify your specific model number before ordering.
Key Features
- Universal-fit replacement heating element for multiple dryer manufacturers — replaces both Samsung DC47-00019A and Whirlpool/Maytag WP35001247 part numbers
- Generates the heat that warms drying air — essential for the dryer to actually dry clothes
- Pre-strung Ni-Cr (nickel-chromium) heating wire — high heat conductivity and resistance to warping over time
- Insulators and restring already attached — ready for installation into the existing housing
- Rated 240V, 5300W — correct electrical specifications for compatible electric dryers
- Dimensions: 17"L x 6-1/2"W x 2-1/2"H
- Metal and ceramic construction — durable for repeated heat/cool cycles
- Electric dryers only — NOT compatible with gas dryer models
- Important: heating element assembly only — must reuse the housing/cannister from the old element
- Replaces 22+ OEM and cross-reference part numbers across Samsung, Whirlpool, Maytag, Amana, and related brands
- Aftermarket replacement built to OEM-equivalent quality standards
- Quick DIY repair — installs in 30–45 minutes with basic hand tools
Product Specifications
| Part Number | XPDC47-00019A |
| Also Replaces (Whirlpool-side) | WP35001247, 35001247 |
| Part Type | Dryer Heating Element Assembly (Universal Fit) |
| Condition | Aftermarket Replacement |
| Application | Electric Dryers Only (NOT gas) |
| Voltage | 240V AC |
| Wattage | 5300W |

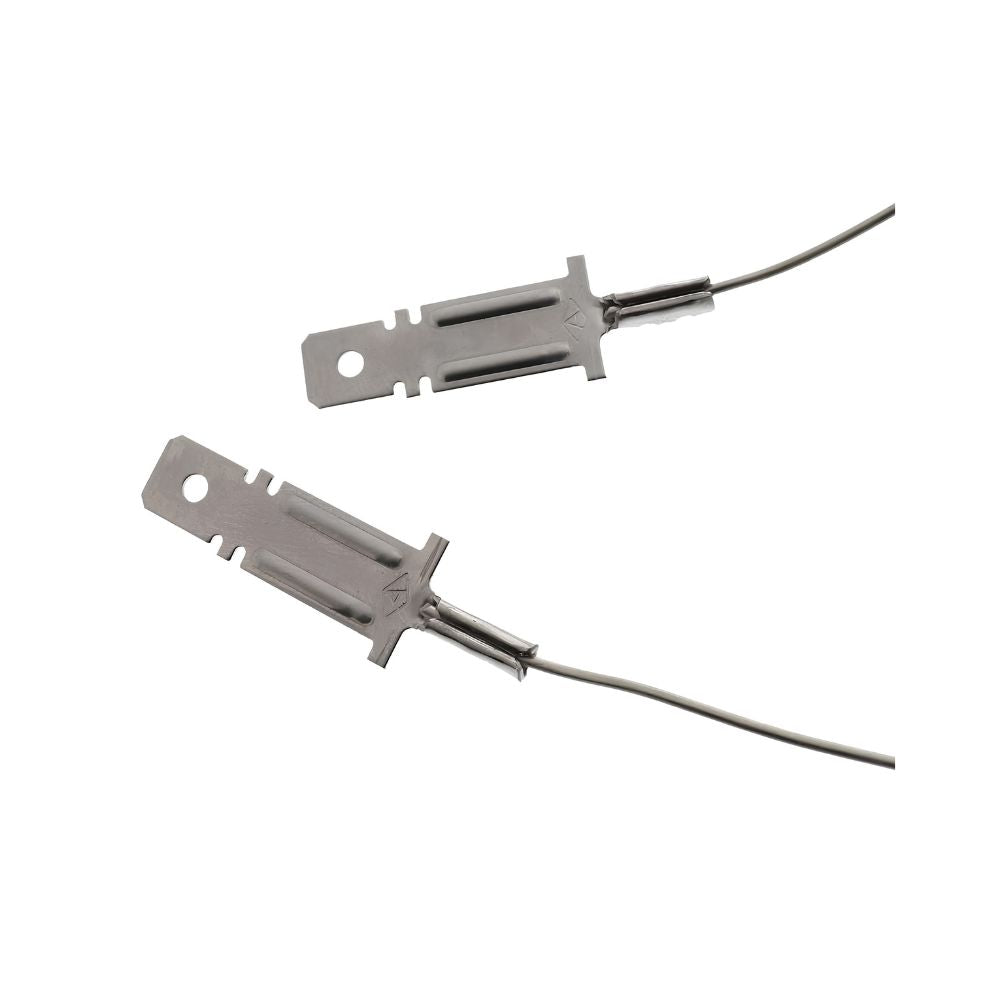

| Terminal Connections | 2 spade terminals |
| Dimensions | 17"L x 6-1/2"W x 2-1/2"H |
| Material | Metal / Ceramic / Ni-Cr coil wire |
| Includes | Heating element assembly with insulators and restring pre-attached (housing NOT included — reuse old) |
| Compatible Brands | Samsung, Whirlpool, Maytag, Amana, Inglis, Kenmore |
Installation Notes
Frequently Asked Questions
Does this really fit both Samsung AND Whirlpool dryers?
Yes — this is one of the more unusual cases in dryer parts where an aftermarket heating element has been designed to serve as a direct replacement for both the Samsung DC47-00019A and the Whirlpool/Maytag WP35001247 (35001247) elements. The two OEM elements share the same physical dimensions, electrical specifications (240V, 5300W), and terminal configuration, allowing a single aftermarket element to function correctly in both platforms. Compatible models span Samsung's DV series, Whirlpool/Maytag's affected dryers (MDE6700/MDG6700 and similar), and select Amana, Inglis, and Kenmore Whirlpool-built or Samsung-built models. Always verify your specific model number before ordering.
Why do I need to reuse the housing from the old element?
This listing is for the heating element assembly only — the metal cannister or housing that contains the element is not included. The housing is a heavy gauge metal enclosure with mounting brackets that secure it to the dryer cabinet, along with airflow ducting that directs air across the heating coil. Reusing the housing keeps the cost down and is standard practice for this type of replacement. Carefully remove the old element from the housing, install the new element in its place, and then reinstall the housing in the dryer. If your housing is damaged or burned through, it will need to be replaced separately.
How do I know if the heating element has failed?
The clearest sign is a dryer that tumbles and runs through a complete cycle normally but produces little or no heat, leaving clothes damp at the end. You may also notice the dryer taking much longer than usual to dry a load as it tries to compensate. Visually inspecting the element after removing the rear panel can reveal burn marks, breaks in the coil, or visible arcing damage. A multimeter continuity test on the disconnected element will also confirm failure — a working element shows continuity, while a failed element reads an open circuit (no continuity).
Should I replace the thermal fuse and thermostats at the same time?
It's a good idea to inspect them. When a heating element fails — especially if it failed due to overheating rather than simple end-of-life wear — the paired thermal fuse, high-limit thermostat, and thermistor located in the same area can also be stressed by the heat event. Since the rear panel must already be open to replace the element, checking these components' continuity with a multimeter is a quick step that can prevent a repeat repair if any of them are also on the verge of failing.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung or Whirlpool OEM part, but is manufactured to match the electrical specifications (240V, 5300W), dimensions, and Ni-Cr coil construction of the original DC47-00019A and WP35001247 heating elements that it replaces.
