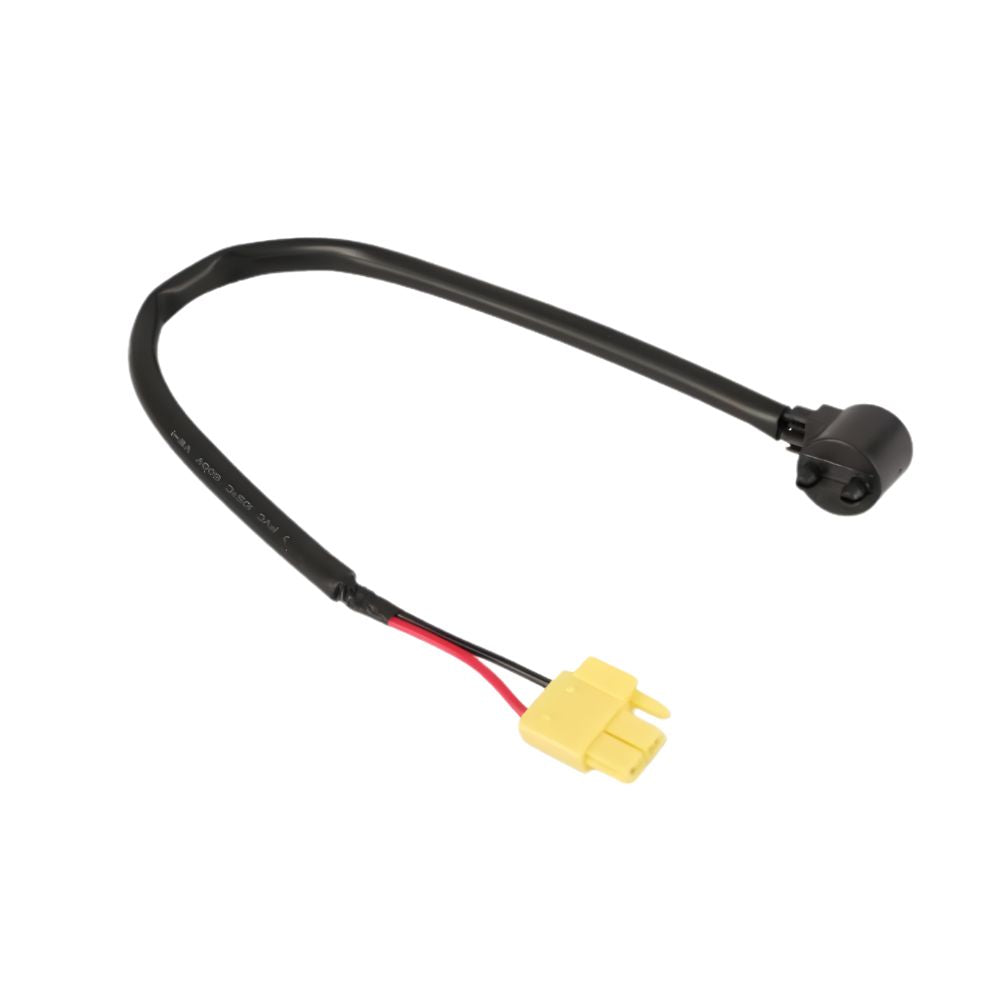

XPARTCO DA47-00243K Refrigerator Defrost Thermostat

List Price:  $19.00
$10.50
 per

FREE SHIPPING TO ALL 48 CONTIGUOUS STATES
Free standard shipping at checkout.

CHECK YOUR MODEL COMPATIBILITY

Enter your appliance model number to check if this part is listed as compatible.

Need help finding your model number?

Guaranteed safe checkout

Product description

XPARTCO DA47-00243K Refrigerator Defrost Thermostat

This XPARTCO DA47-00243K defrost bi-metal thermostat is an aftermarket replacement for select Samsung French door and bottom freezer refrigerators. It serves as a thermal safety device in the automatic defrost system, watching the temperature of the evaporator coils throughout the defrost cycle.

Once the evaporator hits the preset maximum of 140°F (60°C), the bi-metal thermostat opens the circuit and shuts off power to the defrost heater, which protects the evaporator from overheating and damage. It then closes again at 104°F (40°C) so the next defrost cycle can start normally. If the thermostat fails, you may see heavy frost on the evaporator coils, poor cooling, or a heater that won't shut off — and the refrigerator can no longer hold proper temperatures.

Quick Answer

Choose the XPARTCO DA47-00243K Refrigerator Defrost Thermostat if your refrigerator has excessive frost buildup, a freezer that is too cold while the fridge is too warm, a heater that won't shut off, or has stopped cooling. It is compatible with select Samsung French door and bottom freezer refrigerators and opens at 140°F to protect the evaporator from overheating.

Common Problems This Part Fixes

  • Excessive frost or ice buildup on evaporator coils
  • Freezer too cold while refrigerator section is too warm
  • Defrost heater not shutting off after defrost cycle
  • Refrigerator not cooling or maintaining temperature
  • Food spoiling faster than normal
  • Unusual humming or running sounds from the back of the fridge

Replaces Part Numbers

This thermostat directly replaces the following OEM and cross-reference part numbers:

DA47-00243K, 2025696, DA47-00243B, DA47-00243C, DA47-00243J, ASM30257, PD00002154, EAP4140510, AP4403832, PS4140510.

If your part number is not listed above, contact our support team before ordering and we will verify compatibility.

Compatibility

This defrost thermostat is compatible with select refrigerators from the following brands:

  • Samsung French door refrigerators
  • Samsung bottom freezer refrigerators

Always verify your appliance model number before ordering. Contact our support team if you're unsure.

Key Features

  • Bi-metal thermal safety device — opens at 140°F (60°C) to cut power to the defrost heater and prevent evaporator overheating
  • Resets automatically at 104°F (40°C) — allowing the next defrost cycle to begin normally
  • Aftermarket replacement built to OEM-equivalent quality standards
  • 2-terminal design — direct drop-in replacement, no modification required
  • Restores proper frost-free operation and refrigerator cooling performance
  • DIY-friendly repair — installs with basic hand tools in 30–45 minutes
  • Budget-friendly alternative to OEM at a lower cost without sacrificing performance

Product Specifications

Part Number DA47-00243K
Part Type Defrost Bi-Metal Thermostat
Condition Aftermarket Replacement
Application Refrigerator Defrost System
Open Temperature 140°F (60°C)
Close Temperature 104°F (40°C)
Terminals 2
Compatible Brands Samsung

Installation Notes

⚠️ Safety First — Unplug Refrigerator Before Starting Unplug the refrigerator from the power source before beginning any repair. Safely remove and store any food that could deteriorate while the power is off. Wear work gloves to protect your hands. Access the evaporator coils by removing the rear panel inside the freezer compartment. Disconnect the wiring harness from the old thermostat and clip the new DA47-00243K thermostat onto the evaporator coil in the same position. Reconnect the wiring harness and reassemble the freezer panel. Allow 24 hours for the refrigerator to return to normal operating temperature. Consult your refrigerator's service manual for model-specific instructions.

Frequently Asked Questions

Will the DA47-00243K fit my Samsung refrigerator?

It is designed for select Samsung French door and bottom freezer refrigerators. To be sure it suits your model, reach out to our support team before you order and we will verify it for you.

What does a defrost thermostat do?

The defrost bi-metal thermostat monitors the temperature of the evaporator coils during the defrost cycle. It opens the circuit and cuts power to the defrost heater when the evaporator reaches 140°F (60°C), preventing overheating. It automatically resets and closes again at 104°F (40°C) to allow the next cycle.

What are signs that my defrost thermostat needs replacement?

Common signs include: excessive frost or ice buildup on the evaporator coils, the freezer running too cold while the refrigerator section is too warm, the defrost heater failing to shut off, or the refrigerator not maintaining proper temperatures and food spoiling faster than normal.

Is this an OEM or aftermarket part?

This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is designed to deliver reliable, long-lasting performance at a more affordable price point.

At what temperatures does the DA47-00243K open and close?

The thermostat opens (cuts power to the heater) at 140°F (60°C) and closes (resets) at 104°F (40°C).
