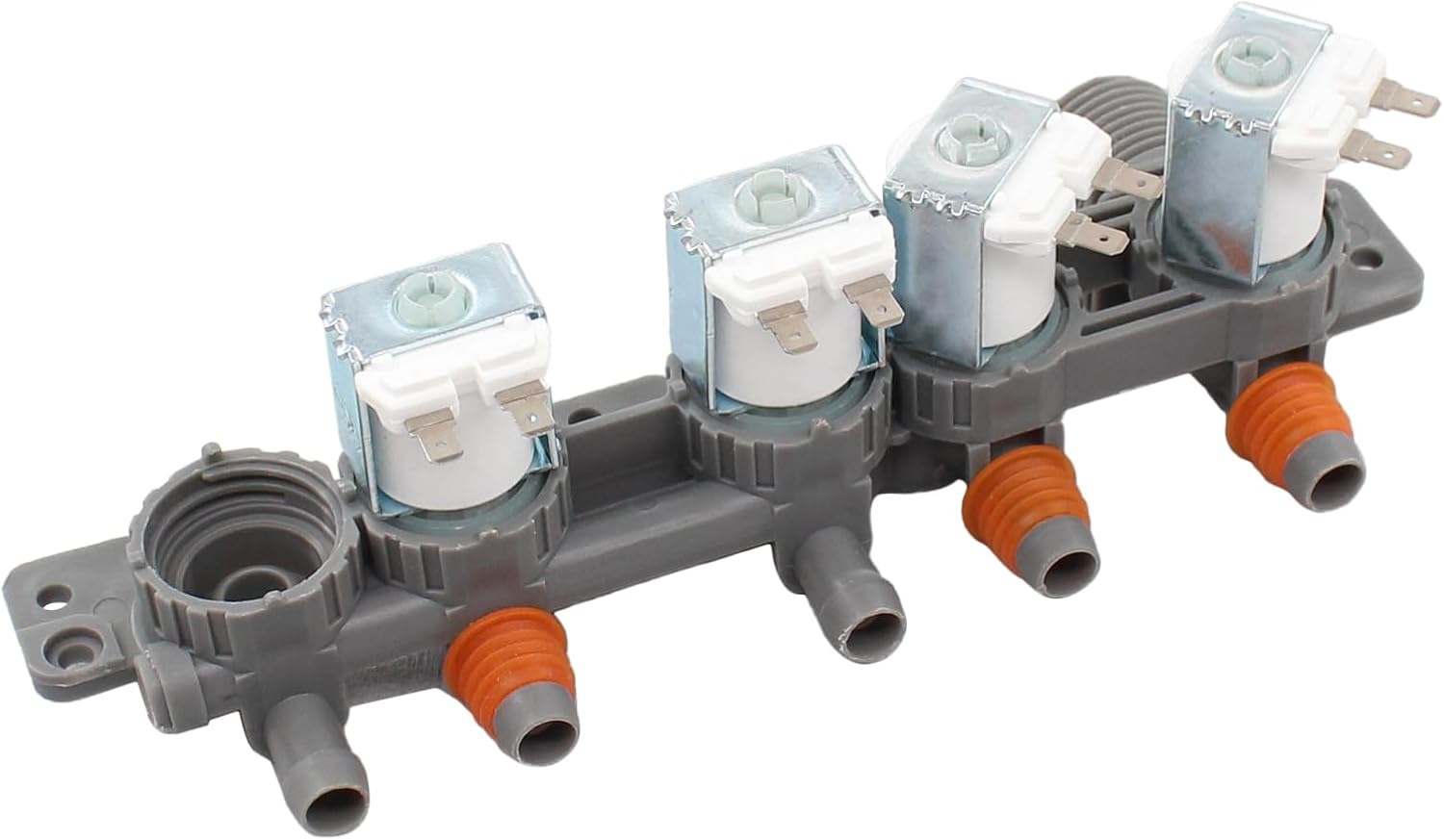

XPARTCO AJU75152602 Washer Water Valve – Compatible with select LG & Kenmore Washers

Product Description

Restore proper water fill and dependable wash performance with the XPARTCO AJU75152602 Washer Water Valve. This Water Inlet Valve is a replacement part for select Kenmore, LG washing machine models. It is designed to regulate the flow of water into the washing machine during the wash cycle. This valve operates based on signals from the washing machine's control board or Timer, ensuring the right amount of cold water is provided.

XPARTCO offers cost-effective aftermarket appliance parts engineered to match original fit and function.

Replaces Part Numbers

AJU75152602, 4873914, 5221EA1008S, U8EONG(9F), IV-248-103, PD00060681, FIX12580369, ALG53788, AP6335382, PS12580369, DC12V 6W, IV-248-103, U8EONG(9F).

Compatibility

This replacement washer water valve fits select LG and Kenmore (LG-manufactured) washers.

Example compatible models include (but are not limited to):

• LG WT7100CW, WT7200CW

• Kenmore 796.41382410, 796.41383410

Always verify your washer’s model number before ordering.
Contact our support team if you’re unsure.

✅ Key Features

• 🔄 Aftermarket Replacement – Matches OEM fit and flow performance

• 💧 Accurate Water Control – Restores proper hot and cold water fill

• ⚙️ Fixes Common Issues – Resolves no-fill, slow-fill, or overfilling problems

• 💪 Durable Solenoid Construction – Built for reliable long-term use

• 💰 Cost-Effective Repair – Affordable alternative to OEM water valves

📐 Product Specification

• Part Number: AJU75152602

• Component Type: Washer Water Inlet Valve

• Voltage: 12V DC, four coil valve.

• Water Ports: Hot & Cold inlet

• Mounting: Direct-fit, screw-mounted

• Application: Washer fill system

• Quality Level: Aftermarket replacement (not OEM)

🛠️ Installation Notes

Tools Needed: Phillips screwdriver, pliers

⚠️ Safety First: Unplug the washer and shut off the water supply before servicing.

Basic Steps:

1. Disconnect washer power and turn off water supply.

2. Remove the rear access panel to reach the inlet valve.

3. Disconnect water hoses and electrical connectors.

4. Remove mounting screws and take out the old valve.

5. Install the new XPARTCO AJU75152602 water valve.

6. Reconnect hoses and wiring, reassemble panels, and restore power.

7. Run a test cycle to check for proper filling and leaks.

⏱️ Time Required: 20–30 minutes
