XPARTCO AJU75152601 Washer Water Valve Replaces 5221EA1008F, AJU73213301
- Sku: XPAJU75152601
- Vendor: XPARTCO
Have a question?
XPARTCO AJU75152601 Washer Water Valve Replaces 5221EA1008F, AJU73213301
XPARTCO AJU75152601 Washer Water Inlet Valve Replaces 5221EA1008F, AJU73213301

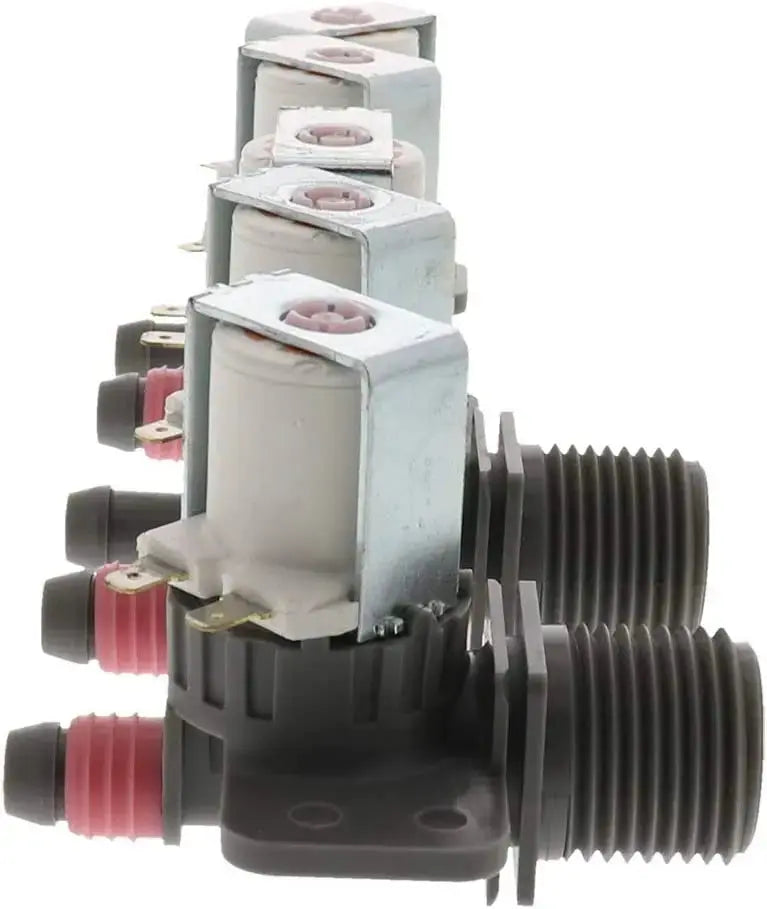

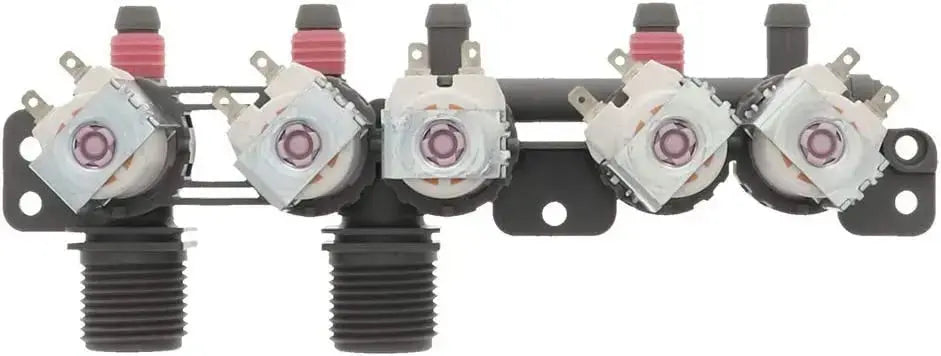

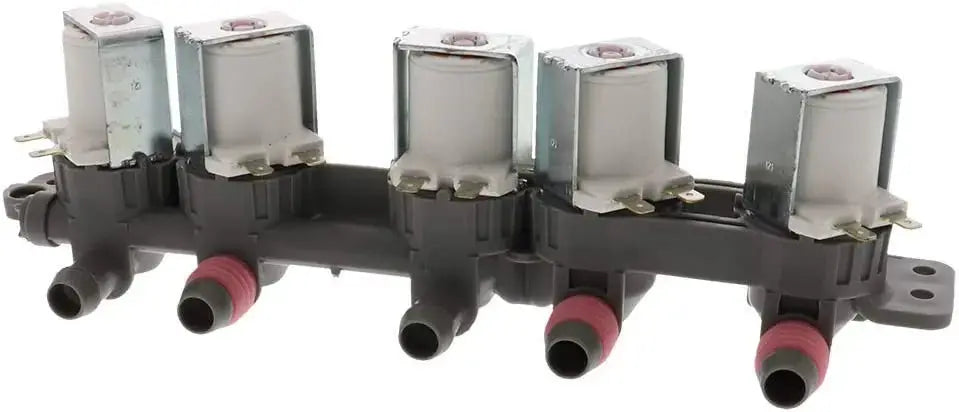

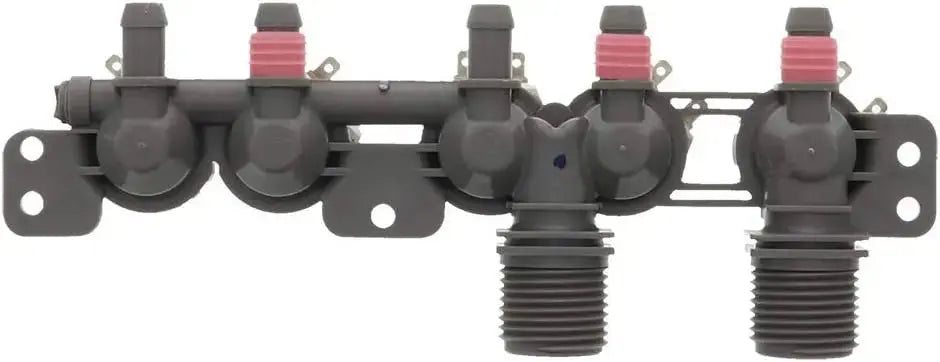

The XPARTCO AJU75152601 is an aftermarket replacement washer water inlet valve assembly compatible with select LG and Kenmore top-load washers in the WT1, WT4, WT5, WT6, and WT7 series. This is a multi-port valve assembly that controls water flow from the household supply lines into the washer tub and dispenser compartments. The assembly contains multiple solenoid-operated valve ports: hot water inlet, cold water inlet, bleach dispenser valve, fabric softener dispenser valve, and jet spray valve — all integrated into a single assembly that connects to the washer's control board via wiring harnesses.
When the water inlet valve fails — or when one individual port fails — the washer may not fill at all, fill too slowly, fill with the wrong temperature, overfill, fail to dispense bleach or fabric softener, or leak from the valve body. The valve solenoids operate at 12V DC. This kit includes the complete valve assembly and two AGM73269501 inlet screens. It directly replaces AJU73213301, 5221EA1008F, 5221EA1008P, AGF76283896, AP6308239, TAW35618287, AH3527446, AJU75152603, EA3527446, PS3527446, and PS12374721. Installs in 15–25 minutes with basic hand tools.
Quick Answer
The XPARTCO AJU75152601 Washer Water Inlet Valve fixes LG and Kenmore top-load washers that won't fill, fill slowly, fill with wrong temperature, won't dispense bleach or fabric softener, overfill, or leak from the valve. Multi-port assembly with hot, cold, bleach, fabric softener, and jet spray valves. 12V DC solenoids. Includes 2 AGM73269501 inlet screens. Compatible with LG WT1xxx–WT7xxx and Kenmore 796-series. Replaces AJU73213301, 5221EA1008F, 5221EA1008P, AP6308239, TAW35618287, PS12374721.
Common Problems This Part Fixes
- Washer not filling with water at all when a cycle is started
- Washer filling very slowly — one or more valve ports partially blocked or failing
- Washer filling with only hot or only cold water — one temperature solenoid has failed
- Washer overfilling or filling continuously — valve port stuck open
- Bleach dispenser not dispensing during the wash cycle
- Fabric softener not dispensing at the correct rinse cycle point
- Jet spray not activating during fill
- Water dripping into the tub between cycles — valve port not closing completely
- Water leaking from the valve body or connection points at the back of the washer
Replaces Part Numbers
This water inlet valve directly replaces the following OEM and cross-reference part numbers:
5221EA1008F, AJU73213301, AJU75152601, AH3527446, AJU75152603, EA3527446, PS3527446, ALG53778, AP6308239, PD00042814, PS12374721, TAW35618287.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This water inlet valve is compatible with select LG and Kenmore top-load washers from the following series:
- LG top-load washers — WT1 series (WT1101CW, WT1201CW, WT1201CV, WT1301CW, WT1501CW, WT1701CW, WT1701CV, WT1801HVA, WT1801HWA and related models)
- LG top-load washers — WT4 series (WT4801CW, WT4870CW, WT4970CW and related models)
- LG top-load washers — WT5 series (WT5001CW, WT5070CW, WT5101HV, WT5101HW, WT5170HV, WT5270CW, WT5480CW, WT5680HVA, WT5680HWA and related models)
- LG top-load washers — WT6 series (select models)
- LG top-load washers — WT7 series (WT7200CW, WT7200CV, WT7500CW, WT7600HKA and related models)
- Kenmore / Sears top-load washers — 796-series (79631512210, 79631512211, 79631522211, 79631502210, 79631502211 and related models)
Note: Always verify your exact model number before ordering. Newer LG WT7100/WT7150/WT7400/WT7405 series models use the AJU75152602 valve instead. Contact our support team with your model number to confirm the correct valve for your washer.
Key Features
- Multi-port valve assembly — controls hot water, cold water, bleach dispenser, fabric softener dispenser, and jet spray from a single replaceable assembly
- 12V DC solenoid operation — responds to signals from the washer's control board to deliver the correct water to each compartment
- Resolves fill, dispenser, overfill, and drip-when-off symptoms in a single replacement
- Kit includes complete valve assembly and 2x AGM73269501 replacement inlet screens
- ABS plastic and stainless steel construction — durable and resistant to mineral buildup
- Replaces AJU73213301, 5221EA1008F, 5221EA1008P, AP6308239, TAW35618287, and over 10 additional cross-reference numbers
- Compatible with LG WT1xxx through WT7xxx and Kenmore 796-series top-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 15–25 minutes with basic hand tools
Product Specifications
| Part Number | AJU75152601 |
| Also Replaces | AJU73213301, 5221EA1008F (current supersession) |
| Part Type | Washer Water Inlet Valve Assembly (Multi-Port) |
| Condition | Aftermarket Replacement |
| Application | LG and Kenmore Top-Load Washers |
| Valve Ports | Hot water, cold water, bleach dispenser, fabric softener dispenser, jet spray |
| Solenoid Voltage | 12V DC |
| Material | ABS plastic / Stainless steel |
| Kit Includes | Valve assembly + 2x AGM73269501 inlet screens |
| Compatible Series | LG WT1xxx, WT4xxx, WT5xxx, WT6xxx, WT7xxx; Kenmore 796-series |
| Compatible Brands | LG, Kenmore |
Installation Notes
Frequently Asked Questions
What is the difference between AJU75152601, AJU73213301, and 5221EA1008F?
These are all part numbers for the same LG washer water inlet valve assembly used across different production runs. 5221EA1008F was the original part number, AJU73213301 was an updated version, and AJU75152601 is the current part number. All three are interchangeable. If your washer's documentation, parts diagram, or old valve label shows any of these numbers, this replacement is the correct current part to order.
My washer won't dispense fabric softener — is this the right part?
Yes — the fabric softener dispenser solenoid is one of the ports integrated into the AJU75152601 valve assembly. When the fabric softener dispenser fails to activate at the right point in the rinse cycle, it is almost always because the solenoid valve controlling that port has failed. Since it is part of the same multi-port valve assembly, replacing the AJU75152601 resolves fabric softener, bleach, and jet spray dispenser issues in the same repair. Individual ports cannot be replaced — the complete assembly must be replaced when any one port fails.
What are the AGM73269501 inlet screens included in the kit?
The AGM73269501 screens are small mesh filters that install inside the hot and cold water inlet ports of the valve. They trap mineral deposits and debris from the household water supply before they can reach the valve seats and solenoid mechanisms. The kit includes two screens — one for the hot inlet and one for the cold inlet. Installing these fresh screens with the new valve helps extend valve life, especially in areas with hard water. If the old valve failed due to mineral clogging rather than solenoid failure, cleaning the supply hoses before installation is also recommended.
How do I know if the water inlet valve has failed vs. the control board?
You can test the valve solenoids with a multimeter. Disconnect the harness from a solenoid coil and probe both terminals — a working solenoid coil shows a resistance reading (typically 200–500 ohms); an open circuit confirms the solenoid has failed. If all solenoid coils test good but the valve still does not operate, the control board may not be sending the correct 12V DC signal to the solenoids — this requires checking voltage at the solenoid connectors with the washer powered and in a fill cycle, which is a more advanced diagnostic step.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from ABS plastic and stainless steel to match the port configuration, solenoid specifications, and dimensions of the original AJU75152601 water inlet valve assembly.
