- Sku: 8557403
XPARTCO 8557403 Dryer Thermostat Replaces WP8557403
FREE SHIPPING TO ALL 48 CONTIGUOUS STATES
Free standard shipping at checkout.
CHECK YOUR MODEL COMPATIBILITY
Enter your appliance model number to check if this part is listed as compatible.
Need help finding your model number?

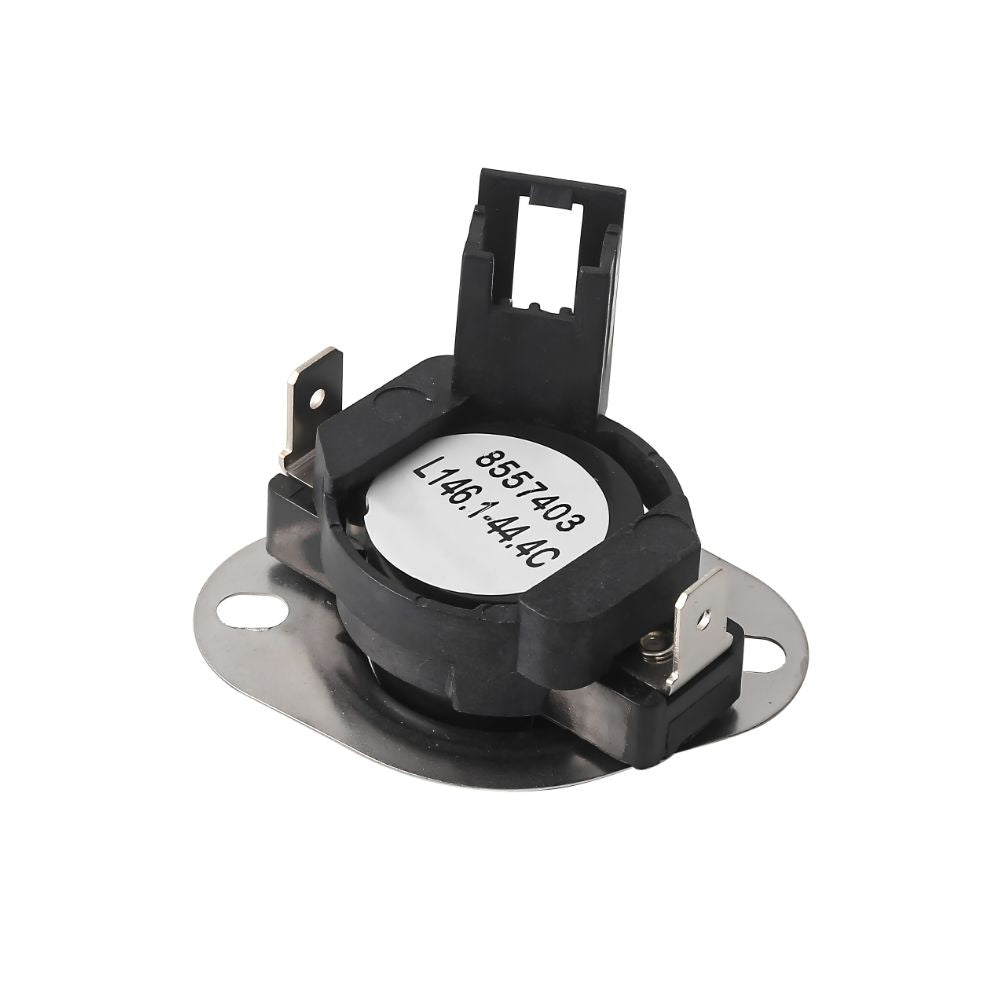

XPARTCO 8557403 Dryer High-Limit Thermostat with Thermistor Replaces WP8557403
This XPARTCO 8557403 is an aftermarket replacement for the dryer high-limit thermostat and thermistor sensor assembly, made for a wide range of Whirlpool, Maytag, Kenmore, Amana, KitchenAid, Jenn-Air, Roper, Admiral, Norge, and Magic Chef electric dryers, including the Whirlpool Duet and Maytag MED series. One component handles two jobs. The high-limit thermostat (rated L146-44C, opens at 295°F) is a resettable safety switch that cuts power to the heating element when dryer air temperature goes beyond safe limits, while the built-in 50-ohm thermistor constantly measures air temperature and passes resistance-based readings to the control board so it can regulate the drying cycle.
If the thermostat opens for good or the thermistor reports wrong temperature data, the dryer may give no heat, run too hot, take too long to dry, overheat, or show temperature-related error codes. The part measures 1-5/8"L x 1-5/8"W x 2"H, with roughly 1-5/8" between mounting holes, and is built from black/gray plastic and metal. It directly replaces WP8557403, 1180102, AP6013164, EAP11746386, PD00003588, and PS11746386. Note: the exhaust duct thermostat and thermal fuse are separate parts, so if they have also failed they must be ordered separately. Installation takes 15–20 minutes with basic hand tools.
Quick Answer
Choose the XPARTCO 8557403 Dryer High-Limit Thermostat with Thermistor for Whirlpool Duet, Maytag MED, and related dryers with no heat, overheating, or erratic temperature. Combined part: L146-44C high-limit thermostat (opens at 295°F, auto-resets) + 50-ohm NTC thermistor. 1-5/8"L x 1-5/8"W x 2"H, ~1-5/8" between mounting holes. Replaces WP8557403, 1180102, AP6013164, EAP11746386, PD00003588, PS11746386. For Whirlpool, Maytag, Kenmore, Amana, KitchenAid, Jenn-Air, Roper, and Admiral electric dryers.
Common Problems This Part Fixes
- Dryer produces no heat — high-limit thermostat has failed open
- Dryer overheating — thermostat not opening at the correct temperature
- Dryer takes too long to dry — thermistor providing incorrect temperature readings to the control board
- Dryer cycling on and off erratically — thermistor fault causing incorrect cycle control
- Temperature-related error codes on models with digital displays
- Multimeter test shows open circuit on the thermostat at room temperature
- Multimeter test shows open or shorted thermistor (not ~50 ohms at room temperature)
Replaces Part Numbers
This thermostat/thermistor assembly directly replaces the following OEM and cross-reference part numbers:
WP8557403, 8557403, 1180102, AP6013164, AWP48681, EAP11746386, PD00003588, PS11746386.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This high-limit thermostat and thermistor is compatible with select electric dryers only from the following brands:
- Whirlpool electric dryers — Duet, WED5000, WED5500, WED5600, WED5620, WED8000, WED8200, WED8500, WED9200, WED92HEF, WED7000 series and related models
- Maytag electric dryers — MED3500, MED5630, MED6630, MED7230, MEDB835 series and related models
- Kenmore / Sears electric dryers — 110-series (Whirlpool-built models)
- Amana electric dryers (select models)
- KitchenAid electric dryers (select models)
- Jenn-Air electric dryers (select models)
- Roper electric dryers
- Admiral electric dryers
- Norge electric dryers
- Magic Chef electric dryers
Note: This part is for electric dryers only. The exhaust duct thermal fuse and cycling thermostat are separate parts — if those have also failed, they must be ordered separately. Always verify your model number before ordering.
Key Features
- Combined high-limit thermostat and thermistor in a single assembly — replaces both functions in one part
- High-limit thermostat rated L146-44C — opens at 295°F (146°C), resets automatically when cooled
- Integrated 50-ohm NTC thermistor — continuously monitors dryer air temperature and sends readings to the control board for cycle regulation
- Dimensions: 1-5/8"L x 1-5/8"W x 2"H; approx. 1-5/8" between mounting holes
- Black/gray plastic and metal construction
- Electric dryers only — not for gas dryer models
- Replaces WP8557403, 1180102, AP6013164, EAP11746386, PD00003588, and PS11746386
- Compatible with Whirlpool Duet, Maytag MED, Kenmore, Amana, KitchenAid, Jenn-Air, Roper, Admiral, Norge, and Magic Chef electric dryers
- Aftermarket replacement built to OEM-equivalent quality standards
- Quick DIY repair — installs in 15–20 minutes with basic hand tools
Product Specifications
| Part Number | 8557403 |
| OEM Part Number | WP8557403 |
| Part Type | Dryer High-Limit Thermostat with Integrated Thermistor Sensor |
| Condition | Aftermarket Replacement |
| Application | Electric Dryers Only |
| Thermostat Rating | L146-44C — opens at 295°F (146°C), auto-resets |
| Thermistor | 50-ohm NTC (at room temperature ~25°C) |
| Dimensions | 1-5/8"L x 1-5/8"W x 2"H |
| Mounting Hole Spacing | Approx. 1-5/8" center to center |
| Color | Black / Gray |
| Material | Plastic / Metal |
| Compatible Brands | Whirlpool, Maytag, Kenmore, Amana, KitchenAid, Jenn-Air, Roper, Admiral, Norge, Magic Chef |
Installation Notes
Frequently Asked Questions
What makes this part unusual — why does it combine a thermostat and a thermistor?
The WP8557403 is a combined assembly found on newer Whirlpool Duet and Maytag MED series dryers, which rely on electronic temperature control instead of purely mechanical thermostats. Its high-limit thermostat (L146-44C) handles the traditional safety role by opening the circuit when dryer temperature passes 295°F. Its built-in NTC thermistor sends resistance-based temperature readings to the electronic control board, and the board uses them to regulate the heating element and cycle timing. Putting both functions in one compact housing makes this an unusual part, replacing what older dryers handled with separate components.
How do I test the thermostat and thermistor?
Set your multimeter to continuity or resistance mode. For the thermostat portion: probe the thermostat terminals — at room temperature, a working thermostat shows closed continuity (near-zero resistance). An open circuit at room temperature confirms the thermostat has failed. For the thermistor portion: probe the thermistor terminals — at room temperature (approximately 25°C/77°F), a working 50-ohm NTC thermistor should read approximately 50 ohms. A reading of zero ohms (shorted) or open circuit (no continuity) confirms the thermistor has failed. Either failure mode warrants replacing the complete 8557403 assembly.
What is the difference between 8557403 and WP8557403?
These are the same part. WP8557403 is the updated Whirlpool OEM part number that superseded the original 8557403. The 1180102 is also a cross-reference for this same assembly. This aftermarket replacement is compatible with all of these numbers.
Do I also need to replace the thermal fuse or cycling thermostat?
The 8557403 replaces the high-limit thermostat and thermistor mounted on the heating element housing area. The exhaust duct thermal fuse (WP3392519 on most Whirlpool-family dryers) and cycling thermostat (WP3387134) are separate components located on the exhaust duct and are not included in or replaced by the 8557403. If your dryer has no heat, test all thermal components before ordering — check the 8557403 assembly, the thermal fuse, and the cycling thermostat, then order only what has failed. If an overheating event caused the high-limit to fail, the other thermal components may be stressed as well.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured from plastic and metal with an L146-44C thermostat and 50-ohm NTC thermistor to match the specifications and performance of the original WP8557403 assembly.
