XPARTCO 661570 Dryer Drum Belt Replaces 661570V
- Sku: XP661570
- Vendor: XPARTCO
Have a question?

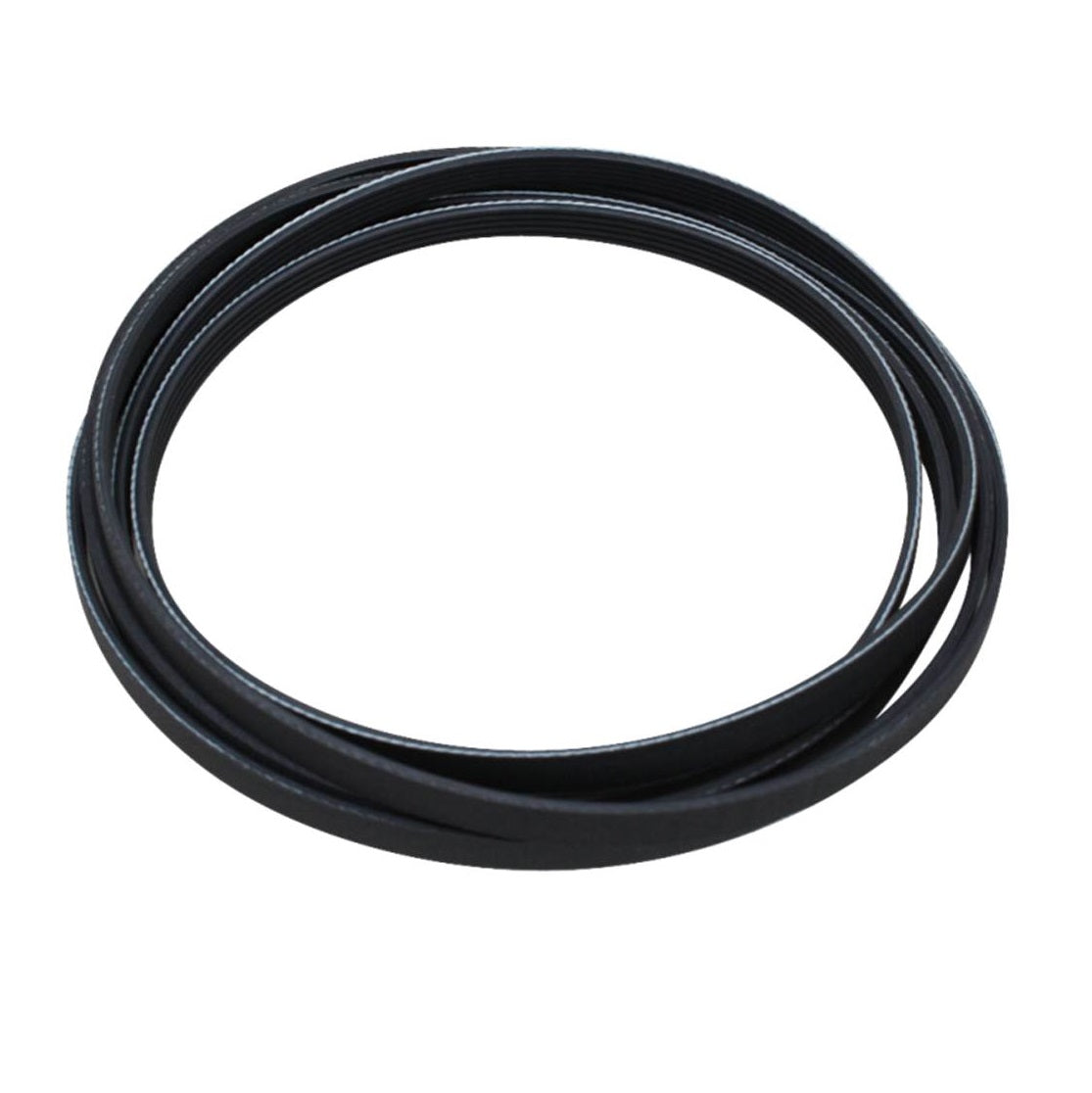

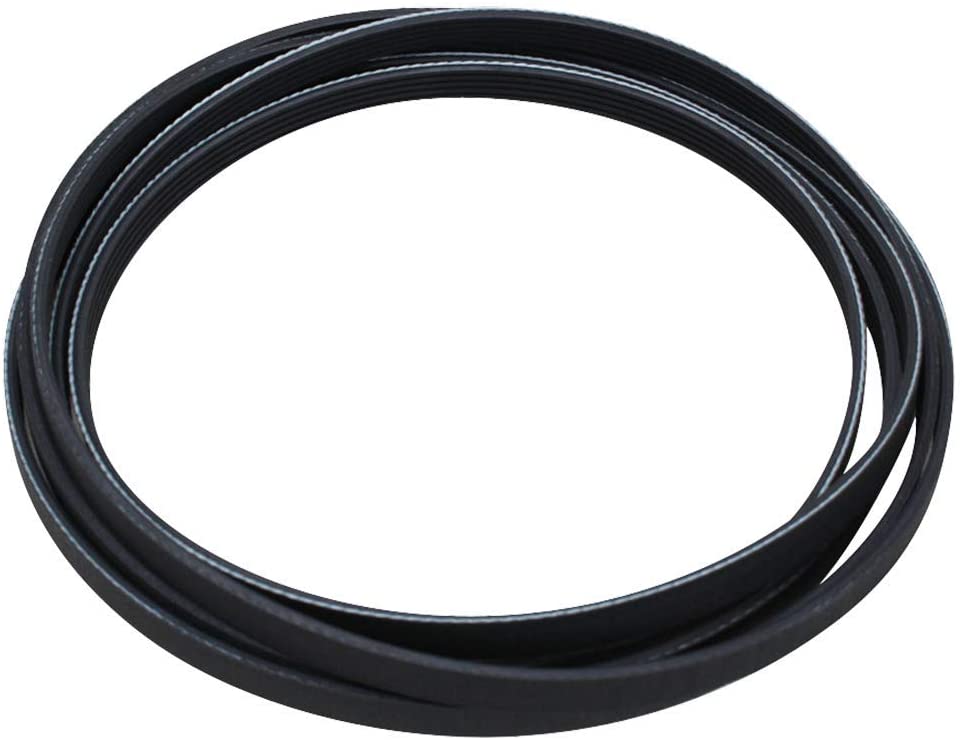

XPARTCO 661570 Dryer Drum Belt Replaces 661570V
XPARTCO 661570 Dryer Drum Belt Replaces 661570V
The XPARTCO 661570 is an aftermarket replacement dryer drum belt compatible with select Whirlpool, Maytag, Kenmore, Amana, KitchenAid, Crosley, Admiral, and Speed Queen dryers. The drum belt wraps around the outside of the dryer drum, loops around the idler pulley and motor pulley, and drives the drum to rotate during every drying cycle. Without a functioning belt, the drum cannot spin and clothes will not tumble or dry.
Made from high-strength rubber, this 4-rib belt measures 93-1/2 inches long x 1/4 inch wide x 1/8 inch high with 4 ribs and 3 grooves. It is a direct drop-in replacement for OEM part numbers 661570V and 661570, and is part of the 4392067 dryer repair kit. It pairs with the W10837240 idler pulley and WPW10314173 drum rollers for a complete drum drive overhaul. Installs in 30–45 minutes with basic hand tools.
Quick Answer
The XPARTCO 661570 Dryer Drum Belt fixes dryers where the drum is not spinning, clothes are not tumbling, or a thumping/squealing noise is present during operation. Compatible with select Whirlpool, Maytag, Kenmore, Amana, KitchenAid, Crosley, Admiral, and Speed Queen dryers. Measures 93-1/2" L x 1/4" W x 1/8" H with 4 ribs and 3 grooves.
Common Problems This Part Fixes
- Dryer drum not spinning — motor runs but drum stays still
- Clothes not tumbling during the drying cycle
- Thumping, squealing, or slapping noise during operation
- Dryer runs but produces no heat because drum is stationary
- Burning rubber smell coming from the dryer
- Visible broken or frayed belt pieces found inside the dryer cabinet
- Dryer shuts off shortly after starting due to drum not rotating
Replaces Part Numbers
This drum belt directly replaces the following OEM and cross-reference part numbers:
661570V, 661570, 3387610, 3389728, 3393999, 339728, 4248258, 661570VP, AWP761693, OEM17951196, PD00023608, FIX382430, AP5983729, PS11722115.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drum belt is compatible with select dryers from the following brands:
- Whirlpool dryers (gas and electric)
- Maytag dryers (gas and electric)
- Kenmore / Sears dryers (select Whirlpool-built models)
- Amana dryers
- KitchenAid dryers
- Crosley dryers
- Admiral dryers
- Speed Queen dryers
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Drives the dryer drum via the idler pulley and motor pulley for smooth, consistent tumbling every cycle
- 93-1/2" length x 1/4" width x 1/8" height — 4-rib, 3-groove design for a secure, slip-free grip on the pulleys
- Made from high-strength rubber — resists cracking, stretching, heat damage, and oil
- Direct replacement for OEM part numbers 661570V and 661570 — no modification required
- Part of the 4392067 dryer repair kit — pairs with W10837240 idler pulley and WPW10314173 drum rollers
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY-friendly repair — installs in 30–45 minutes with basic hand tools
Product Specifications
| Part Number | 661570 |
| OEM Part Number | 661570V |
| Part Type | Dryer Drum Drive Belt |
| Condition | Aftermarket Replacement |
| Application | Gas and Electric Dryers |
| Length | 93-1/2 inches |
| Width | 1/4 inch |
| Height | 1/8 inch |
| Ribs | 4 ribs, 3 grooves |
| Material | High-strength rubber |
| Color | Black |
| Compatible Brands | Whirlpool, Maytag, Kenmore, Amana, KitchenAid, Crosley, Admiral, Speed Queen |
| Part of Kit | 4392067 Dryer Repair Kit |
| Often Replaced With | W10837240 Idler Pulley, WPW10314173 Drum Rollers |
Installation Notes
Frequently Asked Questions
What is the difference between 661570 and 661570V?
These are the same belt. 661570V is the updated OEM part number (the "V" denotes the current version) that superseded the original 661570. Both numbers refer to the identical drum belt — this aftermarket replacement is compatible with both.
How does the 661570 differ from the 341241 and W10205415 belts?
All three are Whirlpool-family dryer drum belts, but they differ in length, width, and rib count. The 661570 is 93-1/2" long x 1/4" wide with 4 ribs and 3 grooves. The 341241 is 92-1/4" long x 1/4" wide with 4 ribs and 3 grooves. The W10205415 is 92" long x 3/8" wide with 5 ribs and 4 grooves. They are not interchangeable — always use the part number specific to your dryer model.
How do I know if my drum belt is broken?
The most obvious sign is that the dryer motor hums but the drum does not spin. You may also notice a thumping or slapping sound, a burning rubber smell, or damp clothes after a full drying cycle. Open the dryer cabinet to visually confirm if the belt is broken, frayed, or stretched out of shape.
Should I also replace the idler pulley and drum rollers?
Yes — since the dryer is already disassembled, it is highly recommended to inspect and replace the idler pulley (W10837240) and drum support rollers (WPW10314173) at the same time. All three parts wear together and are sold together in the 4392067 dryer repair kit. Replacing all three prevents having to disassemble the dryer again in the near future.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is made from high-strength rubber to match the dimensions and performance of the original 661570V belt.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
Model Compatibility
Search your appliance model number below. Supports partial or full model search.
🔍 Search Model Number
Type your full or partial model number above to instantly check if this part fits your appliance.
| Model Number | Manufacturer | Appliance Type |
|---|
⚠️ This is a partial compatibility list. Always verify your appliance model number before ordering. Contact our support team if you’re unsure.
