XPARTCO 5304511738 Refrigerator LED Light Bulb
- Sku: XP5304511738
- Vendor: XPARTCO
Have a question?
XPARTCO 5304511738 Refrigerator LED Light Bulb
XPARTCO 5304511738 Refrigerator LED Light Bulb

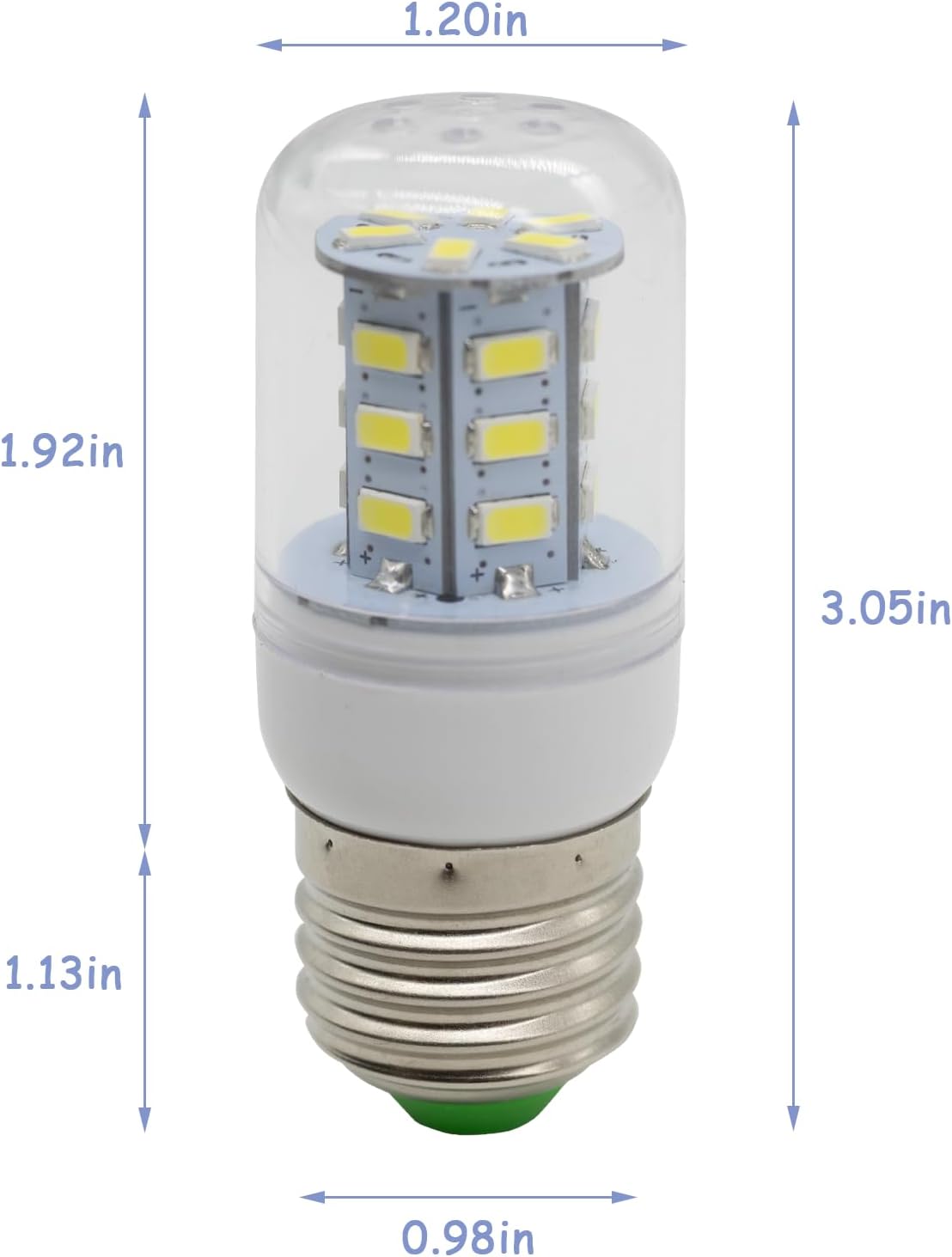

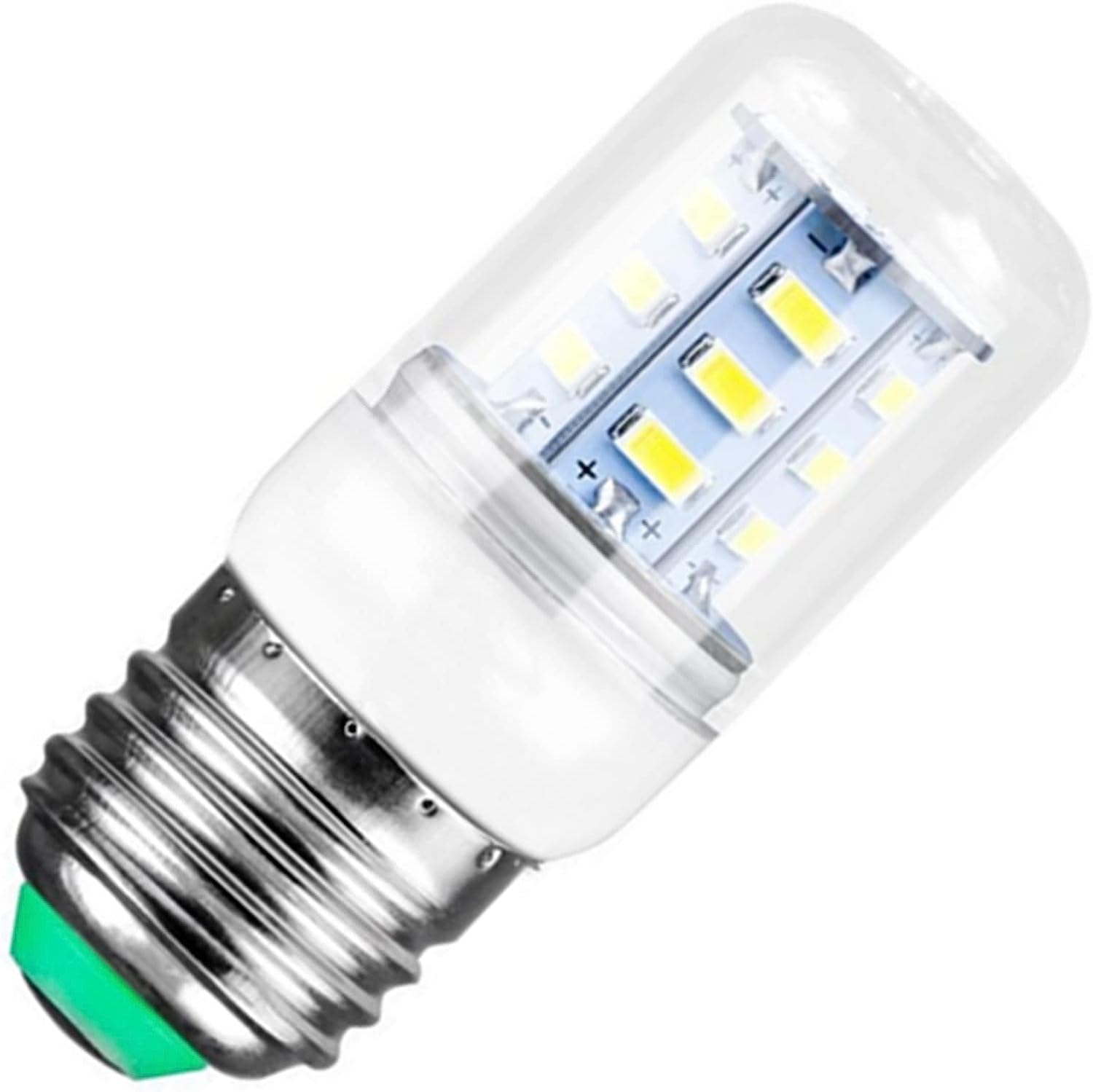

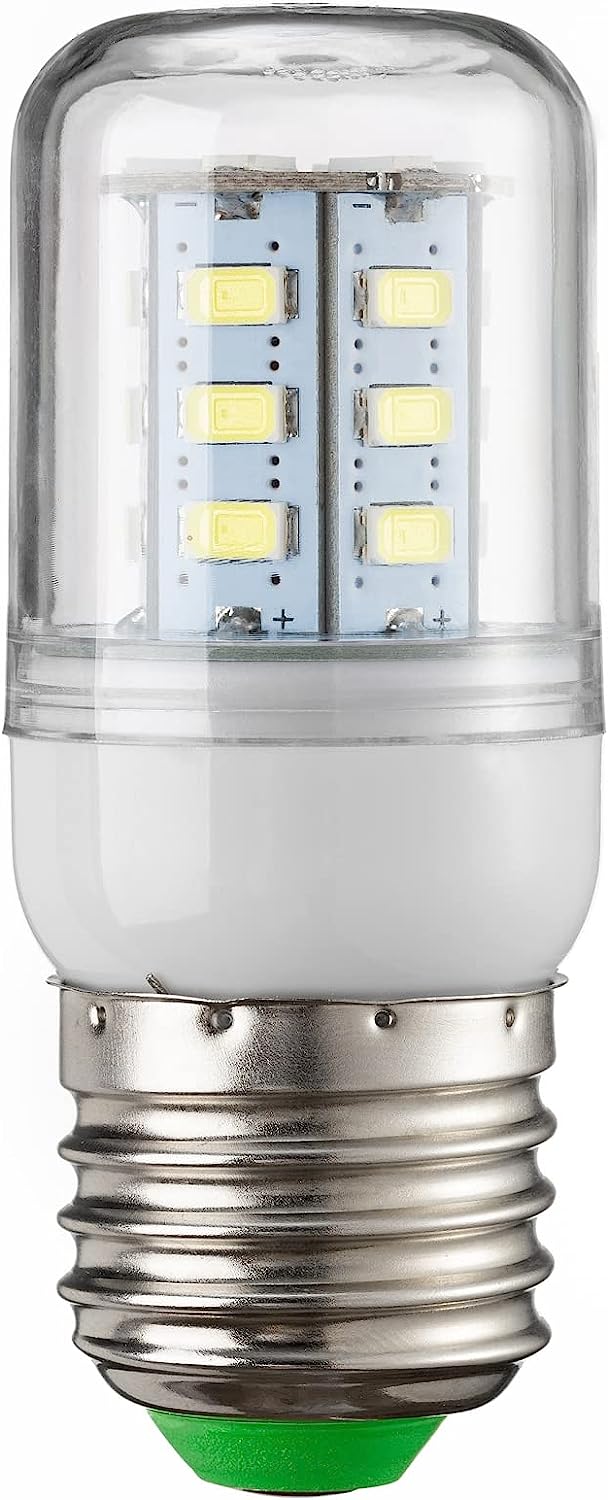

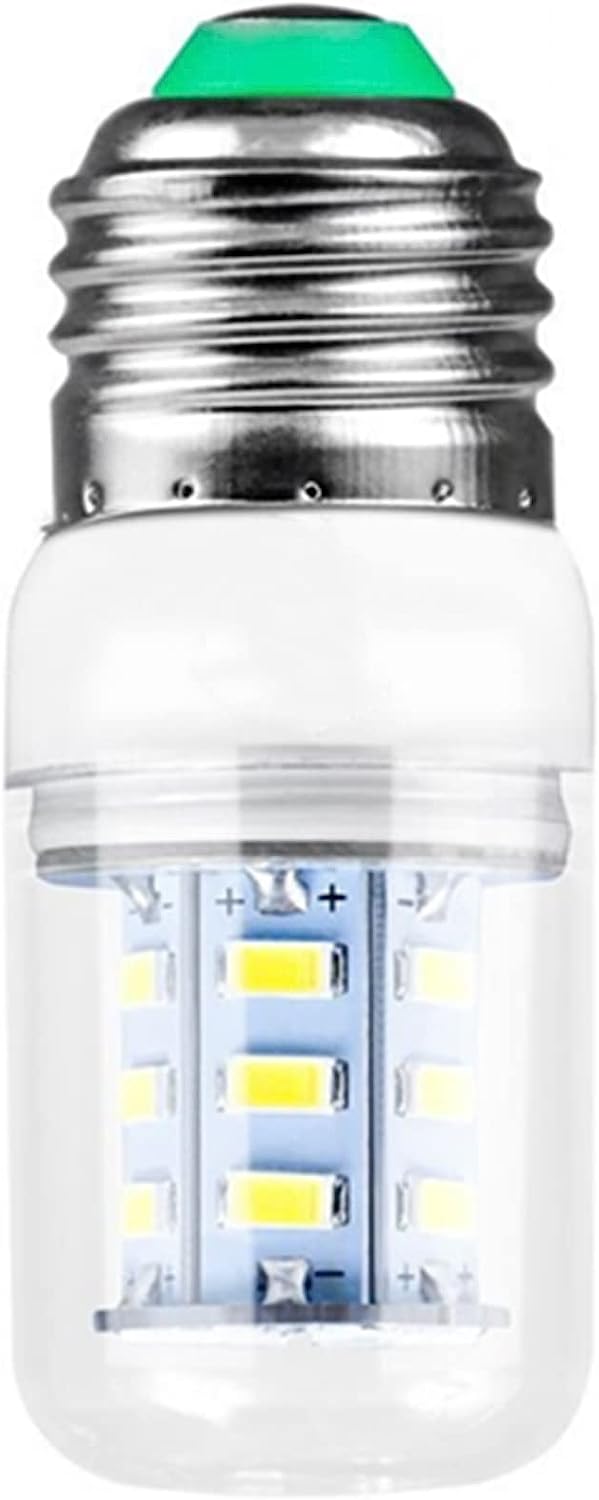

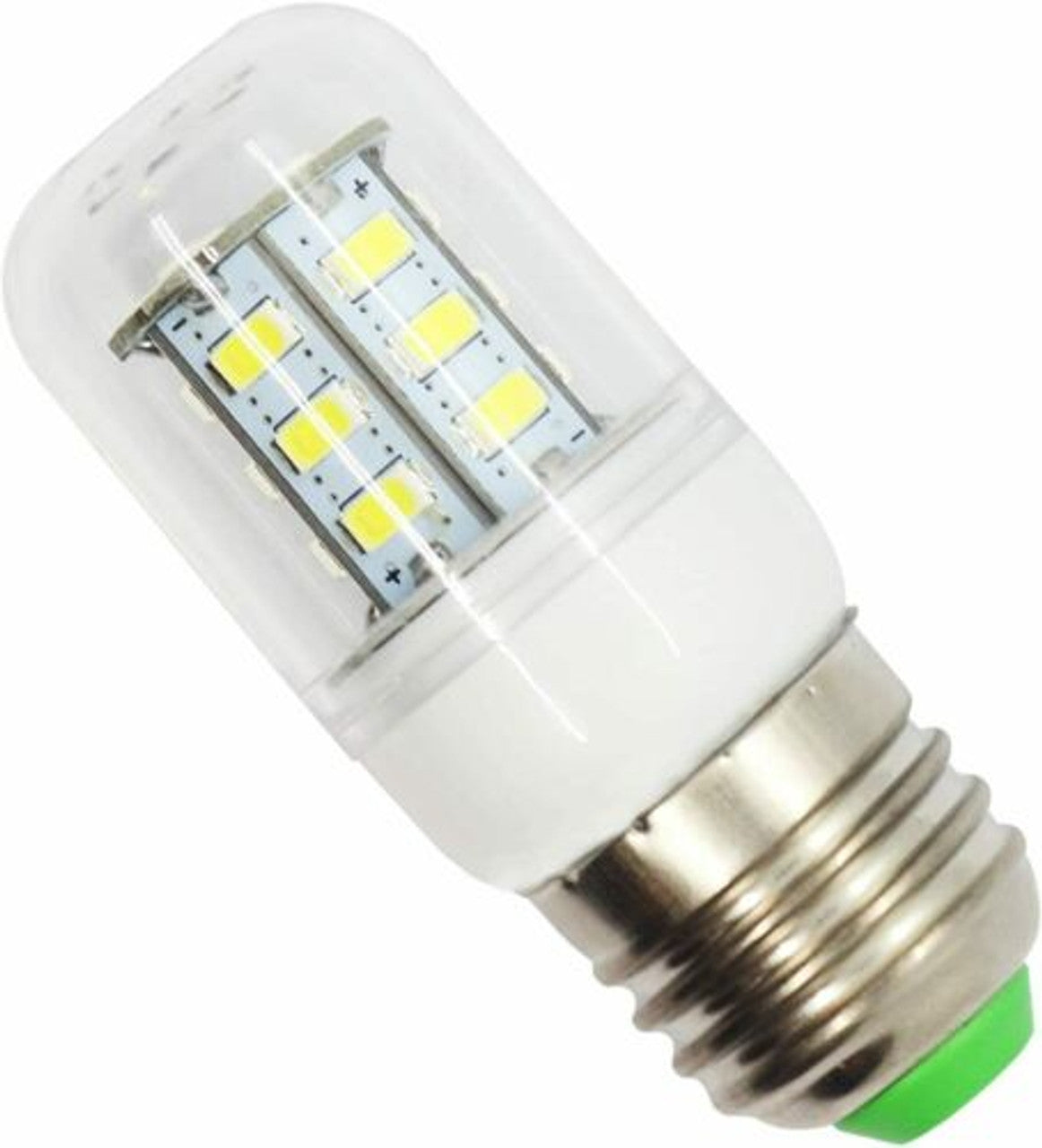

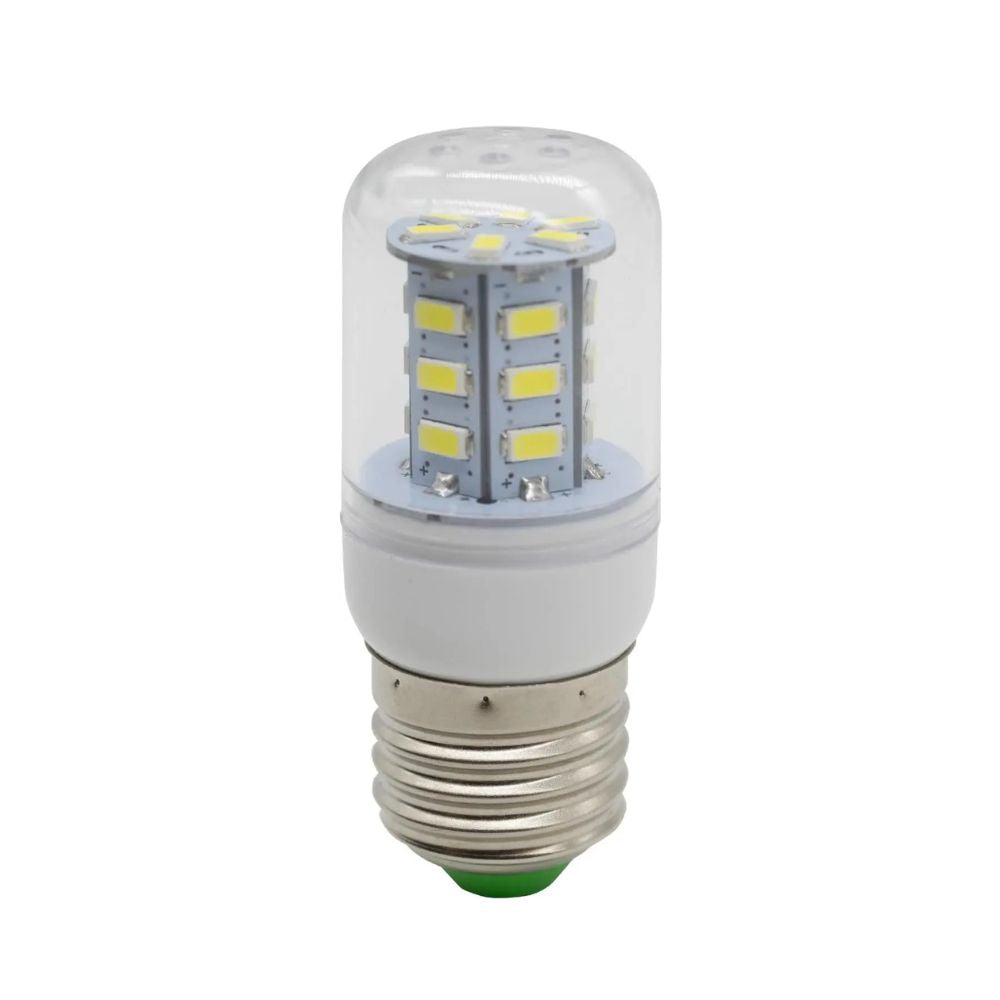

The XPARTCO 5304511738 is an aftermarket replacement LED refrigerator light bulb compatible with select Frigidaire, Electrolux, Kenmore, and Crosley refrigerators in the FFSS, LFSS, CRSE, FFHX, and related series. This LED bulb mounts inside the refrigerator or freezer cabinet and provides interior lighting when the door is opened. The 5304511738 uses a standard E26/E27 screw base and is rated at 3.5W, 120V, producing bright white light from 24 individual LED elements. It replaces the older-style incandescent refrigerator bulb with a longer-life, lower-energy LED equivalent that generates less heat inside the refrigerator cabinet.
The bulb features a wide voltage design rated 85V–265V, making it compatible with both standard 110V and 220V electrical systems. It directly replaces PS12364857, AP6278388, 4584444, PS11767930, RLB11738, KEI D34L, KEID34L, KEL3418L, and the associated cross-reference numbers. Sold individually. Installs in under 2 minutes — unscrew the old bulb and screw in the new one.
Quick Answer
The XPARTCO 5304511738 Refrigerator LED Light Bulb replaces a burned out, dim, or flickering interior light in compatible Frigidaire, Electrolux, Kenmore, and Crosley refrigerators. 3.5W, E26/E27 base, 85V–265V, white light, 24 LEDs. Compatible with Frigidaire FFSS, LFSS, CRSE, FFHX series and related models. Replaces PS12364857, AP6278388, 4584444, KEI D34L, KEID34L, KEL3418L, RLB11738. Sold individually. Screws in — no tools required.
Common Problems This Part Fixes
- Refrigerator interior light not working — bulb burned out
- Refrigerator light dim or flickering — bulb nearing end of life
- Refrigerator light on but very low brightness — LED elements failing
- Original incandescent bulb generating too much heat inside the cabinet
- Upgrading from incandescent to longer-life LED for energy savings
Replaces Part Numbers
This LED light bulb directly replaces the following OEM and cross-reference part numbers:
5304511738, 241560701, KEI D34L, KEID34L, KEL 3418L, KEL3418L, RLB11738, AFR17812, AP6278388, EAP12364857, PD00045325, PS12364857.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This LED light bulb is compatible with select refrigerators from the following brands and series:
- Frigidaire refrigerators — FFSS2315, FFSS2615, FFSS2625, LFSS2312, LFSS2612, CRSE233, CRSE263, FFHX2325, FFHT1821 and related series
- Electrolux refrigerators (select models using the same E26/E27 socket)
- Kenmore / Sears refrigerators (select Frigidaire/Electrolux-built models)
- Crosley refrigerators (select models)
Note: Before ordering, verify that your refrigerator uses a standard screw-base (E26/E27) bulb socket. Some newer refrigerators use proprietary LED modules or LED assemblies that are not interchangeable with standard screw-base bulbs. Always verify your model number before purchasing.
Key Features
- LED replacement for the standard refrigerator interior light — longer lifespan and lower energy use than incandescent equivalents
- 3.5W power consumption — significantly more energy-efficient than the original 25W–40W incandescent bulb
- 24 individual LED elements — bright, even, shadow-free white light illumination inside the cabinet
- E26/E27 universal screw base — fits the standard refrigerator bulb socket directly
- Wide voltage design: 85V–265V — compatible with standard 110V household current
- Less heat generated inside the refrigerator compared to incandescent bulbs — helps maintain consistent internal temperature
- Replaces PS12364857, AP6278388, 4584444, KEI D34L, KEID34L, KEL3418L, and RLB11738
- Sold individually — order 2 if your refrigerator has two light sockets
- Aftermarket replacement built to OEM-equivalent quality standards
- Installs in under 2 minutes — no tools required
Product Specifications
| Part Number | 5304511738 |
| Part Type | Refrigerator LED Interior Light Bulb |
| Condition | Aftermarket Replacement |
| Wattage | 3.5W |
| Voltage | 85V–265V (wide voltage / 120V standard US) |
| Amperage | 0.038A (at 120V) |
| LED Count | 24 LEDs |
| Light Color | White |
| Base Type | E26/E27 screw base (universal) |
| Sold As | Single bulb |
| Installation | Screw-in — no tools required |
| Compatible Brands | Frigidaire, Electrolux, Kenmore, Crosley |
Installation Notes
Frequently Asked Questions
Will this LED bulb work as a direct replacement for the original incandescent bulb?
Yes — the 5304511738 LED bulb uses the same E26/E27 screw base as the original incandescent refrigerator bulb and draws from the same 120V socket. It screws in exactly like the original and produces bright white light. The LED version uses only 3.5W compared to the typical 25W–40W of an incandescent refrigerator bulb, which means lower energy use and significantly less heat generated inside the refrigerator cabinet — both of which are improvements over the original.
My refrigerator has two light sockets — do I need two bulbs?
Yes — if your refrigerator has two light sockets (one for the fresh food section and one for the freezer, or two in the fresh food section), you will need two bulbs. This listing is for a single bulb. Order two to replace both sockets at the same time — replacing both ensures even light output and prevents being left without light shortly after when the second older bulb burns out.
What are the KEI D34L, KEID34L, and KEL3418L designations?
KEI D34L, KEID34L, and KEL3418L are model designations printed on the original Frigidaire refrigerator LED bulb or its housing — they are not traditional part numbers but are used by some parts databases as cross-references for the 5304511738. If you see any of these designations on your old bulb or in your refrigerator's parts list, the 5304511738 is the correct replacement.
My refrigerator light doesn't work but the new bulb also doesn't light up — what else could it be?
If the new bulb does not light up after installation, the bulb is likely not the cause of the problem. Other possible causes include a failed door switch (the switch that tells the refrigerator the door is open and turns on the light), a wiring issue in the light circuit, or a failed control board relay that supplies power to the light socket. Test the door switch by pressing and releasing it manually — if the light activates when you press it and turns off when you release it, the switch is working and the issue is elsewhere in the circuit.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Frigidaire OEM part, but is manufactured with 24 LED elements in an E26/E27 base to match the light output and fit of the original 5304511738 refrigerator LED bulb.
