XPARTCO 511255P Dryer Drum Belt Replaces D511255P
- Sku:
- 511255PXP
- Vendor:
- XPARTCO
Have a question?

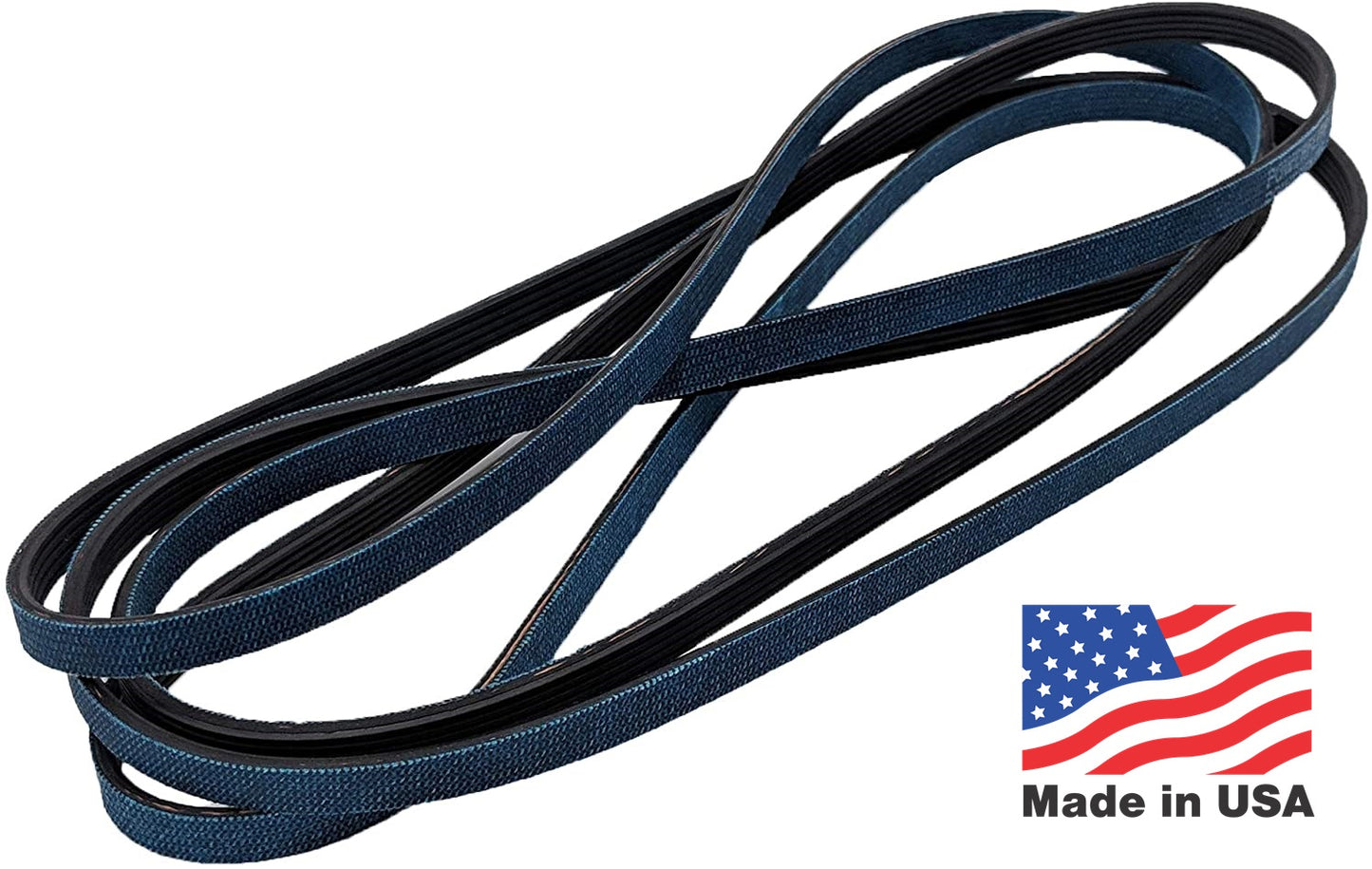

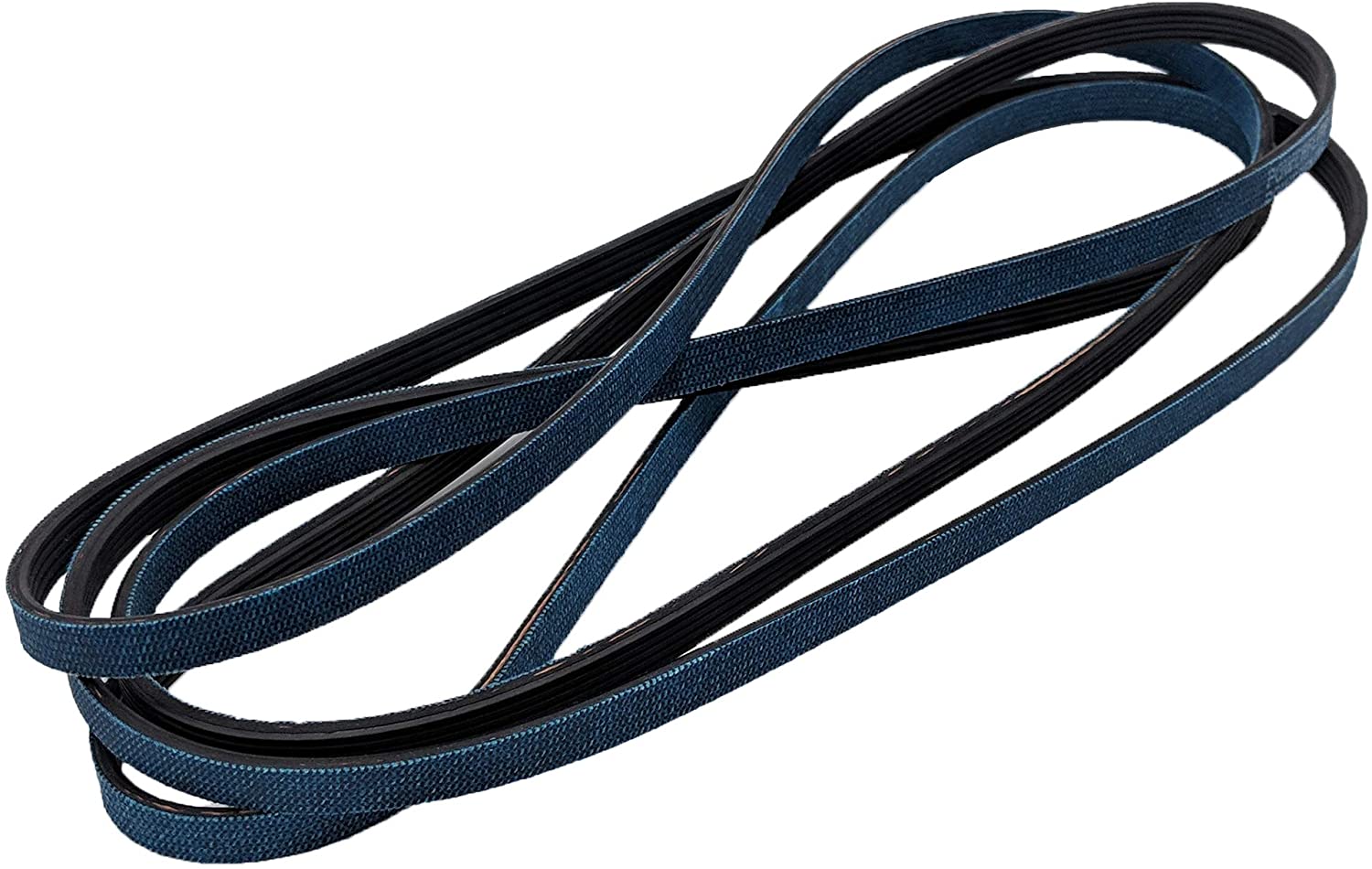

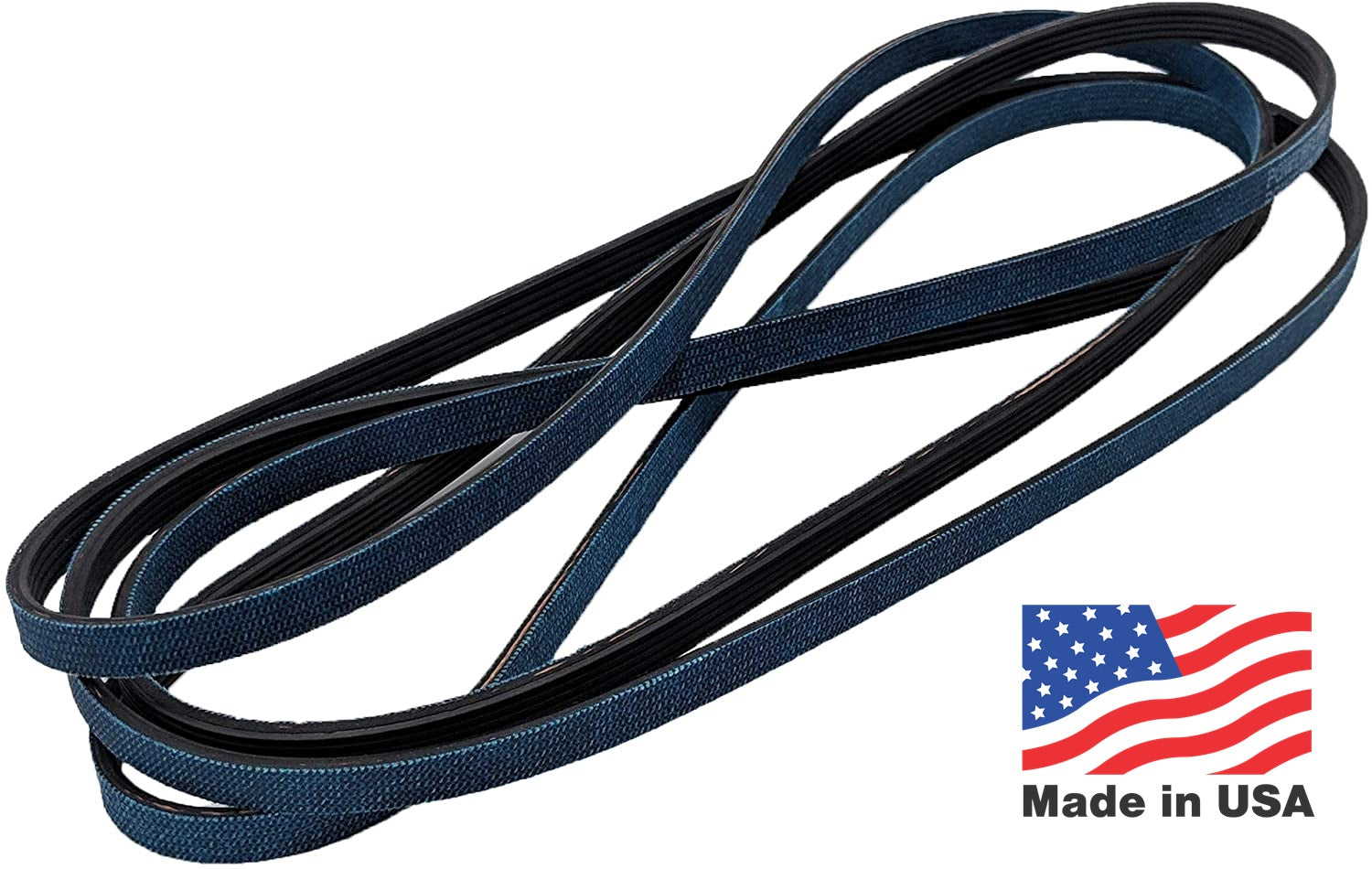

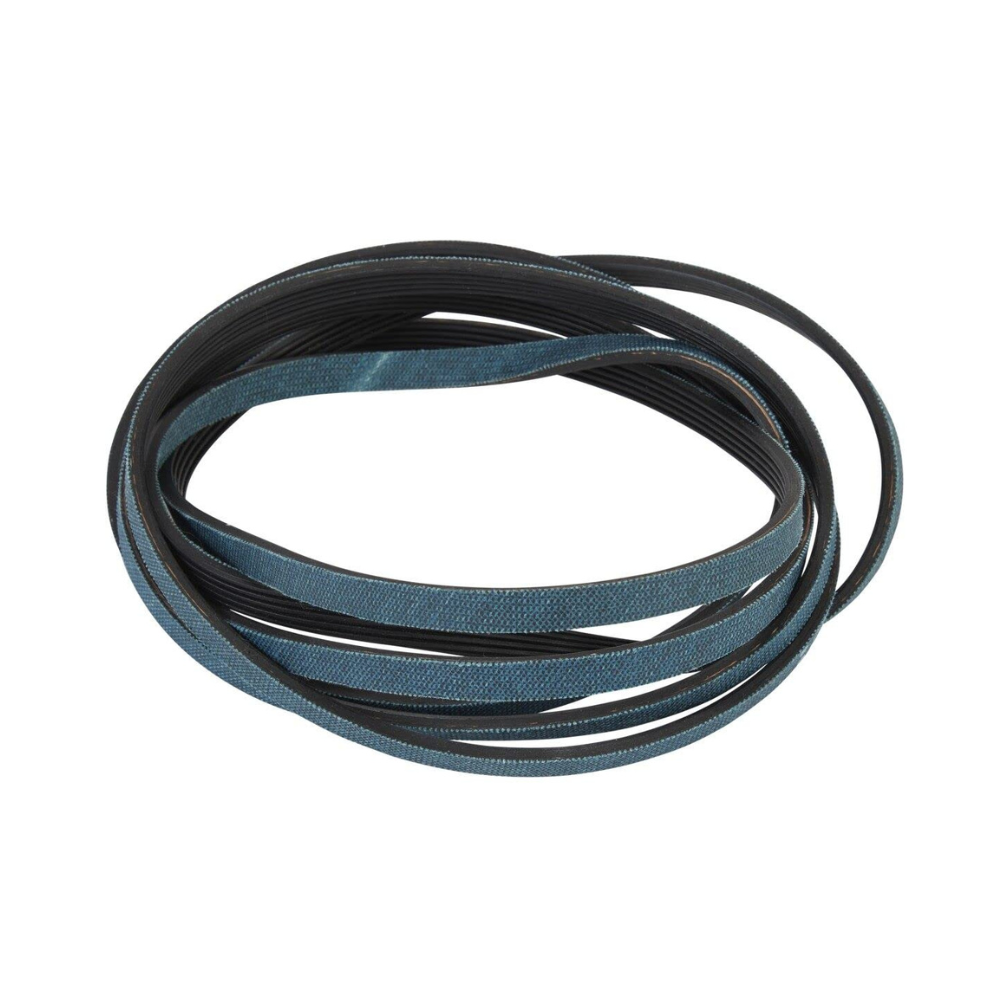

XPARTCO 511255P Dryer Drum Belt Replaces D511255P
XPARTCO 511255P Dryer Drum Belt Replaces D511255P
The XPARTCO 511255P is an aftermarket replacement drum (cylinder) belt for Speed Queen and Alliance Laundry Systems commercial and residential dryers. This belt wraps around the outside of the drum and loops over the drive motor pulley and idler pulley, and it's what actually spins the drum during a drying cycle. Over years of use the rubber-faced belt stretches, glazes over, or cracks, and it eventually slips or snaps — when that happens the drum stops turning even though the motor and blower are still running.
The telltale sign of a worn or broken drum belt is a dryer that powers on and runs (you can hear the motor and airflow) but the drum sits still, or a rubbing/thumping noise as a worn belt starts to slip against the drum and idler pulley before it fails completely. This is a direct-fit aftermarket replacement built to the same length, width, and rib profile as the OEM belt it replaces.
Quick Answer
The XPARTCO 511255P Dryer Drum Belt fixes a Speed Queen or Alliance Laundry dryer whose drum won't spin, or that runs with a rubbing/squealing noise from the drum area. Direct-fit aftermarket replacement for OEM D511255P. Classic symptom: motor runs and you feel warm air, but the drum sits still — or a loud thump/rub right before the belt lets go completely.
Common Problems This Part Fixes
- Dryer runs (motor and airflow work) but the drum doesn't spin
- Rubbing, squealing, or thumping noise from inside the dryer during operation
- Clothes bunch up in one spot instead of tumbling
- Burning rubber smell from a slipping or overheating belt
- Visible cracking, glazing, or fraying on the old belt
- Dryer drum spins freely by hand with no resistance from the motor
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This drum belt directly replaces the following part numbers:
D511255P, 511255P, 435P3, 510178, 511255, 59174, D511255, AP6285392, ASQ376048, EAP12195395, OEM18856185, PD00040572, PS17001086, TU21423, TU21653
This belt is used across Speed Queen, Alliance Laundry Systems, and Kenmore-badged dryers built on Speed Queen platforms — the cross-reference numbers above span all of those labelings for the same physical belt.
Compatibility
This drum belt is compatible with a wide range of Speed Queen and Alliance Laundry Systems dryers, including model families such as:
- SSET07QF, SSG119WF, SDG109WF1124, SDEA07WJ
- SSE107LF99L6, SDEA07LJ, FGU17AWF1702, KGS18AWF
- ADE3LRGS171TW01, ADEE9RGS175TW01, ADG4BRGS115TW01, and hundreds of additional Speed Queen commercial and residential model numbers
Note: Speed Queen and Alliance Laundry used this belt design across an unusually large number of commercial and residential model numbers spanning many production years — the list above is only a sample. Confirm the belt shown on your dryer's parts diagram matches this part number, or contact our support team with your model number to verify before ordering.
Key Features
- Direct-fit aftermarket drum belt for Speed Queen & Alliance Laundry dryers
- Rubber-faced construction matching OEM length, width, and rib profile
- Resolves drum-not-spinning, rubbing/thumping noise, and slipping-belt symptoms
- Built for both commercial and residential Speed Queen dryer platforms
- Straightforward swap using the existing idler pulley and tensioner spring
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number | XP511255P |
| OEM Part Number | D511255P |
| Part Type | Dryer Drum (Cylinder) Belt |
| Condition | Aftermarket Replacement |
| Belt Style | Rubber-Faced Cylinder Belt |
| Application | Speed Queen & Alliance Laundry Systems Dryers |
| Repair Difficulty | Moderate (typically 30–60 minutes) |
Installation Notes
Frequently Asked Questions
My dryer runs but the drum won't turn — is this the part I need?
Yes, in most cases. A broken or badly slipped drum belt is the most common cause of a dryer that powers on, runs the motor and blower, and still produces heat and airflow, but the drum itself sits motionless.
Why does my dryer make a rubbing or thumping noise before the belt fails?
As the belt wears, it can glaze over, stretch, or fray, causing it to slip against the drum or idler pulley and produce a rubbing, squealing, or thumping sound. This is usually a sign the belt is close to failing completely and should be replaced soon.
Does this fit both commercial and residential Speed Queen dryers?
This belt design is shared across a very wide range of Speed Queen and Alliance Laundry Systems models, both commercial and residential. Still, confirm against your dryer's model number or parts diagram before ordering since Speed Queen has used several belt variants over the years.
Do I need to replace the idler pulley or tensioner spring at the same time?
Not necessarily — this listing is for the belt only. However, if your idler pulley is worn, noisy, or doesn't spin freely, it's worth inspecting and replacing while the dryer is already apart, since a bad idler pulley can shorten the life of a new belt.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
Model Compatibility
Search your appliance model number below. Supports partial or full model search.
🔍 Search Model Number
Type your full or partial model number above to instantly check if this part fits your appliance.
| Model Number | Manufacturer | Appliance Type |
|---|
⚠️ This is a partial compatibility list. Always verify your appliance model number before ordering. Contact our support team if you’re unsure.
