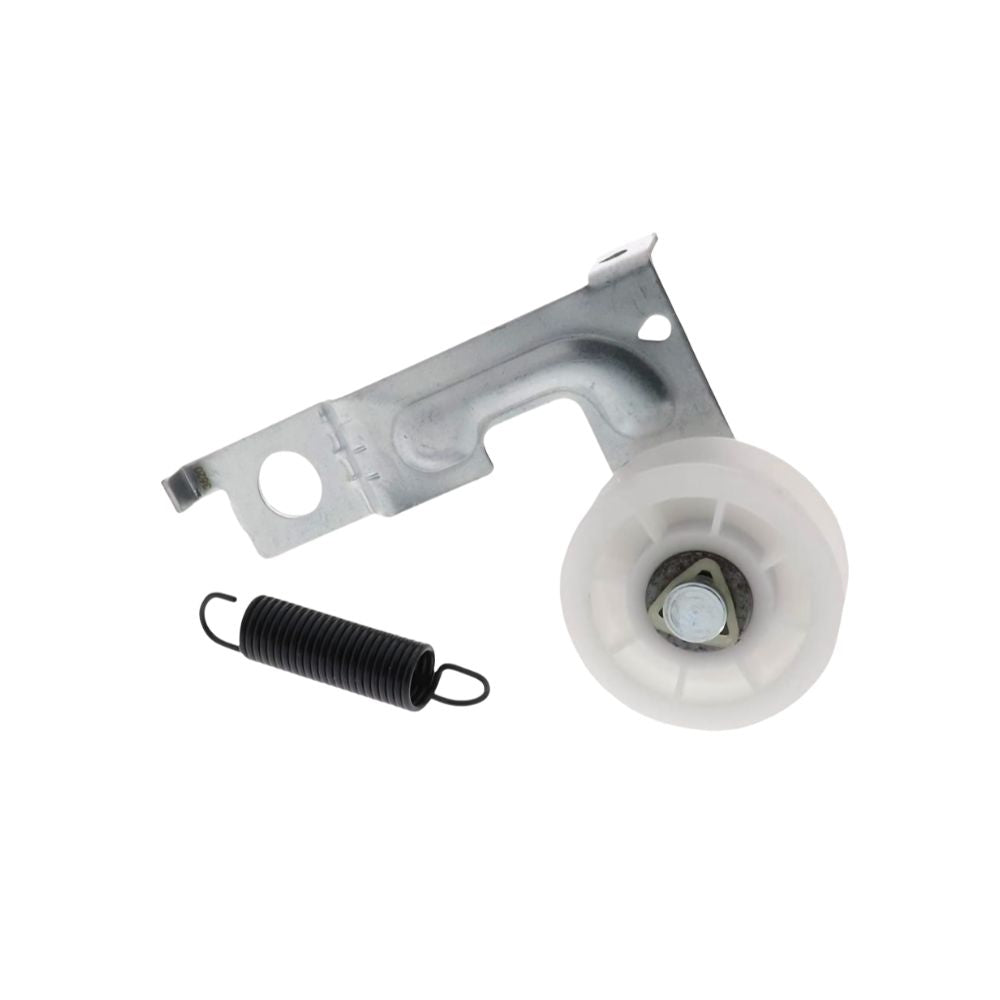

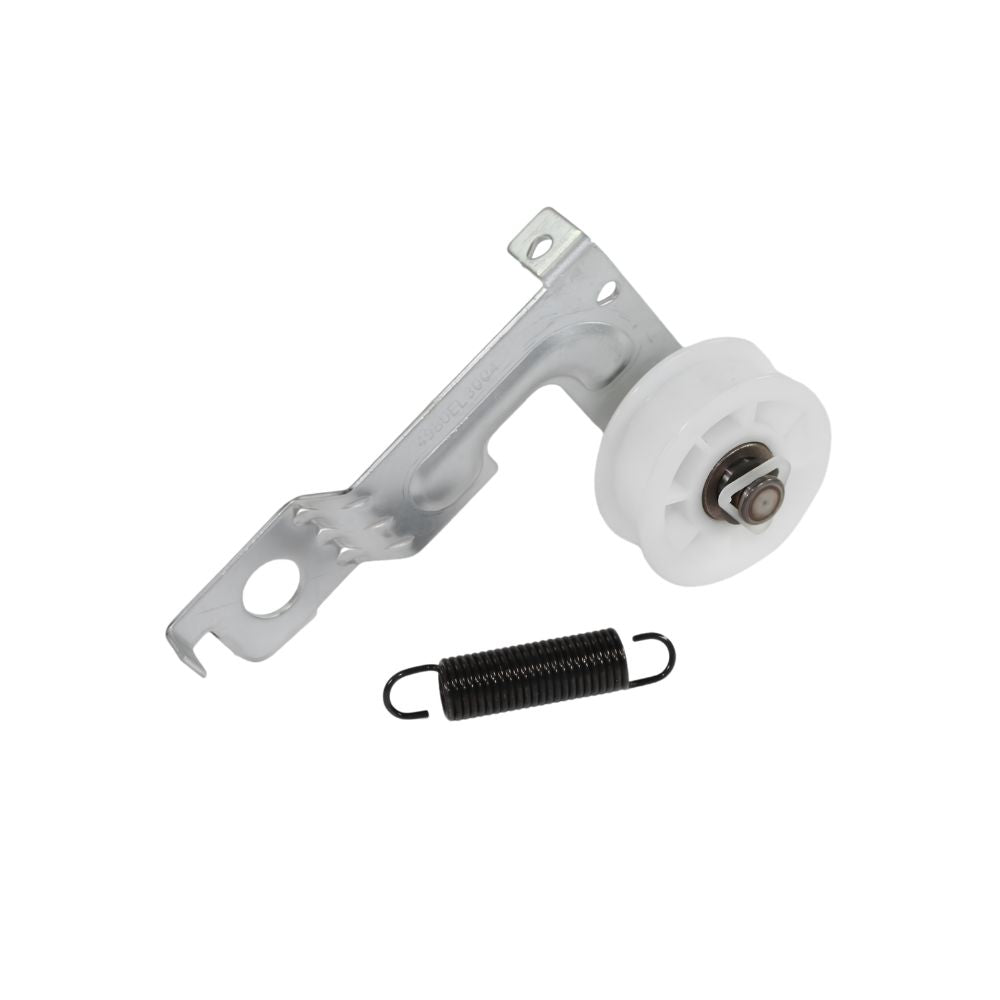

XPARTCO 4561EL3002A Dryer Idler Pulley
XPARTCO 4561EL3002A Dryer Idler Pulley Assembly
The XPARTCO 4561EL3002A is an aftermarket replacement dryer idler pulley assembly compatible with select LG and Kenmore electric and gas dryers. The idler pulley assembly is a spring-tensioned arm, pulley wheel, and spring kit that presses against the drive belt to keep it under constant tension as it wraps around the drum and motor pulley. Without correct belt tension, the belt slips, the drum stops spinning, and the dryer tumbles clothes poorly or not at all. A worn idler pulley bearing is also one of the most common causes of squealing, squeaking, and thumping noises in LG dryers.
This complete assembly includes the idler arm, pulley wheel, and idler spring. Overall dimensions are 5-3/4"L x 2-1/4"W x 3-7/8"H with a 2-1/4" diameter pulley wheel. Constructed from plastic and metal in white, black, and gray. It directly replaces 4561EL3002B, DE3002A, 4980EL3004, 1267530, AP4438243, AH3523033, EA3523033, EAP3523033, PD00001729, and PS3523033. Note: the pulley wheel only (without arm and spring) is sold separately as APN4560EL3001A — this listing is for the complete idler assembly. Often replaced together with the drum belt (4400EL2001A) and drum rollers (4581EL2002A) for a complete drum drive repair. Installs in 30–45 minutes with basic hand tools.
Quick Answer
The XPARTCO 4561EL3002A Dryer Idler Pulley Assembly fixes LG and Kenmore dryers that are squealing, thumping, or where the drum has stopped spinning because belt tension is lost. Complete assembly — idler arm, pulley wheel, and spring included. 5-3/4"L x 2-1/4"W x 3-7/8"H overall; 2-1/4" pulley diameter. Replaces 4561EL3002B, DE3002A, 4980EL3004, 1267530, AP4438243, AH3523033, EAP3523033, PS3523033. Often replaced with drum belt (4400EL2001A) and drum rollers (4581EL2002A).
Common Problems This Part Fixes
- Drum not spinning — belt has lost tension and slipped off
- Loud squealing or squeaking noise during the drying cycle — worn idler pulley bearing
- Thumping or clunking noise as the pulley wheel wobbles on a worn axle
- Belt repeatedly falling off after reinstallation — idler no longer maintaining tension
- Grinding noise from the idler area — bearing completely failed
- Drum spinning intermittently due to inconsistent belt tension
- Idler arm visibly cracked or pulley wheel no longer spinning freely by hand
Replaces Part Numbers
This idler pulley assembly directly replaces the following OEM and cross-reference part numbers:
4561EL3002A, 1267530, 4561EL3002B, ALG51226, AH3523033, AP4438243, EA3523033, EAP3523033, PD00001729, PS3523033
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This idler pulley assembly is compatible with select LG and Kenmore gas and electric dryers:
- LG electric dryers — DLE series (DLE0442W, DLE1001W, DLE2250W, DLE2350W, DLE3133W, DLE3777W, DLE4801W, DLE5001W, DLE5955W, DLE7177WM and related models)
- LG electric dryers — DLEX series (DLEX3885W, DLEX5780VE and related models)
- LG gas dryers — DLG series (DLG0452W, DLG2251W, DLG2351W, DLG3744W, DLG3788W, DLG5002W, DLG5966W and related models)
- LG gas dryers — DLGX series (DLGX3886W and related models)
- Kenmore / Sears dryers — 796-series (LG-built electric and gas models)
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Complete idler pulley assembly — includes idler arm, pulley wheel, and idler spring
- Maintains correct drive belt tension so the drum spins smoothly and quietly during every drying cycle
- Overall dimensions: 5-3/4"L x 2-1/4"W x 3-7/8"H; pulley wheel diameter: 2-1/4"
- Plastic arm and housing with metal pulley shaft — durable construction for continuous operation
- Replaces 4561EL3002B, DE3002A, 4980EL3004, AP4438243, AH3523033, EAP3523033, and PS3523033
- Note: pulley wheel only (without arm and spring) is sold separately as APN4560EL3001A — this listing is the complete assembly
- Often replaced together with drum belt (4400EL2001A) and drum rollers (4581EL2002A)
- Compatible with LG DLE, DLEX, DLG, DLGX series and Kenmore 796-series dryers
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 30–45 minutes with basic hand tools
Product Specifications
| Part Number | XP4561EL3002A |
| Also Replaces | 4561EL3002B (prior revision) |
| Part Type | Dryer Idler Pulley Assembly (Arm, Wheel, and Spring) |
| Condition | Aftermarket Replacement |
| Application | LG and Kenmore Gas and Electric Dryers |
| Overall Dimensions | 5-3/4"L x 2-1/4"W x 3-7/8"H |
| Pulley Wheel Diameter | 2-1/4 inches |
| Material | Plastic / Metal |
| Color | White / Black / Gray |
| Includes | Idler arm, pulley wheel, and idler spring — complete assembly |
| Pulley Wheel Only | APN4560EL3001A (sold separately — not this listing) |
| Often Replaced With | 4400EL2001A Drum Belt, 4581EL2002A Drum Rollers |
| Compatible Brands | LG, Kenmore (LG-built) |
Installation Notes
Frequently Asked Questions
What does the dryer idler pulley do?
The idler pulley is a spring-loaded arm and wheel assembly that presses against the drive belt between the drum and the motor pulley, keeping the belt under constant tension. This tension is what allows the belt to grip both the drum surface and the motor pulley so the motor's rotation is transmitted to spin the drum. Without proper tension — or with a pulley bearing that has seized or worn out — the belt slips, the drum stops spinning, and the dryer produces heat without tumbling clothes. A worn bearing also creates the high-pitched squealing noise that is the most recognizable symptom of idler pulley failure on LG dryers.
What is the difference between 4561EL3002A and 4561EL3002B?
These are the same LG dryer idler pulley assembly across two production revisions. The 4561EL3002B was an earlier version and the 4561EL3002A is the current part number. Both are the same functional assembly — if your dryer's parts diagram shows 4561EL3002B, the 4561EL3002A is the correct current replacement and is covered by this listing.
Should I also replace the drum belt and rollers at the same time?
Yes — since the dryer must be disassembled to replace the idler pulley, this is the ideal time to also inspect and replace the drum belt (4400EL2001A) and drum support rollers (4581EL2002A). All three parts form the drum drive system and wear at similar rates. A worn roller or belt is often what caused the idler pulley to wear prematurely. Replacing all three in one repair eliminates the most common drum drive failure points and prevents a repeat teardown in the near future.
Can I just replace the pulley wheel without the arm and spring?
Yes — the pulley wheel alone (without the arm and spring) is sold separately as part number APN4560EL3001A. If only the wheel bearing has failed and the arm and spring are in good condition, you can order just the wheel. However, if the arm is cracked, the spring has lost tension, or both the wheel and arm have significant wear, ordering the complete 4561EL3002A assembly is more cost-effective and ensures the entire idler system is renewed in a single repair.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from plastic and metal to match the dimensions and performance of the original 4561EL3002A idler pulley assembly.
