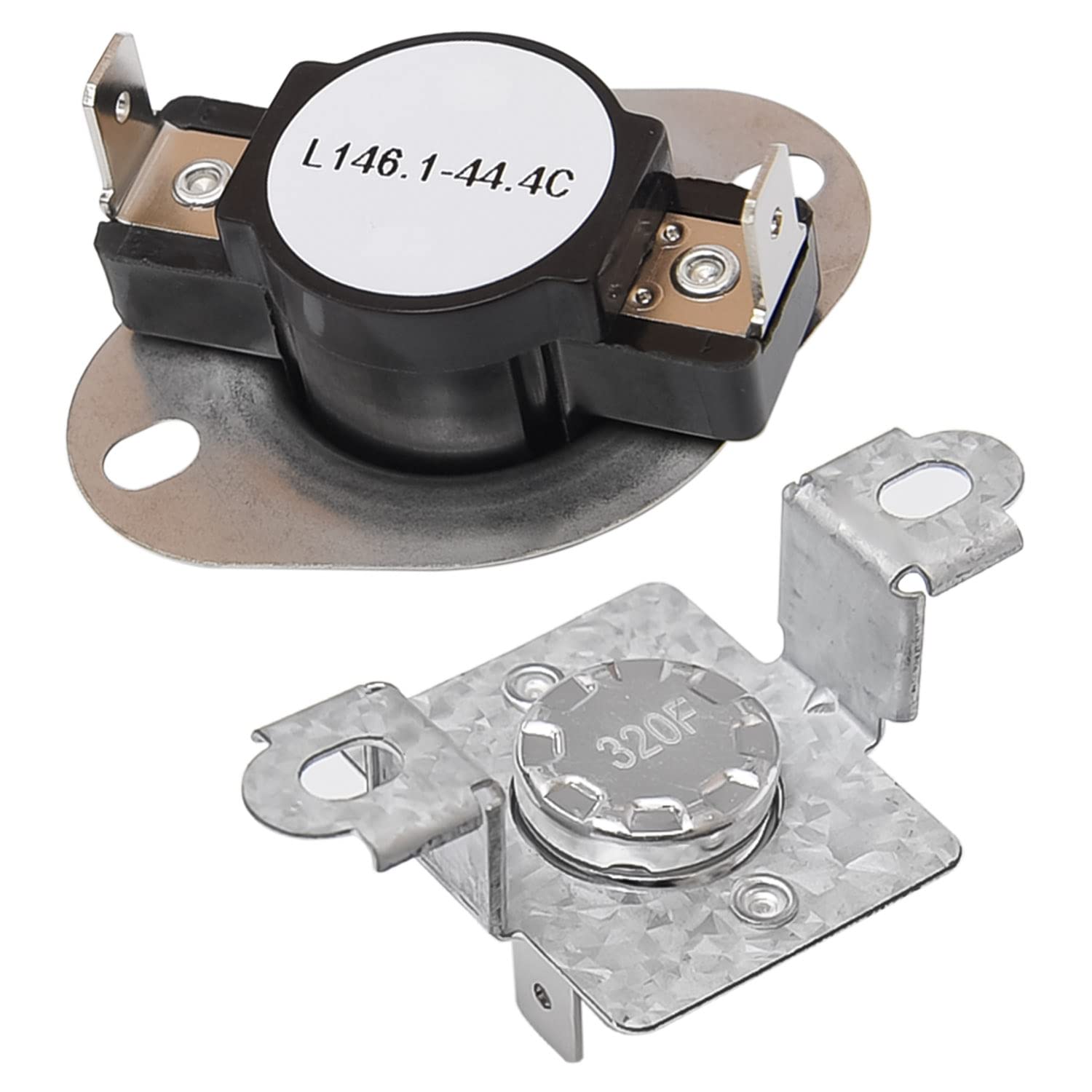

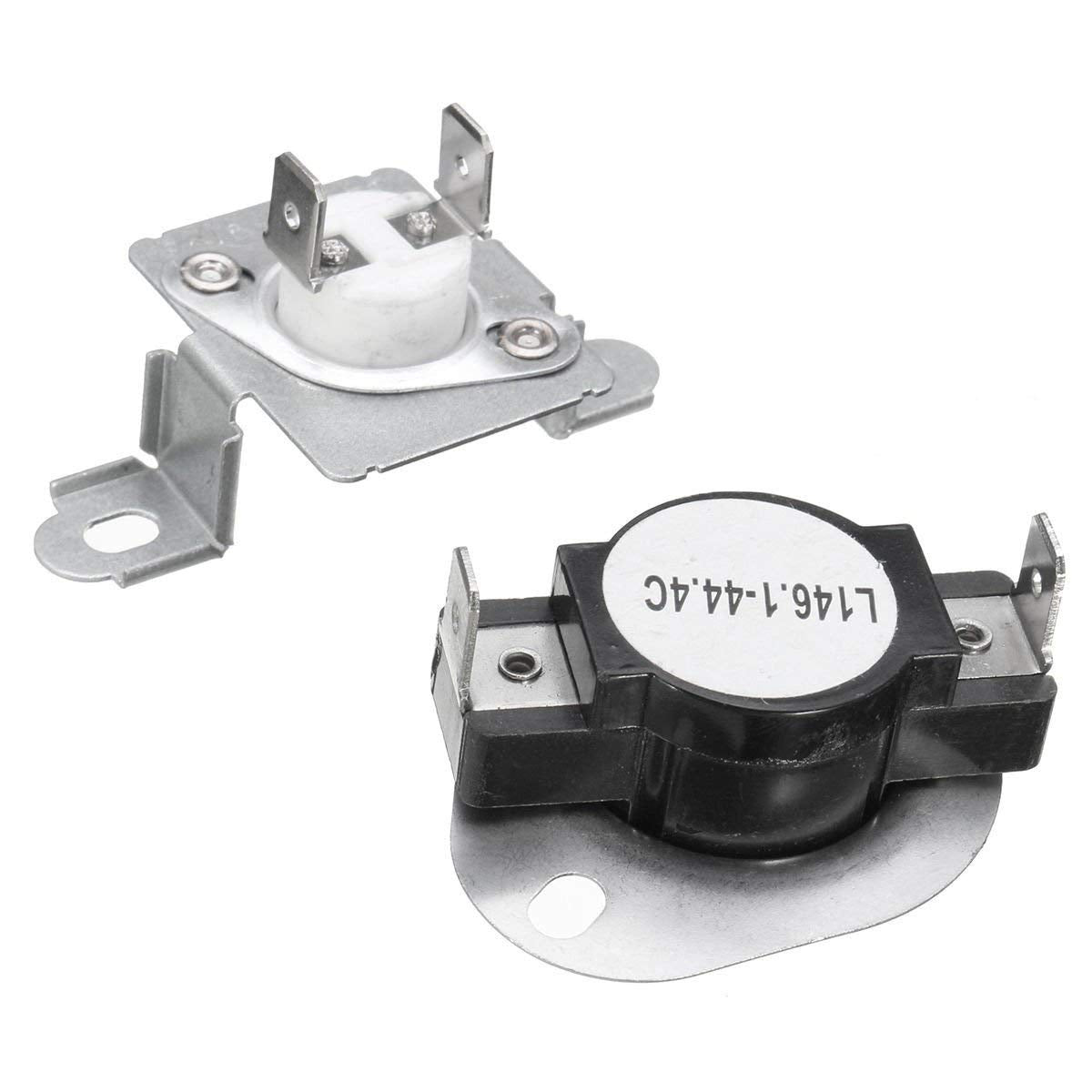

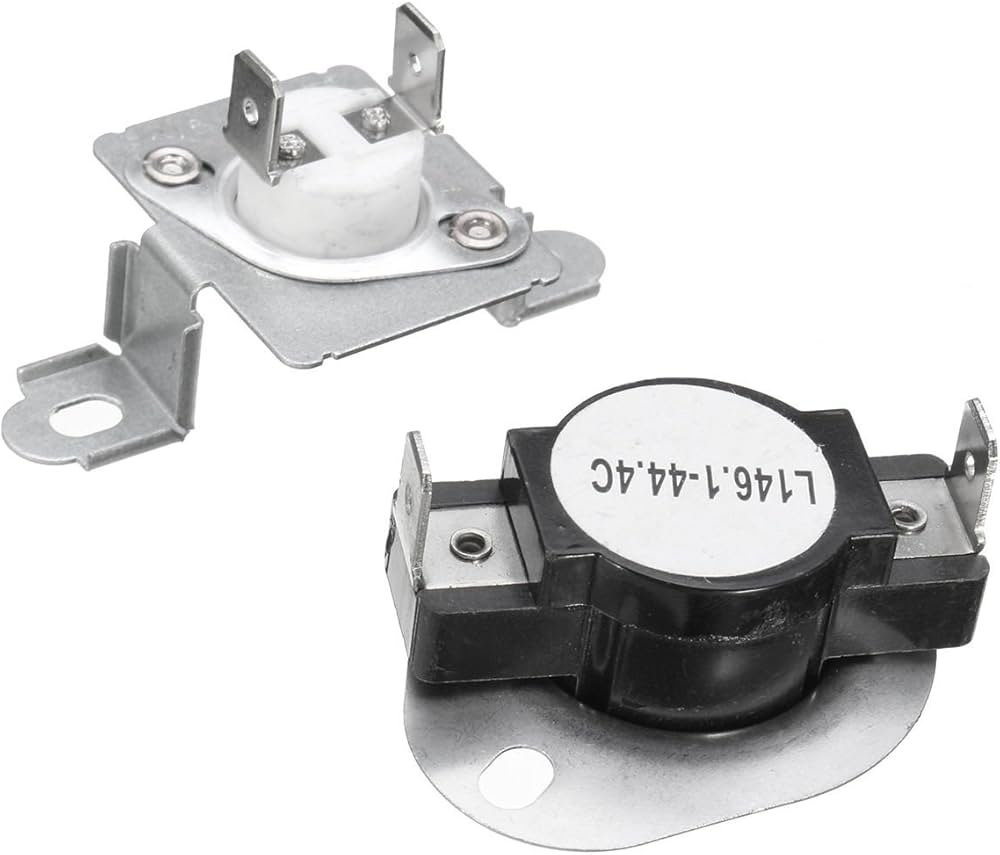

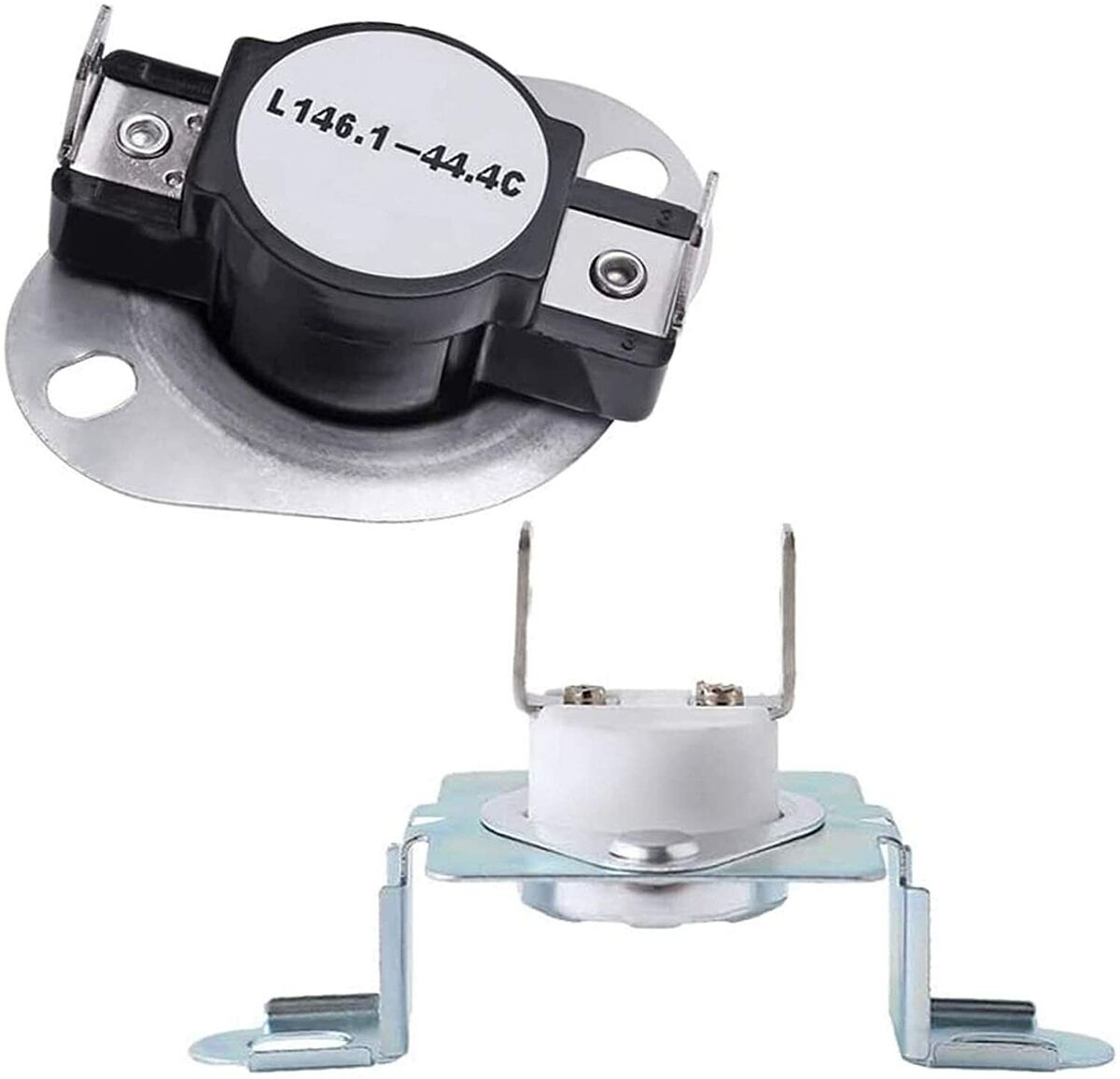

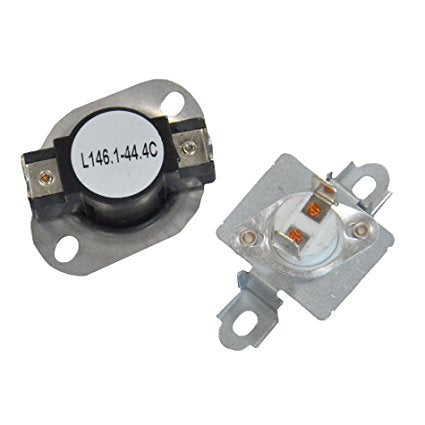

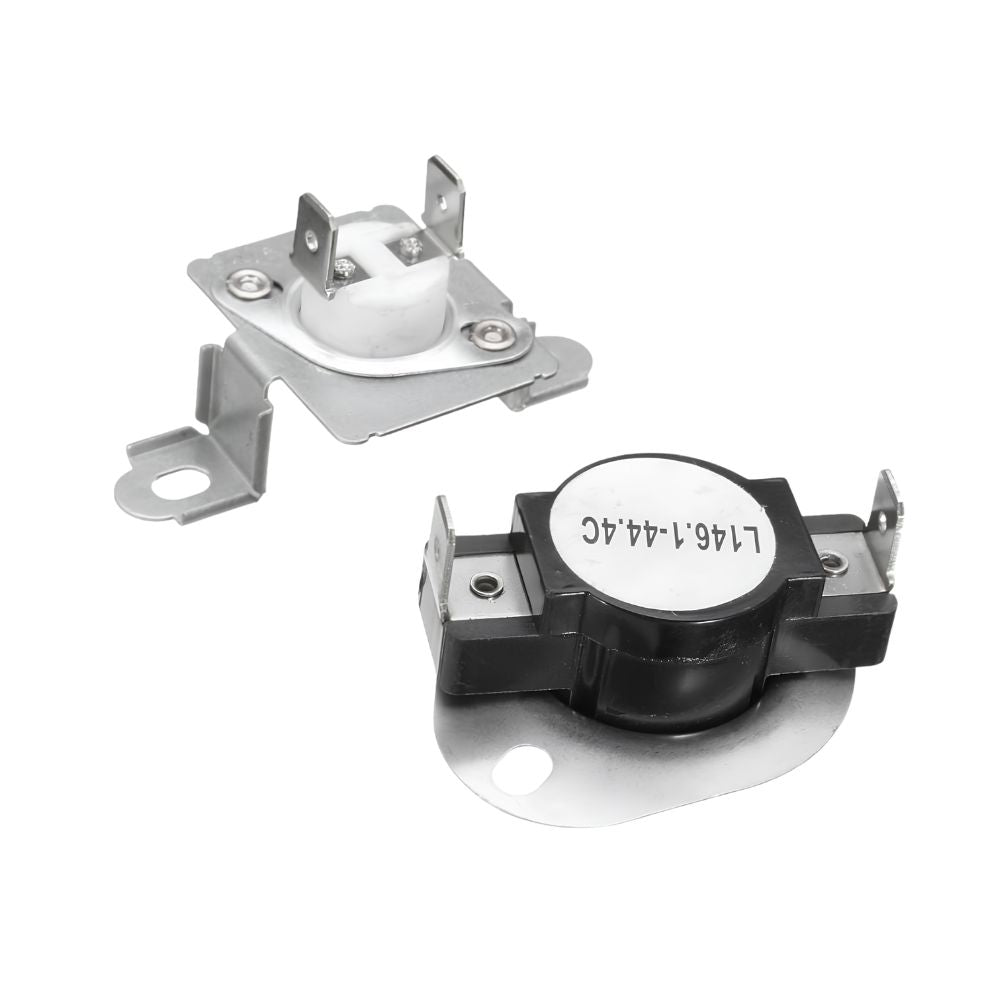

XPARTCO 279973 Dryer Thermostat Kit

What is the difference between the high-limit thermostat and the thermal cut-off fuse in this kit?

The high-limit thermostat (L295-80F) is a resettable safety switch that opens at 295°F to cut power to the heating element and resets automatically when the temperature drops. It is the primary protection against overheating during normal operation. The thermal cut-off fuse is a one-time backup device rated at 352°F — it permanently opens the circuit if the heating element temperature climbs beyond the point the thermostat should have caught. Once the cut-off fuse opens, it must be replaced; it does not reset on its own. If the cut-off fuse has blown, it usually means the high-limit thermostat also failed to do its job and should be replaced at the same time — which is exactly what this kit provides.

How do I test these parts with a multimeter?

Unplug the dryer and remove the back panel to access the heating element housing. Disconnect each component from the wiring and probe both terminals with a multimeter set to continuity or resistance mode. At room temperature, both the high-limit thermostat and the thermal cut-off fuse should show closed continuity (near-zero resistance). Any component that reads open circuit (no continuity) has failed and needs to be replaced. The thermal cut-off fuse reads open even after it cools — it is non-resettable. The high-limit thermostat may read open at room temperature if it has failed internally rather than by an overheat trip.

How is the 279973 kit different from the XP6974 thermostat kit?

The 279973 is a 2-part kit — high-limit thermostat and thermal cut-off fuse — designed specifically for the heating element housing of Whirlpool-family electric dryers. The XP6974 is a 4-part kit — cycling thermostat, thermal fuse, high-limit thermostat, and thermal cut-off — designed for Whirlpool-family gas and electric dryers, covering both the exhaust duct components and the burner/element housing components. If your electric dryer is showing no-heat and you need only the heating element housing components, the 279973 kit covers exactly those two parts. If you want to replace all thermal components in one repair, the XP6974 covers a broader set.

Why does the thermal cut-off fuse keep blowing?

If the thermal cut-off fuse blows repeatedly after replacement, it almost always means there is an underlying overheating condition causing the heating element housing to run hotter than it should. The most common cause is a clogged or restricted exhaust vent — lint accumulation in the duct reduces airflow, trapping heat inside the dryer cabinet and around the element. Other causes include a failed cycling thermostat that is not regulating element temperature correctly, a stuck heating element relay, or a dryer in an enclosed space with inadequate ventilation. Always clean the full exhaust duct and check the cycling thermostat (WP3387134) before replacing the thermal cut-off fuse a second time.

Is this an OEM or aftermarket part?

This is an aftermarket replacement kit built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the temperature ratings and specifications of the original 279973 high-limit thermostat and thermal cut-off fuse kit.
