XPARTCO 137221600 Washer Drain Pump
FREE SHIPPING TO ALL 48 CONTIGUOUS STATES
Free standard shipping at checkout.
CHECK YOUR MODEL COMPATIBILITY
Enter your appliance model number to check if this part is listed as compatible.
Need help finding your model number?

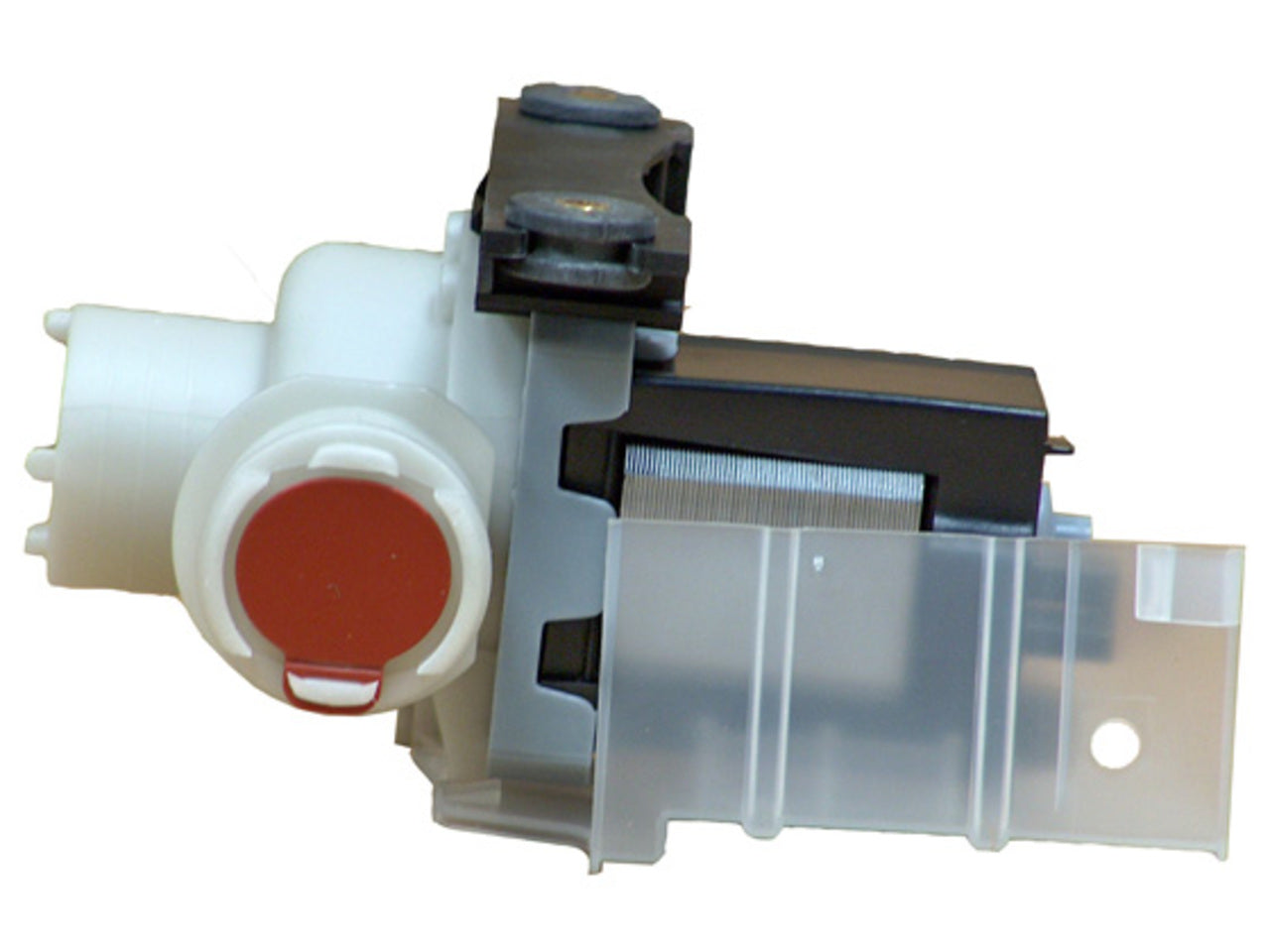

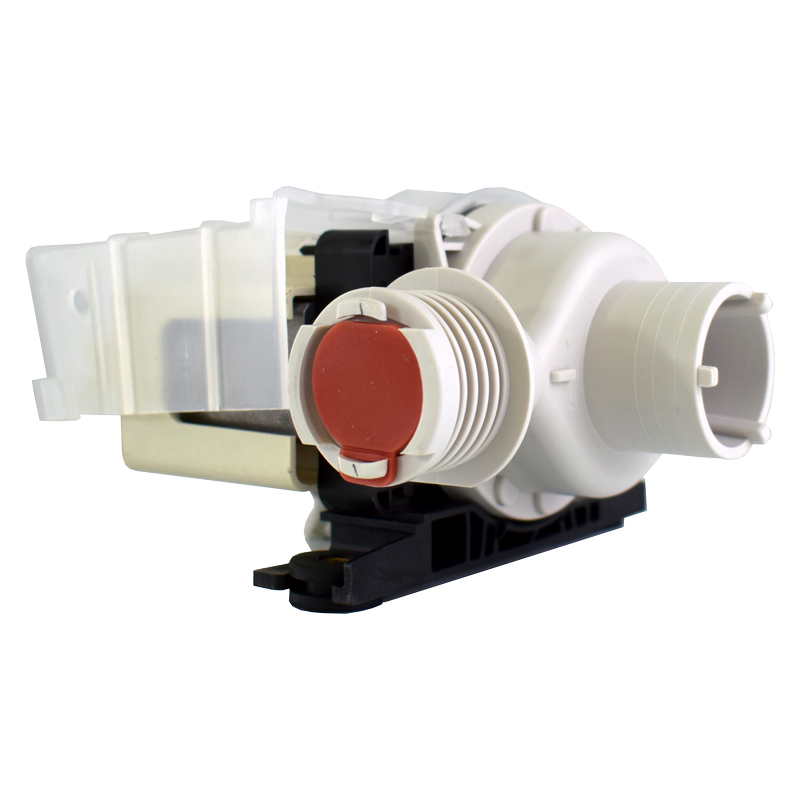

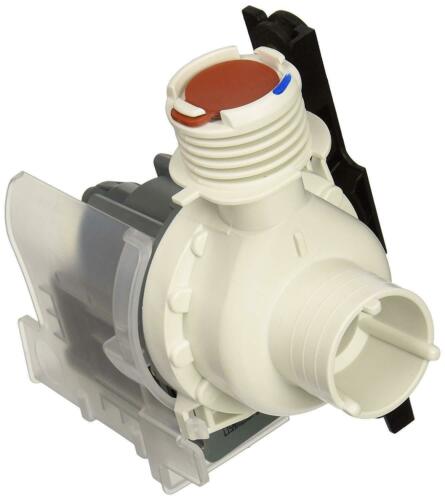

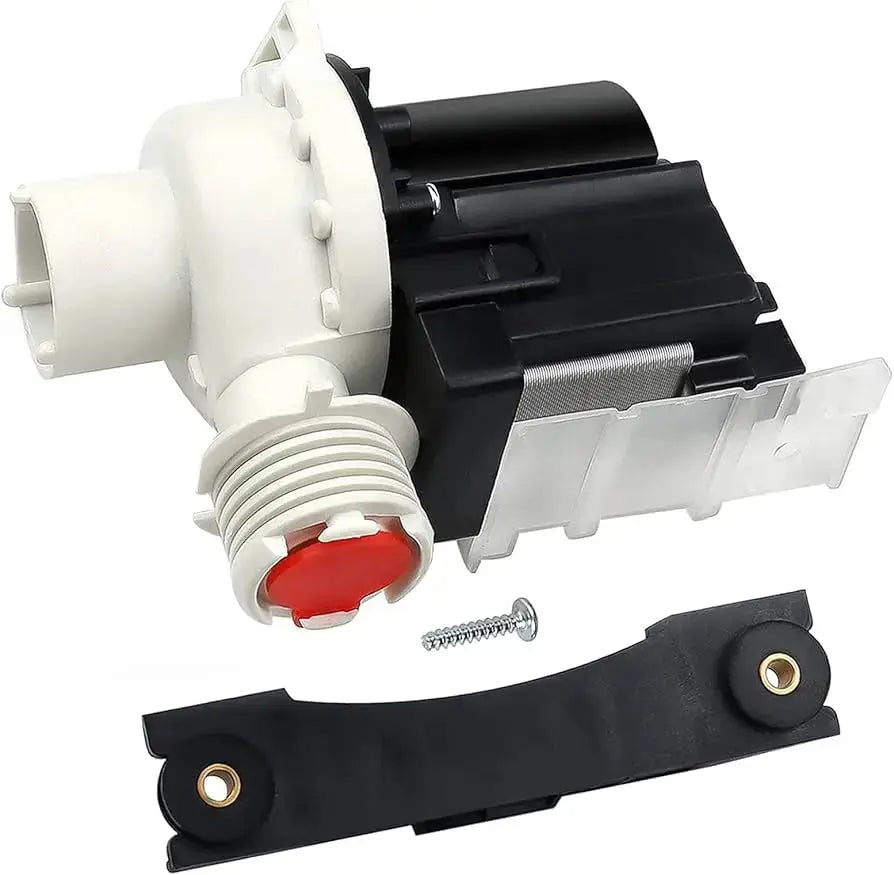

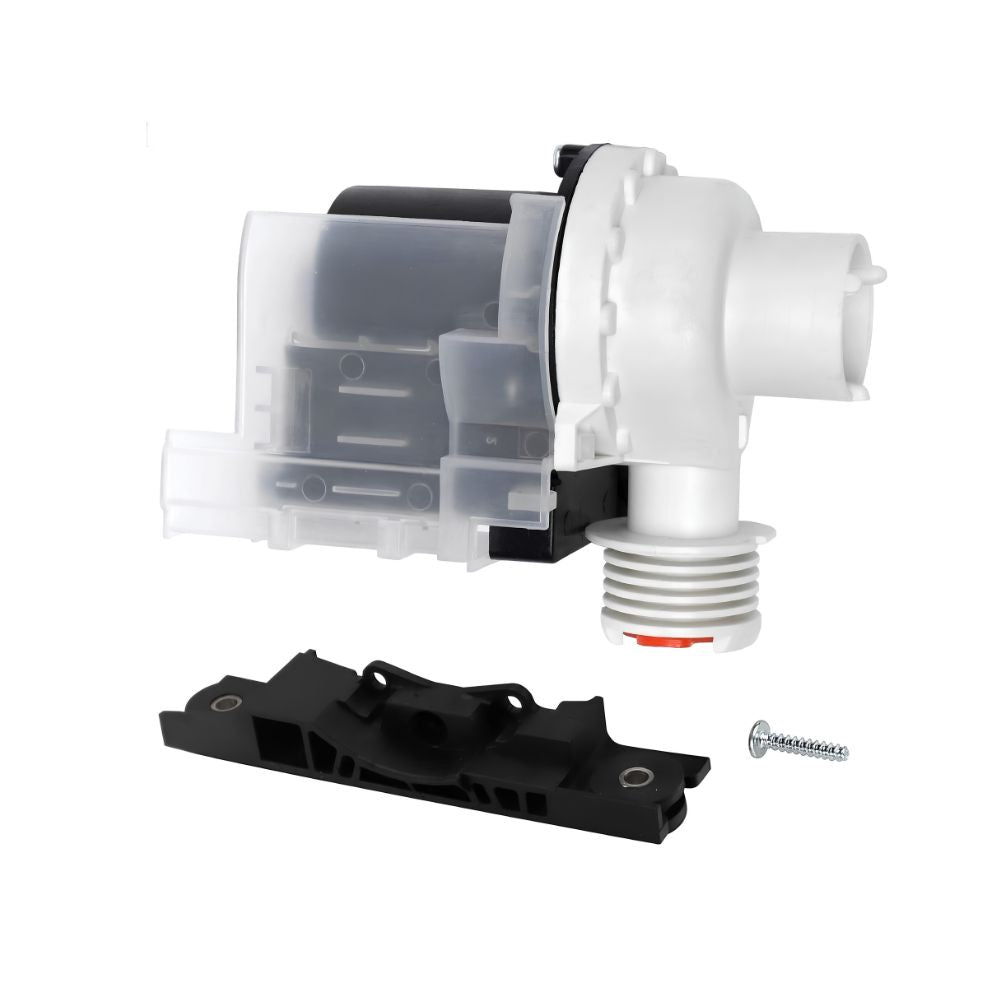

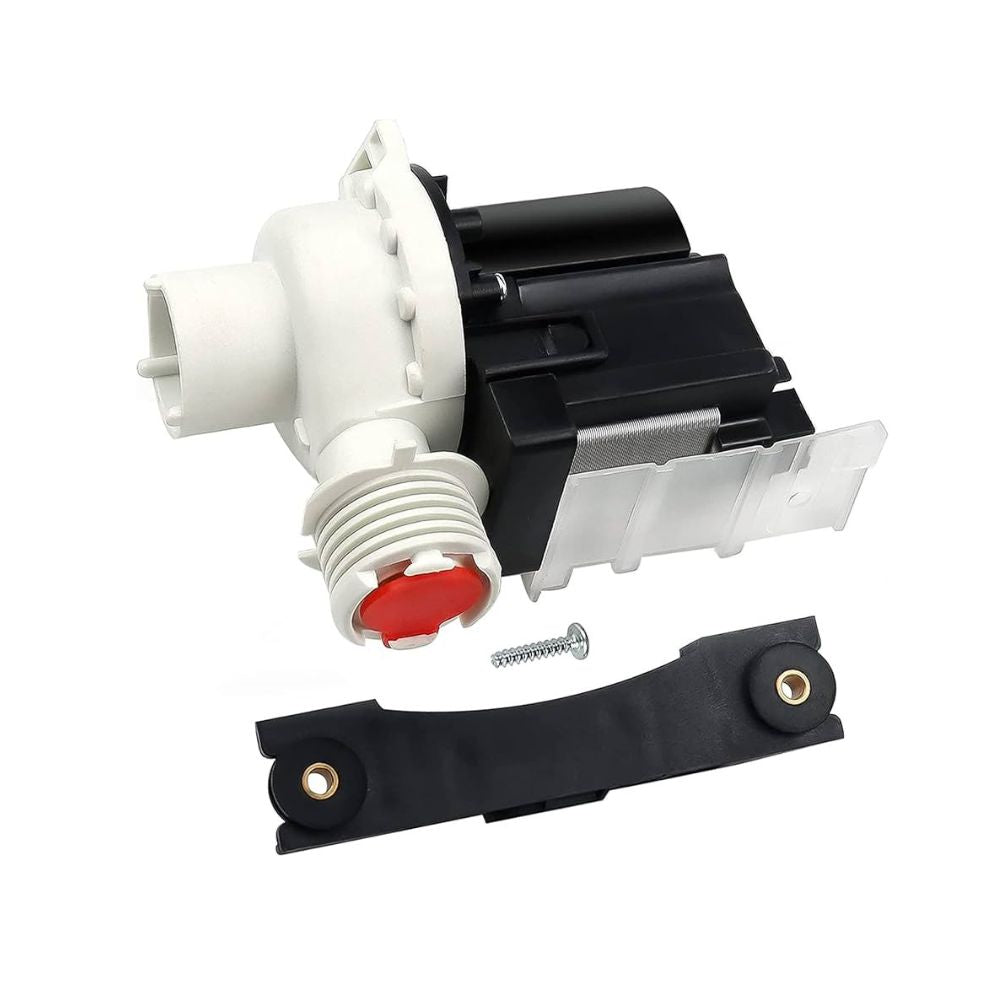

XPARTCO 137221600 Washer Drain Pump
This XPARTCO 137221600 is an aftermarket replacement drain pump for a broad range of Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Kenmore, Tappan, and Westinghouse front-load washers, including Affinity series and washer-dryer combo models. Located at the base of the washer, the pump removes wash and rinse water from the tub through the drain hose at the end of each cycle. If it fails, the washer can't drain, so clothes stay soaking wet, water sits in the tub, and the cycle can't move on to spin. Typical signs of failure include humming without pumping (a blocked or seized impeller), leaks from the pump housing, loud grinding or clicking, and total silence when a drain cycle should be running.
The pump is rated 120V AC, 60Hz, 85W, 1.25A. It follows the Askol M65 design and has a firmly attached red flapper that prevents drain water from flowing back into the tub. The strong, durable plastic body resists cracking and leaking through years of cycling. The package contains the drain pump, mounting base, and mounting screw. This part directly replaces 137108100, 137151800, 137151800KITK, 131724000, 134051200, 134740500, 134740800, 2754548, ER137108100, TJ137108100, EAP7783938, LP1600, BPX401-72J, AP5684706, and PS7783938. Important: before you install the new pump, clean any lint or debris from the rubber boot, make sure the drain hose is clear and securely fastened, and check the pump filter for blockage, because a new pump installed on a system with the underlying blockage will not fix the drainage problem. Installation takes 30–60 minutes with basic hand tools.
Quick Answer
Choose the XPARTCO 137221600 Washer Drain Pump for Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Kenmore, Tappan, and Westinghouse front-load washers that won't drain, leave clothes soaking wet, are noisy or humming during the drain cycle, or display an E11 error code. 120V AC, 60Hz, 85W, 1.25A. Askol M65 design with red backflow flapper. Kit includes pump + mounting base + screw. Replaces 137108100, 137151800, 137151800KITK, 131724000, 134051200, 134740500, 134740800, 2754548, ER137108100, TJ137108100, EAP7783938, LP1600, BPX401-72J, AP5684706, PS7783938.
Common Problems This Part Fixes
- Washer not draining — pump failed to remove water at the end of the wash or rinse cycle
- Clothes left soaking wet at the end of the cycle — no drain, so no spin can start
- Water leaking from the bottom of the washer — cracked pump housing or failed seal
- Loud humming noise but no water flowing — pump motor running against a seized impeller or blockage
- Grinding, clicking, or unusual noises during the drain cycle
- E11 error code displayed on the control panel (drain fault)
- Washer pumps but won't spin — drain cycle can't complete, blocking spin
- Cycles taking much longer than normal as the washer tries to drain
- Pump silent during drain — motor windings open or electrical fault
- Impeller broken, cracked, or missing pieces after opening the pump
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This drain pump directly replaces the following OEM and cross-reference part numbers:
137221600, 131724000, 134051200, 134740500, 137108100, 137151800, 137151800KITK, 2754548, TJ137108100, ER137108100, PD00000118, EAP7783938, BPX401-72J, AFR14249, AP5684706, PS7783938, Also replaces GE WH23X10041, 2119312, WH23X10009, WH23X10017, WH23X10031, WH23X10034, AH3502779, EA3502779, AP5324214, PS3502779.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drain pump is compatible with select front-load washers and washer-dryer combos from the following brands:
- Frigidaire front-load washers — Affinity series (FAFW3001LW3, FAFW3801LW3 and related), FEX831FS2/FS4, FTF2140ES1, FWS445RFS2, FWX445RFS3 series
- Frigidaire front-load washers — ATF6000ES1, ATF8000FS1, ATFB6700FS0 series
- Frigidaire front-load washers — GLTF2940ES3, GLTF2940FS1 and related GLTF series
- Frigidaire washer-dryer combos — CWS3600AS1 and related
- Electrolux front-load washers — select models
- Crosley front-load washers — select models
- Gibson front-load washers — select models
- Kelvinator front-load washers — select models
- Kenmore / Sears front-load washers — select Frigidaire-built models (41744052400, 41744052401, 41744052500, 41744082500, 41748102700, 41748106700, 41748116700, 41790812995 and related 417-series)
- Tappan front-load washers — select models
- Westinghouse front-load washers — select models
Note: The redesigned 137221600 may look slightly different from your original (e.g., white or gray housing vs. original black), but functions identically. Ensure proper orientation and flapper alignment during installation. Always verify your appliance model number before ordering.
Key Features
- Aftermarket replacement built to OEM-equivalent quality standards
- Drain pump — removes water from the washer tub through the drain hose at the end of the wash and rinse cycles
- Resolves "won't drain," "won't spin," "wet clothes," "E11 error," and "humming pump" symptoms
- 120V AC, 60Hz, 85W, 1.25A — correct electrical specifications for compatible Frigidaire-platform washers
- Askol M65 design with red backflow flapper to prevent water from flowing back into the tub
- Strong, durable plastic construction resistant to cracking and leaking
- Kit includes: 1x drain pump, 1x mounting base, 1x mounting screw
- Replaces 15+ OEM and cross-reference part numbers including 137108100, 137151800, 131724000, 134051200, 134740500, 134740800, AP5684706, and PS7783938
- Compatible with Frigidaire (Affinity, FEX, FTF, FWS, FWX, ATF, ATFB, GLTF, CWS series), Electrolux, Crosley, Gibson, Kelvinator, Kenmore (417-series), Tappan, and Westinghouse front-load washers and washer-dryer combos
- DIY repair — installs in 30–60 minutes with basic hand tools
Product Specifications
| Part Number | XP137221600 |
| Part Type | Washer Drain Pump |
| Condition | Aftermarket Replacement |
| Application | Front-Load Washers and Washer-Dryer Combos (Frigidaire/Electrolux platform) |
| Voltage | 120V AC |
| Frequency | 60 Hz |
| Wattage | 85W |
| Amperage | 1.25A |
| Design | Askol M65 with red backflow flapper |
| Material | Durable plastic |
| Includes | 1x Drain Pump, 1x Mounting Base, 1x Mounting Screw |
| Error Codes Resolved | E11 (drain fault) |
| Compatible Brands | Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Kenmore, Tappan, Westinghouse |
Installation Notes
Frequently Asked Questions
My washer won't drain — is it always the pump?
No, not every time. Rule out these common causes before you replace the pump: 1) Clogged pump filter — on most Frigidaire front-load washers it sits behind the lower front kick panel, and coins, buttons, lint, and small items can block it. 2) Kinked or clogged drain hose — check the whole drain hose from the pump to the wall standpipe or sink. 3) Blocked rubber boot — small items can lodge between the tub and the pump inlet. 4) Failed lid lock/door switch — if the washer doesn't sense a locked door, it won't run the drain cycle. If none of these is the culprit and the pump still won't drain (or hums without moving water), the pump has failed and this is the right repair.
What is the E11 error code on my Frigidaire washer?
E11 on Frigidaire and Electrolux front-load washers indicates a drain fault — the control board is not detecting successful drainage within the expected time. Common causes are a failed drain pump, a clogged pump filter, a kinked or clogged drain hose, or debris blocking the impeller. If you've verified the filter and hose are clear but the code persists, replacing the 137221600 drain pump typically resolves it. If the code returns after replacement, check the wire harness between the pump and the control board.
Does the pump come with everything I need for installation?
Yes — the 137221600 (OE) package includes the drain pump itself, a mounting base, and a mounting screw. This is everything you need for the pump replacement itself. However, you should reuse the original hose clamps and hoses from your old pump (they should still be in good condition). If you find that the rubber boot at the base of the tub is cracked, hardened, or torn during the repair, that's a separate part that would need to be ordered — inspect it before completing the reinstallation.
The new pump looks different from my old one — is it the right part?
Very likely, yes. The 137221600 has been through several revisions over its production history — some housings are black, others white or gray, and the exact shape can vary slightly across production runs. As long as the mounting bolt pattern, hose inlet/outlet sizes, and electrical connector are the same, and the specs match (120V, 60Hz, 85W, Askol M65 design), the pump will function identically to your original. During installation, focus on correct orientation and flapper alignment — the flapper (red) must be positioned so it opens outward toward the drain hose direction to prevent backflow.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Frigidaire/Electrolux OEM part, but is manufactured to match the electrical specifications (120V AC, 60Hz, 85W, 1.25A), Askol M65 design, red backflow flapper, dimensions, and drain pump function of the original 137221600 used in compatible Frigidaire, Electrolux, Crosley, Gibson, Kelvinator, Kenmore, Tappan, and Westinghouse front-load washers.
