XPARTCO 00631633 Range Surface Burner Igniter

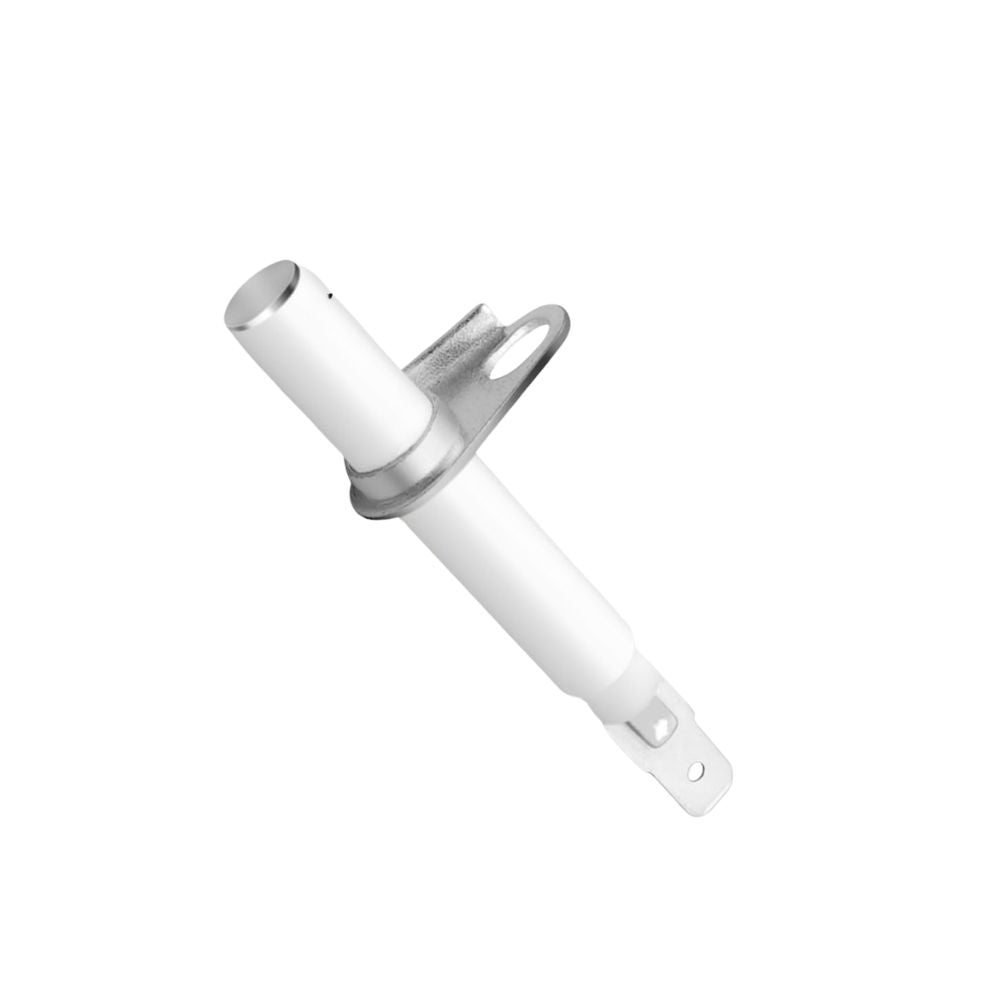

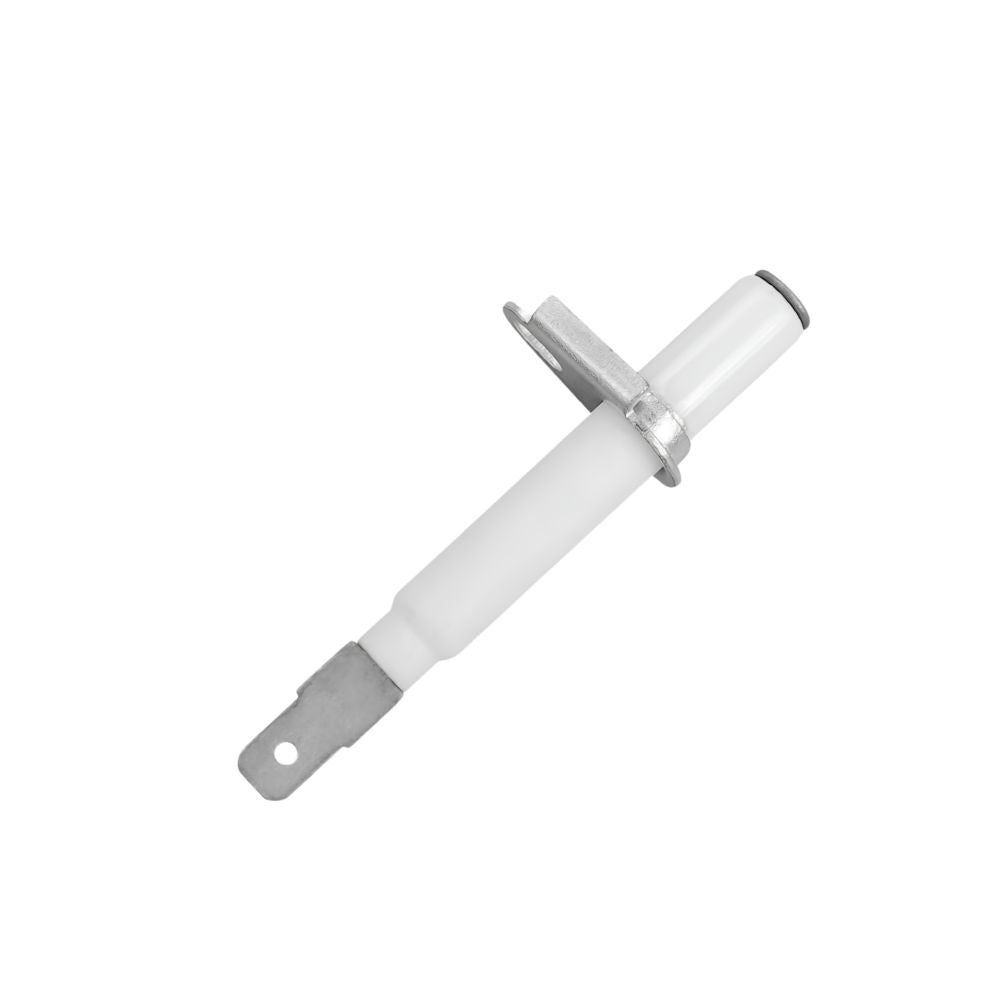

XPARTCO 00631633 Range Surface Burner Igniter Electrode
The XPARTCO 00631633 is an aftermarket replacement gas range surface burner igniter electrode (also called a spark electrode) compatible with select Bosch, Thermador, and Gaggenau gas ranges and cooktops in the HDI, HGI, NGM, NGMP, HDIP, and HGIP series. The surface burner igniter electrode is the ceramic-tipped spark generator located at each gas burner position on the cooktop. When the burner is turned on, the ignition system sends a high-voltage pulse to the electrode, which generates a spark across the ceramic tip to ignite the gas flowing from the burner. When the electrode cracks, chips, or becomes contaminated with grease or food residue, the burner may fail to light, click continuously without igniting, or spark intermittently.
This replacement electrode is constructed from high-quality ceramic and metal — the ceramic insulator body withstands the thermal cycling of repeated ignition, while the metal spark tip maintains reliable spark gap geometry over time. Sold individually — one electrode per order. It directly replaces AP5950372, 4162041, and PS10057850. Because a gas range typically has four or more burners with individual electrodes, compare your existing electrode's dimensions and mounting configuration before ordering to ensure a correct fit. Installs in minutes — no tools required in most cases.
Quick Answer
The XPARTCO 00631633 Range Surface Burner Igniter Electrode fixes Bosch, Thermador, and Gaggenau gas ranges where a surface burner won't light, clicks repeatedly without igniting, or sparks intermittently. Ceramic and metal construction. Sold individually — one electrode per order. Compatible with Bosch HDI, HGI, NGM, NGMP, HDIP, HGIP series. Replaces AP5950372, 4162041, PS10057850. Compare dimensions to your original before ordering — each burner position uses the same electrode style on compatible models.
Common Problems This Part Fixes
- Gas burner will not light when the knob is turned
- Burner clicks repeatedly without igniting the gas
- Burner sparks intermittently — fires once or twice but does not sustain ignition
- Igniter clicks continuously even when the burner knob is in the off position
- One burner not lighting while other burners on the same range work normally
- Electrode tip visibly cracked, chipped, or heavily contaminated with baked-on grease
- Weak or inconsistent spark — arc not reaching the burner port reliably
Replaces Part Numbers
This igniter electrode directly replaces the following OEM and cross-reference part numbers:
00631633, 631633, ABS11789, AP5950372, EAP10057850, PD00044775, PS10057850
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This igniter electrode is compatible with select gas ranges and cooktops from the following brands and series:
- Bosch gas ranges — HDI8054U, HDI8056U, HGI8046UC, HGI8054UC, HGI8056UC series
- Bosch gas ranges — HDIP054U, HDIP056U, HGIP054UC, HGIP056UC series
- Bosch gas cooktops — NGM5055UC, NGM5455UC, NGM5655UC, NGM8055UC, NGM8065UC, NGM8655UC, NGM8665UC, NGMP055UC, NGMP655UC series
- Thermador gas ranges and cooktops (select models using the same electrode style)
- Gaggenau gas ranges and cooktops (select models using the same electrode style)
Note: Before ordering, compare your existing igniter electrode's physical dimensions and mounting configuration to confirm this electrode is the correct fit for your burner position. Always verify your exact model number. If you are unsure, contact our support team with your model number for confirmation.
Key Features
- Ceramic and metal spark electrode — generates the high-voltage spark that ignites the gas burner when the knob is turned
- High-quality ceramic insulator body — withstands repeated thermal cycling without cracking under normal use
- Durable metal spark tip — maintains reliable spark gap geometry for consistent ignition
- Replaces AP5950372, 4162041, and PS10057850
- Compatible with Bosch HDI, HGI, NGM, NGMP, HDIP, and HGIP series gas ranges and cooktops
- Also compatible with select Thermador and Gaggenau gas ranges and cooktops
- Sold individually — one electrode per order; order as many as needed for your burner positions
- Aftermarket replacement built to OEM-equivalent quality standards
- Quick DIY repair — installs in minutes, no special tools required in most cases
Product Specifications
| Part Number | 00631633 |
| Also Known As | 631633 |
| Part Type | Gas Range Surface Burner Igniter Electrode (Spark Electrode) |
| Condition | Aftermarket Replacement |
| Application | Gas Ranges and Cooktops |
| Material | Ceramic / Metal |
| Color | White |
| Sold As | Single electrode — order quantity as needed |
| Compatible Brands | Bosch, Thermador, Gaggenau |
Installation Notes
Frequently Asked Questions
What does the surface burner igniter electrode do?
The igniter electrode is the component that creates the spark to light each gas burner. When you turn a burner knob past the "lite" position, the range's electronic ignition module sends a series of high-voltage pulses through the igniter wiring to the electrode at that burner. The electrode generates a visible spark across its ceramic tip to the grounded burner cap or burner head, and that spark ignites the gas flowing from the burner ports. Each burner position has its own dedicated electrode — failure of one electrode affects only that burner, while other burners on the same range continue to work normally.
My burner clicks constantly even when turned off — is it the electrode?
Constant clicking when a burner is in the off position is almost always caused by moisture or food residue in the igniter system rather than a failed electrode. When liquid boilover or steam gets into the burner cap area or electrode housing, it can cause the ignition module to fire continuously. Remove the burner cap and grate from the affected burner and allow everything to dry thoroughly — an hour in a warm oven (electric only, turned off) can help. Wipe the electrode tip clean with a dry cloth. If clicking persists after the components are completely dry and clean, the electrode or the ignition module may have been damaged by the moisture and needs replacement.
How many electrodes do I need for my Bosch range?
Most Bosch gas ranges have four surface burners, each with its own dedicated igniter electrode — so a full cooktop replacement typically requires four electrodes. This listing is for one electrode. If only one burner is not lighting, you likely only need one replacement. If multiple burners are failing, order one electrode for each affected burner. Because the electrodes on compatible Bosch models use the same part number across all burner positions, one order of multiple quantities covers all positions.
Can I clean the electrode instead of replacing it?
Yes — a contaminated or greasy electrode can often be cleaned successfully rather than replaced. Remove the electrode from the burner area and gently clean the ceramic tip and metal contact with a dry cloth or a soft toothbrush. Do not use water or liquid cleaners directly on the electrode — moisture in the ceramic can cause persistent clicking. If the ceramic body is cracked or the metal tip is corroded or missing, replacement is required. If the ceramic is intact and clean but the spark is still weak or absent, the electrode's spark gap geometry may have changed from thermal expansion and a replacement is the better fix.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Bosch OEM part, but is manufactured from high-quality ceramic and metal to match the dimensions and spark performance of the original 00631633 igniter electrode.
