XP30A-FB Ceramic Line Fuse, Fast Blow, 30A - 6.35 x 32 mm
- Sku:
- XP30A-FB
- Vendor:
- XPARTCO
Have a question?
XP30A-FB Ceramic Line Fuse, Fast Blow, 30A - 6.35 x 32 mm
XP30A-FB Ceramic Line Fuse, Fast Blow, 30A - 6.35 x 32 mm
The XP30A-FB is a replacement fast-blow ceramic line fuse rated 30A, measuring 6.35 x 32 mm (about 1/4" x 1-1/4"). A line fuse sits in the incoming power path of an appliance. It does nothing while current stays within its rating, but if a short circuit or overload pushes current past the rating, the element inside melts and opens the circuit, protecting the components behind it. A blown line fuse is a common reason an appliance goes completely dead.
This is a rating-based fuse, sold by amperage, speed, body, and size rather than by appliance brand, so it fits any appliance whose fuse holder and original fuse match 30A, fast blow, ceramic, 6.35 x 32 mm. A fuse usually blows because of a problem elsewhere in the appliance, so it is worth finding the cause as part of the repair.
Quick Answer
The XP30A-FB Ceramic Line Fuse is a 30A, fast-blow, 6.35 x 32 mm ceramic fuse that replaces a blown fuse of the same rating and size. Match the rating and size printed on your old fuse before ordering. Classic symptom: the appliance is completely dead, with no lights, display, or response, and the old fuse tests open.
Common Problems This Part Fixes
- Appliance completely dead, with no lights or display
- Appliance stopped working suddenly after a power surge or fault
- Old fuse tests open (no continuity) or looks blackened
- Keeping a rated spare on hand for repairs
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This fuse is sold under the following part number and rating:
XP30A-FB, 30A Fast Blow, 6.35 x 32 mm, ABC-30, BK/ABC-30, 0ADEC9300-BE, 0314030.MX52LP, BK-AHC-30-R, BK-AHCF-V-30-R
This is a rating-based fuse, so there is no single manufacturer part number. Match your appliance's fuse by the rating and size marked on the old fuse or listed in your service manual.
Compatibility
This fuse is for appliances that use a:
- 30A, fast-blow (fast-acting) ceramic fuse

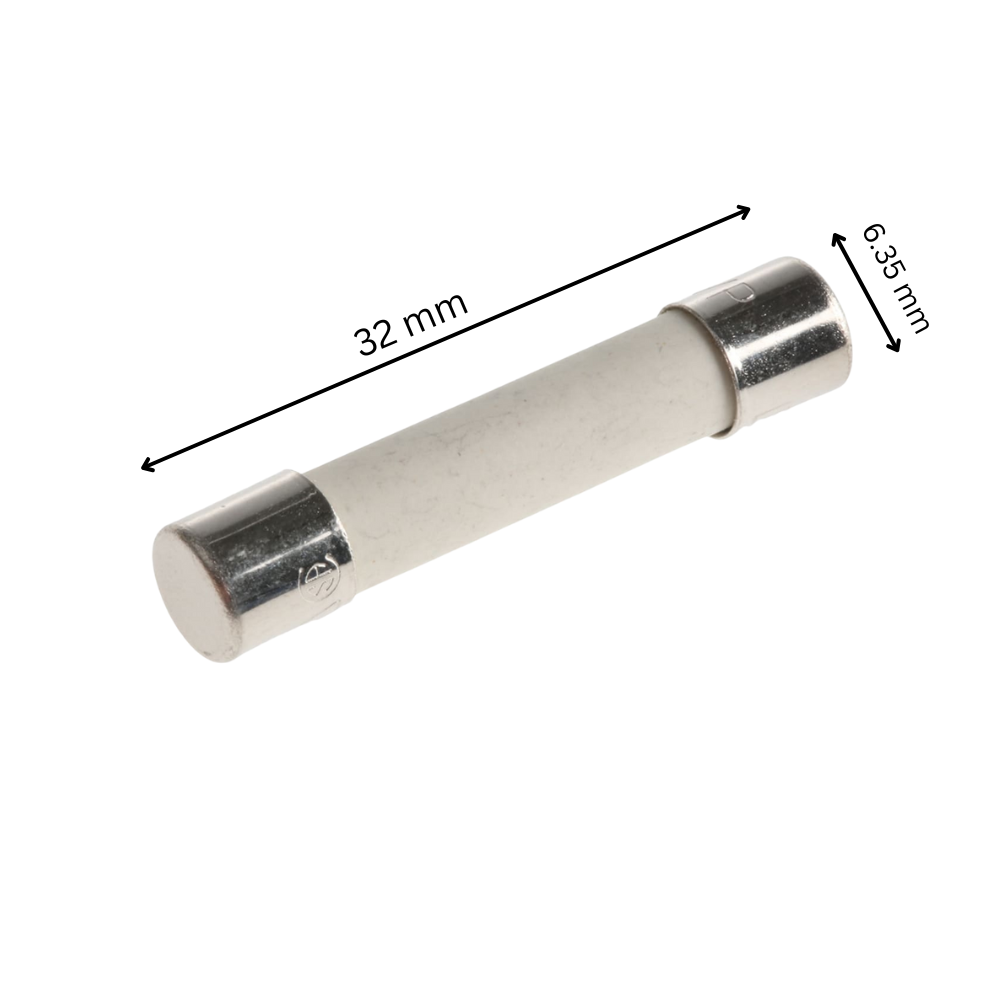

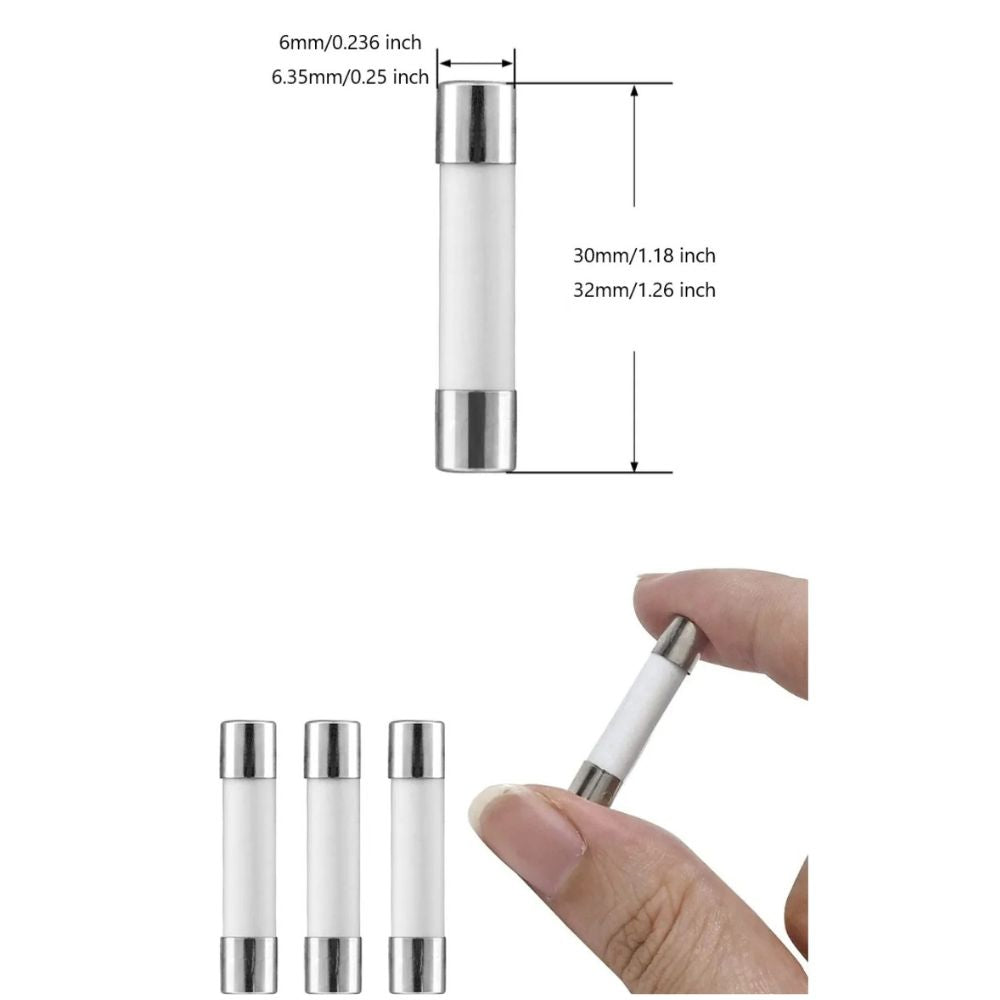

- 6.35 x 32 mm fuse size (about 1/4" x 1-1/4")
Note: The amperage, speed, body, size, and voltage rating must all match the original fuse. Never substitute a higher-amperage fuse to stop it from blowing, since that removes the protection the fuse provides. Check the markings on your old fuse or your service manual, and contact our support team with your model number if you're unsure.
Key Features
- Replacement ceramic line fuse, 30A
- Fast-blow (fast-acting): opens quickly once the rating is exceeded
- 6.35 x 32 mm size
- Overcurrent protection for the appliance's incoming power circuit
- Sold by rating, so it suits any appliance that calls for a 30A fast-blow ceramic fuse of this size
Product Specifications
| Part Number | XP30A-FB |
| Part Type | Ceramic Line Fuse |
| Condition | Aftermarket Replacement |
| Current Rating | 30A |
| Response Speed | Fast Blow (Fast-Acting) |
| Body Material | Ceramic |
| Fuse Size | 6.35 x 32 mm |
Installation Notes
Frequently Asked Questions
My appliance is dead. Is this the part I need?
A blown line fuse is one possible cause. Check the old fuse for continuity with the appliance unplugged. If it is open, replace it with a fuse of the same rating and size, and find out why it blew.
The new fuse blew right away. What's wrong?
A fuse blows because something drew more current than it should, so repeated blowing usually points to a short circuit or a failed component. Don't keep replacing it, and don't fit a higher-rated fuse. Have the appliance diagnosed.
What does fast blow mean?
A fast-blow (fast-acting) fuse opens quickly once its rating is exceeded, rather than tolerating a brief surge the way a slow-blow fuse does. Replace a fast-blow fuse with another fast-blow fuse.
Will this fit my appliance?
It fits if your fuse holder and original fuse are 30A, fast blow, ceramic, 6.35 x 32 mm. Check the markings on your old fuse, or contact our support team with your model number and we'll help you confirm before you order.
