WP3387747 Dryer Genuine OEM Heating Element
Product Description

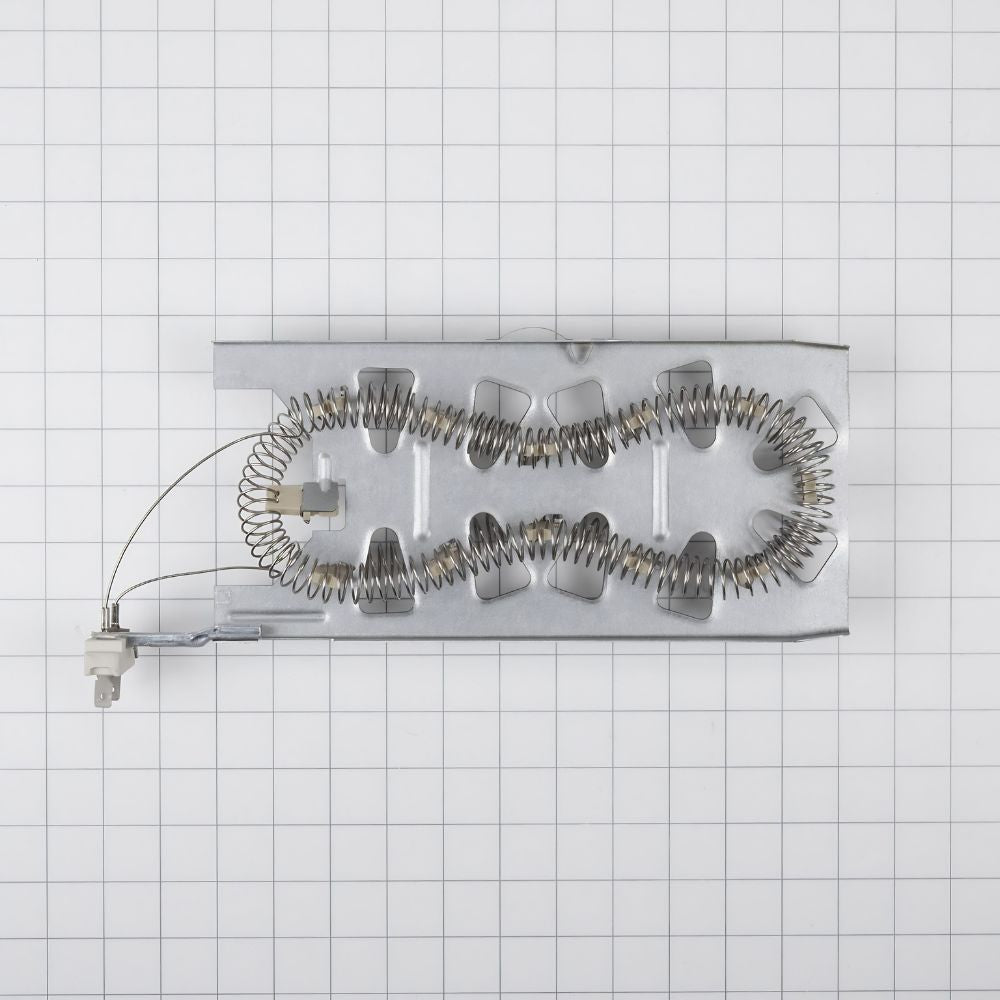

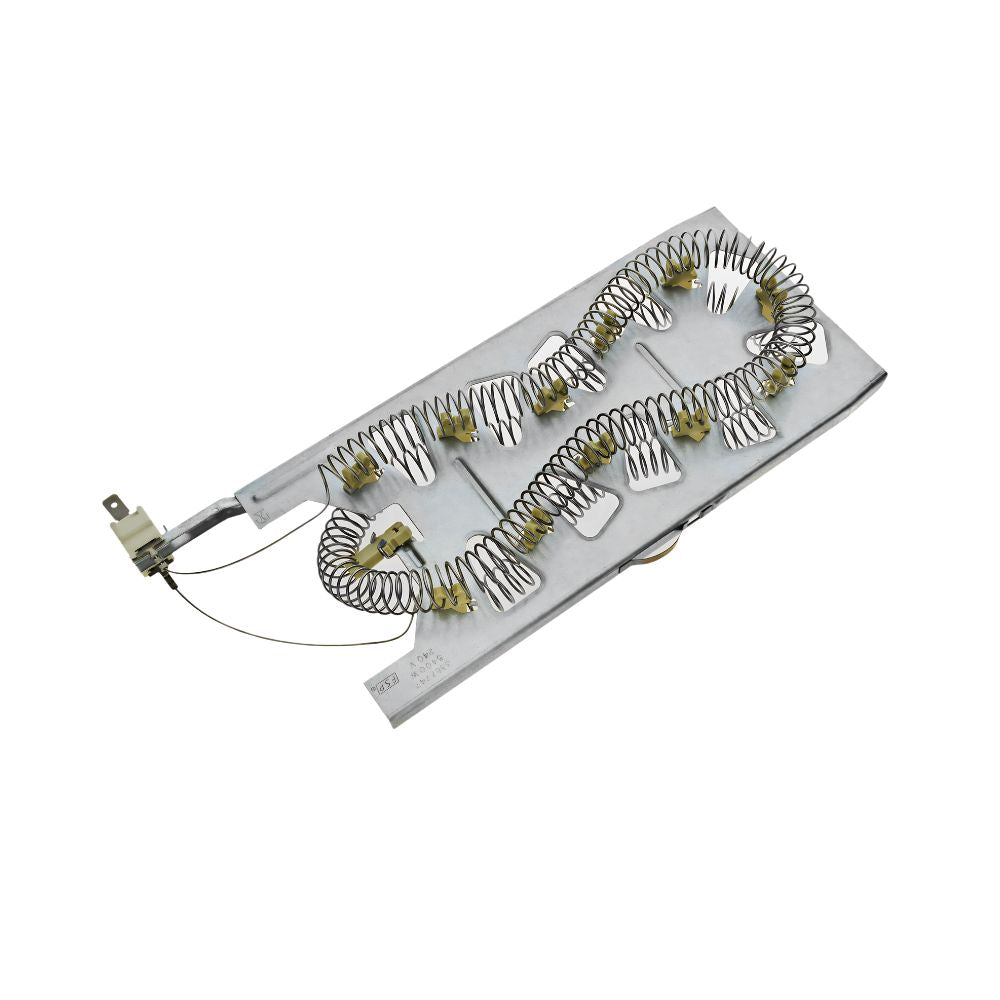

WP3387747 is the Genuine OEM heating element replacement coil for compatible Whirlpool-platform electric dryers. The heating element is the resistive coil assembly that converts electrical energy into the heat used to dry clothes — it consists of a nichrome wire coil threaded through porcelain insulators mounted on a metal frame. When current flows through the coil, it heats to several hundred degrees and warms the air driven through the dryer system by the blower fan.
Express Parts Direct carries this as a direct OEM replacement from Whirlpool. The WP3387747 supplies the coil and insulators; the metal housing from the existing assembly must be reused during installation. This element is compatible with electric dryers sold under Whirlpool, Kenmore, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Inglis, and Crosley. When an electric dryer runs but produces no heat, a failed heating element is among the most common causes — along with a blown thermal fuse.
Quick Answer
WP3387747 is the Genuine OEM Whirlpool dryer heating element for compatible electric dryers. It fits models sold under Whirlpool, Kenmore, Maytag, KitchenAid, Jenn-Air, Amana, and other Whirlpool-platform brands. Use this part when the dryer runs but generates no heat and the element coil tests open on a multimeter.
Common Symptoms This Part Fixes
- Electric dryer runs and tumbles but produces no heat
- Clothes still wet after a full drying cycle
- Dryer heats intermittently — works for part of the cycle then stops
- Heating element coil shows a visible break or burn point when inspected
- Multimeter reads open (no continuity) across the element terminals
- Dryer overheating — element remains energized after cycle ends (shorted coil)
Replaces Part Numbers
WP3387747, 3387747, 80003, W11045584, W11344457, WP3387747VP, AP6008281, EAP11741416, PD00002365, PS11741416
Compatibility
Fits electric dryers built on the Whirlpool manufacturing platform, sold under these brand names:
Whirlpool, Kenmore, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Inglis, Crosley. Confirm your model number before ordering.
Key Features
- Genuine Whirlpool OEM — factory-manufactured replacement, not aftermarket
- 240V, 5200W — matches original electrical specifications
- 5/16" quick-connect terminals — direct wire reconnection, no special tools
- Coil and insulators included — fits into the original heating element housing
- Covers 12+ brand names on the Whirlpool platform
Specifications
| Part Number |
WP3387747 |
| Part Type |
Dryer Heating Element |
| Designation |
Genuine OEM |
| Manufacturer |
Whirlpool |
| Voltage |
240V |
| Wattage |
5200W |
| Terminal Size |
5/16" Quick-Connect |
| Compatible Brands |
Whirlpool, Kenmore, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Inglis, Crosley |
| Application |
Electric Dryer |
⚠ Installation Note: Always disconnect the dryer from its 240V power supply and confirm the breaker is off before accessing any internal components. Test the thermal fuse before ordering this element — a blown thermal fuse is a frequent no-heat cause and is inexpensive; if the fuse is open, replace it first. This part is the coil and insulators only — the original housing must be reused.
Frequently Asked Questions
How do I find my dryer's model number to confirm this element will fit?
On most Whirlpool-platform dryers, the model and serial number data tag is located on the inside of the door frame — look along the left side or top of the door opening when the dryer door is open. Some models have the tag on the back panel near the top. The model number typically begins with letters followed by several digits. Once you have it, cross-reference it against the compatibility list for WP3387747 before placing your order.
Should I replace the thermal fuse at the same time as the heating element?
If the thermal fuse blew and caused the no-heat condition (which is very common), you need to replace the fuse whether or not the element is also failed. The fuse and element are separate parts — a blown fuse does not automatically mean the element is bad, and a failed element doesn't necessarily blow the fuse. Test each with a multimeter: the fuse should read continuity; the element should read continuity. Replace whichever tests open. Many techs recommend replacing both at once since they're accessed in the same area and the fuse is inexpensive — doing so eliminates a return visit if the second part later fails.
Why did my heating element fail, and will it fail again after I replace it?
The most common root cause is restricted airflow — lint buildup in the exhaust duct, a kinked vent hose, or a blocked exterior vent causes heat to concentrate inside the dryer. Without normal airflow to carry heat away, the element runs hotter than its design limit and eventually burns through. Before installing the new element, clean the full exhaust path from the dryer to the wall and check the exterior vent flap for obstructions. A dryer that exhausts freely will not overheat the element, and the new element should last for many years under normal use.
Is WP3387747 compatible with both Whirlpool top-load and front-load dryers?
WP3387747 fits a wide range of Whirlpool-platform dryers across both stacked and freestanding configurations. Compatibility depends on the specific model number, not the loading style. Some models use a different element part number. The definitive check is your model number — verify it against the parts diagram for your specific model before ordering, since the same manufacturer uses different elements across different product lines.
Do I need to remove the drum to access the heating element?
On most Whirlpool-platform dryers, the heating element assembly is accessed through the back panel — no drum removal is necessary. The back panel is held by several screws, and once removed, the element housing is visible and accessible. The housing is secured by one or two screws, and the wire harness connectors pull free from the terminals. The entire job is typically done from the rear of the dryer without disturbing the drum or front panel. Check a model-specific diagram to confirm the access point for your particular model before starting.
