WH23X28418 Washer Genuine OEM Drain Pump
WH23X28418 Washer Genuine GE OEM Drain Pump

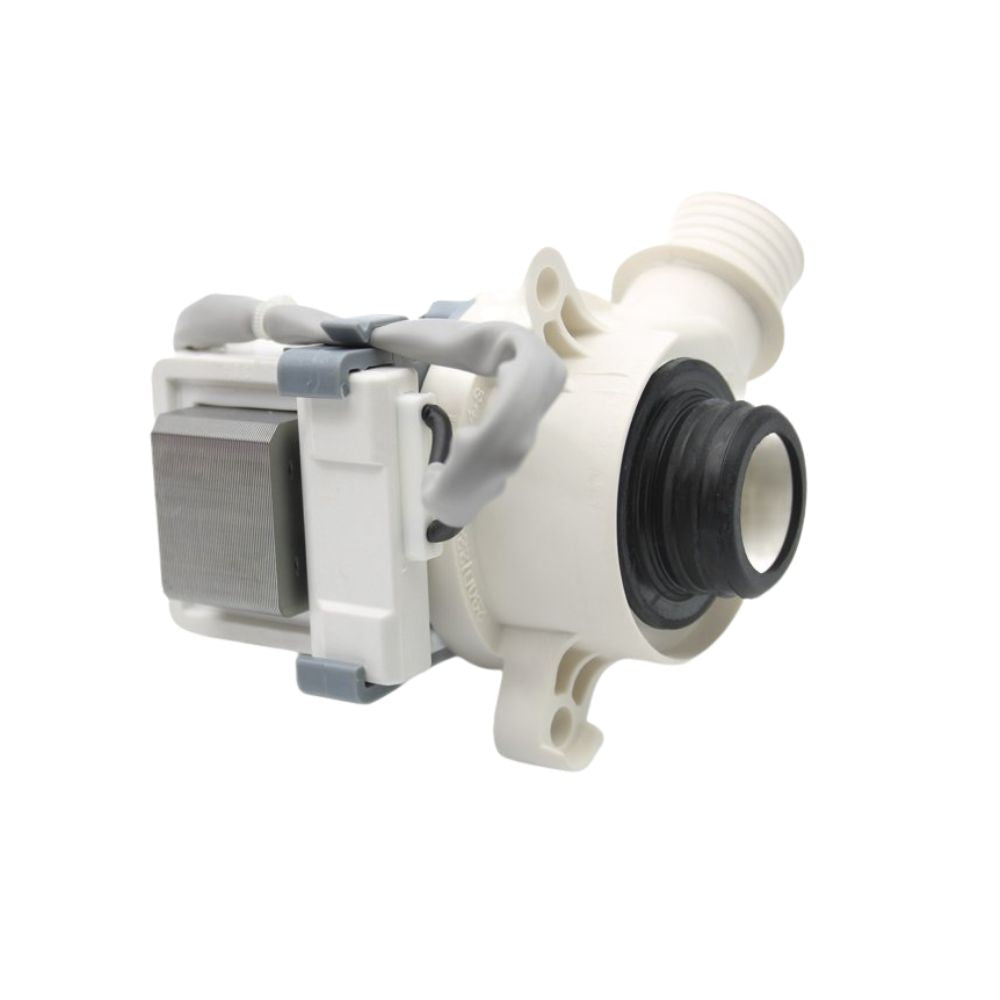

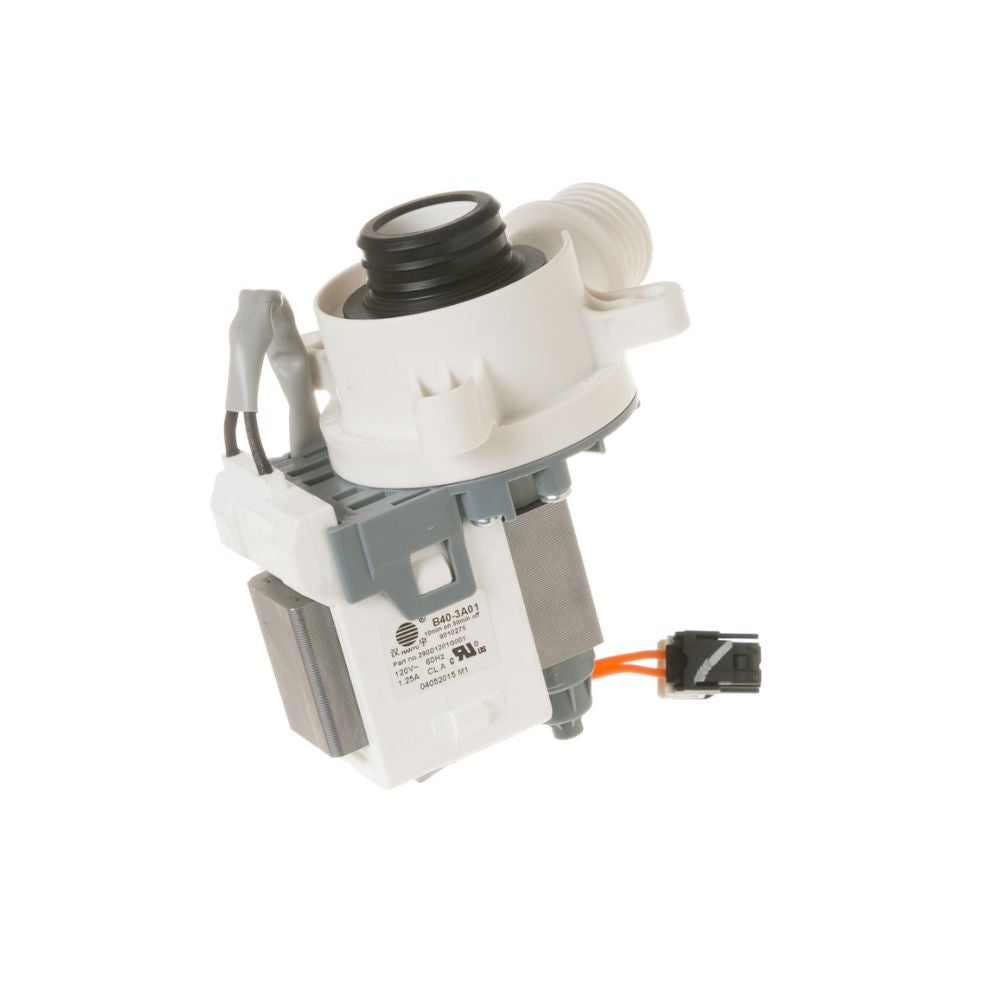

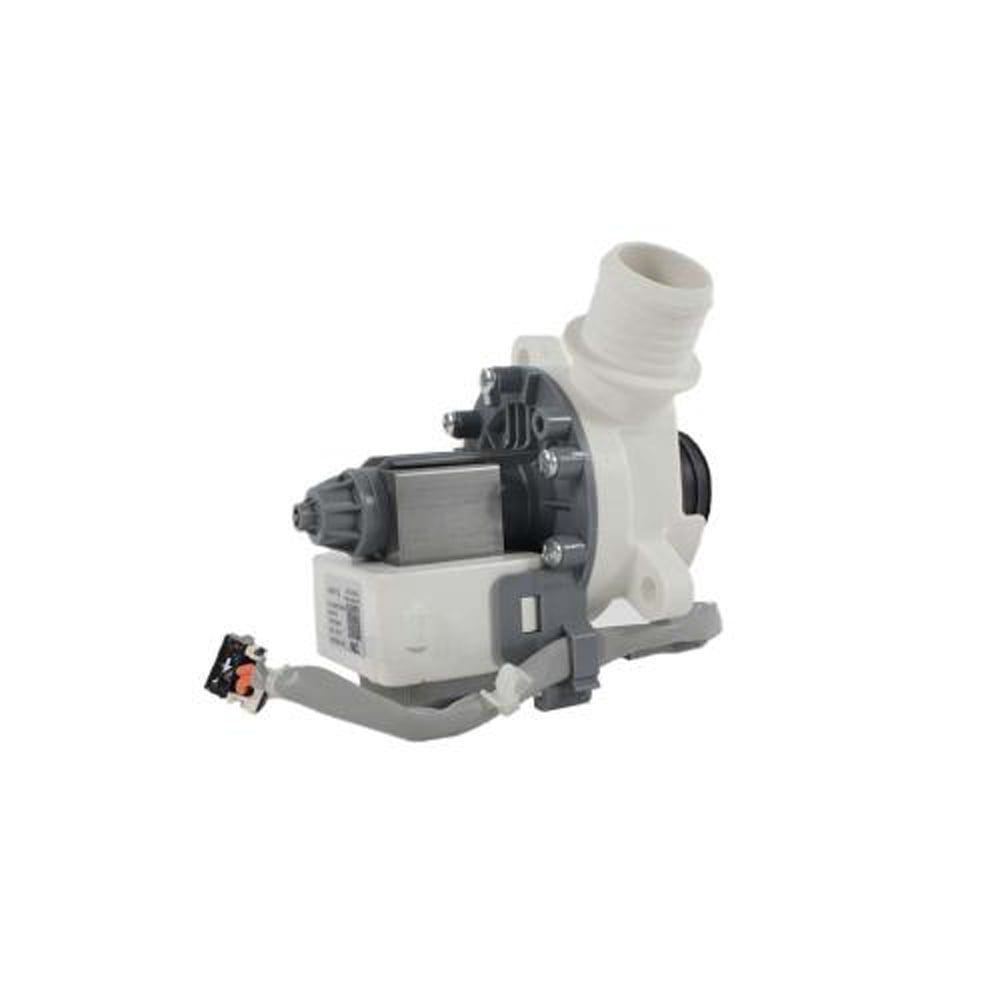

The WH23X28418 is a Genuine GE OEM replacement drain pump and motor assembly compatible with select GE, Hotpoint, Haier, RCA, and Kenmore top-load and front-load washers. The drain pump removes water from the washer drum during the drain and spin cycles — expelling water and detergent through the drain hose so that clothing comes out clean and free of excess water. When the pump fails, the washer will not drain, may leave standing water in the tub, or may produce loud noises during the drain cycle.
This complete drain pump and motor assembly is rated at 120V, 60Hz, 1.25A with a duty cycle of 10 minutes on and 50 minutes off. It includes the pump and motor with harness — the harness and plug extend approximately 10 inches from the motor. The pump measures 5-1/4" L x 5-1/8" W x 5-1/2" H and includes a drain pump seal. It directly replaces WH23X24178 and WH23X27574, as well as several additional cross-reference numbers. Installs in 20–40 minutes with basic hand tools.
Quick Answer
The WH23X28418 Washer Genuine GE OEM Drain Pump fixes GE, Hotpoint, Haier, and RCA washers that won't drain, leave standing water in the tub, are noisy during draining, or leak around the pump area. Complete pump and motor with harness and drain pump seal. 120V/60Hz/1.25A. Dimensions 5-1/4" L x 5-1/8" W x 5-1/2" H; harness extends approx. 10". Replaces WH23X24178 and WH23X27574.
Common Problems This Part Fixes
- Washer not draining — standing water remaining in the tub after a cycle
- Washer stopping mid-cycle due to a drain fault or drain-related error code
- Loud humming, grinding, or buzzing noise during the drain cycle
- Washer pumps but will not spin — pump failure preventing cycle completion
- Water leaking from around the drain pump area
- Clothes not clean or coming out soaking wet due to incomplete drainage
- Pump impeller jammed by debris causing motor burnout
Replaces Part Numbers
This drain pump directly replaces the following OEM and cross-reference part numbers:
WH23X24178, WH23X28418, WH23X27574, 290D1201G001, 290D1201G002, 290D1201G003, AGE26155, B40-3A01, B30-3A02, PD00055680, EAP12723115, AP6889136, PS12723115.
WH23X28418 is the current updated part number replacing the discontinued WH23X24178 and WH23X27574. If your washer documentation or old pump label shows either of those numbers, this is the correct replacement.
Compatibility
This drain pump is compatible with select washers from the following brands and series:
- GE top-load washers — GTW220, GTW330, GTW335, GTW460, GTW465, GTW485, GTW490, GTW500, GTW680, GTW720, GTW725, GTW750 series and others
- GE front-load washers — select GFW series models
- Hotpoint top-load washers — HTW200, HTW240 series and others
- Haier top-load washers — select models
- RCA top-load washers — select models
- Kenmore / Sears washers — select GE-built models
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Removes water and detergent from the washer drum during drain and spin cycles
- Complete assembly — includes pump motor, harness, and drain pump seal
- Rated 120V, 60Hz, 1.25A with a 10-minute on / 50-minute off duty cycle
- Dimensions: 5-1/4" L x 5-1/8" W x 5-1/2" H; harness and plug extend approximately 10" from motor
- Plastic and metal construction rated CL.A — durable and chemical resistant
- Includes drain pump seal to prevent leaks at the pump connection
- Current updated replacement for discontinued WH23X24178 and WH23X27574 — direct fit
- Note: The drain pump motor has been redesigned by the manufacturer — the replacement may look different from the original but fits and functions identically
- Genuine GE OEM part — factory-exact fit, materials, and specifications
- DIY-friendly repair — installs in 20–40 minutes with basic hand tools
Product Specifications
| Part Number | WH23X28418 |
| Supersedes | WH23X24178, WH23X27574 (both discontinued) |
| Part Type | Washer Drain Pump and Motor Assembly |
| Condition | Genuine OEM |
| Application | GE, Hotpoint, Haier, RCA Top-Load and Front-Load Washers |
| Voltage | 120V AC |
| Frequency | 60 Hz |
| Amperage | 1.25A |
| Rating | CL.A |
| Duty Cycle | 10 minutes ON / 50 minutes OFF |
| Dimensions | 5-1/4" L x 5-1/8" W x 5-1/2" H |
| Harness Length | Approximately 10 inches from motor |
| Color | White / Black / Gray |
| Material | Plastic / Metal |
| Includes | Pump and motor with harness, drain pump seal |
| Compatible Brands | GE, Hotpoint, Haier, RCA, Kenmore |
Installation Notes
Frequently Asked Questions
What is the relationship between WH23X28418, WH23X24178, and WH23X27574?
All three are GE washer drain pumps — WH23X28418 is the current updated part number that replaced both the discontinued WH23X24178 and WH23X27574. GE redesigned the pump motor during its production cycle, so the replacement may look slightly different from the original, but it fits and functions identically. If your washer uses either of the older numbers, order WH23X28418.
How do I know if my washer drain pump has failed?
The most common signs are standing water in the tub after a cycle, the washer stopping mid-cycle with a drain error, or loud humming during the drain phase — which indicates the motor is running but the impeller is not moving. A grinding or rattling noise suggests debris in the pump or physical damage. If the pump is completely silent during what should be the drain cycle, the motor has likely burned out and the pump needs replacement.
Does the WH23X28418 fit both top-load and front-load GE washers?
The WH23X28418 is primarily used in GE and Hotpoint top-load washers — the GTW and HTW series make up the majority of compatible models. It also fits select GE front-load models. Always verify your specific model number before ordering to confirm compatibility for your washer type.
What is the duty cycle rating and why does it matter?
The duty cycle of 10 minutes on / 50 minutes off means the pump motor is rated for up to 10 consecutive minutes of operation before requiring a 50-minute rest period. In normal washer operation this is never an issue — drain cycles are brief. However, if a drain fault causes the pump to run continuously without successfully draining, the motor can overheat. If you replace the pump due to burnout and the new pump also fails quickly, check for a drain hose blockage or control board fault that may be causing the pump to run without limit.
Is this an OEM or aftermarket part?
This is a Genuine OEM part manufactured by GE to factory specifications — the exact same drain pump and motor assembly installed in compatible models from the factory, with guaranteed fit, materials, and performance.
