W11210459 Washer Genuine Water Inlet Valve

List Price:  $80.90
$69.80
 per

FREE SHIPPING TO ALL 48 CONTIGUOUS STATES
Free standard shipping at checkout.

CHECK YOUR MODEL COMPATIBILITY

Enter your appliance model number to check if this part is listed as compatible.

Need help finding your model number?

Guaranteed safe checkout

Product description

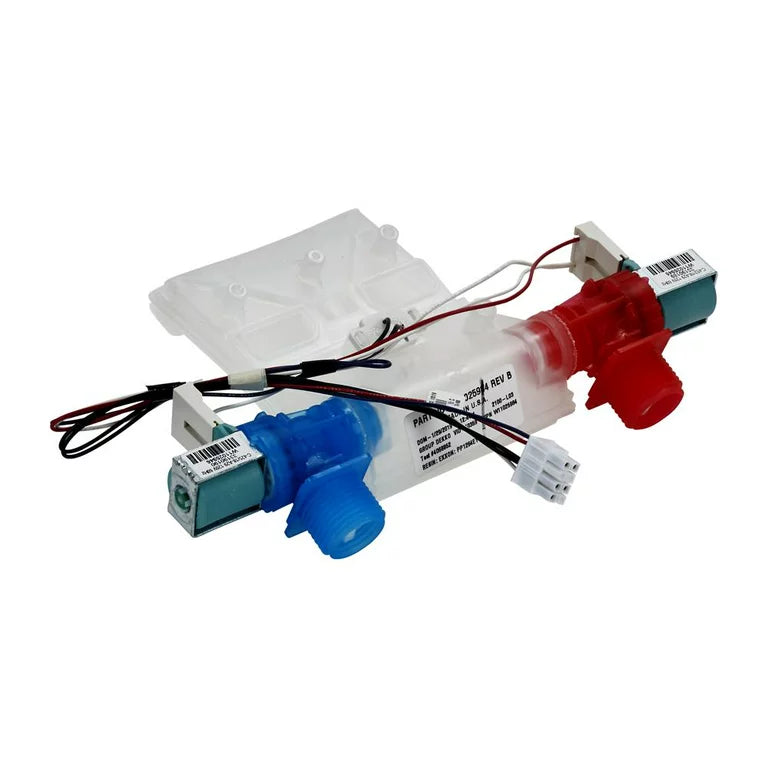

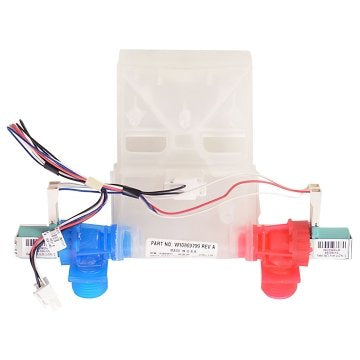

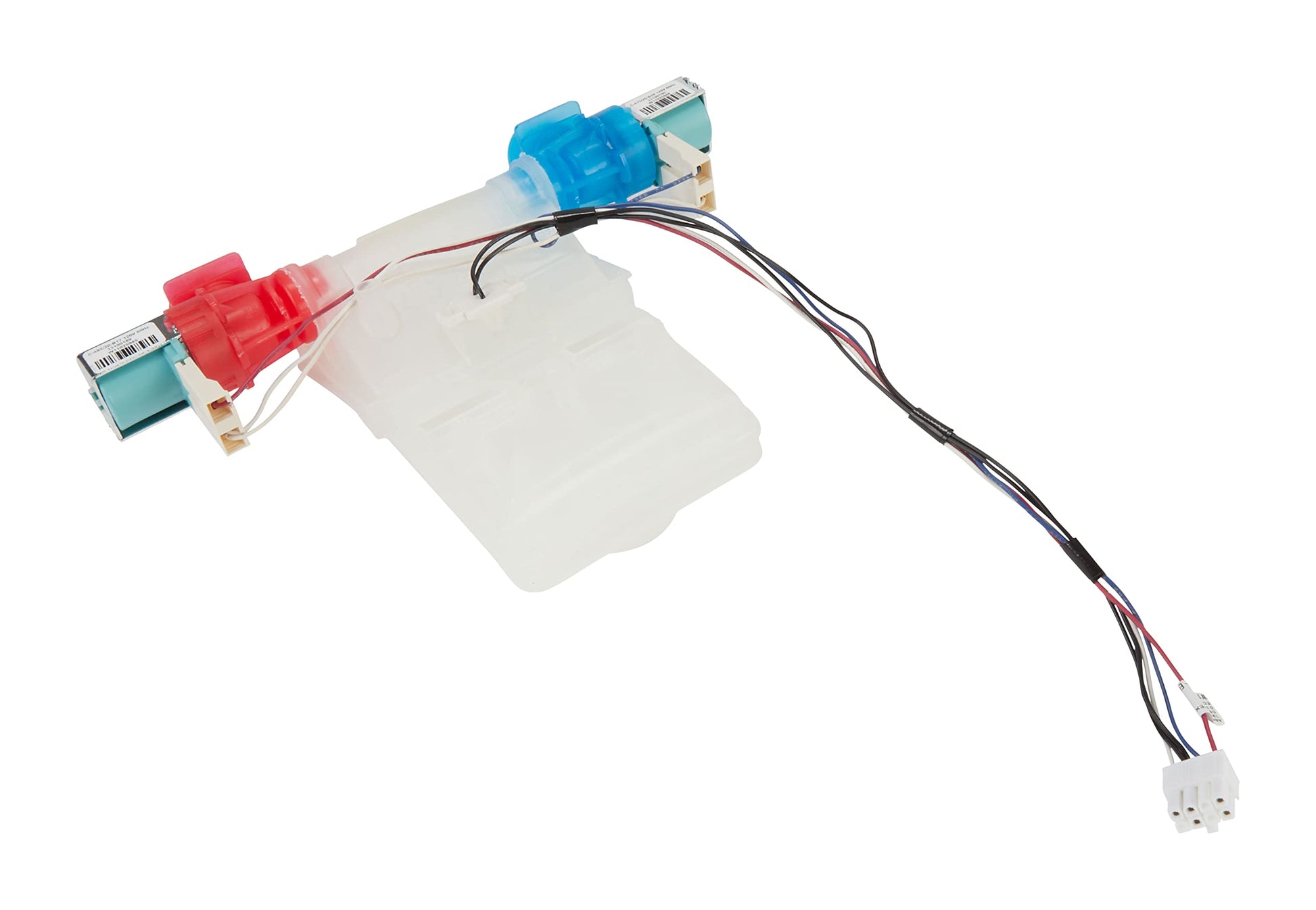

W11210459 Washer Water Inlet Valve (Cold/Hot Dual Valve with Vacuum Break) — Genuine OEM

Product Description

When a Whirlpool top-load washer won't fill, the first thing to check is not the valve — it is the water supply itself. Confirm both hot and cold faucet valves behind the washer are fully open. Check that neither supply hose is kinked. Then pull the fill hoses off the back of the valve and inspect the small inlet screens pressed into each port. These fine-mesh screens trap sediment and mineral flakes from the supply lines, and a clogged screen is the single most common cause of slow fill or no fill. If both screens are clear, the supply is open, hoses are flowing, and the washer still won't fill, the problem moves to the valve itself or the electrical signal driving it.

The W11210459 is a dual solenoid valve — one coil for hot, one for cold. Each solenoid can fail independently. If the washer fills with cold water but not hot, the hot solenoid coil has likely burned open or the hot-side diaphragm is stuck shut. If it fills with hot but not cold, same failure on the other side. If it won't fill at all on any temperature setting, either both coils are dead (rare) or the control board is not sending voltage to the valve (check the board, the lid switch, and the pressure switch before condemning the valve). If the washer won't stop filling — water keeps running even after you unplug the machine — the diaphragm on one or both ports is mechanically stuck open and the valve must be replaced immediately.

Quick Answer

Is Your Water Inlet Valve the Problem?

If you've confirmed both water supply valves are open, hoses aren't kinked, and inlet screens are clear — and your Whirlpool top-load washer still won't fill, only fills one temperature, leaks from the valve body, or won't stop filling — the water inlet valve is the most likely cause. The W11210459 is the genuine OEM replacement. To help narrow it down: unplug the washer — if water stops, the problem may be electrical (control board, lid switch, or pressure switch keeping the solenoid energized); if water continues flowing with the machine unplugged, the valve diaphragm is mechanically stuck open and the valve needs replacement.

Common Symptoms

  • Washer won't fill with water despite open supply valves and clear screens
  • Fills with hot water only or cold water only (one solenoid failed)
  • Washer fills very slowly after confirming inlet screens are clean
  • Water leaks from the valve body or port connections at the rear of the washer
  • Washer won't stop filling — water runs continuously even after unplugging

Replaces Part Numbers

The W11210459 is Whirlpool's current production number for the dual water inlet valve with vacuum break and thermistor. It is the latest revision in a line of superseded valve assemblies and replaces the following part and catalog numbers.

W11210459 replaces W10701459, W10838319, W11038711, 4591321, W10869799, W11025984, 33190189, 33190190, W10423122, W10423124, W10868380, W10868381, AP6329217, AWP43369, EAP12349267, OEM18987660, PD00042885, PS12349267

Compatibility & Model Cross Reference

This genuine OEM valve fits Whirlpool-manufactured top-load washers sold under multiple brands. Confirm your model number before ordering.

Whirlpool: WTW4855HW1, WTW5000DW2, WTW4816FW2

Maytag: MVWC215EW1, MVWC415EW1

Amana: NTW4705EW0

Roper: RTW4516FW0

Crosley: CAW9352EW1

Inglis: ITW4871FW2

This is a partial list of sample models. Kenmore washers with a 110-prefix model number are built by Whirlpool and use the same valve platform. Always confirm your full model number before ordering.

Key Features

  • Genuine OEM Whirlpool dual water inlet valve — hot and cold solenoid ports
  • Built-in vacuum break prevents backflow into household water supply
  • Integrated thermistor for incoming water temperature monitoring
  • Includes 10-pin harness adapter for older-to-newer model wire connector compatibility
  • Direct replacement for valve revisions W11025984, W11038711, W10869799, W10838319, and W10701459
  • Plastic housing with metal solenoid coils — matches OEM mounting pattern

Product Specifications

Part Number W11210459
Condition New
Brand Whirlpool
Part Type Water Inlet Valve (Cold/Hot Dual with Vacuum Break)
Appliance Type Top Load Washer
Material Plastic housing with metal solenoids
Color White / Red / Blue
Dimensions Approximately 10.25" L × 3.25" H
Includes Water valve with vacuum break and thermistor, 10-pin harness adapter
Supersedes W11025984, W11038711, W10869799, W10838319, W10701459

Installation & Safety Notes

Safety Warning
Unplug the washer and shut off both hot and cold water supply valves before disconnecting any hoses or wiring. Have towels or a shallow pan ready — residual water will drain from the hoses and valve ports. If the washer won't stop filling and you cannot reach the plug, shut off the water supply valves immediately to stop water flow. After installing the new valve, turn supply valves on slowly and inspect every hose connection and valve port for leaks before restoring power.

Frequently Asked Questions

How do I tell if the valve is stuck open electrically versus mechanically?
Unplug the washer. If water stops flowing into the tub after you unplug it, the valve was being held open by an electrical signal — the control board, pressure switch, or lid switch circuit is likely keeping the solenoid energized when it should not be. The valve itself may be fine. If water continues to flow into the tub after the washer is unplugged, the rubber diaphragm inside the valve is physically stuck open and cannot seat under spring pressure alone. That is a mechanical valve failure and the valve must be replaced.
Can I test the solenoid coils with a multimeter before ordering?
Yes. Disconnect the wire harness from the valve. Set your multimeter to ohms and test across the two terminals on each solenoid coil. A working coil typically reads between 500 and 1,500 ohms. An open-circuit reading (OL or infinity) means that coil is burned out and the valve needs replacement. A very low reading (near zero) indicates a shorted coil — also replace the valve. If both coils read in the normal range but the washer still won't fill, the problem is upstream — check whether the control board is sending 120V AC to the valve terminals during a fill cycle.
The washer fills slowly. Should I replace the valve or just clean the screens?
Always clean the inlet screens first. Pull the fill hoses off the back of the valve and look inside each port — you will see a small mesh screen pressed into the opening. Sediment, mineral flakes, and rust particles from old pipes accumulate on these screens and restrict flow. Remove each screen with needle-nose pliers, rinse under running water, and reinstall. If flow returns to normal, the valve is fine. If flow is still slow with clean screens, the internal passages in the valve may be partially blocked by mineral deposits, and replacement is the correct next step.
What other components should I check before replacing the valve?
A no-fill condition is not always the valve. Check the lid switch — many Whirlpool top-loaders will not begin filling if the lid switch is open or the lid lock has not engaged. Check the water level pressure switch by blowing gently into its hose — if the hose is clogged or cracked, the switch cannot sense the tub level and may prevent fill from starting. Check for a control board error code. Only after ruling out supply issues, screens, the lid switch, the pressure switch hose, and the board should you condemn the valve.
Why does the valve leak only when the washer is off?
This is a classic sign of a worn diaphragm. When the washer is running, water pressure and the solenoid spring hold the diaphragm in a stable position. When the machine is off and the solenoid is de-energized, the diaphragm must seal entirely under spring pressure. If the rubber has hardened, cracked, or taken a permanent set from mineral buildup, it no longer seats tightly and water seeps through at a slow rate. You may notice the tub slowly fills with cold water overnight, or a small puddle forms under the washer. This is a valve failure — the diaphragm cannot be serviced, so the valve is replaced as a unit.
