- Sku: LCD40+5X440R

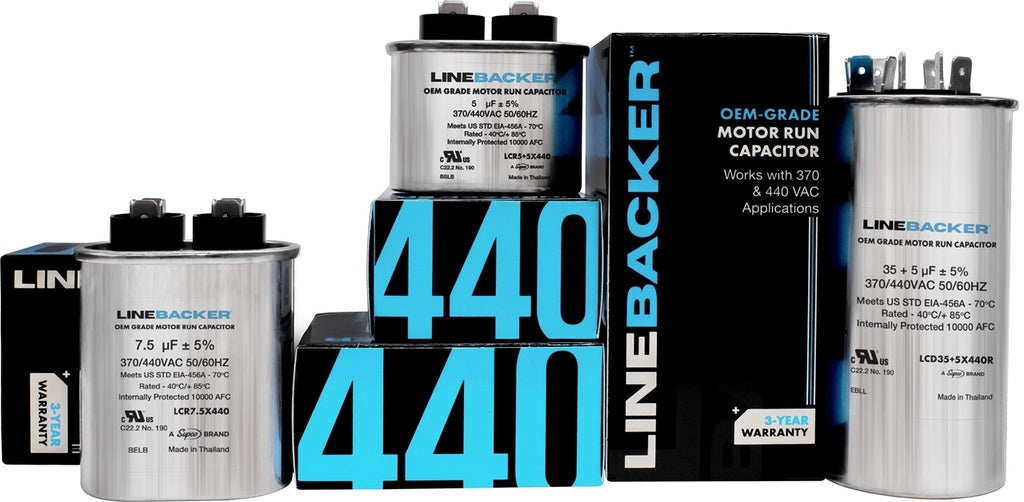

LCD40+5X440R HVAC ROUND DUAL RUN CAPACITOR | 40+5 MFD 440 Volts
FREE SHIPPING TO ALL 48 CONTIGUOUS STATES
Free standard shipping at checkout.
CHECK YOUR MODEL COMPATIBILITY
Enter your appliance model number to check if this part is listed as compatible.
Need help finding your model number?
LCD40+5X440R HVAC ROUND DUAL RUN CAPACITOR
Engineered by an ISO manufacturer with over twenty years' experience in OEM capacitor fabrication, Linebacker® capacitors are manufactured by the OEM factory and are 100% in-line production tested to the same rigorous standards.
Features/Benefits
- 10,000 AFC pressure sensitive short circuit interrupting capability
- 3-year warranty from the date of purchase
- Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
- Life tested to 85° C operating temperature for 10,000 cycles
- Manufactured with thick polypropylene foil to handle increased operating temperatures
- Meets EIA-456A accelerated life test at 70° C for 60,000 hours
- PCB-free oil to prevent over-heating
- UL File # E352486
- US and Canada UL approved (C22.2NO.190)
Specification:
| Voltage: | Up to 440 VAC |
| Operating Temperature: | -40°F to 185°F (-40°C to 85°C) |
| Foil Thickness: | 6.0 µm +/- 5% |
| Standard Tolerance: | +/- 5% |
| MFD Value: | 40+5 |
| Style: | Round |
| Size: | 1.97x4.13 |
