EXPHV10 Microwave High Voltage Diode
BEST PRICE
We back all products with a 1 year guarantee.
FREE SHIPPING
No code needed, just head for checkout!
This is a demonstration store. You can't purchase this product.

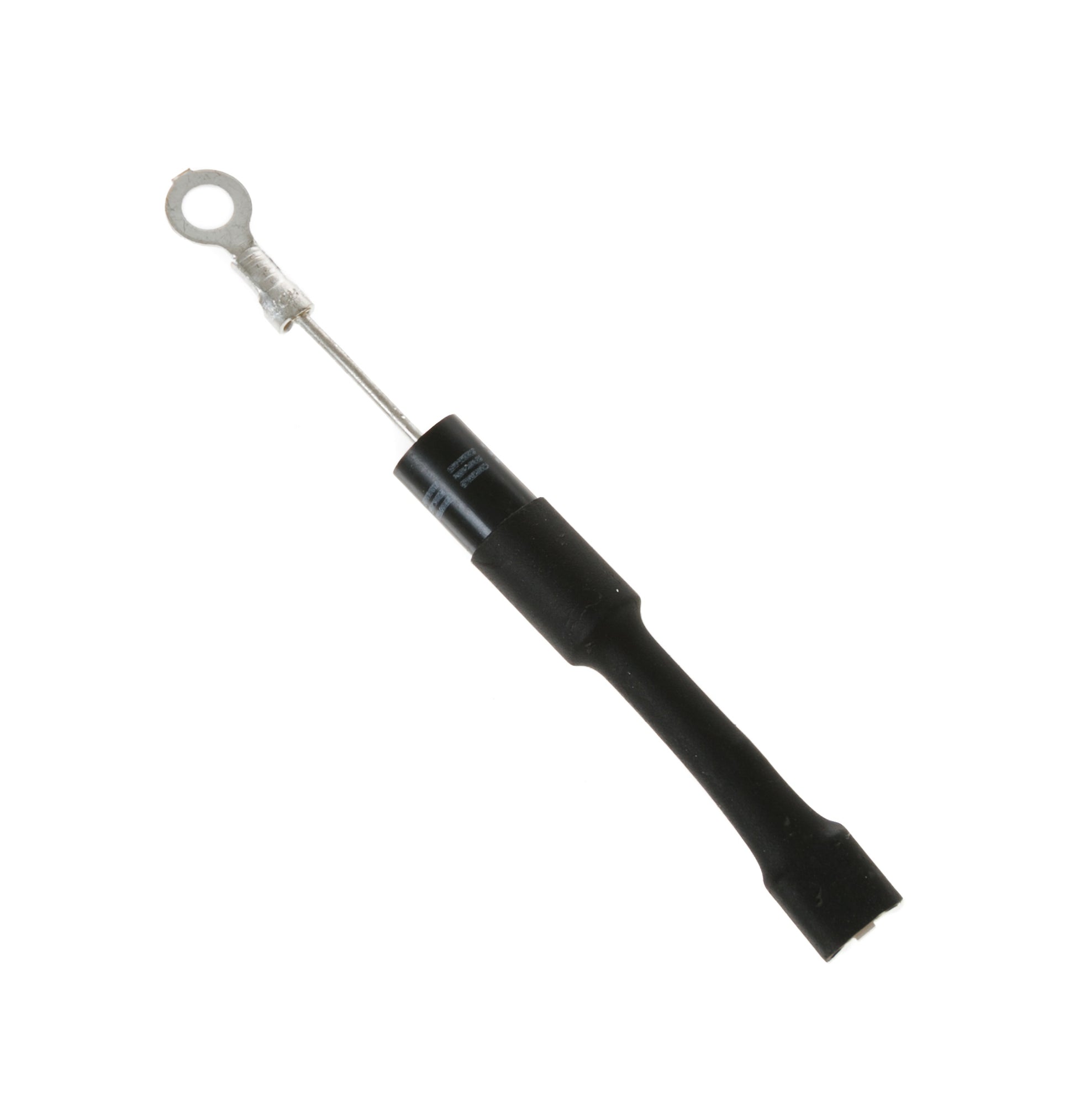

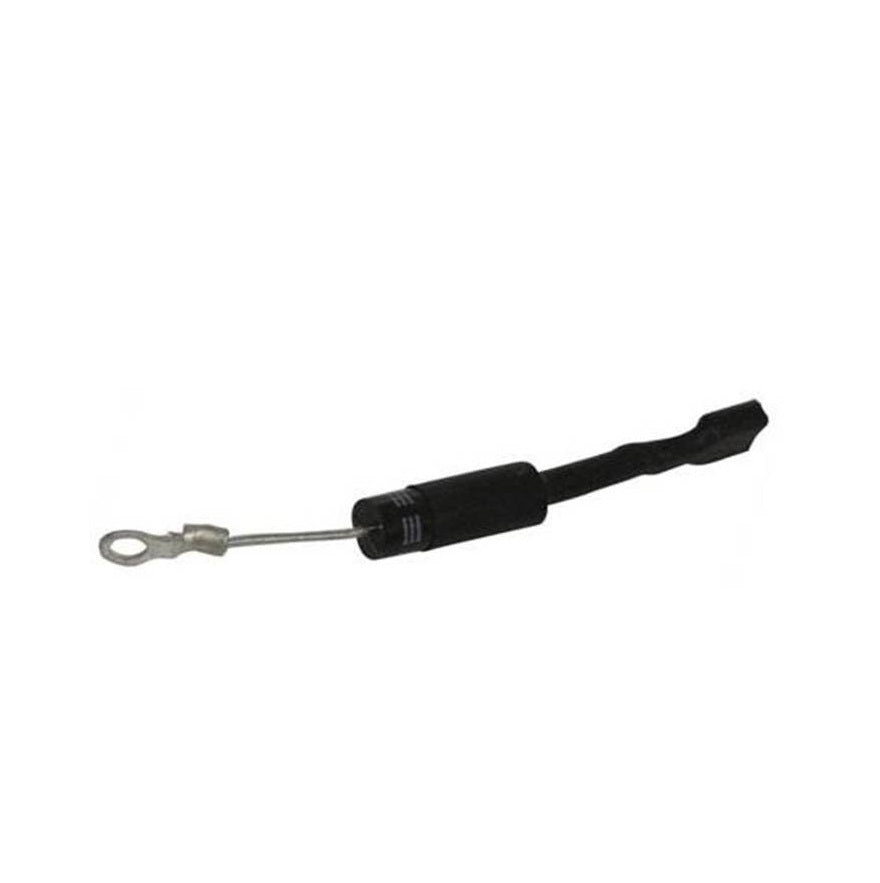

XPARTCO EXPHV10 Microwave High Voltage Diode
The XPARTCO EXPHV10 is a universal replacement high voltage diode (rectifier) that fits most major microwave brands, including GE, Whirlpool, Maytag, Samsung, LG, Frigidaire, Panasonic, Sharp, KitchenAid, and Kenmore. The high voltage diode is a critical part of the microwave's high-voltage circuit, working alongside the high-voltage capacitor and transformer to convert alternating current (AC) to direct current (DC) — supplying the high-voltage DC power the magnetron needs to generate microwave energy and heat food.
When the diode fails — from electrical surges, overheating, or normal wear — the magnetron can't receive the correct power supply, and the microwave runs but does not heat. A failed diode may also cause the high-voltage fuse to blow repeatedly. Rated at 12,000V DC (12 kV) with a 500mA current capacity, the EXPHV10 is a universal cross-brand replacement that meets or exceeds OEM specifications across hundreds of microwave models.
Quick Answer
Use the XPARTCO EXPHV10 Microwave High Voltage Diode when a microwave runs but produces no heat, keeps blowing its fuse, or hums with no heating. It converts AC to DC power for the magnetron and is rated 12,000V DC / 500mA. Universal fit — works with most GE, Whirlpool, Maytag, Samsung, LG, Frigidaire, Panasonic, Sharp, KitchenAid, and Kenmore microwaves.
Common Problems This Part Fixes
- Microwave runs (turntable spins, light works) but does not heat food
- High-voltage fuse blows repeatedly after replacement
- Loud humming or buzzing sound with no heating
- Microwave takes much longer than normal to heat food
- Microwave heats unevenly or inconsistently
Replaces Part Numbers
This diode directly replaces the following OEM and cross-reference part numbers:
HV10, EXPHV10, 2CL70, 2CL77, W11256462, W10886077, AWP43735, PD00047836, AP6784287, PS12584264, WB27X1160, AGE22195, PD00026293, AP2026385, PS239843, DE91-70063D, DE91-70063A, ASM94577, PD00033057, AP4236698, PS4235633, 5304417430, AP2151558, PS472334, 6021W3B001U, AP4439834, PS3528798, 6851W1A002E, ALG51731, PD00006373, AP5203812, PS3529603, 5304456178, AP3960683, PS1532581, 3518400800, AP7110292, 5304509479, 5304472472, AFR17769, PD00040522, AP4433625, PS12071314, WPR9800486, AWP128355, PD00004942, AP6014695, PS11747959, 11QBP0237, AP5633255, PS4085135, WB27X10744, AP3792899, PS953886, WB27X35382, WB27X10930, WB18X10449, WB27X10892, WB27X10965, WB27X11035, AP6992536, PS16219547, WB27X10562, AGE1037090, AP3187536, PS239704, WP13091701, AWP634588, PD00035043, AP6005641 PS11738693, WB27X10687, AGE1019656, PD00032466, AP3207509, PS953843, WB27X10107, AP2026017, PS239224, WB27X10037, AGE22509 PD00031660, AP2025948, PS239148, WPDE91-70063D, AWP547793, PD00034036, AP6014620, PS11747873, 6021W3B001V, 6021W3B001R, AP5632506 EAP3528799, ALG51931, PD00008859, AP4438526, PS3528799, WB27X21012, AGE360033, PD00037340, AP5791119, PS8754690, 00625682, 10001605, ABS11495, PD00047510, AP5804800, PS8770335, CL04-12.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This universal high voltage diode is compatible with most microwave ovens from the following brands:
- GE and Hotpoint microwaves
- Whirlpool microwaves
- Maytag microwaves
- KitchenAid microwaves
- Samsung microwaves
- LG microwaves
- Frigidaire and Electrolux microwaves
- Panasonic microwaves
- Sharp microwaves
- Kenmore / Sears microwaves
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Converts AC to DC power in the microwave's high-voltage circuit — enabling the magnetron to generate microwave energy and heat food
- Rated 12,000V DC (12 kV) / 500mA — meets or exceeds OEM electrical specifications
- Universal fit — compatible with most major microwave brands across hundreds of models
- Aftermarket replacement built to OEM-equivalent quality standards
- Pre-terminated leads — direct drop-in replacement, no modification required
- Compact insulated design for safe and easy installation
- Budget-friendly fix for one of the most common microwave no-heat failures
Product Specifications
| Part Number | EXPHV10 |
| Part Type | High Voltage Diode (Rectifier) |
| Condition | Aftermarket Replacement |
| Application | Microwave Oven High Voltage Circuit |
| Voltage Rating | 12,000V DC (12 kV) |
| Current Rating | 500 mA |
| Material | Insulated Epoxy Body |
| Terminals | Pre-terminated leads |
| Fit Type | Universal — fits most major microwave brands |
| Compatible Brands | GE, Whirlpool, Maytag, KitchenAid, Samsung, LG, Frigidaire, Panasonic, Sharp, Kenmore |
Installation Notes
Frequently Asked Questions
Will the EXPHV10 fit my microwave?
The EXPHV10 is a universal replacement diode that works with most GE, Whirlpool, Maytag, KitchenAid, Samsung, LG, Frigidaire, Panasonic, Sharp, and Kenmore microwaves. Check your model number against the brands above, or contact our support team before ordering and we'll confirm the fit.
What does the high voltage diode do?
The high voltage diode works with the capacitor and transformer to convert AC power to high-voltage DC power — typically around 4,000 to 5,000 volts. This DC voltage powers the magnetron, which generates the microwave energy that heats food. A failed diode prevents the magnetron from receiving proper power, resulting in a microwave that runs but does not heat.
How do I test if my microwave diode is bad?
After safely discharging the capacitor, use a multimeter set to the diode test mode. A good diode will show continuity in one direction and no continuity in the other (one-way electrical flow). A bad diode will show either no continuity in both directions (open) or continuity in both directions (shorted). A shorted diode will also cause the fuse to blow repeatedly.
My microwave fuse keeps blowing — is the diode the problem?
A shorted high voltage diode is one of the most common causes of a repeatedly blown microwave fuse. When the diode shorts, it draws excess current which blows the fuse. If you replace only the fuse and it blows again immediately, test the diode and capacitor as well before replacing the fuse again.
Is this an OEM or aftermarket part?
This is an aftermarket universal replacement part built to OEM-equivalent electrical specifications. It is not a genuine OEM part from any specific brand, but is rated at 12,000V DC / 500mA — meeting or exceeding the requirements of most microwave high-voltage circuits.
Shop With Confidence
Express Parts Direct is a U.S.-based appliance parts retailer offering genuine OEM and high-quality replacement parts for all major brands, with fast shipping from our U.S. warehouse. Our team can help verify compatibility before you buy.
Have a question?
EXPHV10 Microwave High Voltage Diode
Model Compatibility
Search your appliance model number below. Supports partial or full model search.
