Choice 4389102 Refrigerator Ice Level Control Board Replaces W11629974
Choice 4389102 Refrigerator Ice Level Control Board Replaces W11629974
The Choice 4389102 is a Choice-tier replacement ice level control board kit for Whirlpool refrigerators, and also fits select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models with a vertical ice container in the freezer door. This kit uses an infrared beam between an emitter and receiver board to sense the level of ice in the ice bucket, signaling the ice maker to produce more ice when the level drops and to stop when the bucket is full.
Weighs approximately 0.23 lbs. Common causes of failure include electrical problems, general wear and tear, or damage from power surges or short circuits. Symptoms of a failing ice level control board include the ice maker not producing ice, the ice maker not stopping production when full, irregular or inconsistent ice production, or error codes related to the ice maker control system. It directly replaces W11629974, W10757851, 4389102, 2198585, 2198586, 2220398, 2220402, 2255114, 4388635, 4389102R, W10193666, W10193840, W10290817, W11553040, W11553041, AP7205486, AWP45901, EAP16875489, PD00086112, PS16875489.
Quick Answer
The Choice 4389102 Refrigerator Ice Level Control Board fixes Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators where the ice maker isn't producing ice, won't stop when full, or produces ice inconsistently. Emitter and receiver board kit — both boards need replacing together. Replaces W11629974, W10757851, 4389102, 2198585, 2198586, 2220398, 2220402, 2255114, 4388635, 4389102R, W10193666, W10193840, W10290817, W11553040, W11553041, AP7205486, AWP45901, EAP16875489, PD00086112, PS16875489. Control boards are commonly misdiagnosed — check more commonly defective parts first, and use the LED status light blink pattern to confirm this board is actually at fault before replacing it.

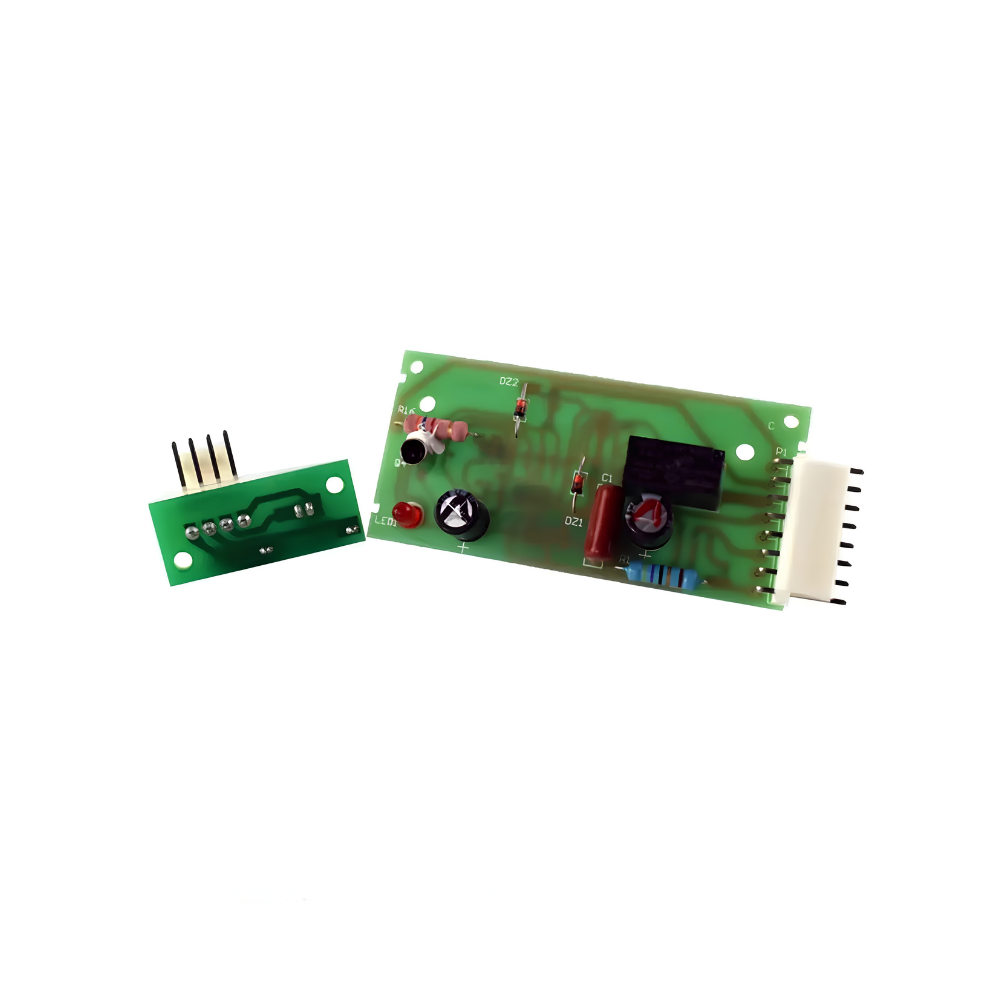

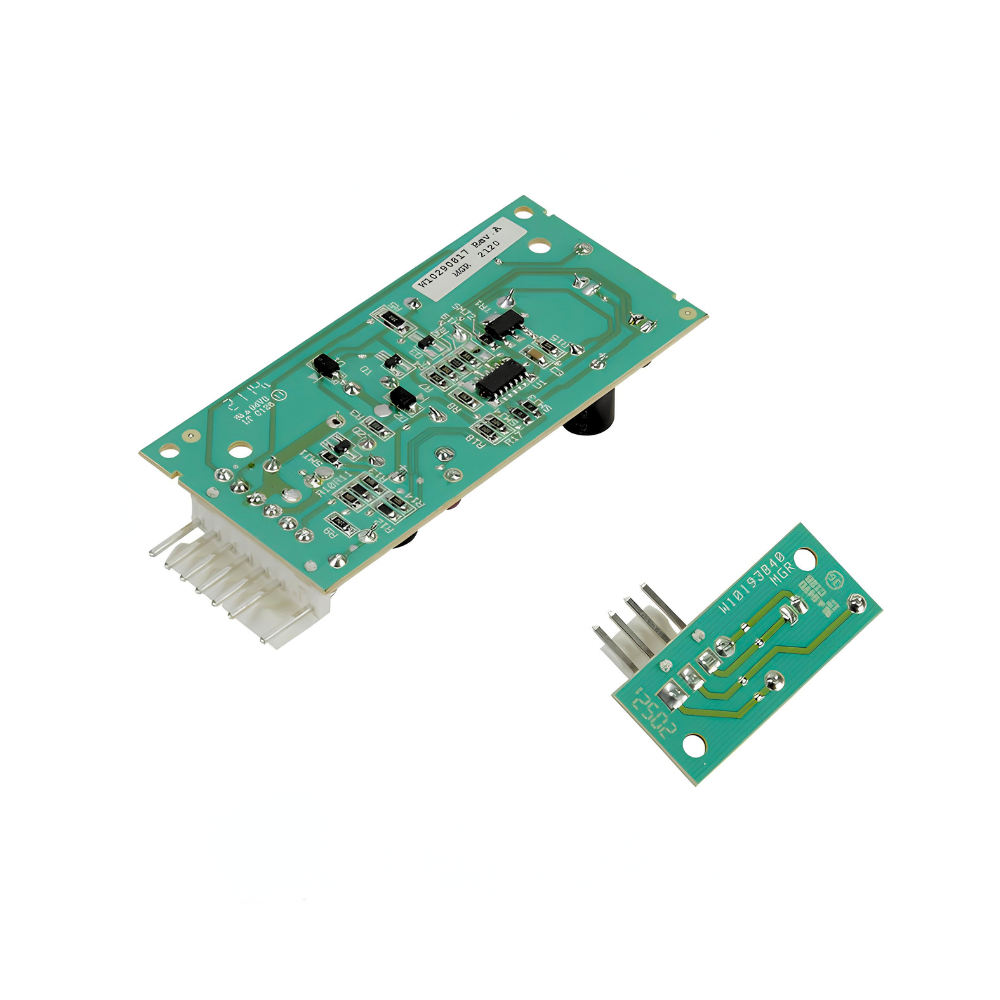

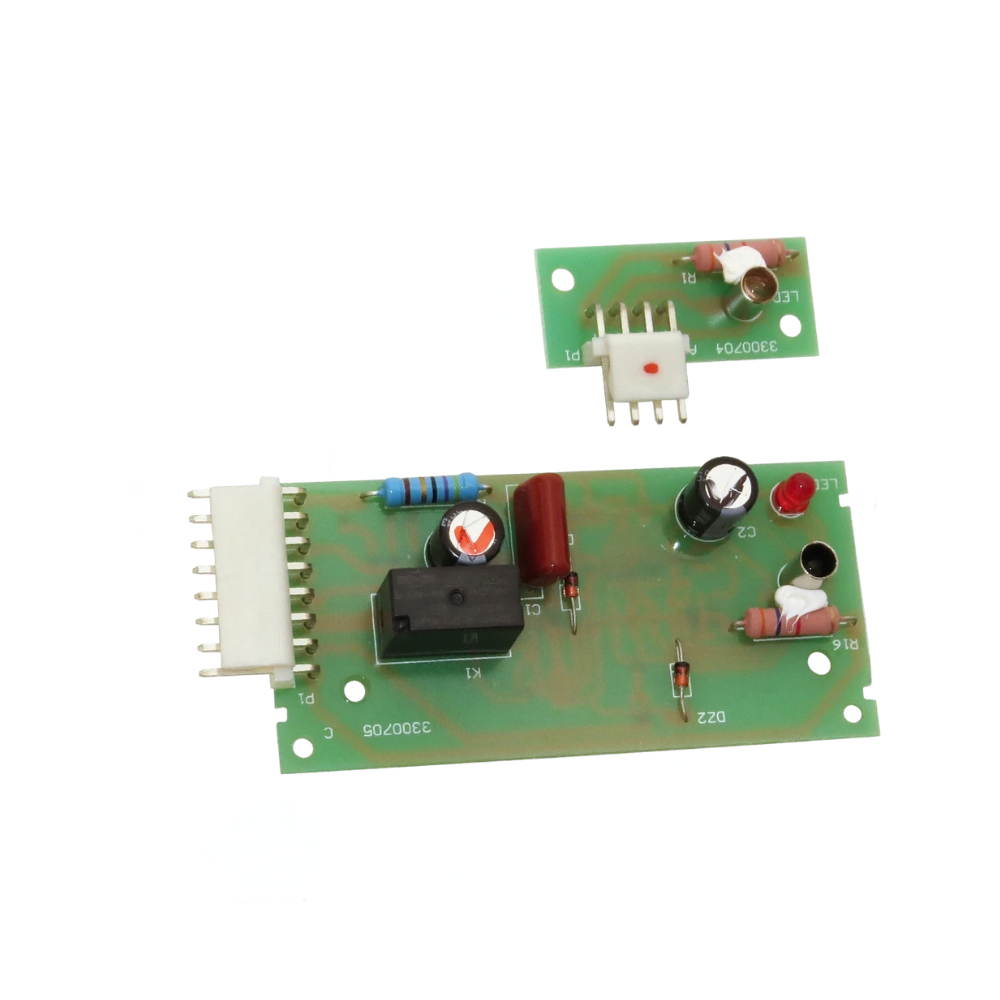

What's In The Kit
| Component | Function |
|---|---|
| Emitter Board | Sends an infrared beam across the ice bucket opening. |
| Receiver Board | Detects whether the beam is blocked by ice, signaling the ice maker to start or stop production. |
Both boards need to be replaced together — this is a matched emitter/receiver pair, not two independently interchangeable parts.
What Is a Choice Part?
Choice parts are manufactured by a different supplier than the original appliance manufacturer, offering a dependable, cost-effective alternative to Genuine OEM parts. Unlike our OE parts, which come from the same supplier as the original manufacturer, Choice parts are made by an independent manufacturer to equivalent fit, form, and function specifications. This makes them a smart option when you want a reliable repair at a lower price point than Genuine OEM.
Common Problems This Kit Fixes
- Ice maker not producing ice
- Ice maker not stopping production when the bucket is full
- Irregular or inconsistent ice production
- Error codes related to the ice maker control system
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This refrigerator ice level control board kit directly replaces the following OEM and cross-reference part numbers:
W11629974, W10757851, 4389102, 2198585, 2198586, 2220398, 2220402, 2255114, 4388635, 4389102R, W10193666, W10193840, W10290817, W11553040, W11553041, AP7205486, AWP45901, EAP16875489, PD00086112, PS16875489
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This ice level control board kit is compatible with select Whirlpool refrigerators with a vertical ice container in the freezer door, and also fits select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators built on the Whirlpool platform, including model numbers such as KSRI25FNWH01, ED5FHAXSQ01, KSRG25FVMS05, KSRU25FKWH03, KSRK25XLSS10, JBSS42E22L00, JBSS48E22L00, KBSD702MPS00, KBSD702MSS00, KBSD706MPS00, KBSD708MBS00, KBSD708MPS00, KBSD708MSS00, and Kenmore 106.57979700, 106.51552103, and 106.58169704.
Note: This kit is specifically for refrigerators where ice cubes dump directly into an ice bin located in the freezer door. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure.
Key Features
- Choice-tier replacement ice level control board kit — includes matched emitter and receiver boards
- Resolves "no ice production," "won't stop when full," and "inconsistent ice production" symptoms
- Uses an infrared beam to detect ice level in the bucket
- Direct drop-in replacement matching the original mounting and connections
- Replaces W11629974, 2198585, 2198586, 2220398, 2220402, 2255114, 4388635, 4389102R, TJ4389102R, W10193666, W10193840, W10290817, W10757851, W11553040, W11553041, AP7205486, AP5956767, AP3137510, PS557945, PS10064583, EAP16875489, PS16875489, AWP45901, and PD00086112
- Compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators
- Manufactured by an independent supplier to equivalent fit, form, and function specifications
- DIY-friendly repair, typically 10 to 20 minutes
Product Specifications
| Part Number | 4389102CM |
| OEM Part Number | W11629974 |
| Part Type | Refrigerator Ice Level Control Board Kit (Emitter & Receiver) |
| Designation | Choice |
| Weight | Approx. 0.23 lbs |
| Function | Uses an infrared beam to sense ice level and signal the ice maker |
| Application | Refrigerators with vertical ice container in freezer door |
| Repair Difficulty | Easy — 10 to 20 minutes |
| Quantity | 1 kit (emitter + receiver board) |
| Compatible Brands | Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore |
Installation Notes
Frequently Asked Questions
My ice maker stopped making ice. Is this the part I need?
Possibly, but control boards are commonly misdiagnosed. Before replacing this board, check more commonly defective parts first — such as the water inlet valve, ice maker assembly itself, or the freezer temperature. If you've ruled those out and the other components are working properly, this control board is a reasonable next step.
How can I confirm this board has actually failed before replacing it?
Check the LED status light's blink pattern. During normal operation it should blink twice, pause, then repeat. With the freezer door open, hold down the flapper door on the left side to block the beam — the light should turn solid with no blinking. If it keeps blinking twice instead, or doesn't light up at all when it should be in harvest mode (checked by holding the freezer light switch), the board has failed.
Do I need to replace just the emitter or receiver, or both?
Both. This kit includes a matched emitter and receiver board, and both need to be replaced together as a pair rather than swapping just one side.
What does "Choice" mean for this part?
Choice parts are manufactured by an independent supplier, different from the appliance's original manufacturer, and built to equivalent fit, form, and function specifications. This gives you a dependable, lower-cost alternative to a Genuine OEM part, distinct from our OE parts, which are sourced from the same supplier as the original manufacturer.
