Choice 280187 Washer Drain Pump Assembly
- Sku: 280187CM
- Vendor: Choice Manufactured Parts
Have a question?

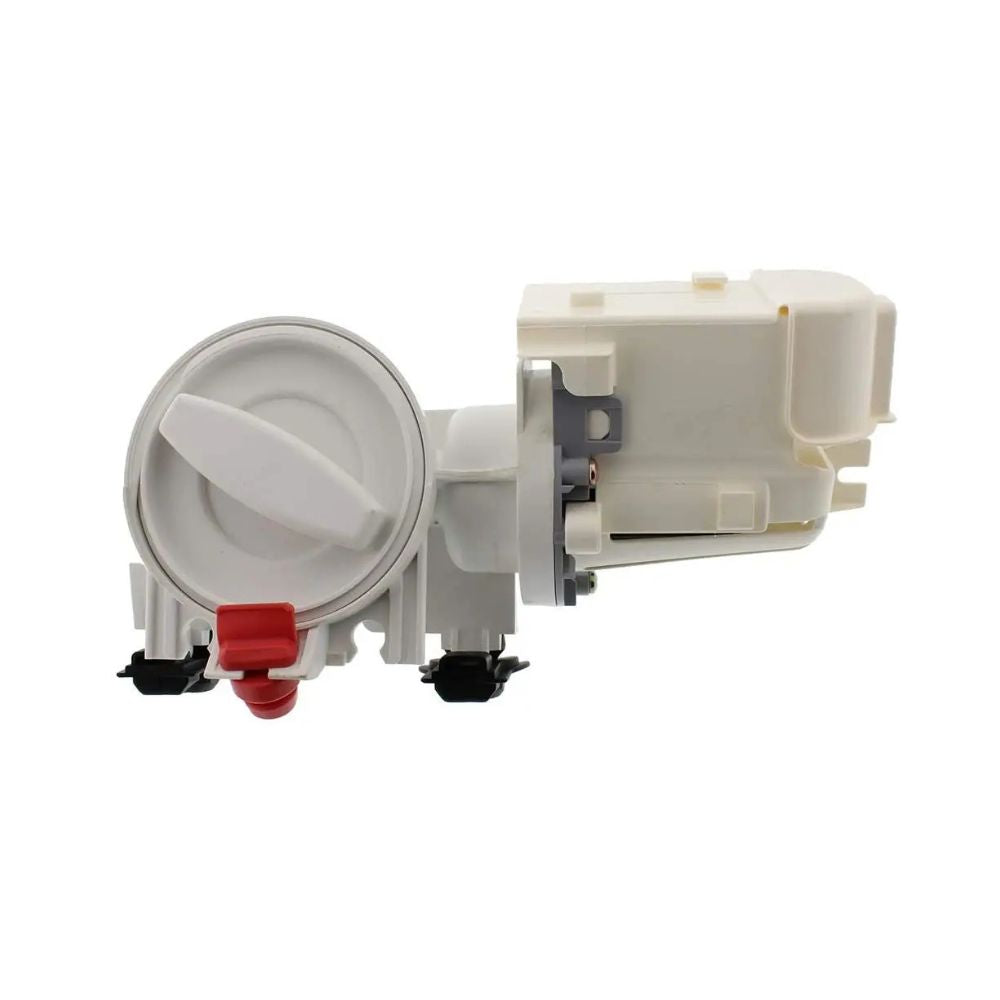

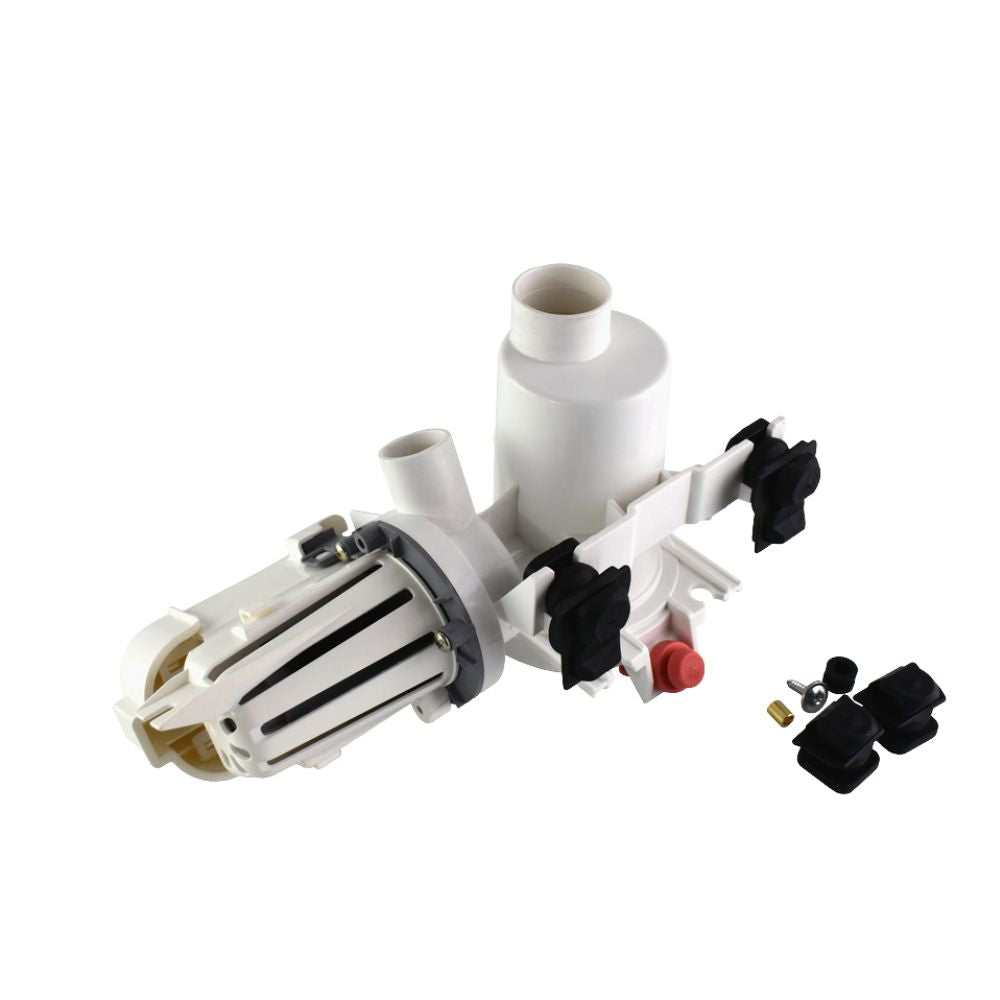

Choice 280187 Washer Drain Pump Assembly
Choice 280187 Washer Drain Pump Assembly
The Choice 280187 is an aftermarket replacement front-load washer drain pump and motor assembly compatible with a wide range of Whirlpool, Maytag, KitchenAid, Kenmore, Amana, Jenn-Air, Roper, Admiral, Norge, and Magic Chef front-load washers — including the Whirlpool Duet GHW and WFW series, Maytag Epic MFW series, Maytag MHWE and NFW series, and Kenmore HE front-load washers. The drain pump removes water from the washer tub during the drain portion of each wash cycle. When the pump fails, the washer will not drain, will leave standing water in the tub, stop mid-cycle, display error code F21, or make unusual noise during the drain phase.
This complete assembly includes the Askoll M75-compatible pump motor, motor impeller, pump housing with filter, and mounting grommets. Rated 120V, 60Hz, 70W, 1.0A with a 15-minute on / 45-minute off duty cycle. Dimensions: 10-1/4"L x 6-1/4"W x 5-1/4"H. It directly replaces 285998, 8181684, 8182819, 8182821, 1200164, Askoll M75, LP280187, AP3953640, AH1485610, EA1485610, EAP1485610, PD00002352, and PS1485610. Always check and clear the pump filter/coin trap before replacing the pump — a clogged filter is among the most common causes of F21 errors. Installs in 15–30 minutes with basic hand tools.
Quick Answer
The Choice 280187 Washer Drain Pump Assembly fixes Whirlpool Duet, Maytag Epic, and Kenmore HE front-load washers that won't drain, leave standing water, display error code F21, or make loud humming or grinding noises during the drain cycle. Complete assembly — motor, impeller, housing, filter, and grommets. 120V/60Hz/70W/1.0A. 15 min on / 45 min off. 10-1/4"L x 6-1/4"W x 5-1/4"H. Replaces 285998, 8181684, 8182819, 8182821, 1200164, Askoll M75, AP3953640, PS1485610. Check filter before replacing pump.
Common Problems This Part Fixes
- Washer not draining — standing water remaining in the tub after a cycle
- Error code F21 displayed — long drain fault (washer unable to drain within allotted time)
- Washer stopping mid-cycle due to a drain fault
- Loud humming during the drain phase — motor running but impeller not pumping
- Grinding or rattling noise during drain — damaged impeller or worn pump bearings
- Clothes excessively wet after a cycle — pump not fully removing water before spin
- Water draining very slowly — worn pump motor below rated performance
- Water leaking from the pump area at the front of the washer
Replaces Part Numbers
This drain pump directly replaces the following OEM and cross-reference part numbers:
280187, 1200164, 285998, 8181684, 8182819, 8182821, AH1485610, AP3953640, AWP39453, EA1485610, EAP1485610, PD00002352, PS1485610.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This drain pump is compatible with select front-load washers from the following brands and series:
- Whirlpool front-load washers — Duet GHW series (GHW9100L, GHW9150P, GHW9160P, GHW9200L, GHW9250M, GHW9300P, GHW9400P, GHW9400SU0, GHW9460P and related models)
- Whirlpool front-load washers — Duet WFW series (WFW9200S, WFW9300V, WFW9400S, WFW9400V, WFW9410X and related models)
- Maytag front-load washers — Epic MFW series (MFW9600SQ0, MFW9600SQ1, MFW9700S, MFW9800TK0, MFW9800TQ0 and related models)
- Maytag front-load washers — MHWE series (MHWE300V, MHWE400W, MHWE450W, MHWE500VW, MHWE550W, MHWE950W and related models)
- Maytag front-load washers — NFW series (NFW7500V, NFW7600XW00 and related models)
- KitchenAid front-load washers — KHWS series (KHWS01PM, KHWS02R and related models)
- Kenmore / Sears front-load washers — HE series (select 110-series Whirlpool-built models)
- 7M series front-load washers (7MGHW9100MW0, 7MGHW9150, 7MGHW9400 and related models)
- Amana, Jenn-Air, Roper, Admiral, Norge, and Magic Chef front-load washers (select models)
Important: Before replacing the pump, check and clear the pump filter/coin trap behind the lower front access panel — a clogged filter is a very common cause of F21 errors and slow draining that does not require pump replacement. Always verify your model number before ordering.
Key Features
- Removes water from the tub during drain and spin cycles for proper washer operation
- Complete assembly — Askoll M75-compatible motor, impeller, pump housing with filter, mounting grommets, and hardware included
- Rated 120V, 60Hz, 70W, 1.0A — correct electrical specifications for compatible front-load washer models
- Duty cycle: 15 minutes on / 45 minutes off — matches original pump operating requirements
- Dimensions: 10-1/4"L x 6-1/4"W x 5-1/4"H
- Resolves error code F21 (long drain fault) on compatible Whirlpool Duet, Maytag Epic, and Kenmore HE models
- Replaces 285998, 8181684, 8182819, 8182821, 1200164, Askoll M75, AP3953640, and PS1485610
- Compatible with Whirlpool GHW/WFW Duet, Maytag Epic/MHWE/NFW, KitchenAid KHWS, and Kenmore HE front-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 15–30 minutes with basic hand tools
Product Specifications
| Part Number | 280187CM |
| Part Type | Front-Load Washer Drain Pump and Motor Assembly |
| Condition | Aftermarket Replacement |
| Application | Front-Load Washers — Whirlpool Duet, Maytag Epic/MHWE/NFW, Kenmore HE |
| Motor | Askoll M75-compatible |
| Voltage | 120V AC |
| Frequency | 60 Hz |
| Wattage | 70W |
| Amperage | 1.0A |
| Duty Cycle | 15 minutes on / 45 minutes off |
| Dimensions | 10-1/4"L x 6-1/4"W x 5-1/4"H |
| Color | White / Black / Gray / Red |
| Material | Metal / Plastic Housing / Rubber |
| Includes | Pump motor, impeller, housing with filter, rear grommets, front grommets, hardware |
| Error Code Resolved | F21 (long drain fault) |
| Compatible Brands | Whirlpool, Maytag, KitchenAid, Kenmore, Amana, Jenn-Air, Roper, Admiral, Norge, Magic Chef |
Installation Notes
Frequently Asked Questions
What does error code F21 mean on Whirlpool Duet and Maytag front-load washers?
F21 indicates a long drain fault — the washer was unable to drain within the expected time (typically 8 minutes). Before replacing the pump, check and clean the pump filter/coin trap at the lower front of the washer — lint, coins, and debris in the filter restrict flow and are a very common cause of F21 errors. If the filter is clean and the error persists, the drain pump motor has likely failed and needs replacement.
What is the Askoll M75 motor and why is it referenced?
The original 280187 drain pump used an Askoll M75 motor — Askoll is an Italian motor manufacturer that supplies drain pump motors to Whirlpool for use in Duet, Maytag Epic, and related front-load washers. Aftermarket replacements for the 280187 are often described as "Askoll M75 compatible" to confirm they are designed as drop-in replacements for pumps using that motor. The Choice 280187 drain pump is manufactured to match the performance specifications of the original Askoll M75-based assembly.
What is the difference between 280187 and 8182821 or 8181684?
These are all part numbers for the same front-load washer drain pump assembly across different production runs and naming conventions. 285998, 8181684, 8182819, and 8182821 are earlier cross-references for this pump from Whirlpool's parts catalog, and 280187 is the current consolidated part number. The 1200164 is an additional cross-reference. This aftermarket replacement covers all of them.
Should I check the pump filter before replacing the pump?
Yes — always check the pump filter first. On compatible Whirlpool Duet, Maytag Epic, and Kenmore HE front-load washers, the pump filter is accessible behind the lower front kick panel. Remove the cap, drain residual water into a pan, and remove any debris from the filter. If the filter was clogged and the error clears after cleaning, pump replacement is not needed. If the filter is clear and the F21 error persists, or if the pump makes loud noise or leaks, then pump replacement is required.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured with an Askoll M75-compatible motor to match the electrical specifications and performance of the original 280187 drain pump assembly.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
Model Compatibility
Search your appliance model number below. Supports partial or full model search.
🔍 Search Model Number
Type your full or partial model number above to instantly check if this part fits your appliance.
| Model Number | Manufacturer | Appliance Type |
|---|
⚠️ This is a partial compatibility list. Always verify your appliance model number before ordering. Contact our support team if you’re unsure.
