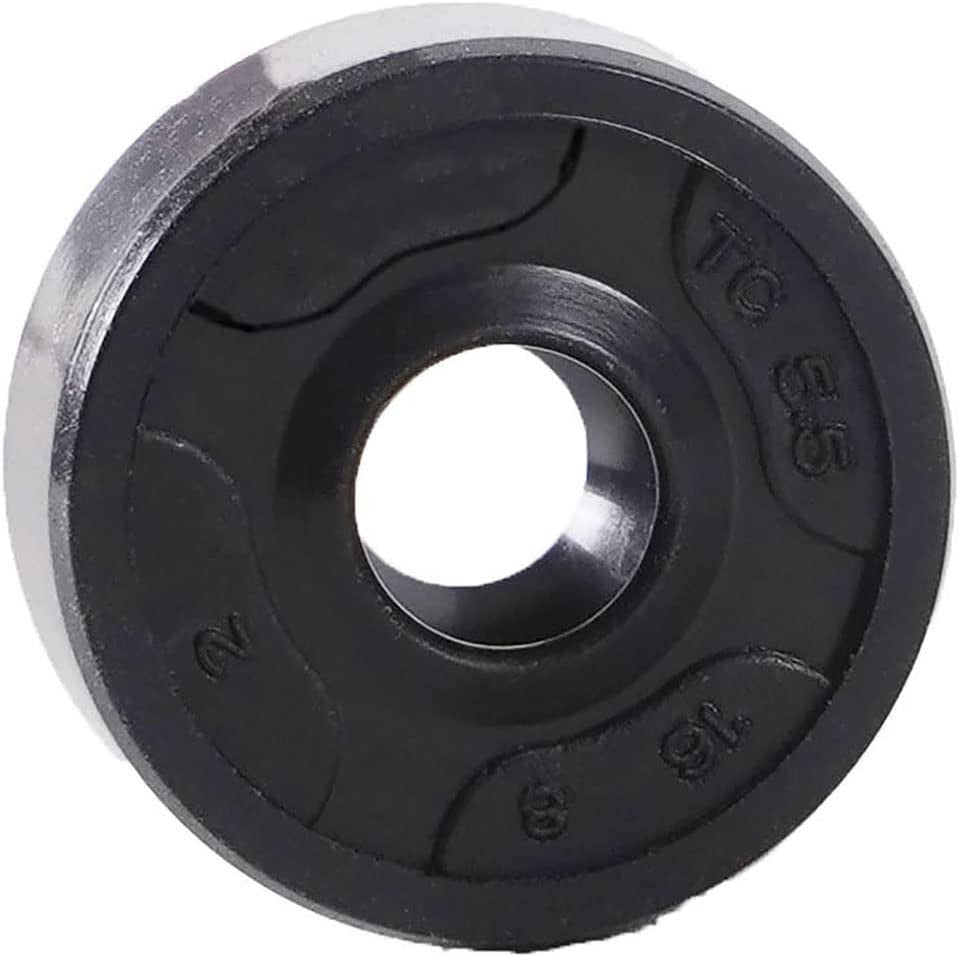

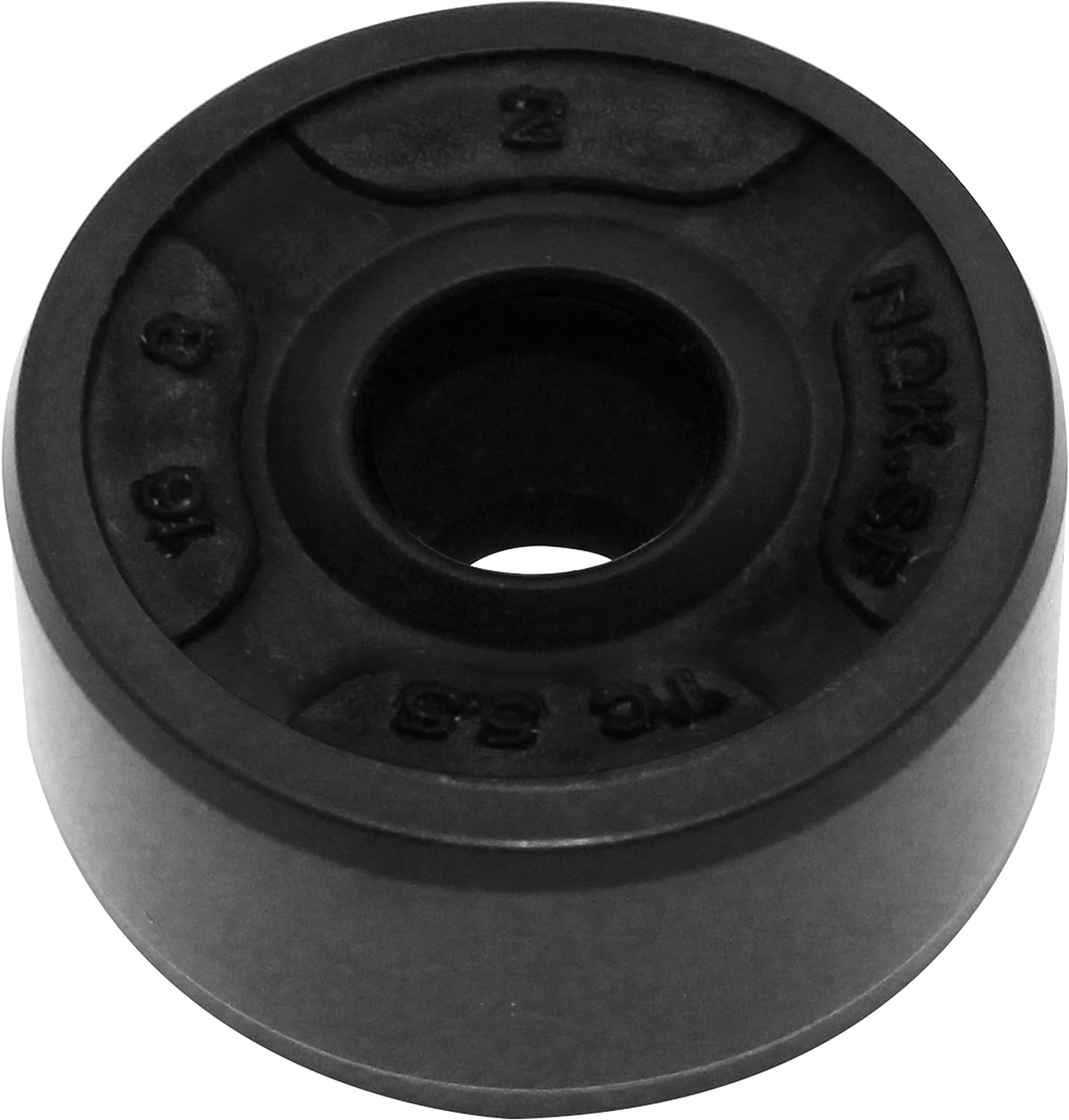

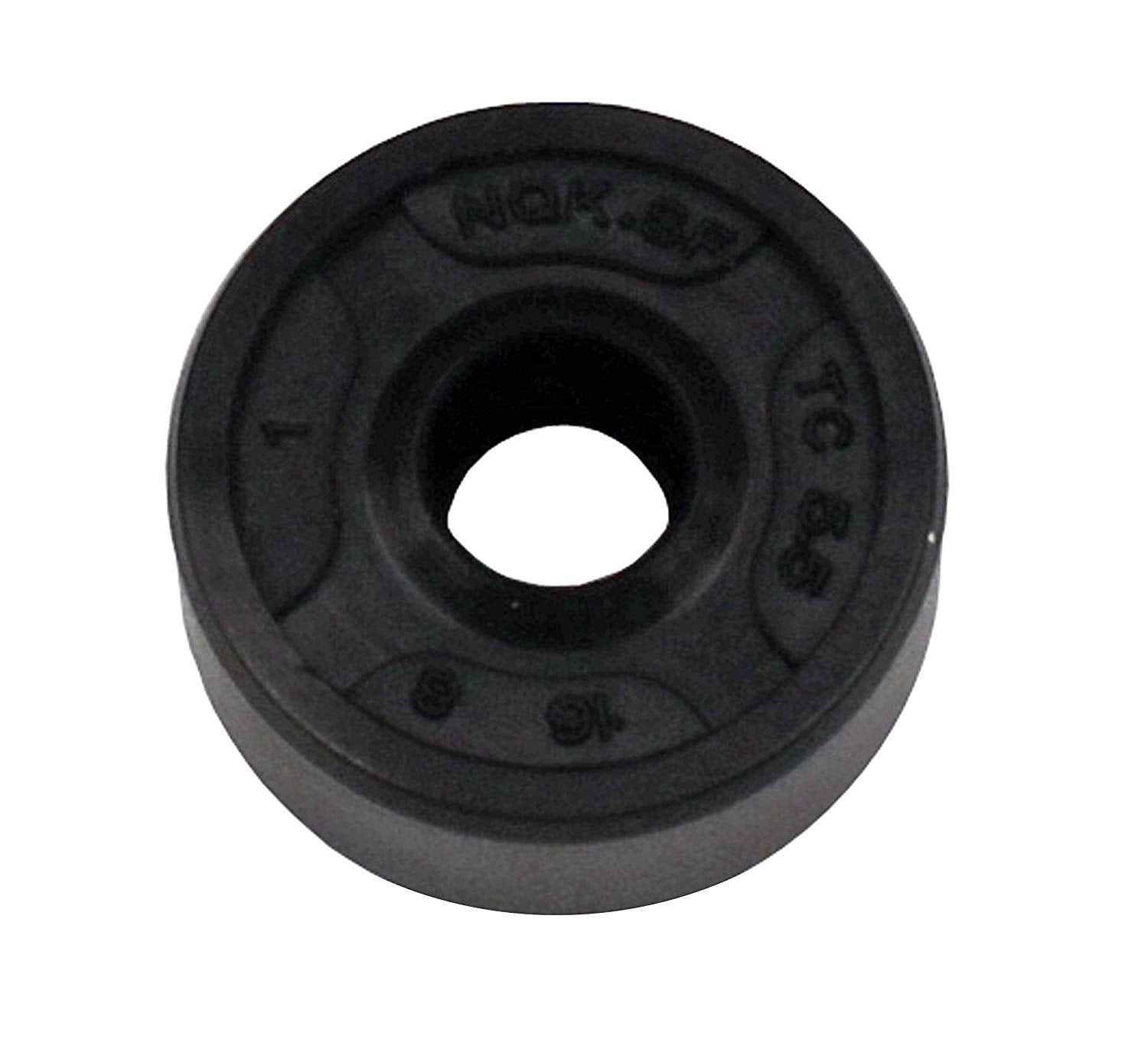

XPARTCO W10195677 Dishwasher Diverter Motor Seal Grommet Replaces WPW10195677

XPARTCO W10195677 Dishwasher Diverter Motor Seal Grommet – Replaces WPW10195677 – Compatible with Whirlpool, KitchenAid, Kenmore, and Maytag Dishwashers

Product Description

Prevent leaks and protect your dishwasher’s diverter motor with the XPARTCO W10195677 Dishwasher Diverter Motor Seal Grommet. This high-quality replacement seals the diverter motor shaft where it passes through the sump, preventing water from leaking into the motor area. A worn or damaged grommet can cause leaks, corrosion, or diverter motor failure. Replacing it with this durable XPARTCO seal helps maintain proper water direction and extends the life of your dishwasher components.

Fits Specific Dishwasher models with Diverter Motor Part Number W10195076, W10537869, or AP5650272 and certain Whirlpool Models

Replaces Part Numbers

WPW10195677, W10195677, PD00004713, EAP11750080, AP6016787, PS11750080.

Compatibility

This replacement diverter motor seal grommet fits select Whirlpool, KitchenAid, Maytag, Amana, Jenn-Air, and Kenmore dishwashers.

Example compatible models include (but are not limited to):
Whirlpool WDT780SAEM1, WDF520PADM7
KitchenAid KDTM354DSS4
Maytag MDB4949SHZ0
Kenmore 665.13242K701

Always verify your dishwasher’s model number before ordering.
Contact our support team if you’re unsure.

✅ Key Features

• 🔄 Aftermarket Replacement – Designed to match OEM fit and sealing performance

• 💧 Leak Prevention – Seals diverter motor shaft to stop water intrusion

• 💪 Durable Rubber Construction – Resists heat, detergent, and constant water exposure

• 💰 Cost-Effective Repair – Protects expensive diverter motor at a low cost

• 🛡️ Fixes Common Issues – Solves dishwasher leaks, water under unit, or diverter motor damage

📐 Product Specification

• Part Number: W10195677

• Component Type: Dishwasher Diverter Motor Seal / Grommet

• Material: High-grade rubber

• Color: Black

• Location: Diverter motor shaft seal at sump

• Compliance: Built to OEM-equivalent quality standards (not OEM)

🛠️ Installation Notes

Tools Needed: Screwdriver, towel (to catch residual water)

⚠️ Safety First: Disconnect power and water supply before servicing the dishwasher.

Steps:

1. Turn off power and water supply to the dishwasher.

2. Remove the lower access panel and locate the diverter motor.

3. Detach the diverter motor from the sump area.

4. Remove the old seal grommet and clean the mounting surface.

5. Install the new XPARTCO W10195677 grommet securely.

6. Reinstall the diverter motor, restore power and water, and test for leaks.

⏱️ Time Required: 20–30 minutes
