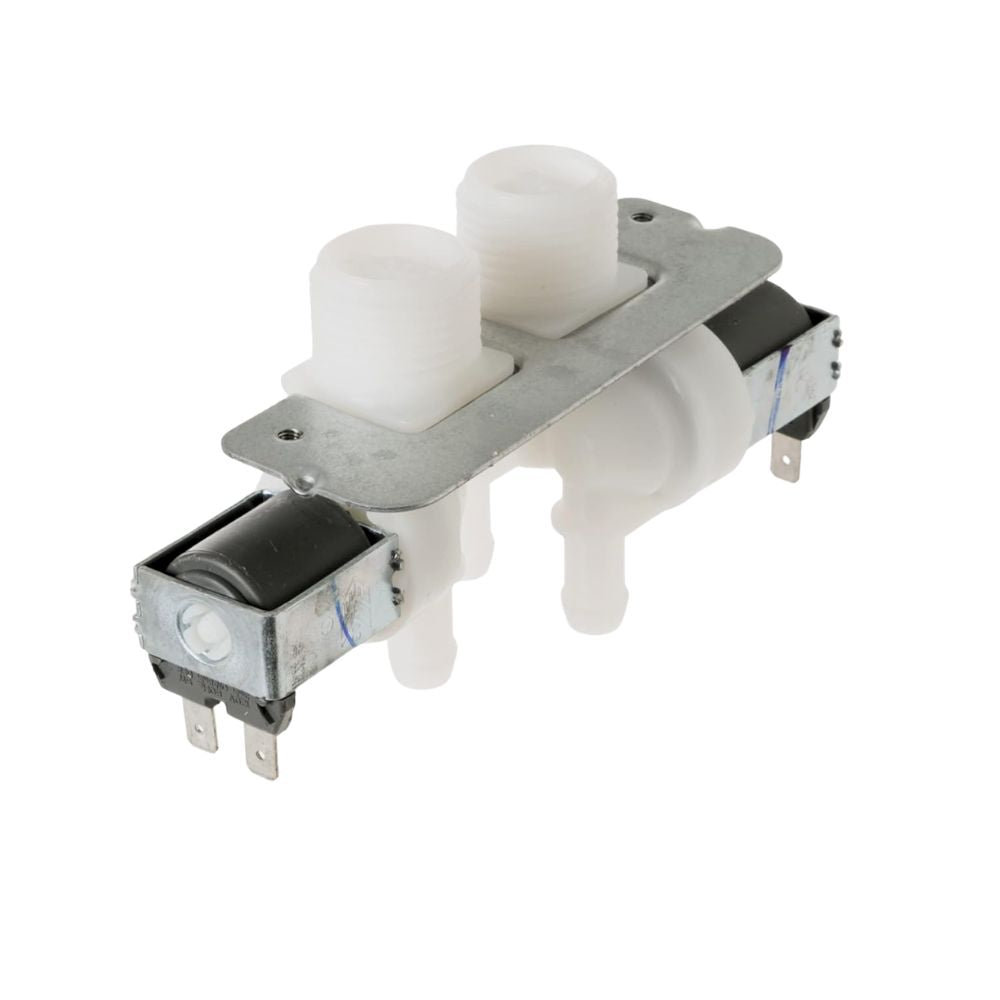

XPARTCO WH13X10029 (OE) Washer Water Valve
- Sku:
- WH13X10029-OE
- Vendor:
- XPARTCO
Have a question?
XPARTCO WH13X10029 (OE) Washer Water Valve
WH13X10029 (OE) Washer Water Valve

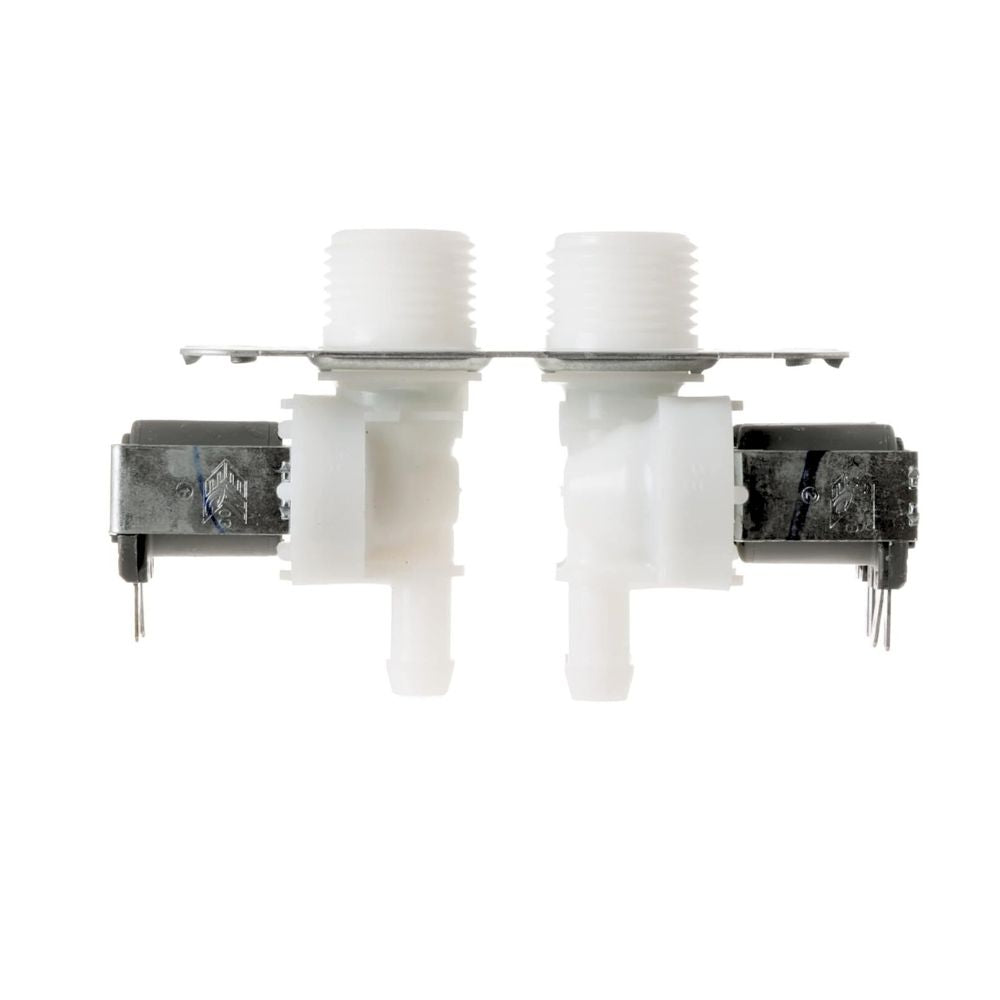

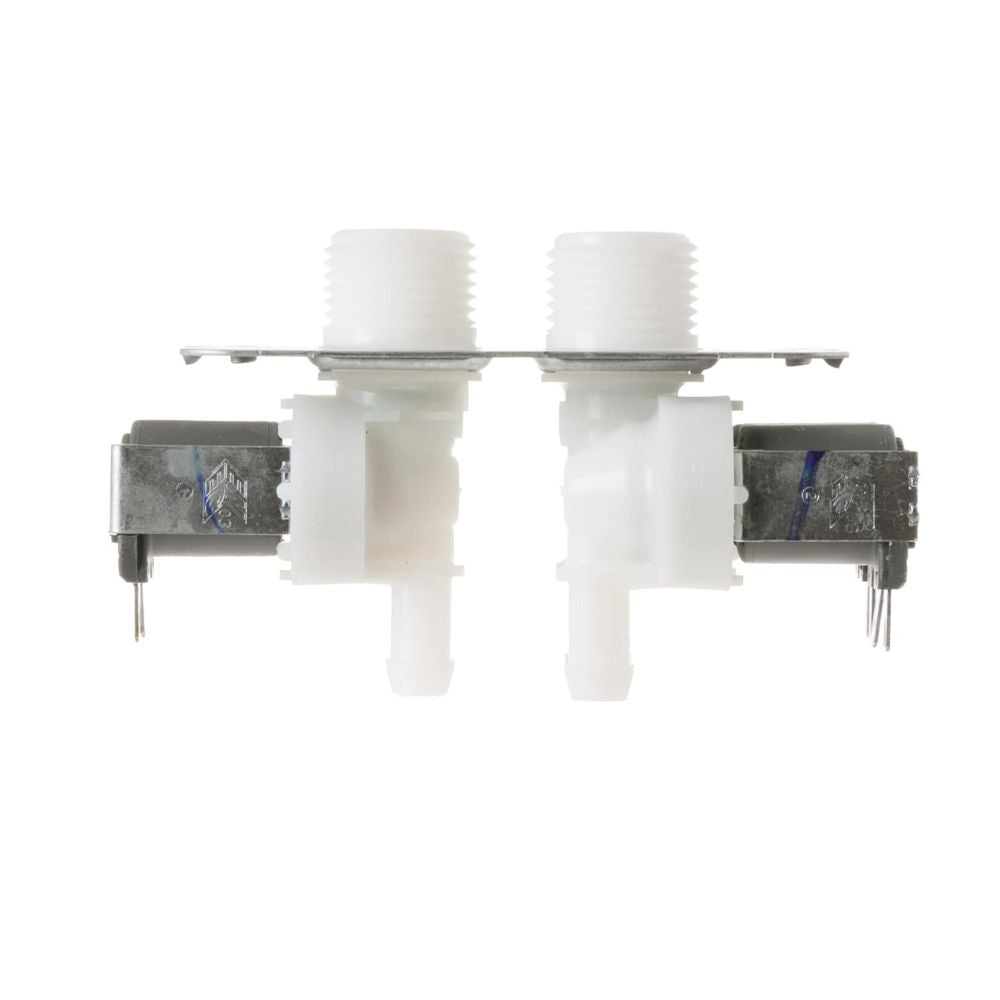

The WH13X10029 is an OE (Original Equipment) water inlet valve for GE, Hotpoint, Haier, Monogram, and Café front-load washers. This is a 2-inlet, 3-outlet valve assembly built around three internal solenoids: two work together during the wash portion of the cycle, opening in different combinations depending on the wash temperature you select, while the third solenoid handles the dedicated cold-only rinse. Because three separate solenoids share one valve body, a failure in any single one of them can affect only part of your washer's fill behavior while the rest continues working normally.
Rated 120V, 60Hz, and measuring approximately 5-3/8"L x 3-1/8"W x 2-1/2"H, this valve ships as a complete 3-solenoid assembly with its mounting bracket included. Common failure symptoms include the washer continuing to fill after it should have stopped, slow filling, or a complete failure to fill on one specific water temperature setting while others work fine. It directly replaces AP4303282, WV10029, 33090039, 1475762, AH1482392, EA1482392, EAP1482392, PD00001515, and PS1482392.
Quick Answer
The WH13X10029 (OE) Washer Water Valve fixes GE, Hotpoint, Haier, Monogram, and Café front-load washers that won't shut off after filling, fill slowly, or won't fill on a specific temperature setting (such as cold-only rinse) while other settings work fine. 2-inlet, 3-outlet, 3-solenoid valve assembly with mounting bracket, 120V, 60Hz, 5-3/8"L x 3-1/8"W x 2-1/2"H. Replaces AP4303282, WV10029, 33090039, 1475762, AH1482392, EA1482392, EAP1482392, PD00001515, PS1482392. OE (Original Equipment) designation — same fit, materials, and performance as the original at a more affordable price.
Common Problems This Part Fixes
- Washer keeps filling and won't shut off, even after reaching the correct level
- Washer fills much more slowly than it used to
- Washer won't fill at all on one specific temperature setting while other settings work normally
- Cold-only rinse cycle failing to fill while wash-cycle fills work fine (or vice versa)
- Cycle stalling at the fill step and never advancing to wash
- Water leaking or dripping near the valve connections
- Washer stopping mid-cycle due to a fill-related fault
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer water valve directly replaces the following OEM and cross-reference part numbers:
WH13X10029, 33090039, PD00001515, EAP1482392, AGE26067, AH1482392, EA1482392, AP4303282, PS1482392.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This water valve is compatible with select GE, Hotpoint, Haier, Monogram, and Café front-load washers, including model families such as GFA, GFW, GMA, and WBV, and specific models such as GFWS1600H, GFWS1605H, GFWS1700H, and GFWS1705H.
Key Features
- Complete 3-solenoid water valve assembly — 2 inlets (hot and cold), 3 outlets
- Two solenoids manage the wash-cycle fill combinations by temperature selection; a third handles cold-only rinse
- Resolves "won't shut off," "fills slowly," and "won't fill on a specific temperature setting" symptoms caused by valve failure
- Includes the mounting bracket — no need to transfer hardware from the old valve
- Rated 120V, 60Hz
- Approximately 5-3/8"L x 3-1/8"W x 2-1/2"H
- Direct drop-in replacement — matches the original mounting and hose connections
- Replaces AP4303282, WV10029, 33090039, 1475762, AH1482392, EA1482392, EAP1482392, PD00001515, and PS1482392
- Compatible with GE, Hotpoint, Haier, Monogram, and Café front-load washers
Product Specifications
| Part Number | WH13X10029 |
| Designation | OE (Original Equipment) |
| Part Type | Washer Water Inlet Valve (2-In / 3-Out, 3-Solenoid) |
| Brand | GE |
| Application | Front-Load Washers |
| Voltage | 120V |
| Frequency | 60 Hz |
| Inlets | 2 (hot and cold) |
| Outlets | 3 |
| Solenoids | 3 (one double, one single, one dedicated cold-rinse) |
| Dimensions | 5-3/8"L x 3-1/8"W x 2-1/2"H |
| Kit Contents | Valve assembly + mounting bracket |
| Quantity | 1 valve assembly |
| Compatible Brands | GE, Hotpoint, Haier, Monogram, Café |
Installation Notes
Frequently Asked Questions
My washer won't shut off and keeps filling. Is that this valve?
Yes, this is one of the most common symptoms of a failing valve on this platform. A worn internal seal on one of the three solenoids can fail to close fully, letting water continue flowing even after the correct fill level is reached. Since this could lead to overflow, it's worth shutting off the water supply at the wall if you notice this happening rather than waiting to address it.
Only my cold-only rinse doesn't fill, but regular wash cycles work fine. Do I need the whole valve?
Yes. This valve houses three separate solenoids in one assembly — two that combine for wash-cycle fills at different temperatures, and one dedicated specifically to the cold-only rinse. If just one of those three has failed, the others can continue working normally, which is exactly why a single-cycle fill problem can appear alongside otherwise normal operation. The three solenoids aren't sold or serviced individually, so replacing the complete assembly is the correct repair even if only one function is affected.
Do I really need to remove the dryer if this is a stacked unit?
On most stacked laundry centers, yes — the top panel of the washer sits underneath the dryer, so the dryer needs to come off first to get access. This is a heavier, more awkward step than the rest of the repair, so it's worth having a second person help lift and support the dryer safely rather than attempting it alone.
Is this a genuine OEM part?
This is an OE (Original Equipment) part. OE (Original Equipment) parts are produced to the same design and performance standards as the original factory part, but they are not sold under the appliance brand's OEM label. They provide the same fit and function as the OEM part at a more affordable price.
