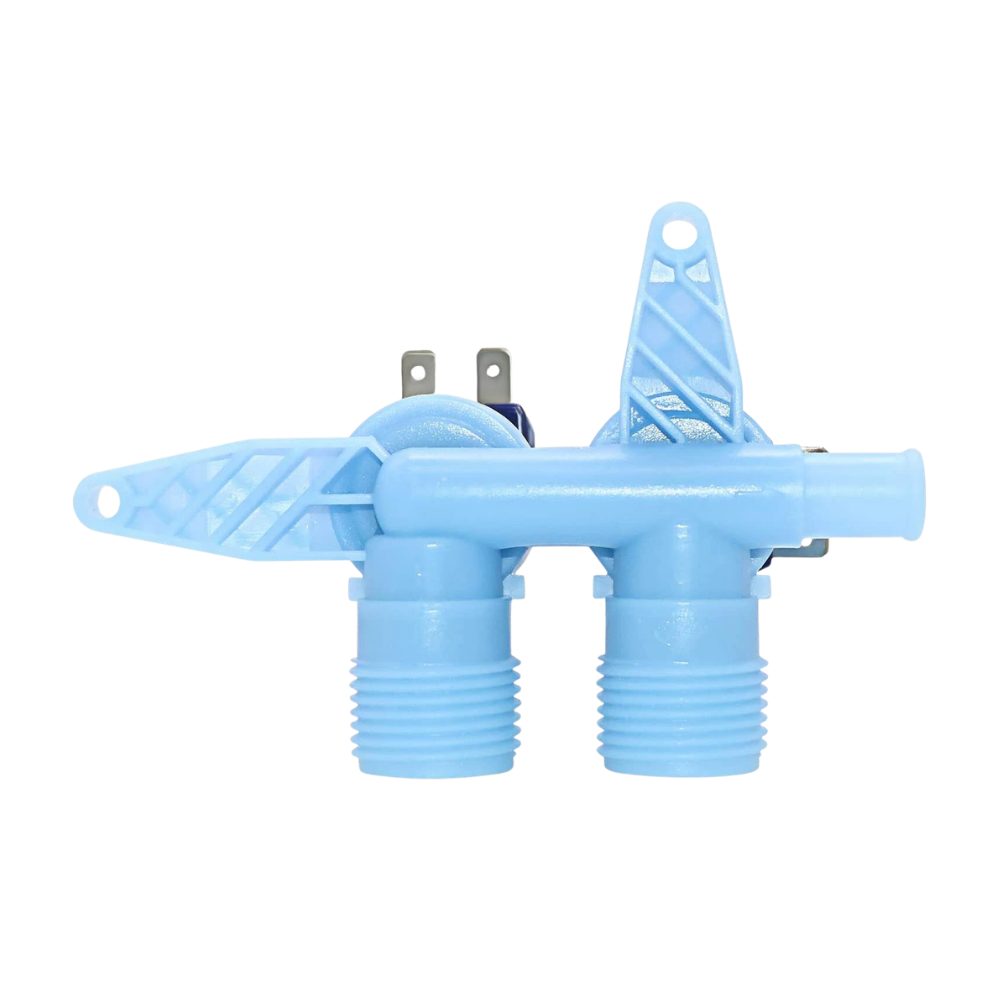

XPARTCO WH13X10024 Washer Water Valve
- Sku:
- XPWH13X10024
- Vendor:
- XPARTCO
Have a question?
XPARTCO WH13X10024 Washer Water Valve
XPARTCO WH13X10024 Washer Water Valve
The XPARTCO WH13X10024 is an aftermarket replacement rear-mount water inlet valve for GE top-load washers, and also fits select Hotpoint and RCA models. This is the newer-style valve design used on late-model GE washers, mounted with two ear mounts and screws rather than a metal bracket. This valve controls the flow of hot and cold water into the tub during the fill portion of the cycle.
Common failure causes include mineral or sediment buildup inside the valve body and general electrical wear in the solenoid coils. A failing valve produces a clear set of symptoms: the washer won't fill with water, overfills, or leaks even when the washer is turned off. This is a simple, straightforward repair typically completed in 10 to 20 minutes with basic tools. It directly replaces AP3861119, 1159233, AH1155105, EA1155105, PS1155105, WH13X0086, WH13X0087, WH13X10004, WH13X10019, WH13X86, WH13X87, and OEM15444478.
Quick Answer
The XPARTCO WH13X10024 Washer Water Valve fixes GE, Hotpoint, and RCA top-load washers that won't fill with water, overfill, or leak even when turned off. Rear-mount style, 2 ear mounts, no metal bracket. Replaces AP3861119, 1159233, AH1155105, EA1155105, PS1155105, WH13X0086, WH13X0087, WH13X10004, WH13X10019, WH13X86, WH13X87, OEM15444478. Label your hoses before disconnecting them — the two hoses connect to specific ports and mixing them up can cause a fill or temperature issue.
Common Problems This Part Fixes
- Washer won't fill with water
- Washer overfills with too much water
- Water leaking or continuing to flow even when the washer is turned off
- Cycle stalling at the fill step and never advancing to wash
- No hot water reaching the tub, or no cold water reaching the tub
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer water inlet valve directly replaces the following OEM and cross-reference part numbers:
WH13X10024, WH13X0086, WH13X0087, WH13X10004, WH13X10019, WH13X86, WH13X87, AH1155105, EA1155105, OEM11583366, AP3861119, AGE26023, PD00001091, PS1155105
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This water inlet valve is compatible with select GE top-load washers, and also fits select Hotpoint and RCA washers built on the GE platform. This is the new-style rear-mount valve used on late-model GE brand washers.
Note: Always verify your full model number before ordering, since GE uses several different water inlet valve designs across its washer lineup, including our WH13X26535 and WH13X26534 listings for other GE and Hotpoint platforms. Contact our support team with your model number if you're unsure which valve your washer needs.
Key Features
- Aftermarket replacement water inlet valve — controls hot and cold water flow into the tub
- Resolves "won't fill," "overfills," and "leaks when off" symptoms caused by valve failure
- New-style rear-mount design used on late-model GE washers
- Mounts with 2 ear mounts and screws — no metal bracket needed
- Direct drop-in replacement — matches the original mounting and hose connections
- Replaces AP3861119, 1159233, AH1155105, EA1155105, PS1155105, WH13X0086, WH13X0087, WH13X10004, WH13X10019, WH13X86, WH13X87, and OEM15444478
- Compatible with GE, Hotpoint, and RCA top-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
- Simple 10 to 20 minute DIY repair
Product Specifications
| Part Number | WH13X10024 |
| OEM Part Number | WH13X10024 |
| Part Type | Washer Water Inlet Valve |
| Condition | Aftermarket Replacement |
| Application | Top-Load Washers |
| Mount Style | Rear mount, 2 ear mounts, no metal bracket |
| Repair Difficulty | Easy — 10 to 20 minutes |
| Quantity | 1 valve |
| Compatible Brands | GE, Hotpoint, RCA |
Installation Notes
Frequently Asked Questions
My washer isn't filling with water. Is this the right part?
Yes, this is the most direct symptom of a failed water inlet valve. Since this valve is what admits water from your household supply into the washer, a solenoid failure or internal blockage can prevent any water from entering at all, stopping the wash cycle from proceeding.
Is this a difficult repair?
No, this is one of the simpler washer repairs. Multiple customers describe completing it in under 20 minutes with just a screwdriver and pliers — remove the top panel, disconnect the hoses and wiring, swap the valve, and reassemble.
Does it matter which hose goes where when I reconnect them?
Yes. This valve has separate hot and cold water connections, so labeling each hose before disconnecting it ensures you reconnect them to the correct ports. Mixing up the connections can cause the washer to fill with the wrong water temperature.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the mounting style, solenoid design, and connection type of the original WH13X10024 valve used in compatible GE, Hotpoint, and RCA top-load washers.
