XPARTCO W11396717 Washer Drain Pump
- Sku: XPW11396717
- Vendor: XPARTCO
Have a question?
XPARTCO W11396717 Washer Drain Pump

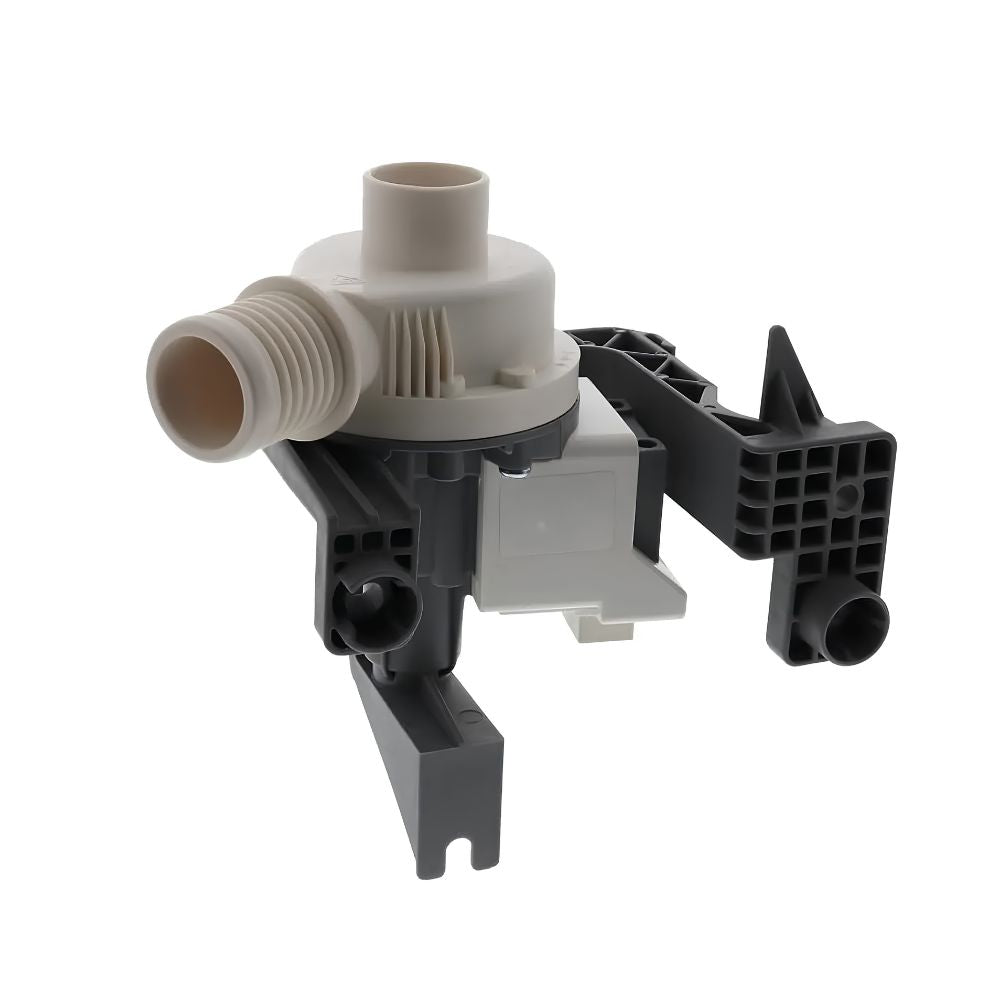

XPARTCO W11396717 Washer Drain Pump Assembly
The XPARTCO W11396717 is an aftermarket replacement drain pump assembly compatible with select Whirlpool, Maytag, and Kenmore high-efficiency top-load washers — including the Whirlpool WTW5100, WTW6120, WTW7120, WTW8120, and WTW8127 series, and the Maytag MVW6200, MVW6230, MVW7230, MVW7232, and MVW8230 series. The drain pump removes water from the washer tub during the drain portion of each wash cycle. When the pump fails, the washer will not drain, will leave standing water in the tub, stop mid-cycle, or make loud humming, grinding, or rattling noises during the drain phase.
Rated 120V, 60Hz, 1.2A (CL.F duty class), this complete pump assembly is mounted to the underside of the outer tub and secured by three mounting screws. It directly replaces the earlier W11263349 as well as 4960510, AP6974116, PS12731177, and EAP12731177. Note: the pump is accessed from the bottom of the washer — the machine must be tilted or laid on its back to reach the mounting screws. Installs in 20–35 minutes with basic hand tools.
Quick Answer
The XPARTCO W11396717 Washer Drain Pump fixes Whirlpool and Maytag HE top-load washers that won't drain, leave standing water, stop mid-cycle, or make loud noise during the drain cycle. 120V/60Hz/1.2A CL.F. Mounted on the underside of the outer tub — access by tilting the washer. Replaces W11263349, 4960510, AP6974116, PS12731177, EAP12731177. Compatible with Whirlpool WTW5100/6120/7120/8120/8127 and Maytag MVW6200/6230/7230/7232/8230 series top-load washers.
Common Problems This Part Fixes
- Washer not draining — standing water remaining in the tub after a cycle
- Washer stopping mid-cycle due to a drain fault
- Loud humming during the drain phase — motor energized but pump not moving water
- Grinding or rattling during drain — damaged impeller or worn bearings
- Clothes excessively wet after a full cycle — pump not fully removing water before spin
- Water draining very slowly — pump motor weakening below rated performance
- Water leaking from the pump area underneath the washer
Replaces Part Numbers
This drain pump directly replaces the following OEM and cross-reference part numbers:
W11396717, W11263349, Hanyu B25-3A04, AP6974116, AWP44690, EAP12731177, PD00065247, PS12731177
W11396717 is the current production part number superseding W11263349. If your parts diagram shows W11263349, the W11396717 is the correct current replacement. Contact our support team if you need confirmation before ordering.
Compatibility
This drain pump is compatible with select HE top-load washers from the following brands and series:
- Whirlpool top-load washers — WTW5100HC0, WTW5100HW0, WTW5105HC0, WTW5105HW0, WTW6120HC0, WTW6120HW0, WTW7120HC0, WTW7120HC1, WTW7120HW0, WTW8120HC0, WTW8120HW0, WTW8127LC1, WTW8127LW0, WTW8127LW1 and related models
- Maytag top-load washers — MVW6200KW0, MVW6230HC0, MVW6230HW0, MVW6230RHW0, MVW7230HC0, MVW7230HC1, MVW7230HW0, MVW7230HW1, MVW7232HC0, MVW7232HC1, MVW7232HC2, MVW7232HW0, MVW7232HW1, MVW7232HW2, MVW8230HC0, 7MMVW7230LC0, 7MMVW7230LW0 and related models
- Kenmore / Sears top-load washers — 11021112021, 11021652020, 11031652020 and related models
Note: This pump is mounted on the underside of the outer tub and requires tilting or laying the washer on its back for access. Always verify your model number before ordering.
Key Features
- Removes water from the tub during drain and spin cycles for proper washer operation
- Rated 120V, 60Hz, 1.2A (CL.F) — correct electrical specifications for compatible HE top-load washers
- Current production part — directly supersedes W11263349
- Mounted on the underside of the outer tub and secured by three mounting screws — tilt or lay washer on its back for access
- Replaces W11263349, 4960510, AP6974116, PS12731177, EAP12731177, and B25-3A04
- Compatible with Whirlpool WTW5100/6120/7120/8120/8127 and Maytag MVW6200/6230/7230/7232/8230 series top-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 20–35 minutes with basic hand tools
Product Specifications
| Part Number | W11396717 |
| Supersedes | W11263349 |
| Part Type | HE Top-Load Washer Drain Pump Assembly |
| Condition | Aftermarket Replacement |
| Application | Whirlpool / Maytag / Kenmore HE Top-Load Washers |
| Voltage | 120V AC |
| Frequency | 60 Hz |
| Amperage | 1.2A |
| Duty Class | CL.F |
| Mounting | 3 screws on underside of outer tub — tilt washer for access |
| Compatible Brands | Whirlpool, Maytag, Kenmore |
Installation Notes
Frequently Asked Questions
What is the difference between W11396717 and W11263349?
These are the same drain pump assembly across two production revisions. W11263349 was the original part number, and W11396717 is the current updated version that supersedes it. Whirlpool issues updated part numbers when minor engineering changes are made during production. Both are the same pump with the same specifications, dimensions, and function. If your washer's parts diagram shows W11263349, the W11396717 is the correct current replacement to order.
Why does accessing this pump require tilting the washer?
On compatible Whirlpool WTW and Maytag MVW HE top-load washers, the drain pump is mounted directly to the underside of the outer tub — not on the cabinet side panel or behind a front access panel as on some other models. The pump's three mounting screws are only reachable from below the machine. The standard repair procedure is to unplug and disconnect the washer, tilt it onto its back or side on a padded surface, access the pump from underneath, and return the washer to upright after installation.
How do I know if it's the drain pump versus a blocked drain hose?
Before replacing the pump, check the drain hose for kinks or blockages — disconnect the hose and blow through it to confirm it is clear. Also check whether the drain hose standpipe height is within the recommended range (typically 39–96 inches from the floor). If the hose is clear and properly positioned but the washer still won't drain, listen during the drain phase: a completely silent drain cycle (motor not running) suggests a failed motor or control board issue, while a humming or grinding noise during drain confirms the pump motor is receiving power but the pump is mechanically failed and needs replacement.
Is this pump the same as the W10876600 used in older Whirlpool Cabrio models?
No — the W11396717 and the W10876600 are different drain pumps for different Whirlpool top-load washer generations. The W10876600 (and its successor WPW10730972) is used in older Whirlpool Cabrio and Maytag Centennial models. The W11396717 is used in newer WTW5100/6120/7120/8120 and MVW6200/6230/7230/7232/8230 series models. They are not interchangeable — verify your model number before ordering.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the electrical specifications and performance of the original W11396717 drain pump assembly.
