XPARTCO W10613606 Refrigerator Compressor Start Relay
- Sku:
- EXPW10613606
- Vendor:
- XPARTCO
Have a question?
XPARTCO W10613606 Refrigerator Compressor Start Relay

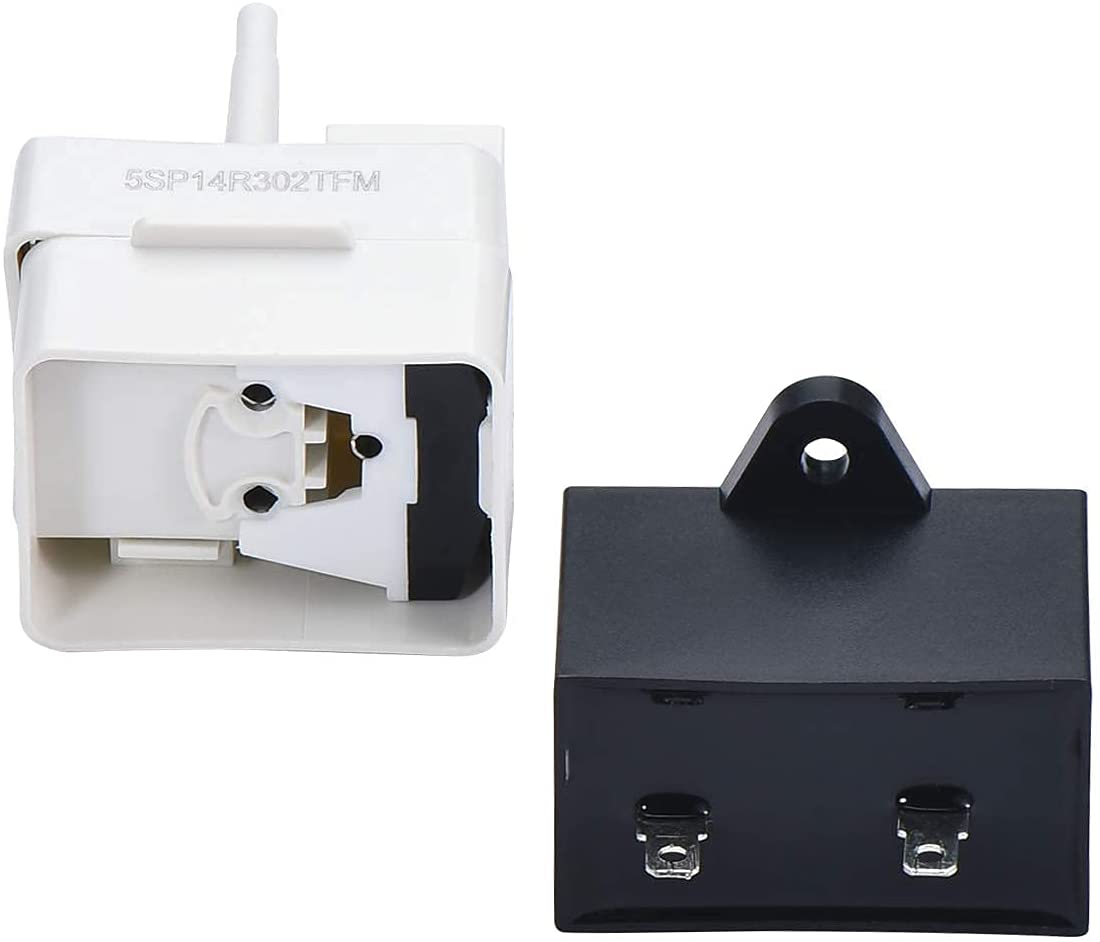

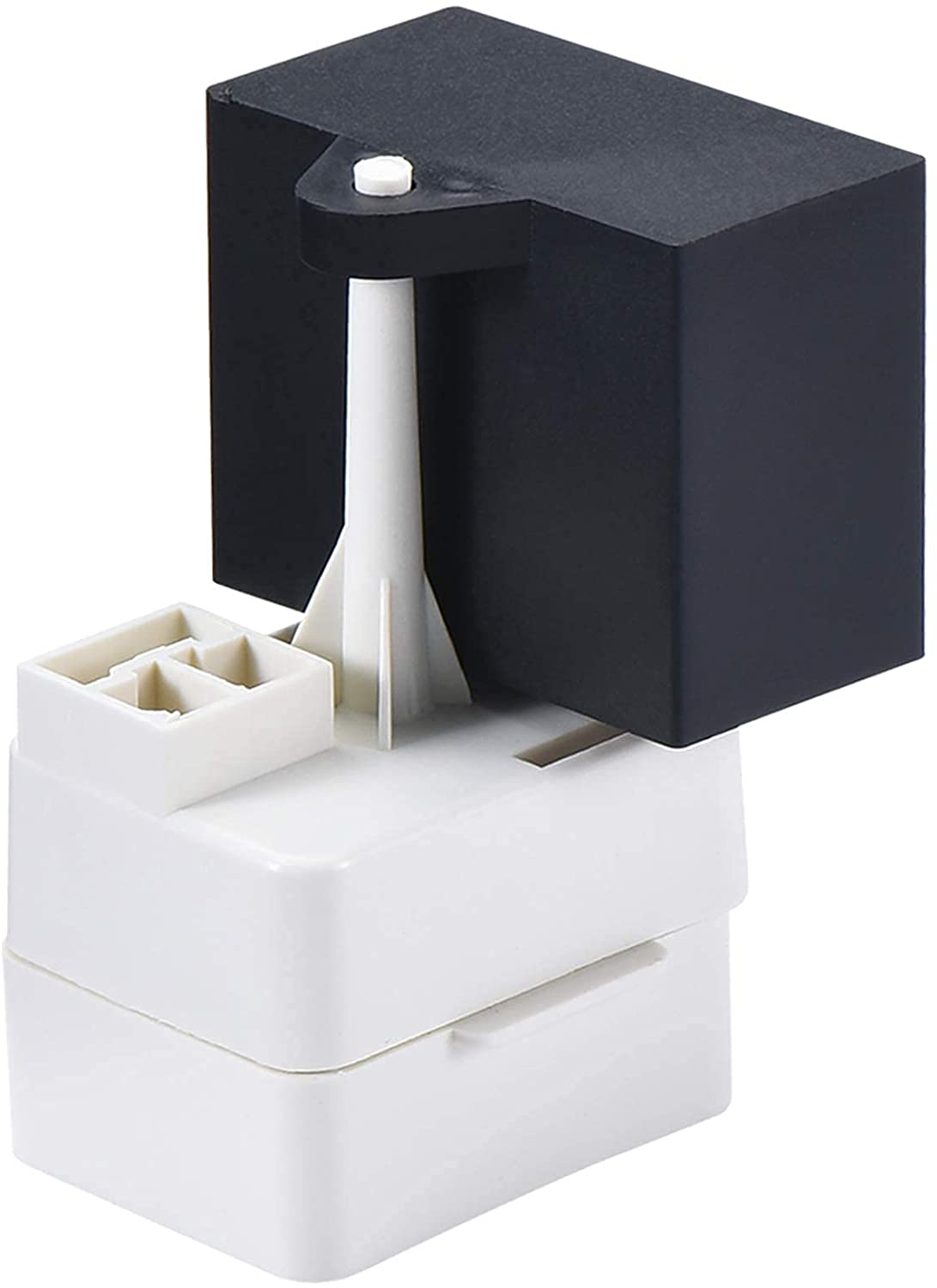

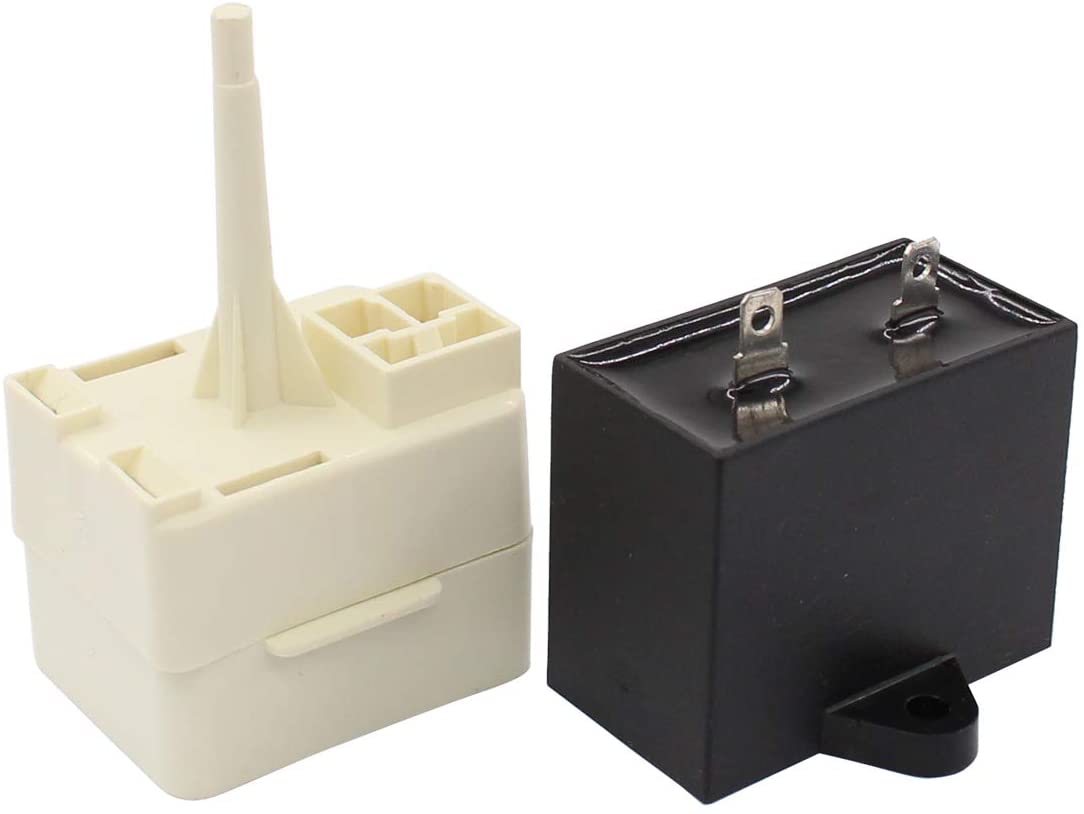

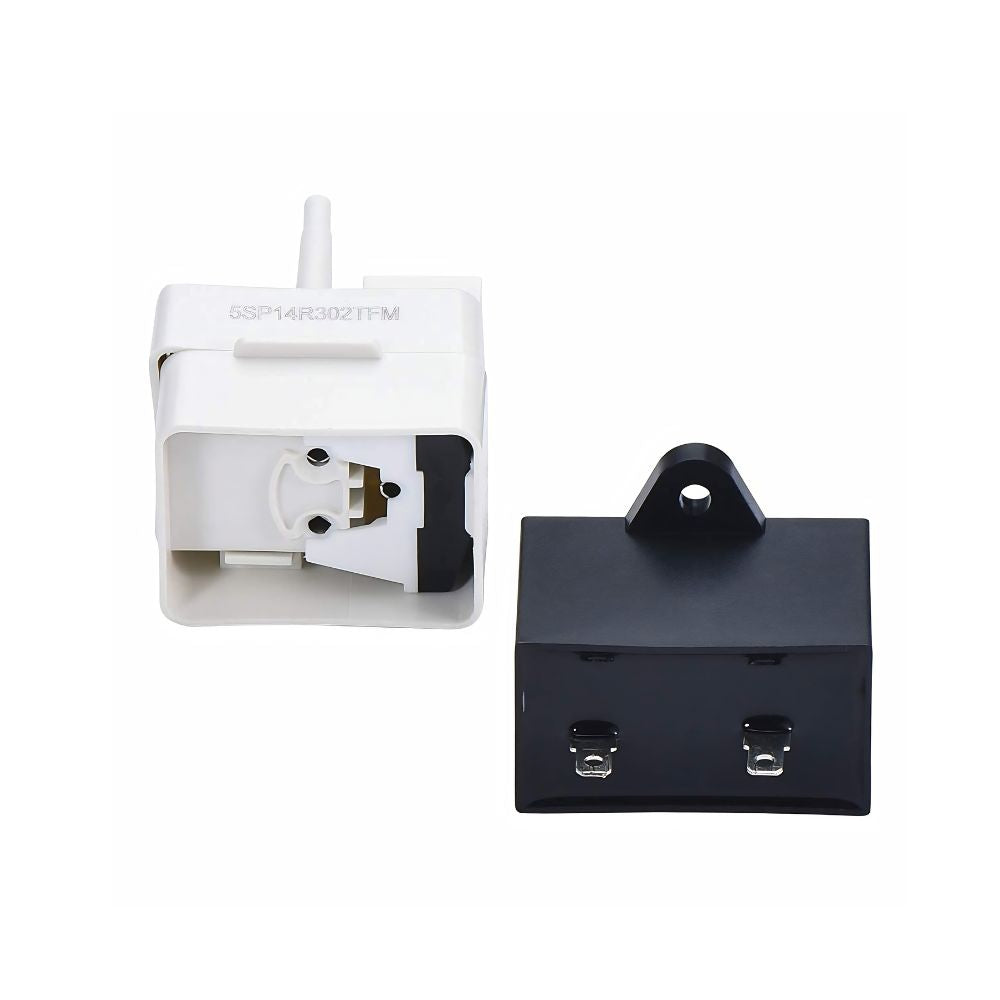

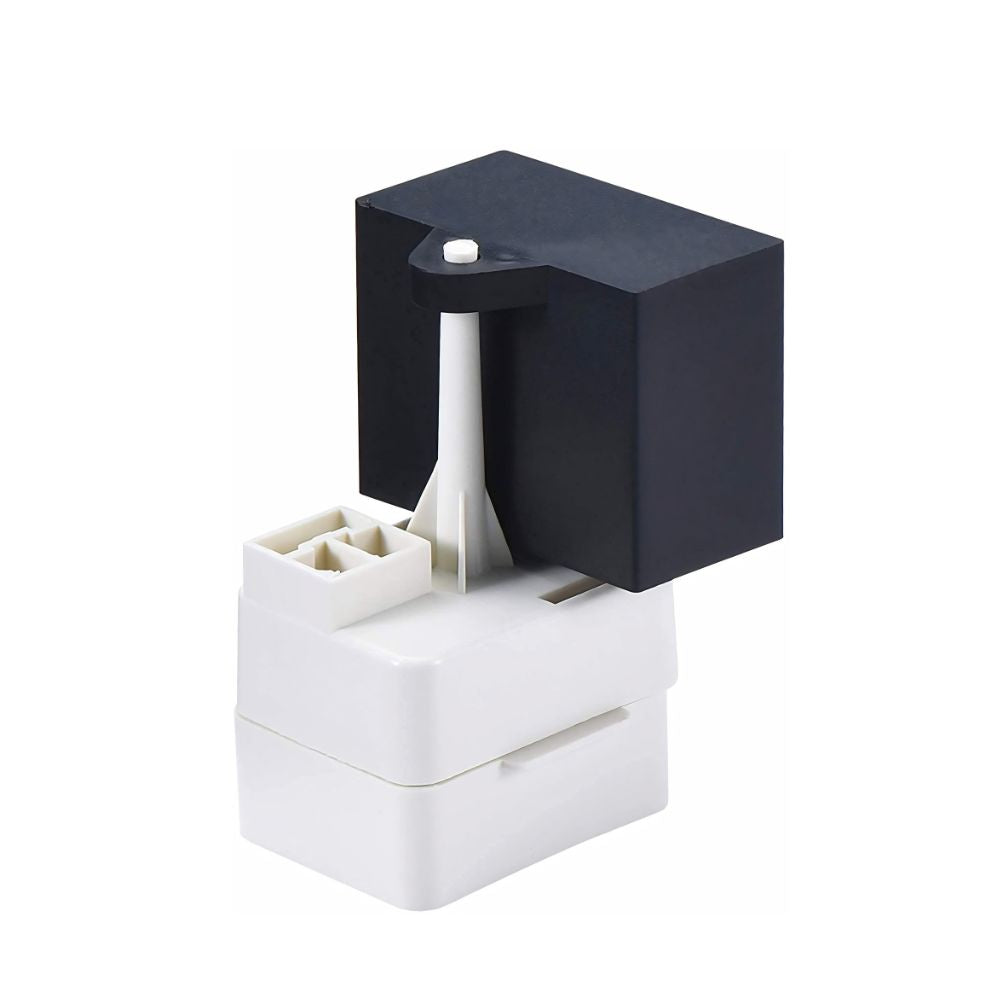

XPARTCO W10613606 Refrigerator Compressor Start Relay and Capacitor
The XPARTCO W10613606 is an aftermarket replacement compressor start relay and capacitor assembly compatible with a wide range of Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Jenn-Air, Admiral, Crosley, Dacor, Hardwick, Inglis, Litton, and Magic Chef refrigerators. The start relay is a small but critical electrical component that plugs directly onto the compressor terminals and provides the initial power surge needed to start the compressor motor. Once the compressor reaches operating speed, the relay drops out — leaving the compressor to run on its own. The capacitor (rated 15µF ±5%, 250VAC) works alongside the relay to store and release the burst of electrical energy needed on startup.
When the start relay fails, the compressor cannot start — causing the refrigerator to stop cooling entirely. A failed relay typically produces a clicking sound every few minutes as the compressor tries and fails to start, followed by a short rest, then another attempt. This kit includes both the start relay and the CBB61 capacitor. It directly replaces W10416065, 8208290, 8208368, C8931605, 67003186, 67005560, 67005561, 67005562, 67003764, 8171210, and several additional cross-reference numbers. Installs in under 15 minutes — no tools required in most cases.
Quick Answer
The XPARTCO W10613606 Refrigerator Compressor Start Relay and Capacitor fixes refrigerators that are not cooling, are too warm, or are making a repeated clicking sound every few minutes as the compressor tries to start. Plugs directly onto the compressor terminals. Kit includes start relay and 15µF 250VAC CBB61 capacitor. Compatible with Whirlpool, Kenmore, Maytag, KitchenAid, Amana, and more. Replaces W10416065, 8208290, C8931605, 67005560, and more. No tools required — installs in under 15 minutes.
Common Problems This Part Fixes
- Refrigerator not cooling — compressor not running
- Freezer section too warm or not freezing
- Both refrigerator and freezer compartments gradually warming up
- Repeated clicking sound every 2–5 minutes from behind or underneath the refrigerator
- Compressor hums briefly then shuts off without reaching operating temperature
- Refrigerator runs but cannot maintain set temperature
- Shaking the start relay reveals a rattling sound inside — confirms internal failure
Replaces Part Numbers
This start relay and capacitor kit directly replaces the following OEM and cross-reference part numbers:
W10613606, 67005560, 3023300, 67003186, 67003764, 67005561, 67005562, W10416065, 8171210, 8208290, 8208368, W10244032, 302TFBYY, SSP14R302TFR, AWP41206, C8931605, PD00004905, EAP8746522, AP5787784, PS8746522.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This start relay and capacitor is compatible with select refrigerators from the following brands:
- Whirlpool refrigerators (side-by-side, French door, bottom-freezer)
- Kenmore / Sears refrigerators (select Whirlpool-built models)
- Maytag refrigerators
- KitchenAid refrigerators
- Amana refrigerators
- Jenn-Air refrigerators
- Admiral refrigerators
- Crosley refrigerators
- Dacor refrigerators
- Hardwick refrigerators
- Inglis refrigerators
- Litton refrigerators
- Magic Chef refrigerators
Important: Always verify your refrigerator's model number and compare the old relay's shape and terminal configuration to the new part before installing. Some models may require trimming the wire connector tabs for a proper fit. Contact our support team with your model number if you need confirmation before ordering.
Key Features
- Provides the initial electrical surge needed to start the compressor motor — without it, the compressor cannot run and the refrigerator cannot cool
- Kit includes both the start relay and the CBB61 run capacitor (15µF ±5%, 250VAC) — everything needed in one package
- Plugs directly onto the compressor terminals — no wiring or soldering required in most cases
- Quick rattle test — shake the old relay; if it rattles, the internal contacts have failed and it needs replacement
- Replaces W10416065, 8208290, C8931605, and over a dozen additional cross-reference part numbers
- Compatible with 13 major appliance brands on the Whirlpool platform
- Aftermarket replacement built to OEM-equivalent quality standards
- Fast DIY repair — installs in under 15 minutes, no tools required in most cases
Product Specifications
| Part Number | W10613606 |
| Part Type | Refrigerator Compressor Start Relay and Capacitor Kit |
| Condition | Aftermarket Replacement |
| Application | Refrigerator Compressor (side-by-side, French door, bottom-freezer) |
| Capacitor Type | CBB61 Run Capacitor |
| Capacitor Rating | 15µF ±5%, 250VAC |
| Kit Includes | 1x Start relay, 1x CBB61 capacitor |
| Installation | Plug-in — no tools required in most cases |
| Compatible Brands | Whirlpool, Kenmore, Maytag, KitchenAid, Amana, Jenn-Air, Admiral, Crosley, Dacor, Hardwick, Inglis, Litton, Magic Chef |
Installation Notes
Frequently Asked Questions
What does the compressor start relay do?
The start relay plugs onto the compressor terminals and provides the brief but powerful surge of electrical current needed to start the compressor motor from a standstill. Once the compressor reaches operating speed — usually within a second or two — the relay drops out and the compressor runs on its own. Without a working start relay, the compressor cannot start at all, and the refrigerator stops cooling. The capacitor works alongside the relay to store and deliver the extra energy needed on startup.
How do I know if my start relay has failed?
The most reliable quick test is the rattle test: unplug the refrigerator, pull the start relay off the compressor, and shake it near your ear. A working relay is silent. A failed relay will rattle — the internal contacts have broken free and are loose inside the casing. Another sign is a repeated clicking sound every 2–5 minutes from the back of the refrigerator, where the compressor attempts to start, fails, trips the overload protector, rests, and tries again. If the fridge is warm and you hear clicking, check the relay first.
What is the difference between the start relay and the capacitor?
The start relay is the switching device that connects and disconnects the start winding of the compressor motor during startup. The capacitor stores a charge and releases it during startup to give the motor the additional torque it needs to get moving under load. Together they work as a startup system for the compressor. This kit includes both — replacing both at the same time ensures the complete startup circuit is fresh and reliable.
My fridge is still not cooling after replacing the start relay — what else could it be?
If replacing the start relay does not restore cooling, other possible causes include a failed compressor (the compressor runs but no longer builds pressure), a refrigerant leak in the sealed system, a failed start capacitor (if not replaced along with the relay), a bad overload protector, or a faulty main control board. Listen carefully after installing the new relay — if the compressor now starts and runs but the fridge still doesn't cool after several hours, a sealed system issue or refrigerant problem is likely and will require a certified technician.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the electrical specifications and terminal configuration of the original W10613606 start relay and capacitor assembly.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
Model Compatibility
Search your appliance model number below. Supports partial or full model search.
🔍 Search Model Number
Type your full or partial model number above to instantly check if this part fits your appliance.
| Model Number | Manufacturer | Appliance Type |
|---|
⚠️ This is a partial compatibility list. Always verify your appliance model number before ordering. Contact our support team if you’re unsure.
