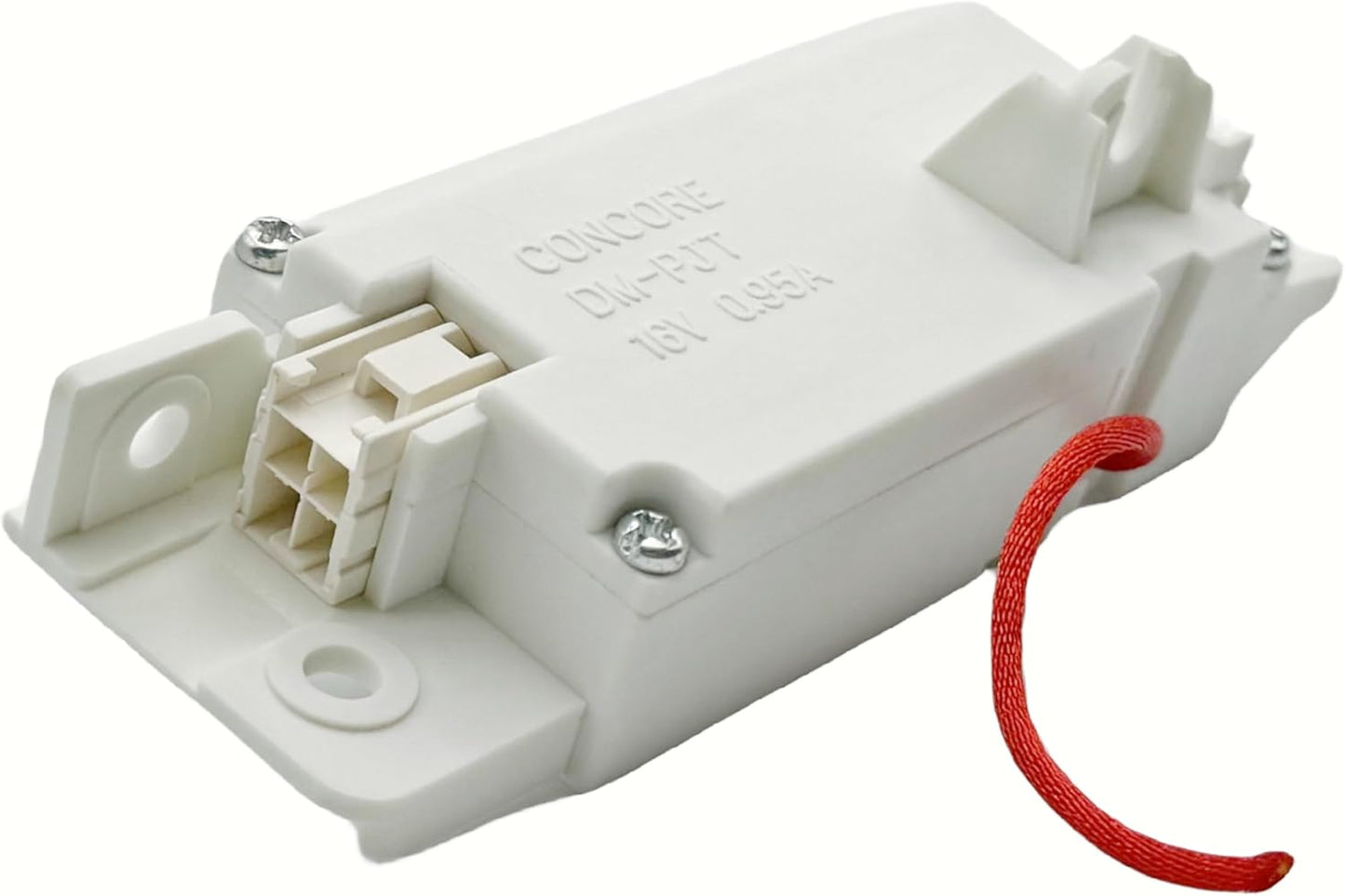

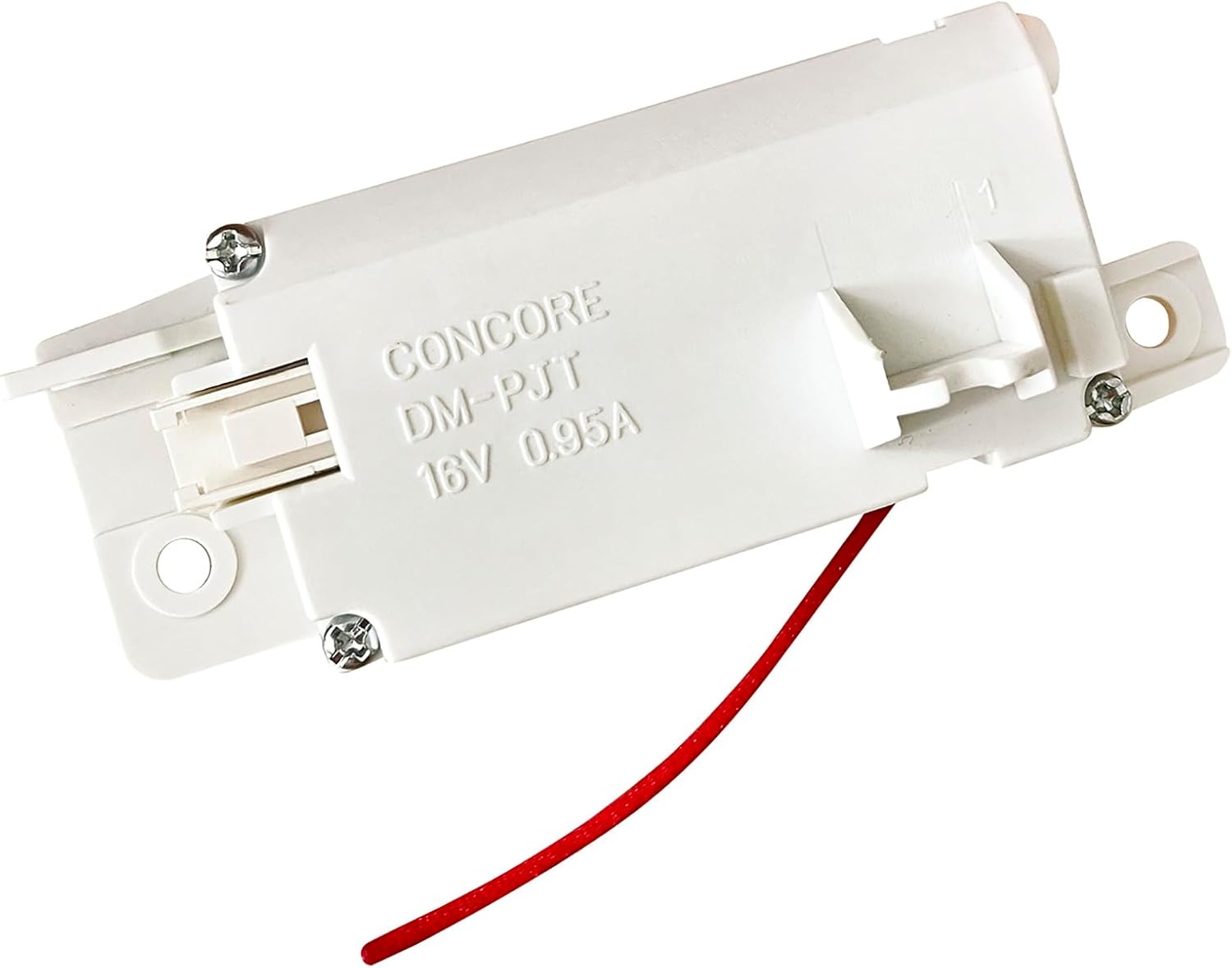

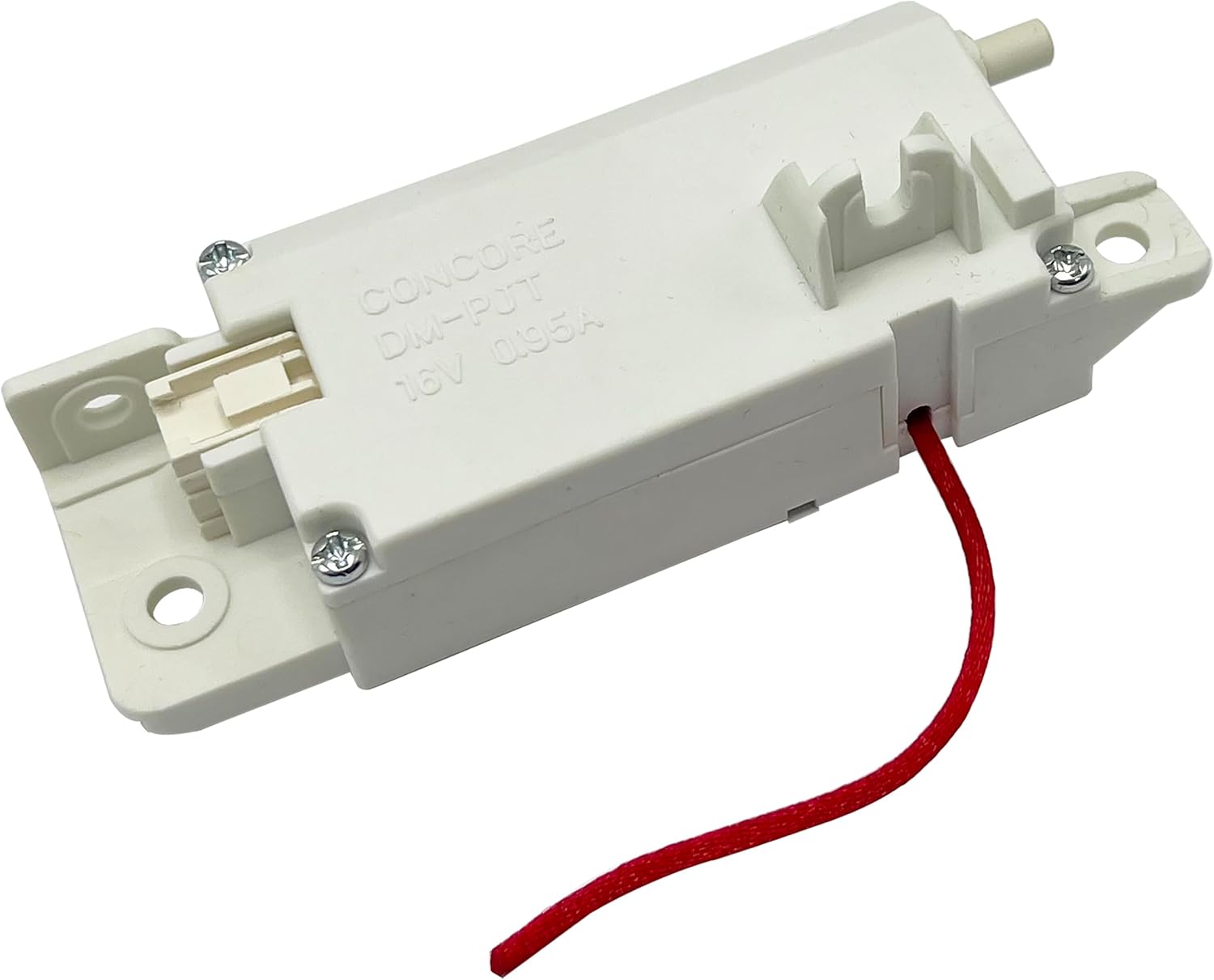

XPARTCO EBF61215202 Washer Door Lock Switch Replaces EBF61215204

XPARTCO EBF61215202 Washer Door Lock Switch – Replaces EBF61215204 – Compatible with LG & Kenmore Washers

Product Description

Restore safe washer operation and reliable cycle locking with the XPARTCO EBF61215202 Washer Door Lock Switch. This high-quality aftermarket replacement ensures the washer door locks securely during operation and signals the control board that it is safe to start and continue the cycle. A faulty door lock switch can cause the washer not to start, stop mid-cycle, or display door-related error codes. Replacing it with this dependable XPARTCO switch helps restore normal operation and prevents safety interruptions.

XPARTCO is a trusted aftermarket brand offering appliance replacement parts built to OEM-equivalent specifications at a cost-effective price.

Replaces Part Numbers

EBF61215202, 2667077, EBF61215203, TAW35618282, TAW35818286, Samco LSL-1, EAP3644957, PD00029194, AH3644957, AP5597170, EA3644957, PS3644957, EBF61215204, AP6801181, PS12589836.

Compatibility

This replacement washer door lock switch fits select LG and Kenmore (LG-manufactured) front-load washers.

This lid switch assembly is compatible with various LG washer models, including WT4801CW, WT1001CW, WT1201CV, WT1201CW, WT1101CW, and more (model dependent).

Always verify your washer’s model number before ordering.
Contact our support team if you’re unsure.

✅ Key Features

• 🔄 Aftermarket Replacement – Matches OEM fit and electrical performance

• 🔒 Secure Door Locking – Ensures washer operates only when door is locked

• ⚙️ Fixes Common Errors – Resolves door lock error codes and no-start issues

• 🧩 Direct-Fit Design – Installs without modification

• 💰 Cost-Effective Repair – Reliable alternative to OEM door lock assemblies

📐 Product Specification

• Part Number: EBF61215202

• Component Type: Washer Door Lock Switch

• Function: Door locking and safety interlock

• Mounting: Screw-mounted, plug-in harness

• Application: Front-load washer door safety system

• Quality Level: Aftermarket replacement (not OEM)

🛠️ Installation Notes

Tools Needed: Phillips screwdriver

⚠️ Safety First: Unplug the washer before servicing to avoid electrical shock.

Basic Steps:

1. Disconnect washer power.

2. Open the washer door and remove the retaining clamp from the door boot.

3. Access and disconnect the old door lock switch.

4. Remove mounting screws and take out the old switch.

5. Install the new XPARTCO EBF61215202 door lock switch.

6. Reconnect wiring, secure the switch, and reinstall the door boot clamp.

7. Restore power and test washer operation.

⏱️ Time Required: 20–30 minutes
