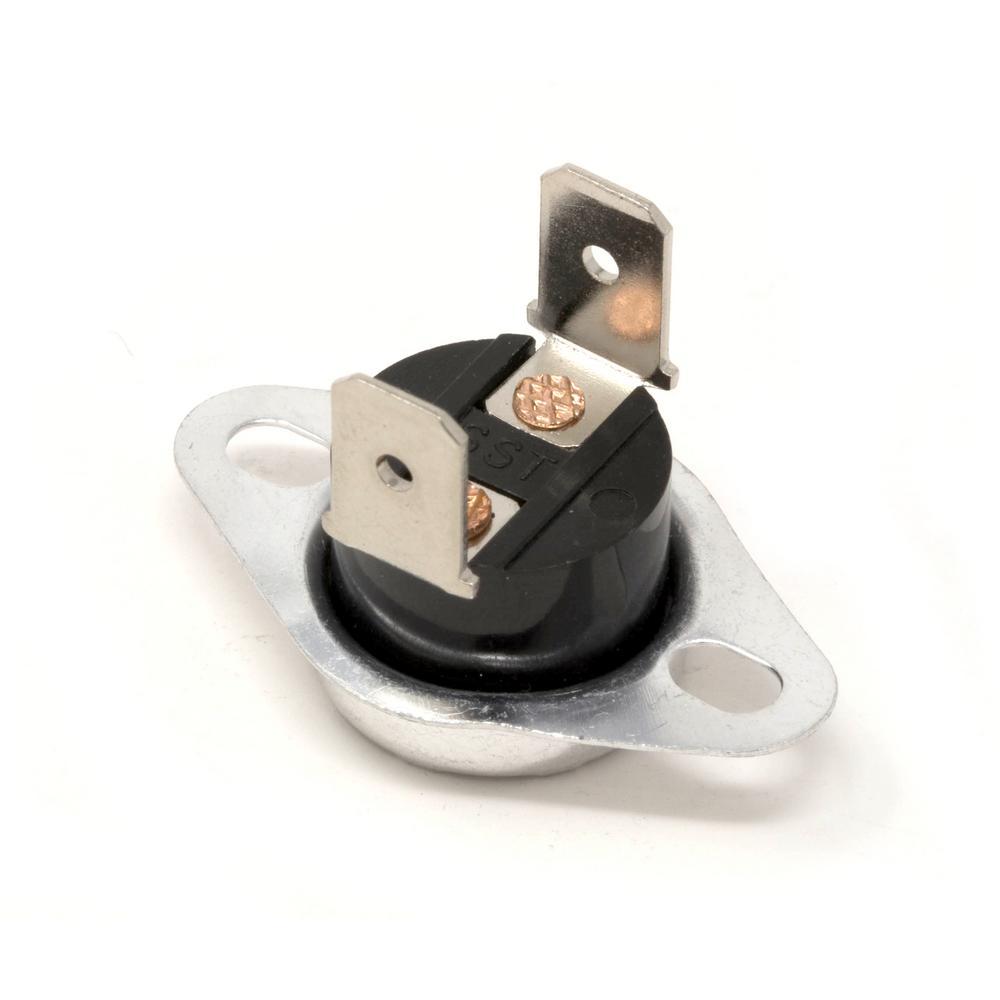

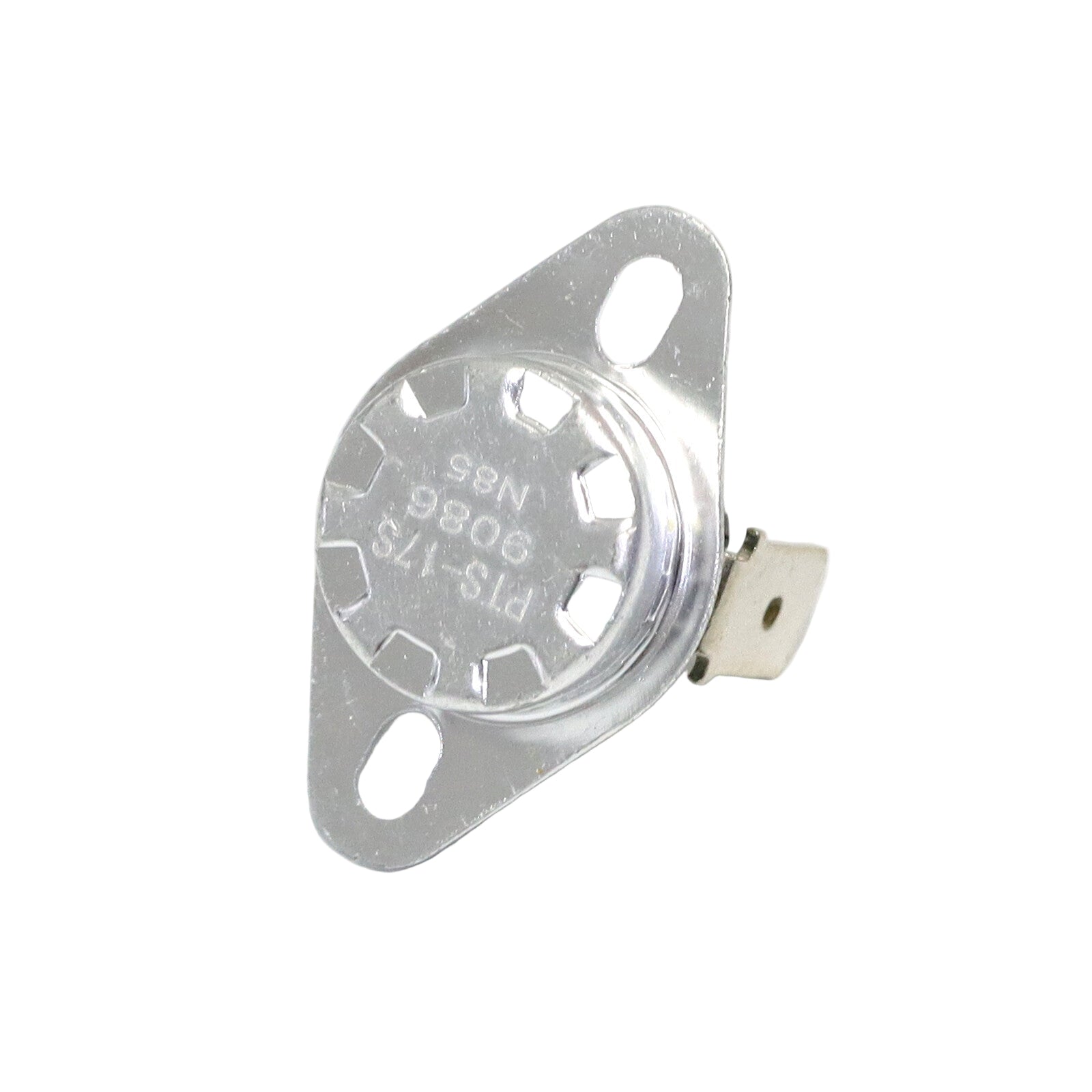

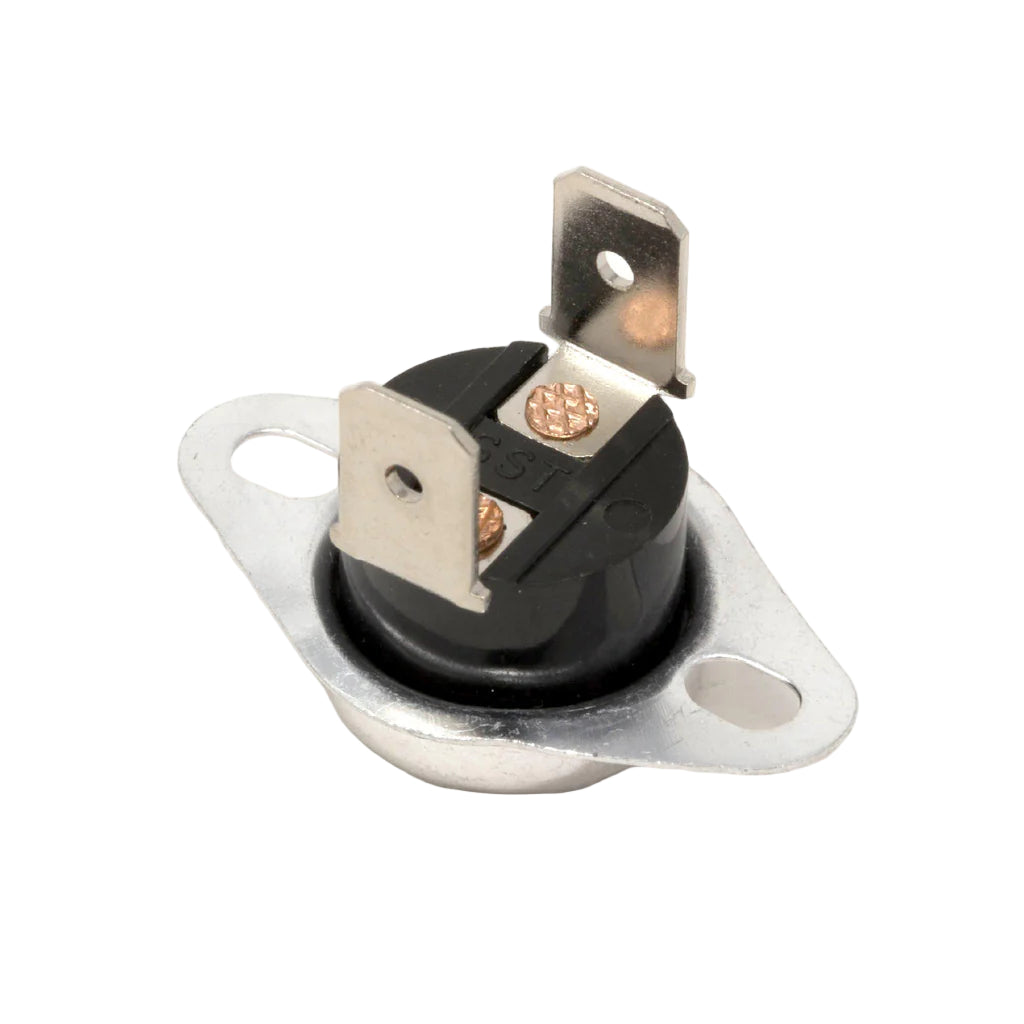

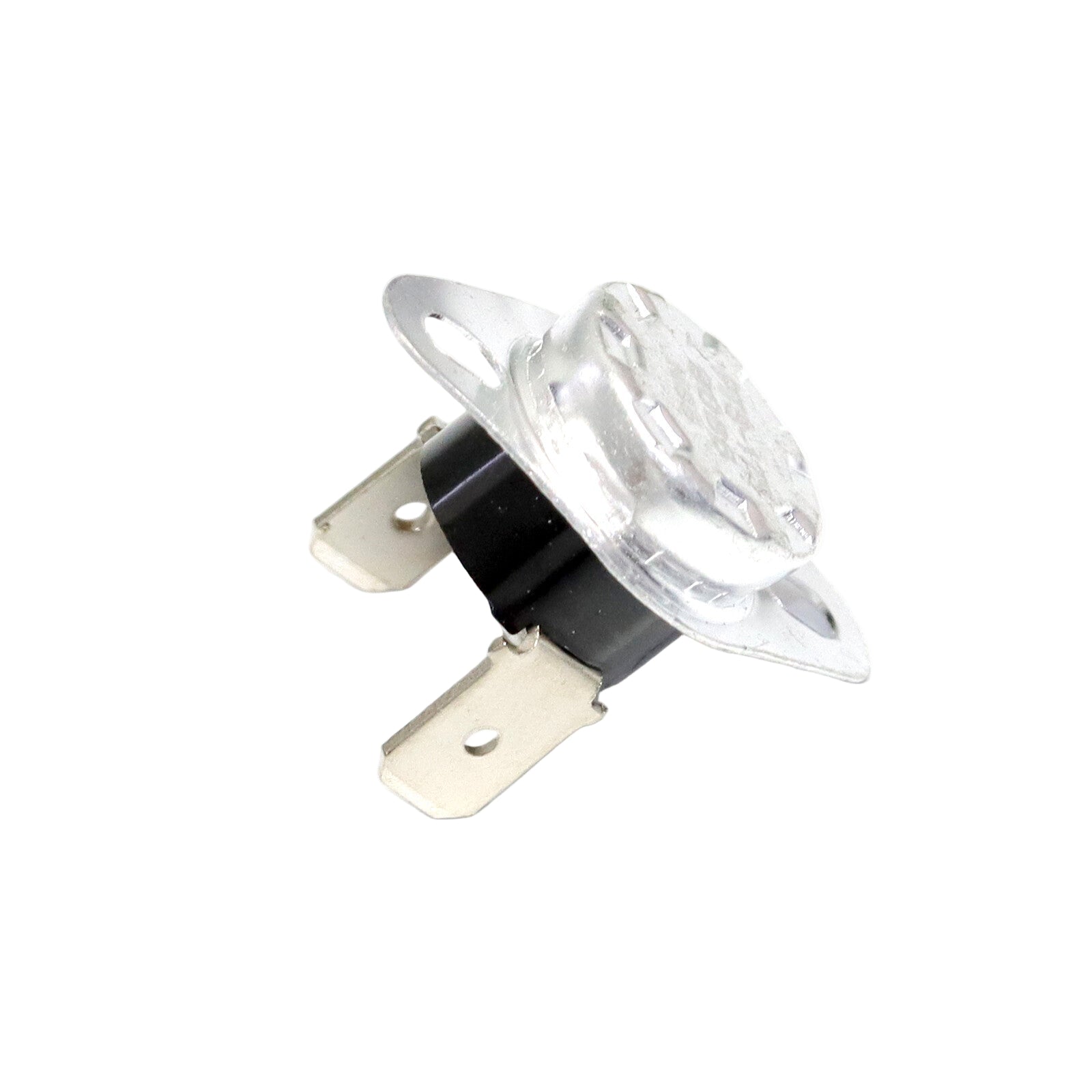

XPARTCO DC47-00016A Dryer Thermal Cut-Off Thermostat
- Sku: XPDC47-00016A
- Vendor: XPARTCO
Have a question?
XPARTCO DC47-00016A Dryer Thermal Cut-Off Thermostat
XPARTCO DC47-00016A Dryer Thermostat - Compatible with select Samsung, Whirlpool, Maytag, Kenmore Dryers
Product Description
Protect your dryer from overheating with the replacement DC47-00016A Dryer Thermostat. This thermal cut-off thermostat is designed for select Samsung, Whirlpool and Kenmore dryers, shutting off the motor when the dryer overheats to prevent damage or hazards. It addresses issues like no heat, insufficient heat, failure to start, or premature shutoff, offering a cost-effective alternative to OEM parts.
Note: Includes one thermal cut-off thermostat with two 1/4" male spade terminals. Disconnect power before installation.
Replaces part numbers: DC47-00016A, L0016A, AP4201894, PS4205213, AP6008681, EAP4205213, EAP11741821, PD00005341, PD00003747, PS11741821, 35001087, WP35001087.
Compatibility:
Compatible with models including but not limited to:
-
Samsung: DV203AGS, DV203AGW/XAA-0000, DV206AES, DV209AEW/XAA-0000, DV210AEW, DV42H5000EW/A3, DV45H7000EW/A2, DV48H7400EW/A2
-
Kenmore: 40289032010, 40289032011, 40299032010, 40299032012
Verify your model number or contact our support team for assistance.
Key Features:
-
âś… Brand and Models Compatibility: Fits select Samsung, Kenmore, and LG dryers.
-
🔥 Specifications: replacement thermal cut-off thermostat, opens at 260°F, two 1/4" male spade terminals.
-
đź’° Cost-Effective Alternative: Offers OEM-equivalent performance at a lower price.
-
🛠️ Easy Installation: Requires Phillips screwdriver, pliers, work gloves; typically installed in 15–20 minutes.
-
🛡️ Effective Fixes: Resolves no heat, insufficient heat, failure to start, or premature shutoff.
Product Specification
-
Part Number: XPARTCO DC47-00016A
-
Component Type: Thermal cut-off thermostat
-
Material: Metal and plastic
-
Electrical Specs: 125/250V, 25A, 85°C - 35°C, 185°F.
-
Mounting: Two 1/4" male spade terminals, mounts on blower housing
-
Operating Conditions: Suitable for high-temperature dryer environments
-
Compliance: Prop 65 warning for California
Installation Notes:
-
Safety First: Disconnect the dryer from the power source before installation.
Shop for high-quality replacement appliance parts with a 30-day return policy. Keep your dryer safe and efficient today!
Model Compatibility
Search your appliance model number below. Supports partial or full model search.
🔍 Search Model Number
Type your full or partial model number above to instantly check if this part fits your appliance.
| Model Number | Manufacturer | Appliance Type |
|---|
⚠️ This is a partial compatibility list. Always verify your appliance model number before ordering. Contact our support team if you’re unsure.
