XPARTCO DC32-00007A Dryer Thermistor
XPARTCO DC32-00007A Dryer Thermistor

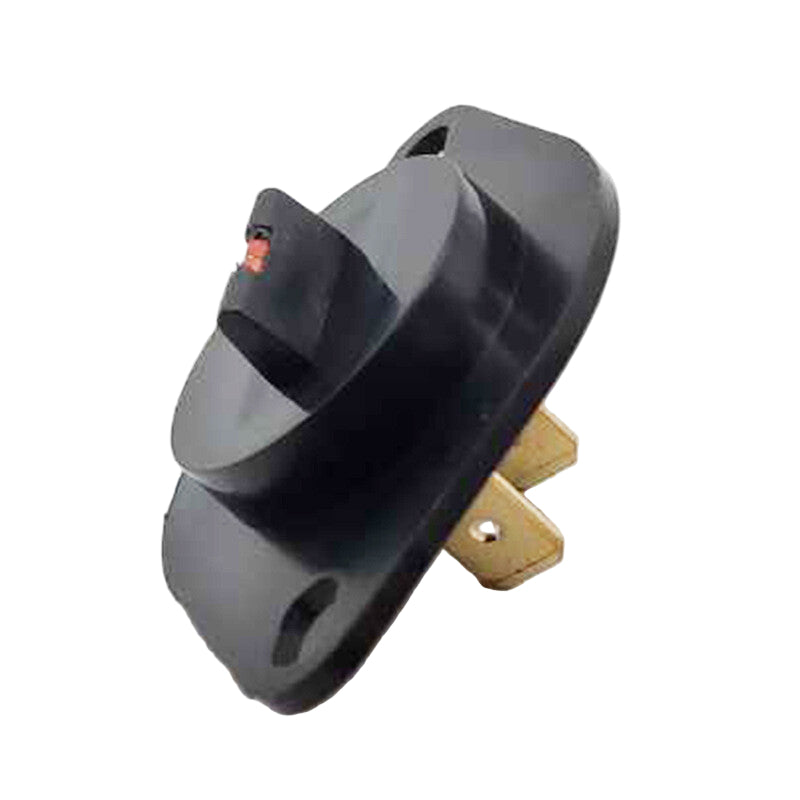

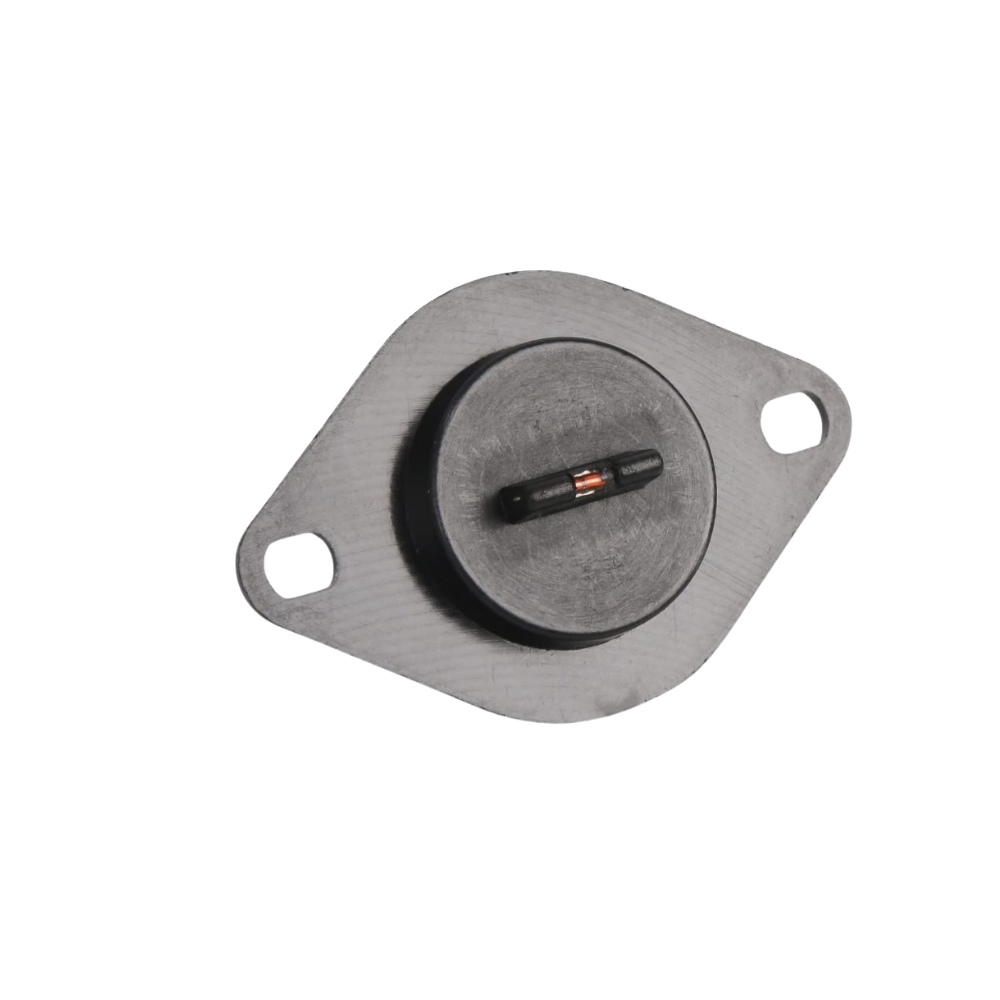

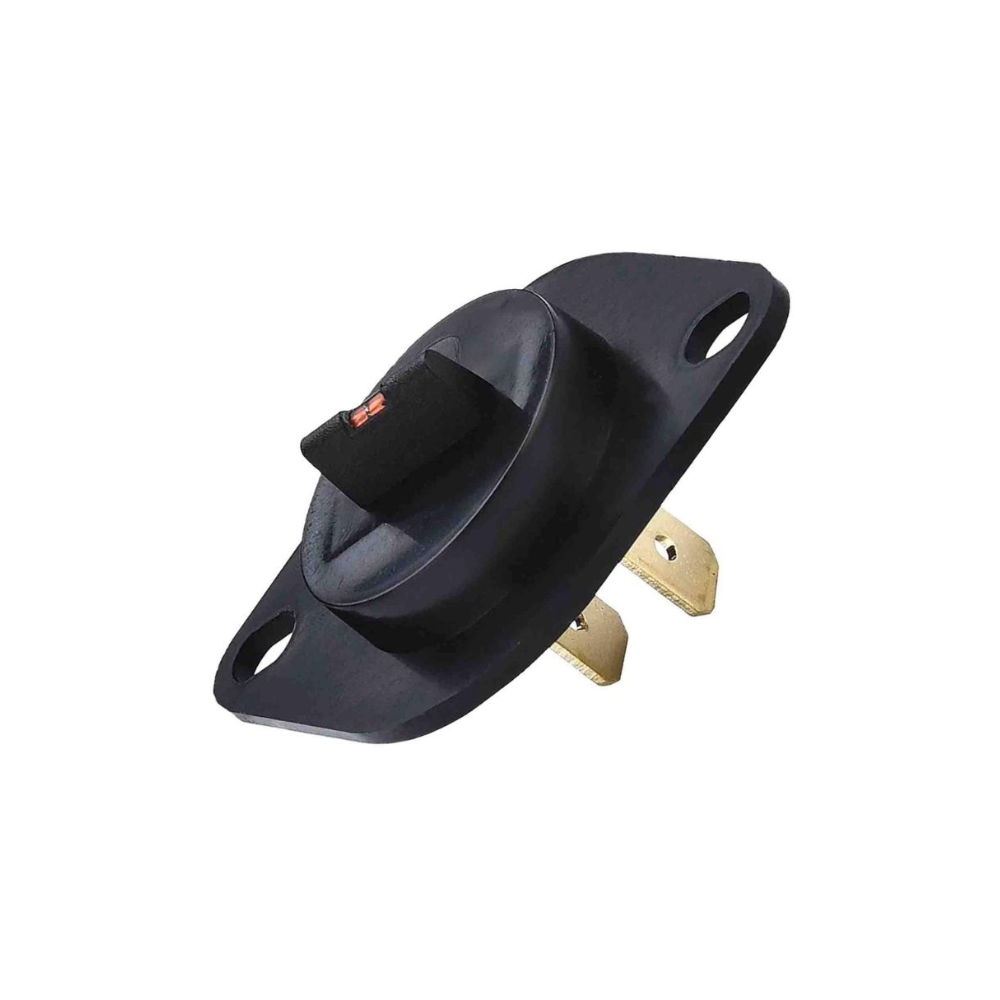

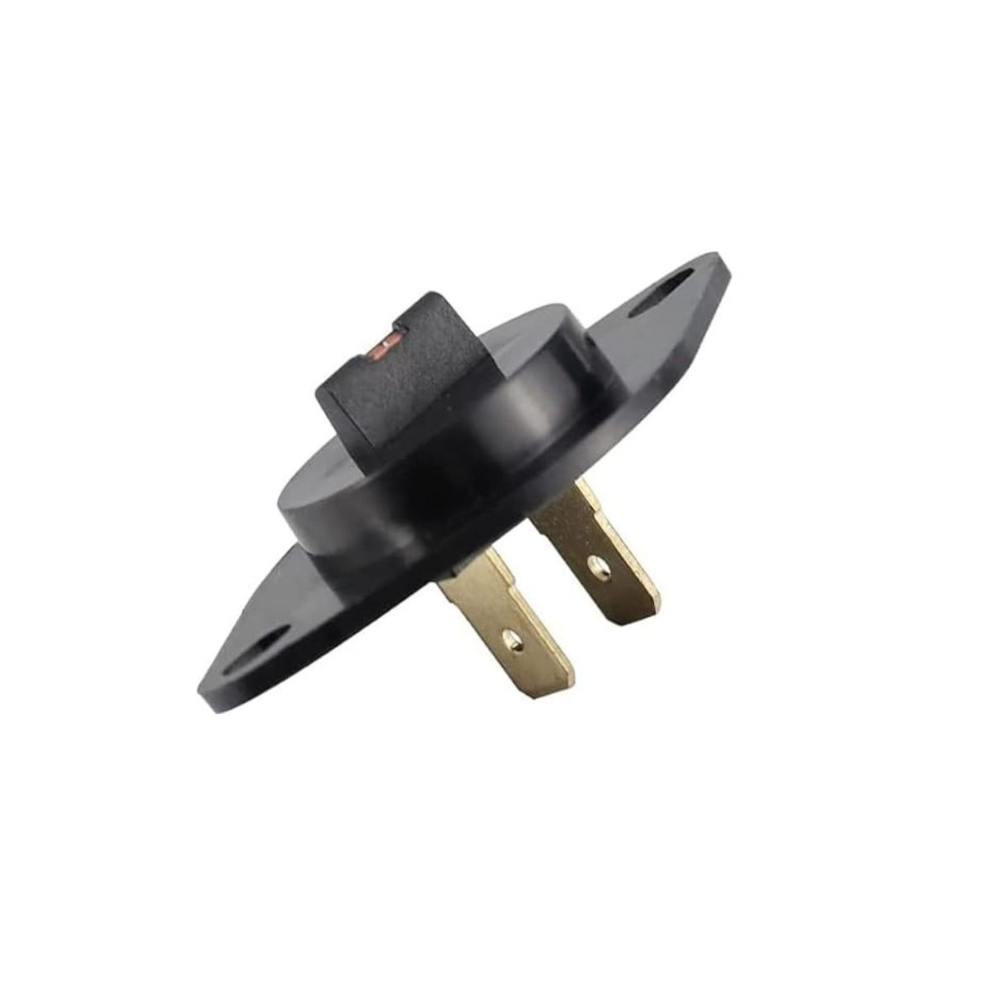

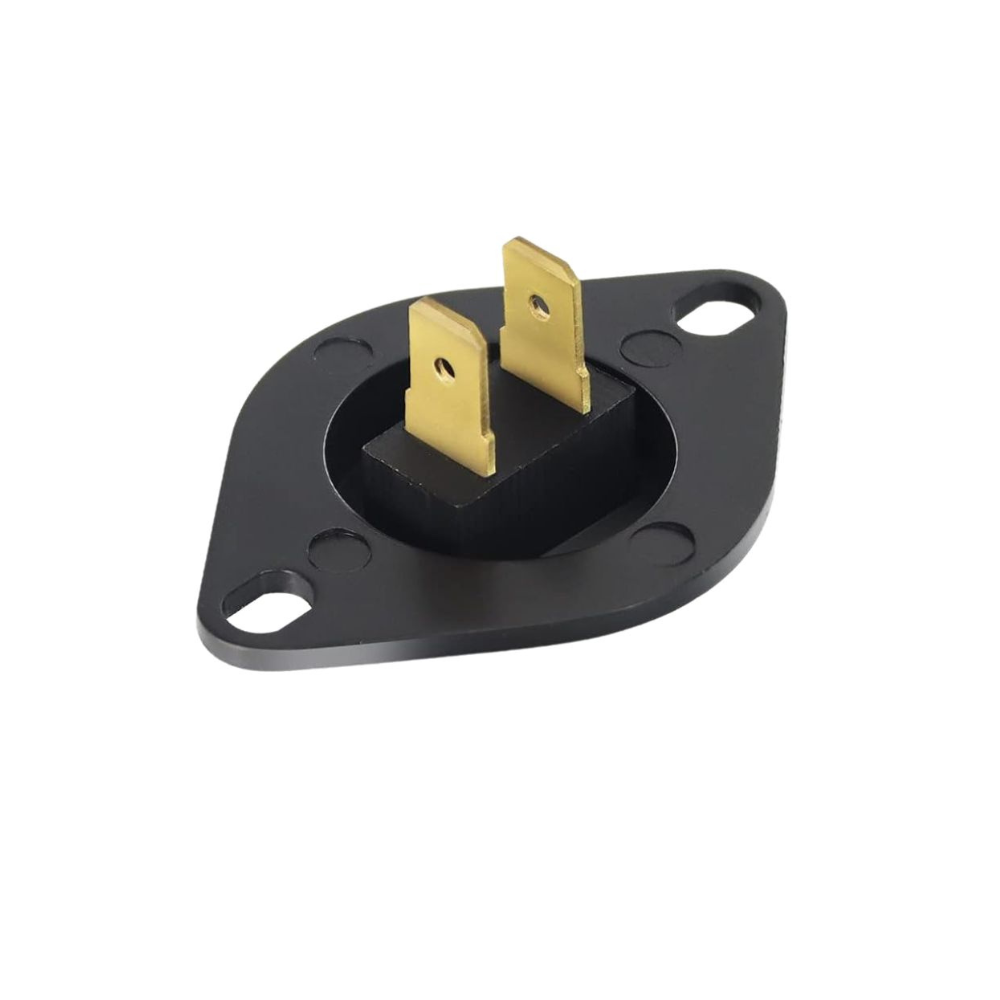

The XPARTCO DC32-00007A is an aftermarket replacement thermistor for Samsung, Kenmore, Maytag, and Amana electric dryers. Mounted to the blower housing in the lower right corner of the dryer's interior, this thermistor monitors the air temperature inside the drum and reports it continuously to the control board, letting it regulate heat output throughout the cycle.
Rated 10K ohms at 77°F, measuring approximately 2"L x 1"W x 1-7/8"H with 5/8" between its mounting holes, finished in black metal and plastic. Unlike a thermal fuse or thermostat, a thermistor doesn't have continuity — it's a variable resistor whose resistance changes with temperature, so testing it requires a multimeter set to ohms rather than a continuity check. When this thermistor fails or reads inaccurately, the control board loses reliable temperature feedback, and symptoms include the dryer overheating, underheating, shutting off prematurely, or drying inconsistently from cycle to cycle. It directly replaces AP4201716, 2068429, PS4204984, N3S1-K41, N3SI-K41, PS2461163, EAP2461163, 35001191, DE0007A, 1185513, AH2038482, AP4045224, AP6008688, EA2038482, PD00001996, PS2038482, and PS11741828.
Quick Answer
The XPARTCO DC32-00007A Dryer Thermistor fixes Samsung, Kenmore, Maytag, and Amana electric dryers that overheat, underheat, shut off prematurely, or dry inconsistently from cycle to cycle. Rated 10K ohms at 77°F. Replaces AP4201716, 2068429, PS4204984, N3S1-K41, N3SI-K41, PS2461163, EAP2461163, 35001191, DE0007A, 1185513, AH2038482, AP4045224, AP6008688, EA2038482, PD00001996, PS2038482, PS11741828. Thermistors show resistance, not continuity — test with a multimeter set to ohms, not a continuity tester.
Common Problems This Part Fixes
- Dryer overheating during the cycle
- Dryer underheating or producing insufficient heat
- Dryer shutting off prematurely before the load is fully dry
- Inconsistent drying results from one cycle to the next
- Dryer cycle not working or not completing normally
- Temperature-related error code displayed on the control panel
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This dryer thermistor directly replaces the following OEM and cross-reference part numbers:
AP4201716, 2068429, PS4204984, N3S1-K41, N3SI-K41, PS2461163, EAP2461163, 35001191, DE0007A, 1185513, AH2038482, AP4045224, AP6008688, EA2038482, PD00001996, PS2038482, PS11741828
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This thermistor is compatible with select Samsung electric dryers, and also fits select Kenmore, Maytag, and Amana dryers built on compatible platforms.
Note: Always verify your full model number before ordering, since thermistor designs and resistance ratings vary across dryer platforms. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement thermistor — monitors drum air temperature and reports it to the control board
- Resolves "overheating," "underheating," "shuts off prematurely," and "inconsistent drying" symptoms
- Rated 10K ohms at 77°F
- Mounts to the blower housing, lower right corner of the dryer interior
- Approximately 2"L x 1"W x 1-7/8"H, 5/8" between mounting holes
- Black metal and plastic construction
- Two-wire connection for a straightforward electrical fit
- Replaces AP4201716, 2068429, PS4204984, N3S1-K41, N3SI-K41, PS2461163, EAP2461163, 35001191, DE0007A, 1185513, AH2038482, AP4045224, AP6008688, EA2038482, PD00001996, PS2038482, and PS11741828
- Compatible with Samsung, Kenmore, Maytag, and Amana electric dryers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number | DC32-00007A |
| OEM Part Number | DC32-00007A |
| Part Type | Dryer Thermistor (Temperature Sensor) |
| Condition | Aftermarket Replacement |
| Resistance Rating | 10K ohms @ 77°F |
| Location | Blower housing, lower right corner of dryer interior |
| Color | Black |
| Material | Metal / Plastic |
| Dimensions | Approx. 2"L x 1"W x 1-7/8"H |
| Mounting Hole Spacing | 5/8" (center to center) |
| Wiring | 2-wire connection |
| Repair Difficulty | Moderate — 30 to 45 minutes |
| Quantity | 1 thermistor |
| Compatible Brands | Samsung, Kenmore, Maytag, Amana |
Installation Notes
Frequently Asked Questions
How do I test whether the thermistor has actually failed?
Thermistors don't show continuity like a fuse does — they show resistance, so you'll need a multimeter set to ohms rather than a continuity tester. With power disconnected, connect the multimeter to the thermistor's terminals, then use a hair dryer to blow hot air over it. On a working thermistor, the resistance reading should decrease as it heats up. If the reading stays flat or is far outside the expected range, the thermistor has failed and should be replaced.
My dryer is shutting off before the load is dry. Could this be the thermistor?
Yes, this is a documented symptom. Since the control board relies on this thermistor's reading to regulate the heating cycle, a thermistor reporting inaccurate temperature data can cause the control to end the cycle prematurely, believing the drum has reached a target temperature it hasn't actually reached.
My dryer seems to run hotter than it used to. Is that also a thermistor symptom?
It can be. Since this component is what tells the control board how hot the drum currently is, a failing or drifting thermistor can just as easily cause overheating as it can underheating or premature shutoff — the direction of the symptom depends on which way the sensor's reading has drifted from actual temperature.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is manufactured to match the resistance rating, mounting dimensions, and wiring configuration of the original DC32-00007A thermistor used in compatible Samsung, Kenmore, Maytag, and Amana electric dryers.
