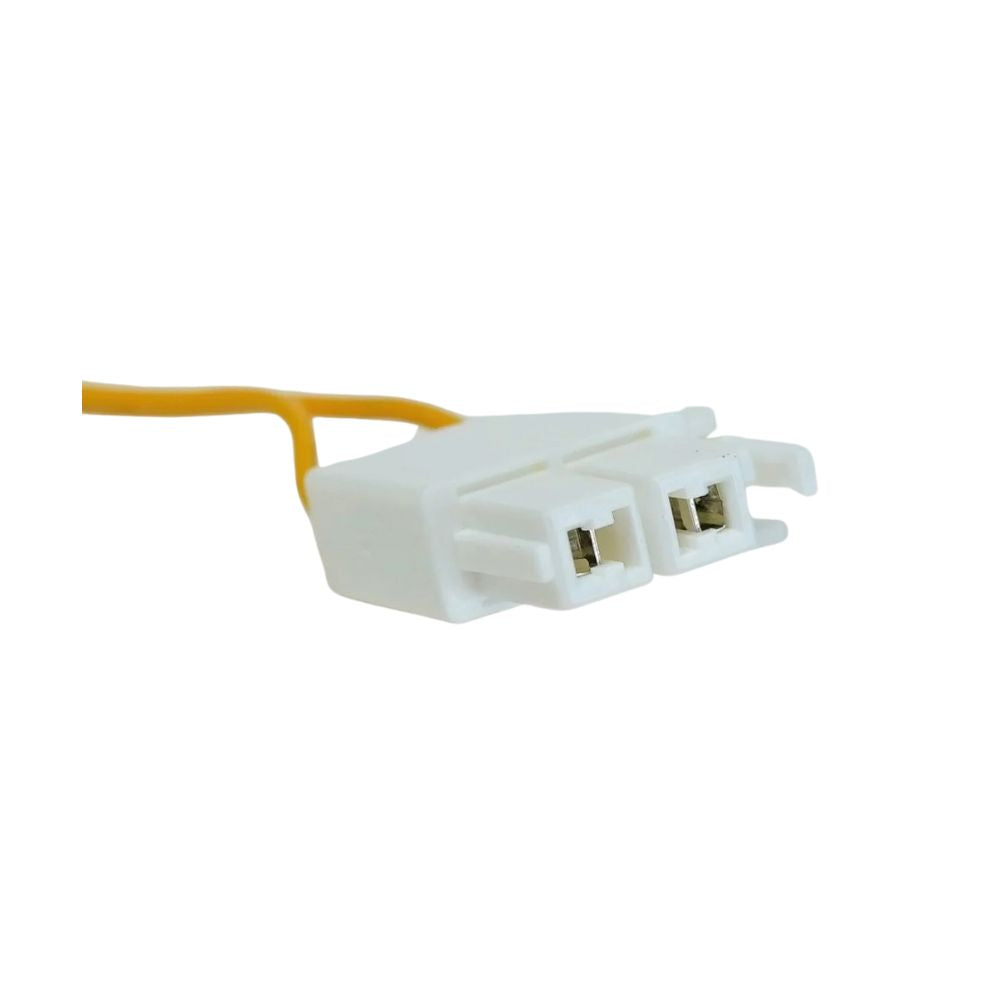

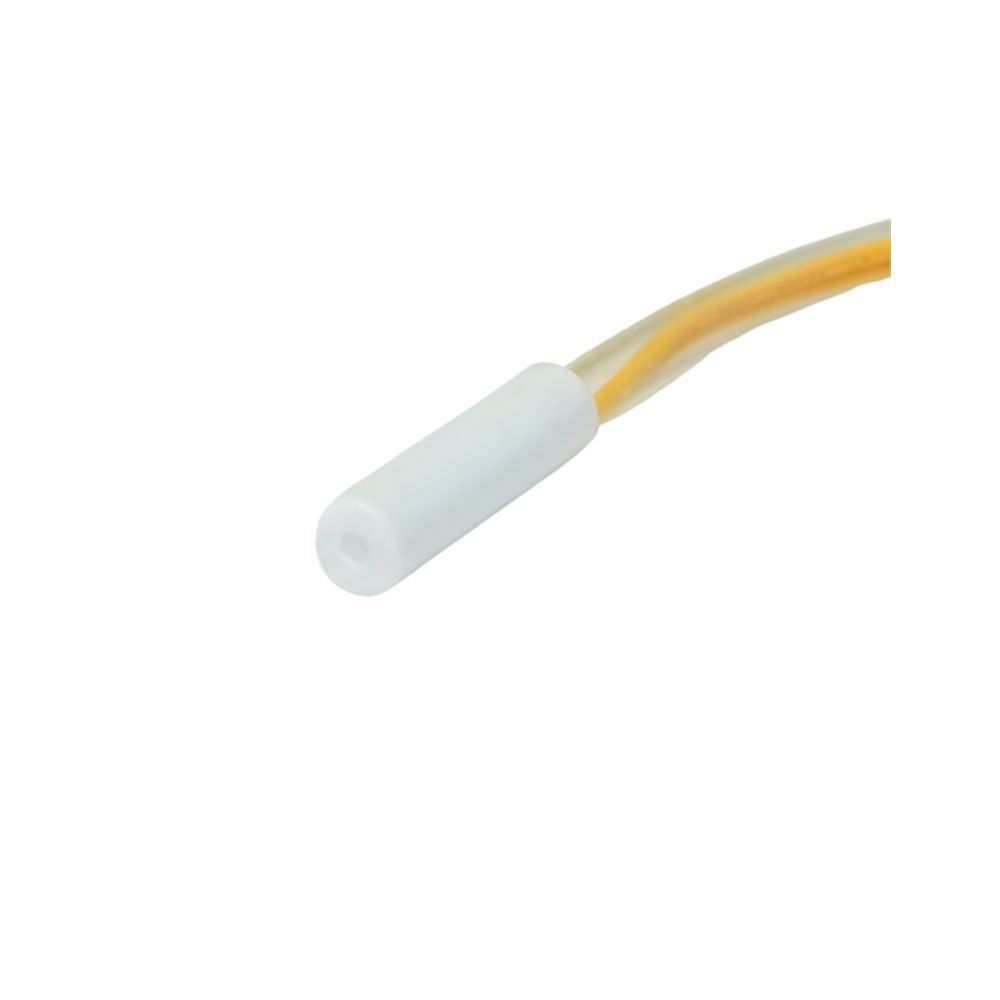

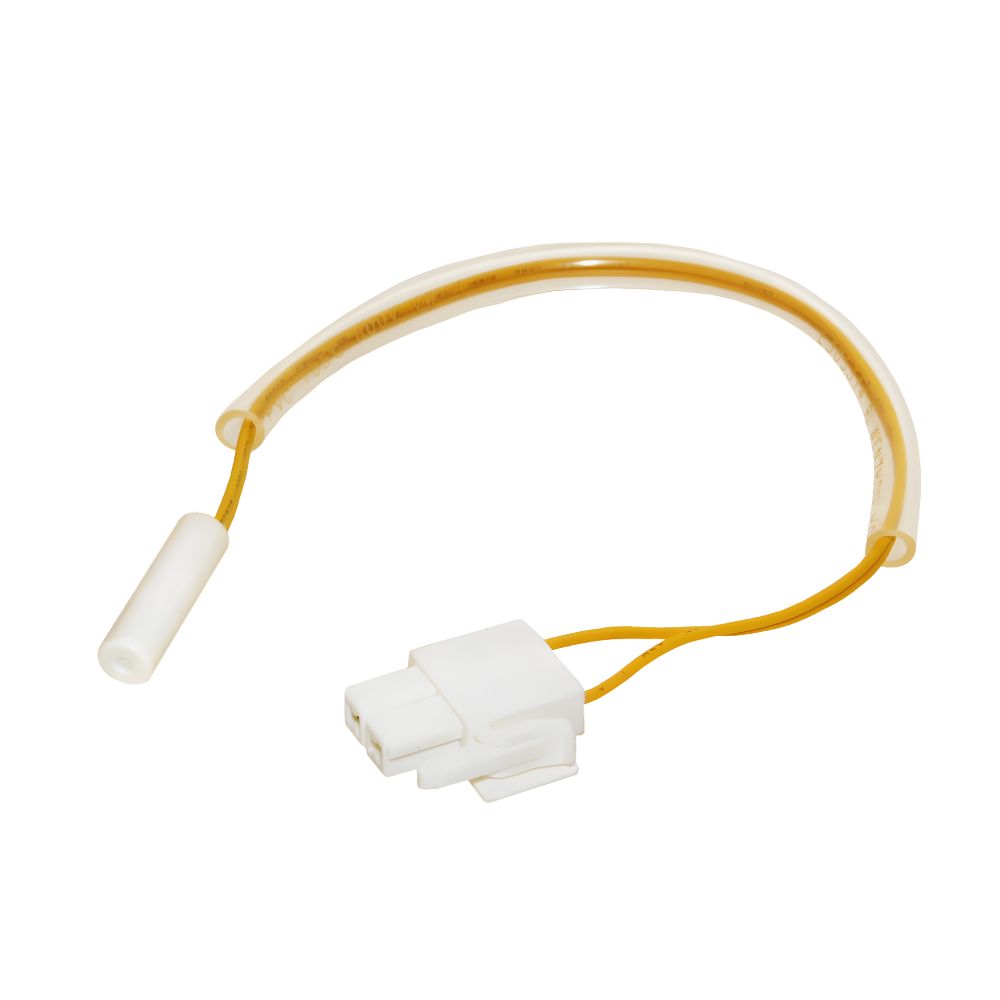

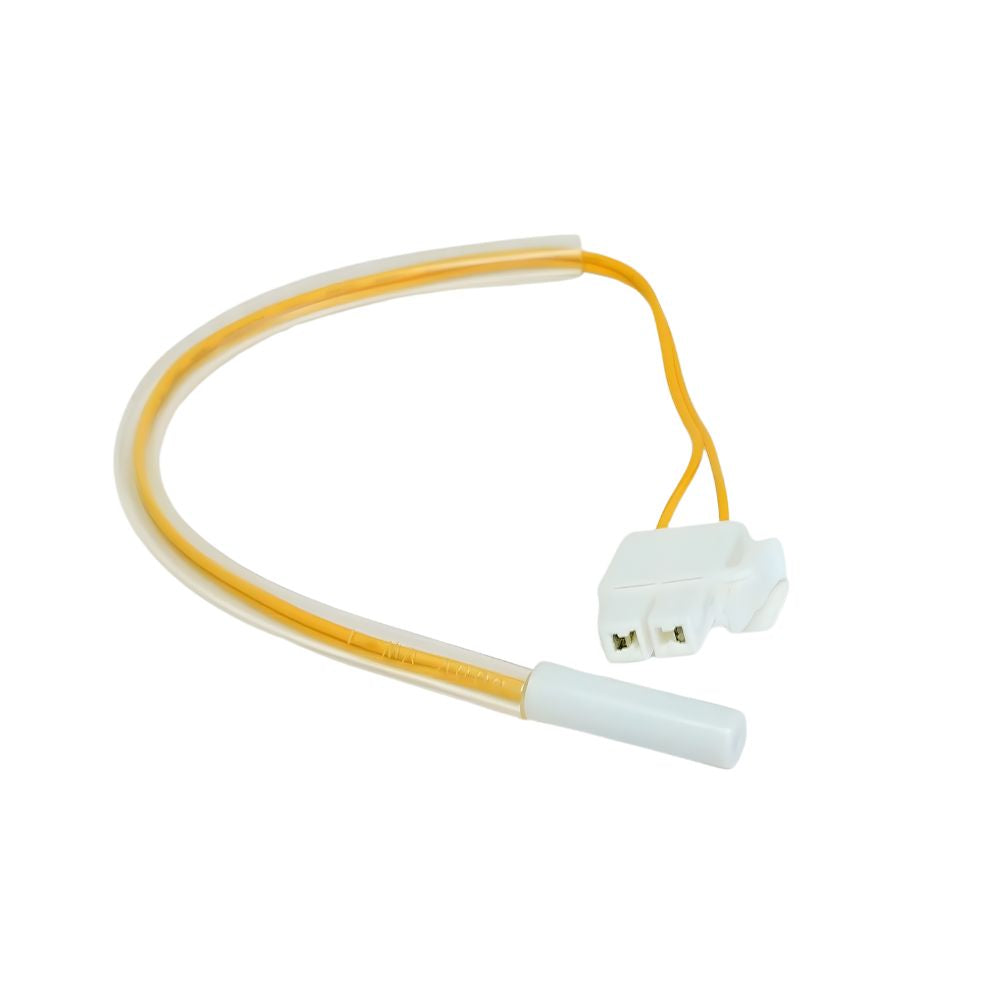

XPARTCO DA32-10104N Refrigerator Temperature Sensor
$15.00
$8.99
/ per
XPARTCO DA32-10104N Refrigerator Temperature Sensor
The XPARTCO DA32-10104N is an aftermarket replacement refrigerator temperature sensor (thermistor) compatible with select Samsung French door, side-by-side, and bottom freezer refrigerators. This sensor is mounted on or near the evaporator coil and continuously monitors the internal temperature of the refrigerator compartment, transmitting real-time readings to the electronic control board.
Based on the data received from the sensor, the control board regulates the compressor, evaporator fan motor, and defrost system to maintain the set temperature. When this sensor fails or drifts out of calibration, the control board receives inaccurate temperature readings — leading to a refrigerator that runs too cold, too warm, or triggers a 5E/SE error code. Features a 9-inch cord for easy installation and a sensitive thermal element with temperature detection accuracy of ±0.1°C.
Quick Answer
The XPARTCO DA32-10104N Refrigerator Temperature Sensor fixes refrigerators that are too warm, too cold, display a 5E/SE error code, or have inconsistent temperatures that spoil food. It monitors internal refrigerator temperature and sends data to the control board to regulate cooling. Compatible with select Samsung French door, side-by-side, and bottom freezer refrigerators.
Common Problems This Part Fixes
Refrigerator running too warm — food spoiling faster than normal
Refrigerator running too cold — food or drinks freezing in the fresh food section
5E or SE error code displayed on the control panel
Inconsistent or fluctuating temperatures inside the refrigerator
Compressor running continuously without reaching set temperature
Excessive frost or ice buildup on evaporator coils
Replaces Part Numbers
This sensor directly replaces the following OEM and cross-reference part numbers:
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This temperature sensor is compatible with select refrigerators from the following brands:
Samsung French door refrigerators
Samsung side-by-side refrigerators
Samsung bottom freezer refrigerators
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
Monitors internal refrigerator temperature and sends real-time data to the electronic control board
Fixes 5E/SE error codes caused by a faulty or out-of-calibration temperature sensor
Temperature detection accuracy of ±0.1°C for precise cooling control

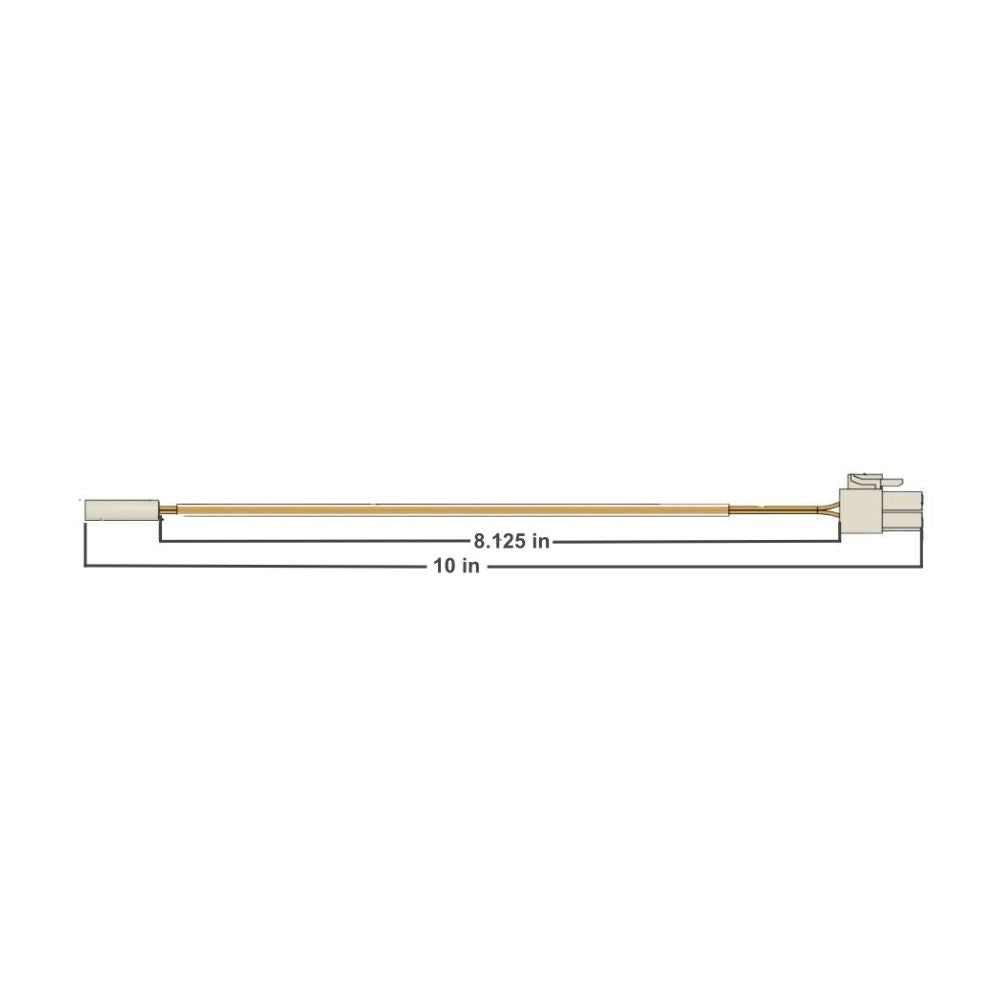

9-inch cord length for easy installation and connection to the control board
Aftermarket replacement built to OEM-equivalent quality standards
Direct drop-in replacement — no modification required
DIY-friendly repair — installs with basic hand tools in 30–45 minutes
Product Specifications
Part Number
DA32-10104N
Part Type
Refrigerator Temperature Sensor (Thermistor)
Condition
Aftermarket Replacement
Application
Refrigerator Temperature Control System
Cord Length
9 inches
Detection Accuracy
±0.1°C
Resistance at 70°F
~9.3K ohms
Resistance at 90°F
~7.7K ohms
Resistance at 100°F
~6.2K ohms
Resistance at 120°F
~4.3K ohms
Compatible Brands
Samsung
Installation Notes
⚠️ Safety First — Unplug Refrigerator Before Starting Unplug the refrigerator from the power source before beginning any repair. Safely remove and store any food that could deteriorate while the power is off. Wear work gloves to protect your hands. The DA32-10104N sensor is located near the evaporator coil, typically behind the rear panel inside the refrigerator or freezer compartment. Remove the panel, locate the sensor along the yellow wire, disconnect the old sensor from its plug, and connect the new sensor in the same position. Reassemble the panel and restore power. Allow 24 hours for the refrigerator to return to normal operating temperature. Tip: Before replacing, test the old sensor with a multimeter — resistance readings outside the values in the specs table above confirm a faulty sensor. Consult your refrigerator's service manual for model-specific instructions.
Frequently Asked Questions
Will the DA32-10104N fit my Samsung refrigerator?
This sensor is compatible with select Samsung French door, side-by-side, and bottom freezer refrigerators. Use the model search above to verify your model, or contact our support team before ordering.
What does the temperature sensor do?
The temperature sensor (thermistor) continuously monitors the internal temperature of the refrigerator and sends readings to the electronic control board. The control board uses this data to regulate the compressor, fans, and defrost system to maintain the set temperature. When the sensor fails or drifts out of range, the control board receives inaccurate data and cannot maintain proper cooling.
What are signs that my temperature sensor needs replacement?
Common signs include: the refrigerator running too warm or too cold, food spoiling faster than normal, a 5E or SE error code on the display, inconsistent temperatures, or the compressor running continuously without reaching the set temperature.
How do I test the DA32-10104N sensor before replacing it?
Use a multimeter to measure the resistance across the sensor terminals. At 70°F the reading should be approximately 9.3K ohms, at 90°F approximately 7.7K ohms, at 100°F approximately 6.2K ohms, and at 120°F approximately 4.3K ohms. Readings significantly outside these values indicate a faulty sensor that needs replacement.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Samsung OEM part, but is designed to deliver reliable, accurate temperature sensing at a more affordable price point.
